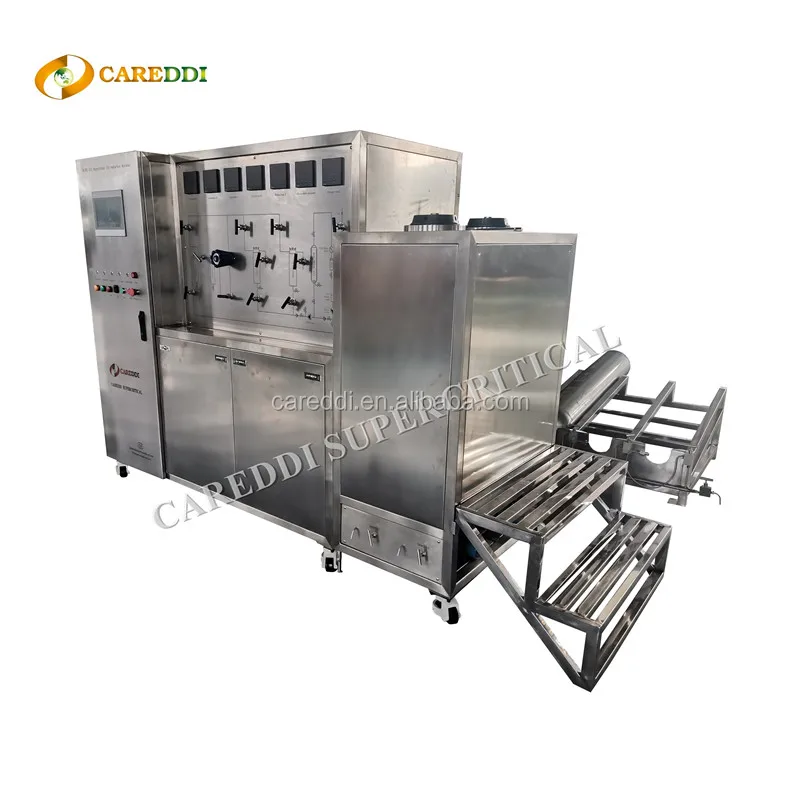

Easy to operate supercritical co2 extraction machine co2 extraction machine for cbd oil extraction machine
- Category: Extractor >>>
- Supplier: Careddi Technology Co. Ltd.
Share on (60678890150):
Product Overview
Description
Machine introduction
What does Careddi Supercritical CO2 Extraction System consist of？
Careddi Supercritical CO2 Extraction System (Careddi SCFE) is well designed for effective oil extraction and easily operation. It is a completely configured system consists of extraction vessels (extractors), separation vessels(separators), Operation front panel, High pressure CO2 Pump, Chilling system, heating system, Pressure regulator valve, Co-solvent pump, CO2 Storage tank，etc. The users can run the machine to produce essential oils only need to provide with electricity and CO2.
What materials can be extracted by supercritical co2 extraction machine?
Supercritical co2 extraction machine can be used for all water-insoluble substances.like cannabis or hemp, pepper, sea buckthorn seeds, ganoderma lucidum spore, arteannuin, bergamot, ageratum, common andrographis herb, houttuynia cordata, tobaco,eaglewood,etc.
Product Parameter
SN | Part Name | Qty | Specification | |
1 | Chiller | 1 | Temp 4℃—7℃ | |
2 | Main pump | 1 | Max flow 100L/H, pressure50MPA | |
3 | Extraction vessels | 2 | Volume 10L,pressure 40MPA | |
4 | Separation vessels | 2 | Volume 5L/2L,pressure 20MPA | |
5 | Operation panel | 1 | Including needle valves | |
6 | Pressure flow indicator | 7 | Monitor and display the flow of each vessel and pump | |
7 | Storage tank | 1 | Volume 10L,max pressure 16MPA | |
8 | Cooling water tank | 1 | Material stainless steel, including cooling coil | |
9 | Co-slovent pump | 1 | Max flow 4L/h | |
10 | All connecting pipes | 1 | Contains all co2 and water pipes and safety valves |
Standard Models
Company Profile
Successful Project
Packaging and shipping
Optional Models
5 Liter (Model 5L)
10 Liter (Model 5Lx2)
20 Liter (Model 10Lx2)
50 Liter (Model 25Lx2)
100 Liter (Model 50Lx2)
200 Liter (Model 150Lx2)
Customers who bought the product also bought
FAQ
Q:Is co2 extraction organic?
A:CO2 Botanical Extracts are completely natural and exceptionally pure. These highly concentrated plant extracts are free of solvent residues and impurities such as heavy metals. All CO2 Extracts are oil soluble.
Q:Why is co2 better than ethanol?
A:CO2 is highly tunable. With CO2 you can vary factors such as time, temperature, and pressure to create different
products.Ethanol products need to go into more stages of refinement to be turned into various products such as distillate.
Q:Does co2 extraction remove terpenes?
A:CO2 extraction is good for preserving terpenes because it is a cold separation process that can protect delicate plant
compounds.Some methods may also use ethanol to help remove terpenes before fully extracting cannabis buds.
Q:Is co2 extraction better?
A:CO2 extraction is also much better for the environment. CO2 gas is natural, so if it escapes into the air during extraction it won't do any harm. It can also be recycled, making this method much more sustainable. Since the solvent isn't toxic, people working with this extraction method don't face any health risks.
Q:Does supercritical co2 extraction kill mold?
A:A major benefit of supercritical co2 extraction is that the process kills any microbial bacteria, mold or mildew on the plant which guarantees the extract will be healthier for consumption. Supercritical co2 extraction is a gold standard when it comes to concentrating cannabinoids and terpenes.
Q:How does supercritical co2 extraction work?
A:To perform an extraction, the plant material must be ground and placed into an extraction vessel. CO2 gas undergoes high temperature and pressure. A pump then forces supercritical co2 into the extraction vessel where it meets the plant and breaks the trichomes allowing it to dissolve part of the plant material.
Q:How will you pack my order, can you provide installation services?
A:The package is Plywood box. We will assemble and test the machine before packaging.
Installation: We will send the English manual after you purchase. If the customer needs, we will send an engineer to assemble and train the workers. For $80 per person per day, food, accommodation.
Q:Can we conduct an extraction test before buying?
A:Yes, sure, we can do extraction test with your raw material and send you videos and pictures for your reference.
Q:Can the CO2 be reused?
A:YES. CO2 can be used in circulation.
Q:Can your machine meet our exactly need?
We have over30 years manufacturing experience in this line.Our strong technical support can generally operate stably for more than twenty years.Stable performance of our machine, used customers with a renewal rate of 95% or more.High cost performance of the machine, lower price for the same configuration, same performance.After-sales service can be done 7*24 hours, customer service+technical service, timely service in place, users will be assured.
Q:What's the Shipping Time if I place an order?
A:Generally it's 20-25 working days for order reaches 1 x 20' Container.
Q:How can I control the Quality of the goods?
A:Our QC term is professional to ensure our quality product and continuous marketing, your satisfaction is our power for
development. You can arrange the 3rd party inspection company for inspection, after production finished.
Q:Warranty of supercritical co2 extraction machine?
A:3 year warranty period for whole machine except of tubes and human factors etc, and 36-month of after-sale service from the date when you receive machine or 36 months when installation finished.
A:CO2 Botanical Extracts are completely natural and exceptionally pure. These highly concentrated plant extracts are free of solvent residues and impurities such as heavy metals. All CO2 Extracts are oil soluble.
Q:Why is co2 better than ethanol?
A:CO2 is highly tunable. With CO2 you can vary factors such as time, temperature, and pressure to create different
products.Ethanol products need to go into more stages of refinement to be turned into various products such as distillate.
Q:Does co2 extraction remove terpenes?
A:CO2 extraction is good for preserving terpenes because it is a cold separation process that can protect delicate plant
compounds.Some methods may also use ethanol to help remove terpenes before fully extracting cannabis buds.
Q:Is co2 extraction better?
A:CO2 extraction is also much better for the environment. CO2 gas is natural, so if it escapes into the air during extraction it won't do any harm. It can also be recycled, making this method much more sustainable. Since the solvent isn't toxic, people working with this extraction method don't face any health risks.
Q:Does supercritical co2 extraction kill mold?
A:A major benefit of supercritical co2 extraction is that the process kills any microbial bacteria, mold or mildew on the plant which guarantees the extract will be healthier for consumption. Supercritical co2 extraction is a gold standard when it comes to concentrating cannabinoids and terpenes.
Q:How does supercritical co2 extraction work?
A:To perform an extraction, the plant material must be ground and placed into an extraction vessel. CO2 gas undergoes high temperature and pressure. A pump then forces supercritical co2 into the extraction vessel where it meets the plant and breaks the trichomes allowing it to dissolve part of the plant material.
Q:How will you pack my order, can you provide installation services?
A:The package is Plywood box. We will assemble and test the machine before packaging.
Installation: We will send the English manual after you purchase. If the customer needs, we will send an engineer to assemble and train the workers. For $80 per person per day, food, accommodation.
Q:Can we conduct an extraction test before buying?
A:Yes, sure, we can do extraction test with your raw material and send you videos and pictures for your reference.
Q:Can the CO2 be reused?
A:YES. CO2 can be used in circulation.
Q:Can your machine meet our exactly need?
We have over30 years manufacturing experience in this line.Our strong technical support can generally operate stably for more than twenty years.Stable performance of our machine, used customers with a renewal rate of 95% or more.High cost performance of the machine, lower price for the same configuration, same performance.After-sales service can be done 7*24 hours, customer service+technical service, timely service in place, users will be assured.
Q:What's the Shipping Time if I place an order?
A:Generally it's 20-25 working days for order reaches 1 x 20' Container.
Q:How can I control the Quality of the goods?
A:Our QC term is professional to ensure our quality product and continuous marketing, your satisfaction is our power for
development. You can arrange the 3rd party inspection company for inspection, after production finished.
Q:Warranty of supercritical co2 extraction machine?
A:3 year warranty period for whole machine except of tubes and human factors etc, and 36-month of after-sale service from the date when you receive machine or 36 months when installation finished.
