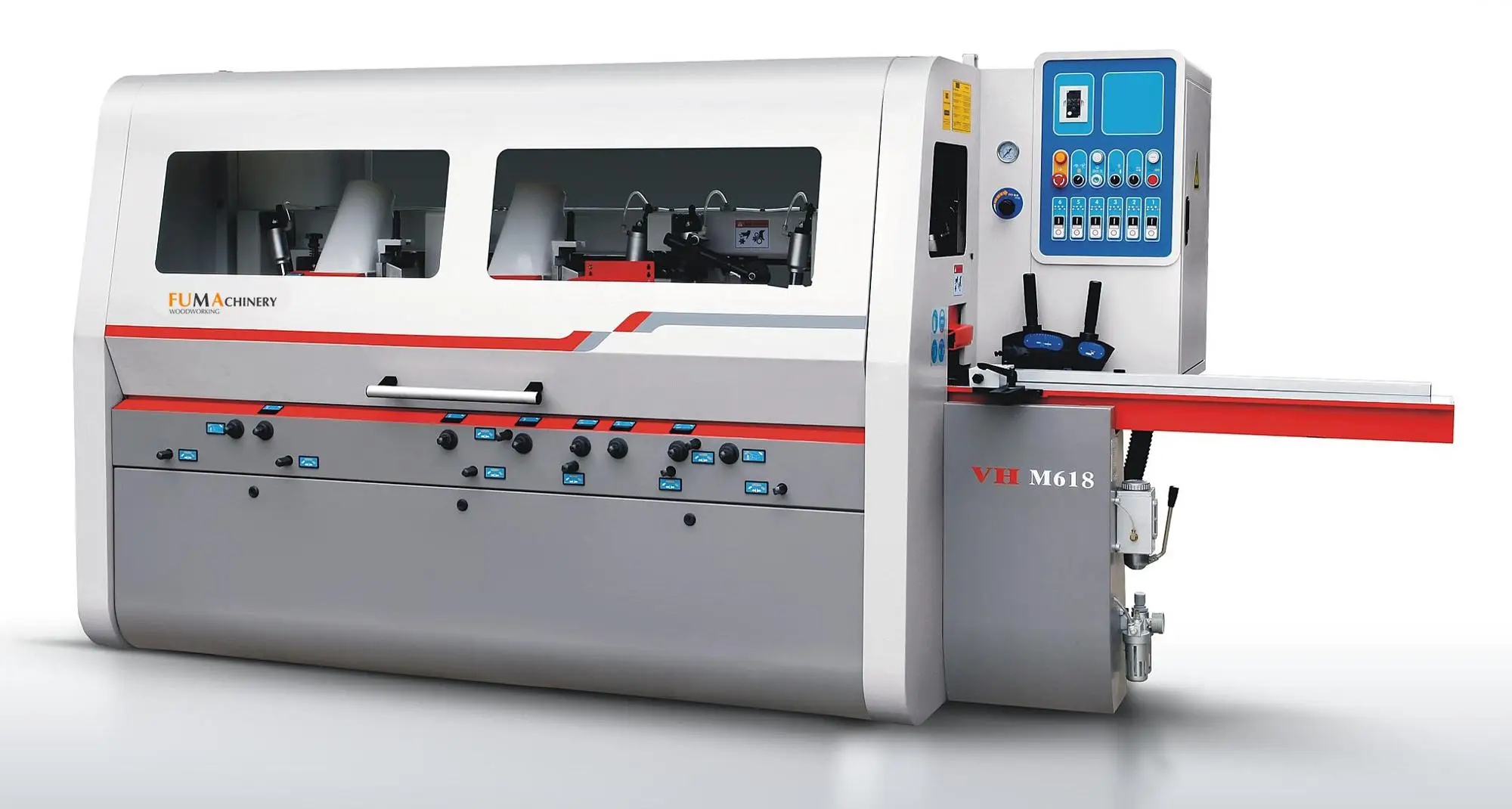

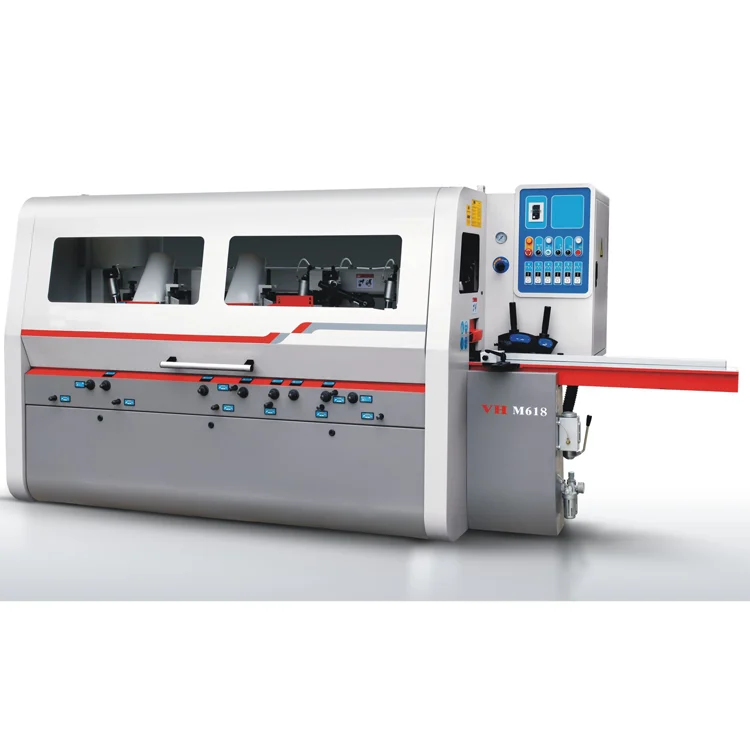

VH M618 Professional Heavy Duty Woodworking 50mm Spindle Full Automatic Four Side Planer Moulder

Product Overview

Description

VH-M618 Professional Heavy Duty Woodworking 50mm Spindle Full Automatic Four Side Planer Moulder



Professional solution for processing Soft wood strip, Medium cutting capacity strip,

MDF strip, HDF strip, Glued laminated timber and Square boards



Model		VH-M618	VH-M518	VH-M418

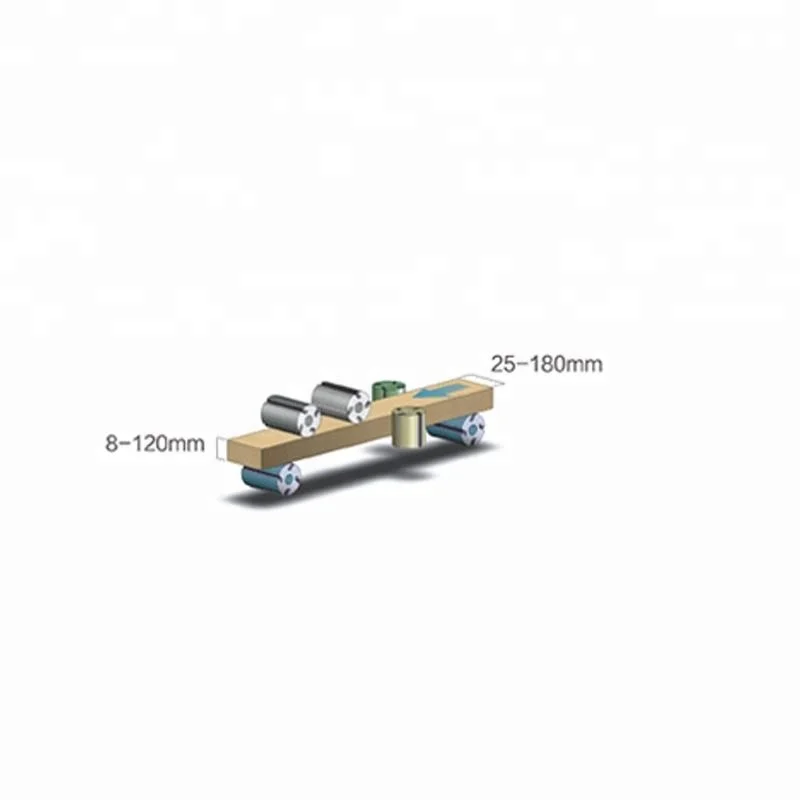

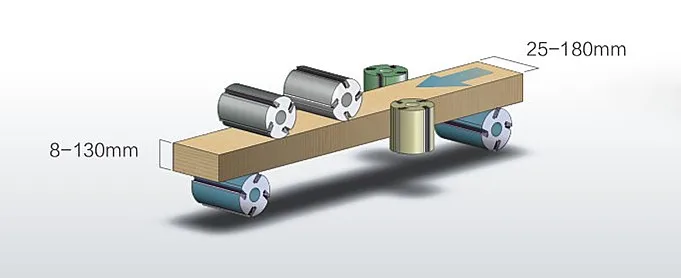

Specification	Working width	25-180	25-180	25-180
	Working thickness	8-130	8-130	8-130
	Working table length	1500	1500	1500
	Feeding speed	6-36	6-36	6-36
	Mian spindle diameter (mm)	Φ 40	Φ 40	Φ 40
	Main spindle revolution(r/min)	6500	6500	6500
	Air pressure (Mpa)	0.6	0.6	0.6
Motor power(KW)	1st LowerShaft	4kw/5.5HP	4kw/5.5HP	4kw/5.5HP
	Right vertical spindle	4kw/5.5HP	4kw/5.5HP	4kw/5.5HP
	Left vertical spindle	4kw/5.5HP	4kw/5.5HP	4kw/5.5HP
	1st UpperShaft	5.5kw/7.5HP	5.5kw/7.5HP	5.5kw/7.5HP
	2ndUpperShaft	4kw/5.5HP
	2ndLower Shaft	4kw/5.5HP	4kw/5.5HP
	Feeding beam lifting	0.55kw/0.75HP	0.55kw/0.75HP	0.55kw/0.75HP
	Feeding motor	3kw/4HP	3kw/4HP	3kw/4HP
	Total power	29.05kw/39.5HP	25.05kw/34HP	21.05kw/28.6HP
Cutter diameter	1st Lower Shaft	Φ 125	Φ 125	Φ 125
	Right Vertical spindle	Φ 125-Φ 160	Φ 125-Φ 160	Φ 125-Φ 160
	Left vertical spindle	Φ 125-Φ 160	Φ 125-Φ 160	Φ 125-Φ 160
	1st Upper Shaft	Φ 125-Φ 160	Φ 125-Φ 160	Φ 125-Φ 160
	2nd Upper Shaft	Φ 125-Φ 160
	2nd Lower Shaft	Φ 125-Φ 180	Φ 125-Φ 180
Remark	Feeding wheel diameter (mm)	Φ140	Φ140	Φ140
	Dust outlet diameter (mm)	Φ140	Φ140	Φ140







Our Customers:





Our Big Family:



















Warranty?



Mechanical parts one year,Electrical parts three months





Any aftersale support available?



Yes we have, Engineers available to service machinery overseas





Payment:



TT 30% advanced payment,70% balance remitted before shipment.







Shrink film,plywood case packing will have extra cost.























Shanghai FumaWoodworking Machinery & Equipment Co., LTD is specialized in making woodworking machine,and also run as an agent for various brands and their plentiful models, so we can give you the most professional service with a competitive price. If you have interest in our production, please let me know.
