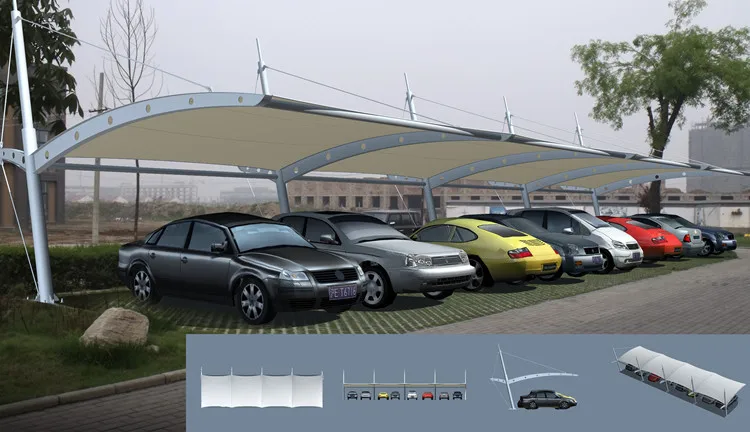

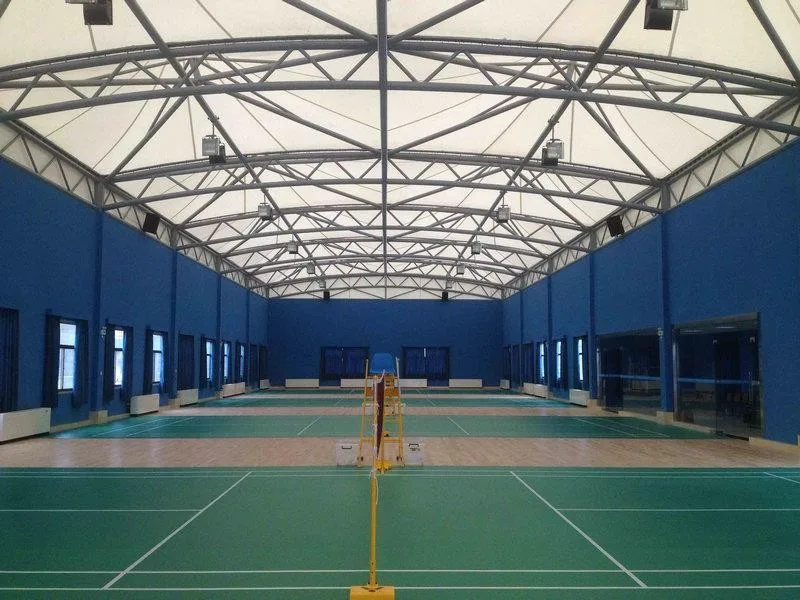

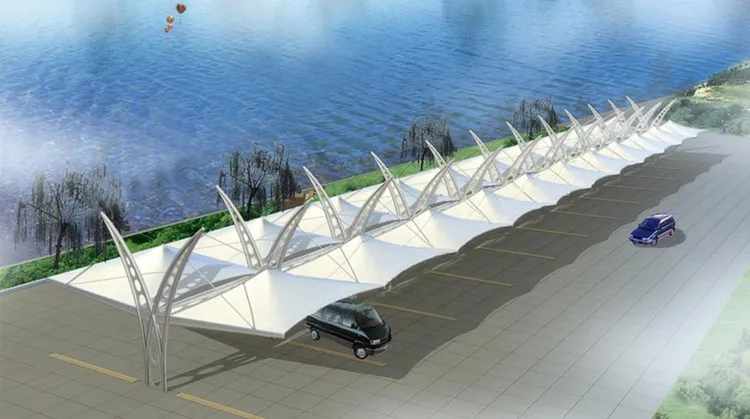

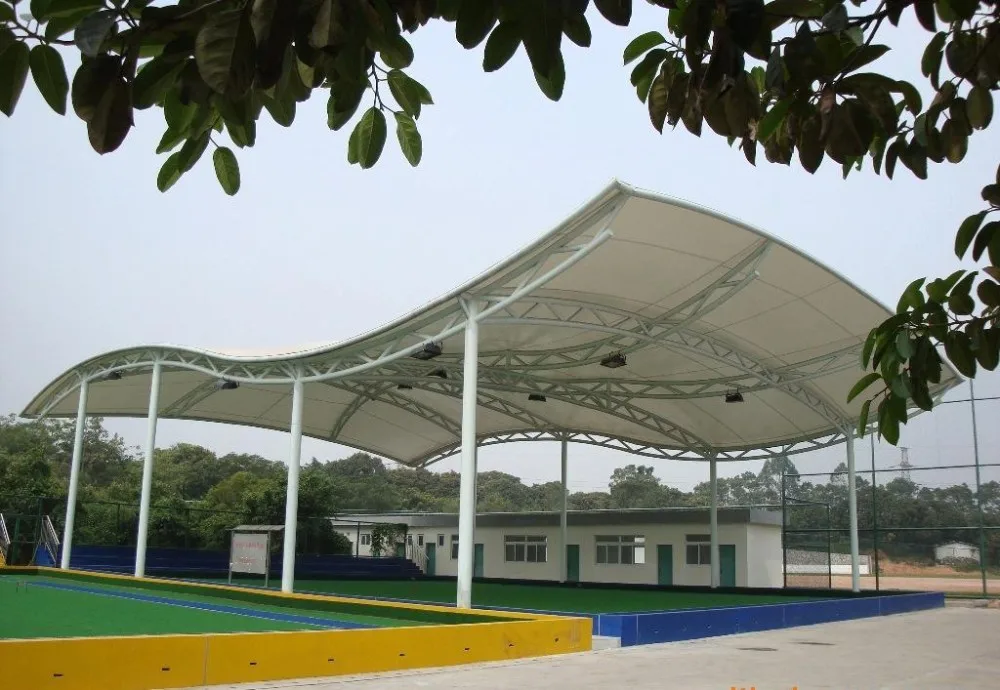

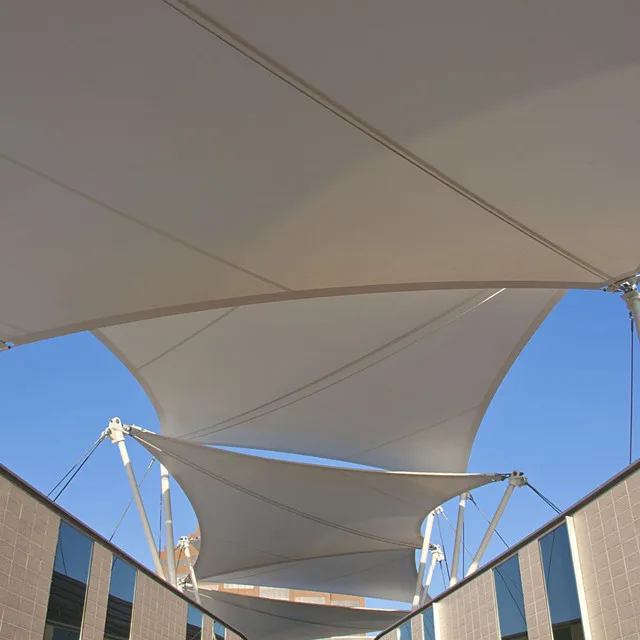

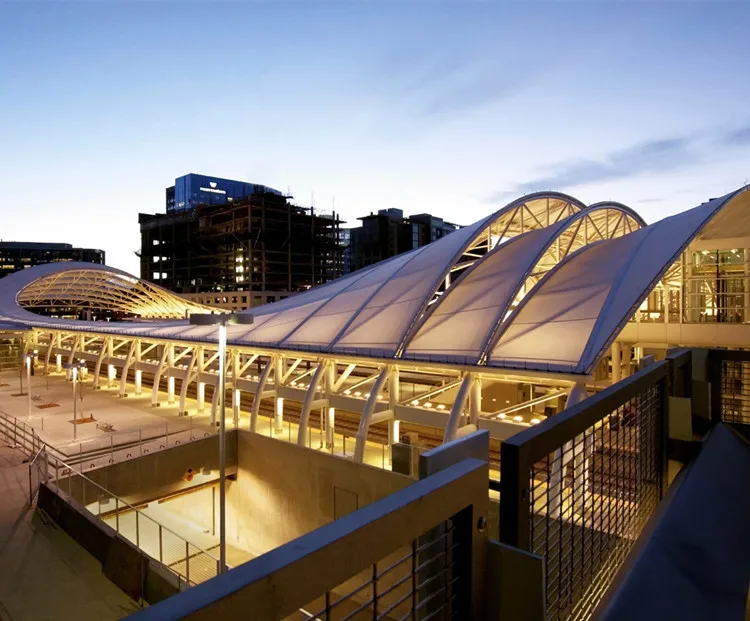

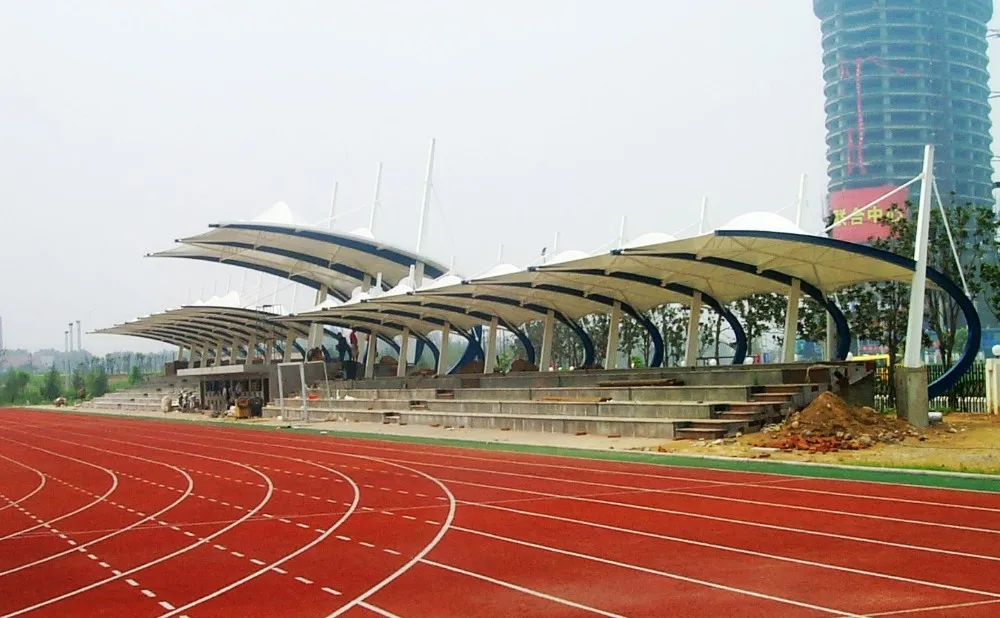

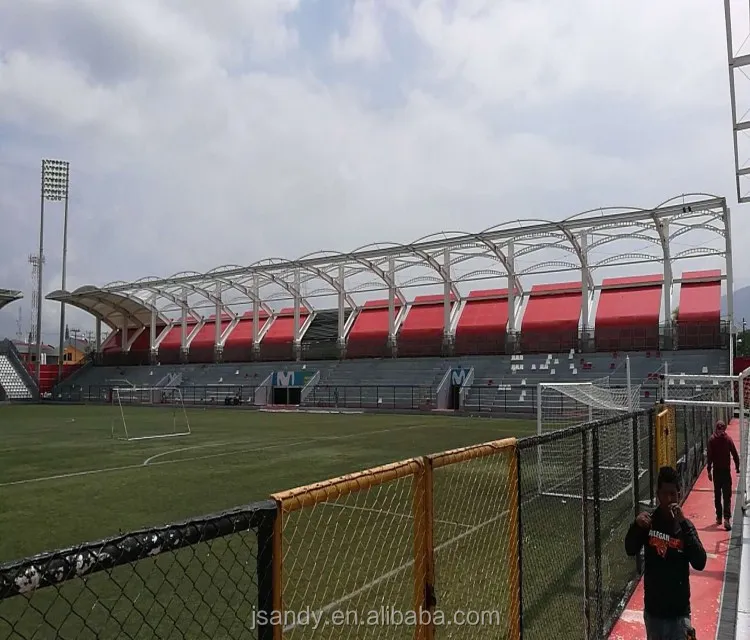

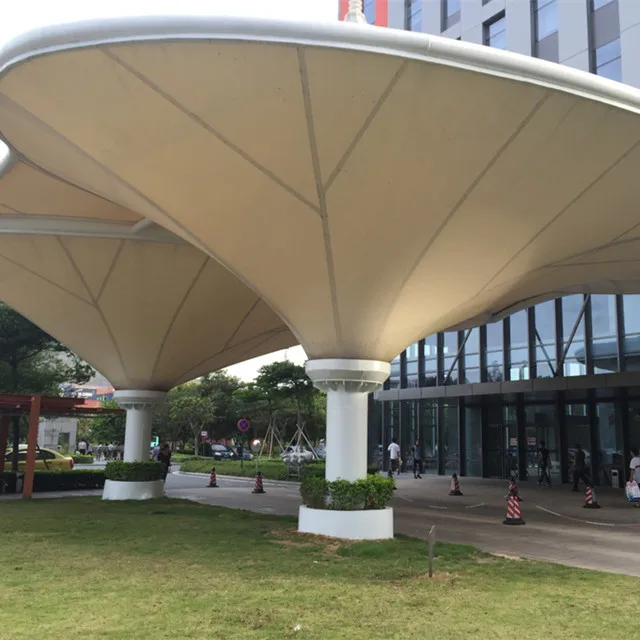

Modern Design Metal Structure with Membrane Roofing for Shed

Price:RUB 1,533.51 - RUB 7,667.53

Quantity:

Product Description

Hot Sale!Modern Design Metal Structure with Membrane Roofing for Shed

Brand name	Andy
Model	1.Single slope, Double slope, Multi-slope.
Model	2.Single span, Double-span, Multi-span, Single floor, Double floors.
Column and beam	1.Material Q345(S355JR)or Q235(S235JR) steel.
	2.All bolts connecting.
	3.Straight cross-section or Variable cross-section.
Fabrication	Advanced Automatic Welding Machines
Quality control	GB/T19001-2000----ISO9001:2000
Surface	Hot-dip galvanized or painted
Roof and wall panel	1.EPS ,PU ,Rockwool sandwich panel.
	2.Single colorful corrugated steel sheet0.326~0.8mm thick, YX28-205-820(820mm wide).
	3.Sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, 950mm or 960mm width.
Carrying capacity	1.Resisting winds and seismic impacts.
Carrying capacity	2.Bearing heavy snows.
Drawing	1.Making the design and quotation according to your requirements very soon.
	2.Making the quotation according to your drawings.
	3.Giving you the satisfying opinion to your project.

ⅡQuality standard

1.Certificate: ISO9001:2000

2.Code for design of steel structure: GB 50017-2003

3.Technical code of cold-formed thin-wall steel structure: GB50018-2002

4.Load code for the design of building structures. GB 50009-2006

5.Construction quality acceptance of steel: GB50205-2001

6.Code for design, construction and acceptance of high strength for steel structure, JGJ82-2011

7.Technical specification for welding of steel structure building: JGJ 81-2002

8.Technical specification for steel Structures of tall buildings: (JGJ99-98)

Ⅲ. Structure Assembly

1.Steel Framework:

Component: H-Column, H-Beam & C/Z-Purlin

Connection of steel structure method: Welding, Bolted

2.Surface treatment: Painting, Galvanized

3.Roof &Wall: colored steel tiles or colored steel sandwich panel as per request

4.Doors: Rolling or Pushing, as reques.

Comparison between different membrane structure material

Item	ETFE	PTFE	PVDF	Environmental project
Application environment	High requirement such as air terminal	High requirement such as air terminal	Common or special requirement	sewage lagoon
Base fabric	ethylene-tetrafluoro-ethylene	glass fibre	PVC	PVC
Coating layer	No	PTFE	PVDF	Aging-resistant and
Coating layer	No	PTFE	PVDF	anti-corrosion
Self-clean	Very good	Very good	Good	Good
Light transmittance	95%	6-15%	5-20%	5-15%
Life time	20+ years	30+ years	15-25 years	15-25 years
Tensile strength	1000-1500N	4000-9000N	3000-8000N	3000-8000N
Fireproof	B1	A2	B1	B1
Transport	Unfolded	Unfolded	Foldable	Foldable
Process	Hard	Hard	Easy	Easy
Installation	air pillow	Second time tensile	One time tensile	One time tensile
Price	High	High	Common	Common
