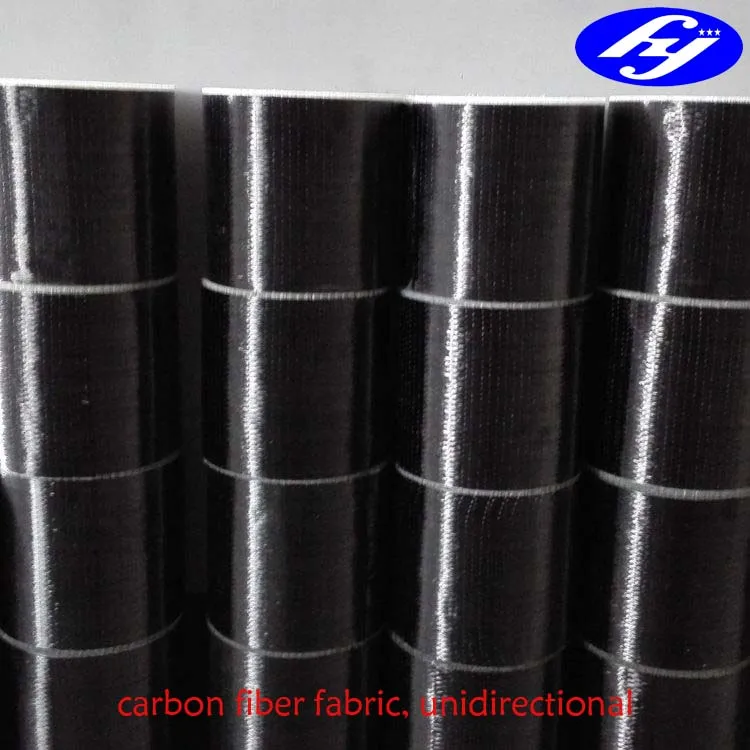

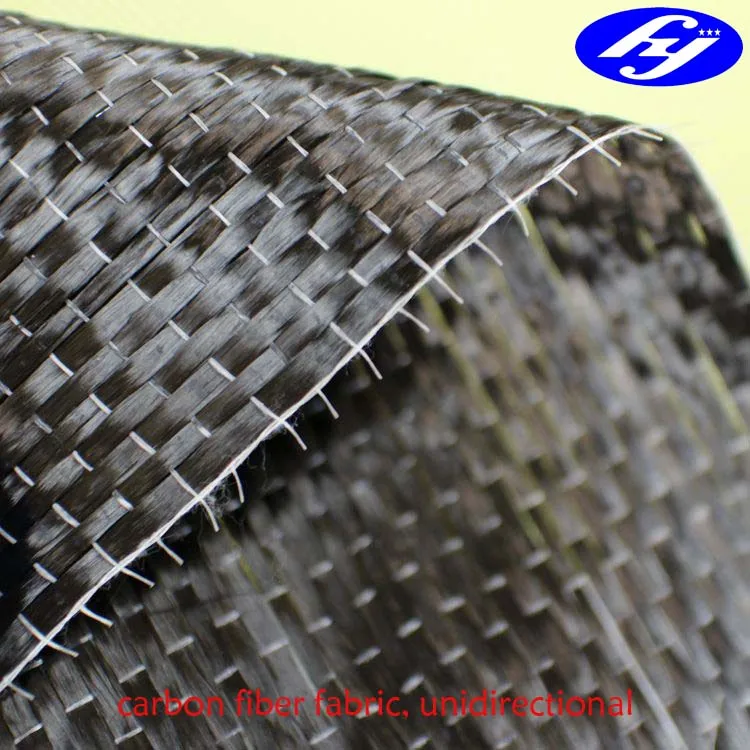

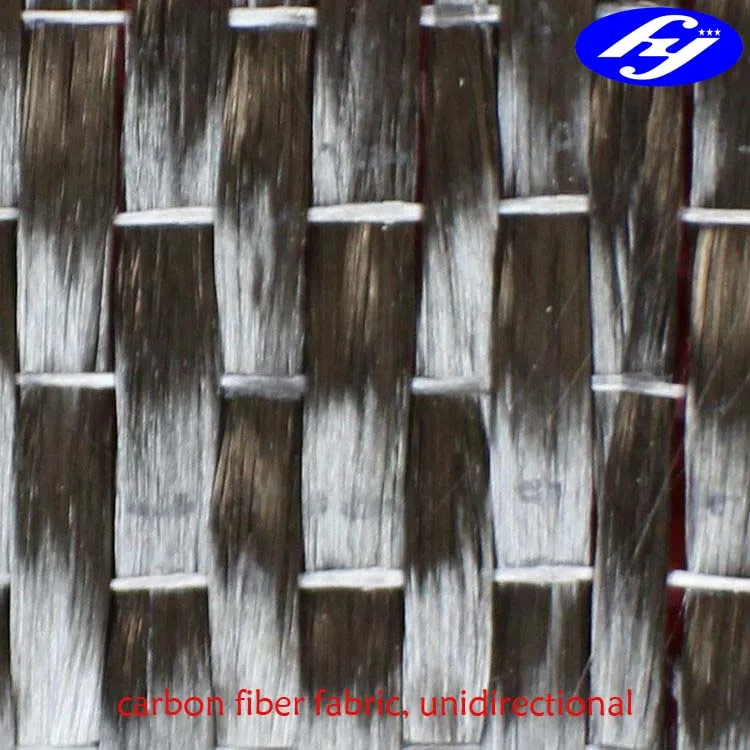

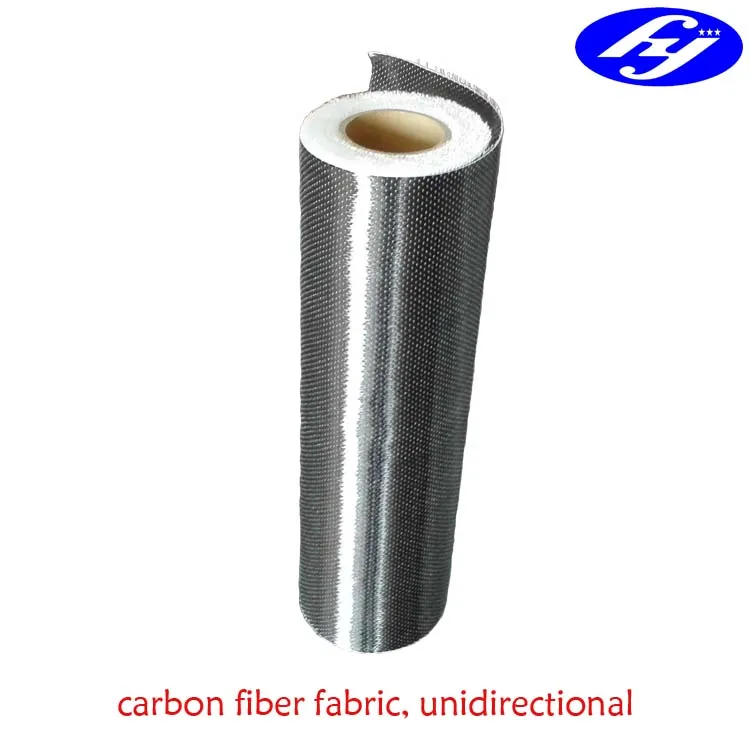

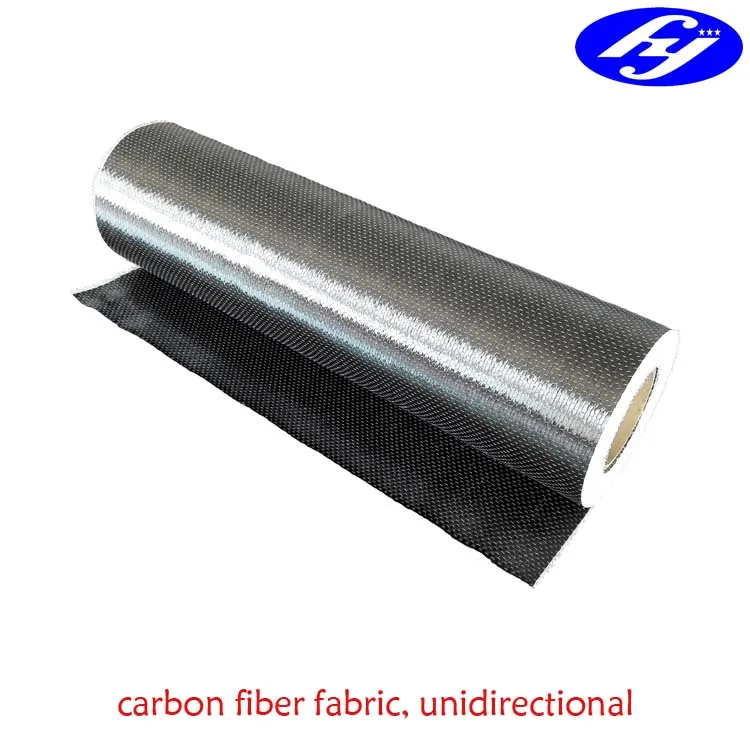

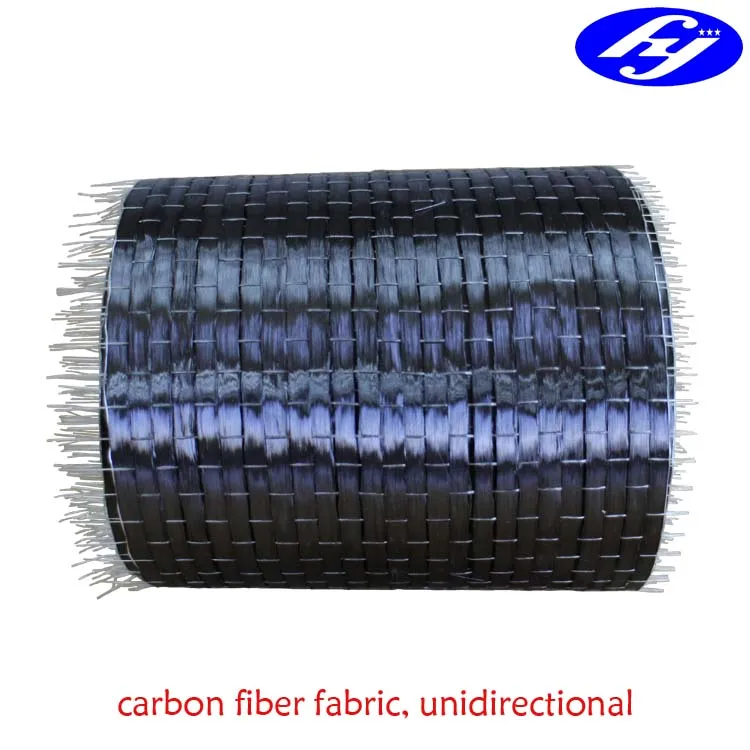

200g/m2 12K unidirectional carbon fiber fabric/cloth/roll

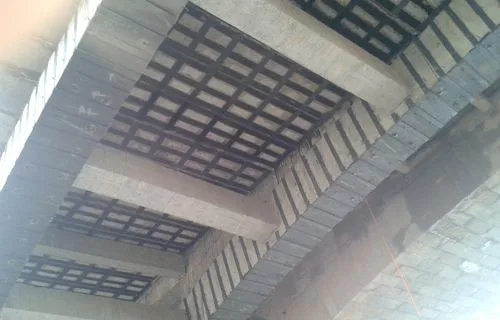

Unidirectional carbon fiber fabric is woven by shuttle loom with carbon fiber filament. Because of the outstanding features carbon fiber, unidirectional carbon fiber fabric is widely used in indurstry for building reinforcements.

Advantages:

--- Low density with high tensile strength and high modulus

--- Extra high temperature resistanceunder non-oxidizing environment

--- Excellent electrical and thermal conductivity

--- Good fatigue resistance, abrasion resistance and corrosion resistance

--- Good electromagnetic shielding and X-ray permeability

--- Insoluble and non-swelling in the organic solvent, acid, alkali

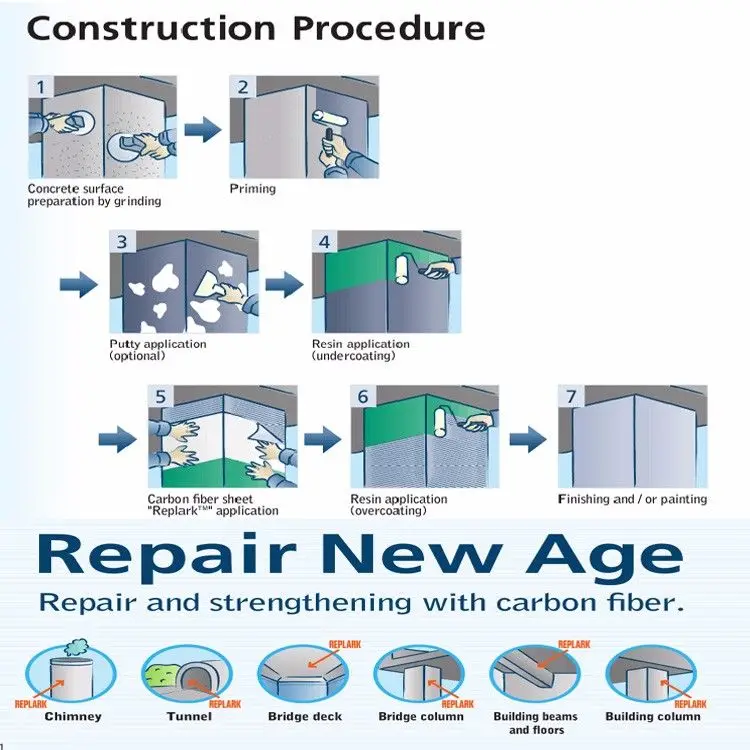

steps of unidirectional carbon fiber farbic project operation:
concrete surface preparation, crack repair, leak stop, get rid of the aged, loose concrete part

brush primer (0.2-0.4kg/m2)
base surface preparation( putty 1.0-1.5kg/m2)
brush epoxy resin on the surface(0.4-0.5kg/m2)

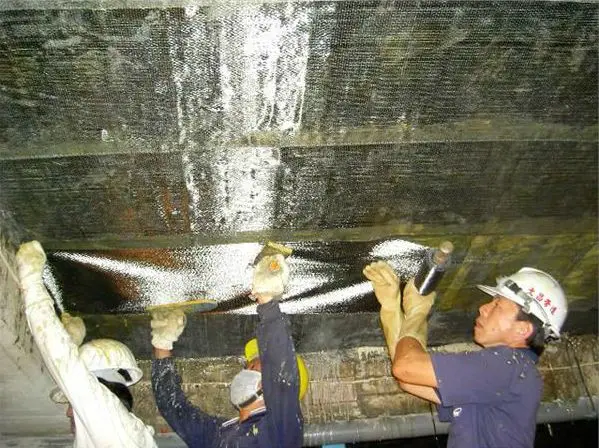

stick the carbon fiber fabric onto structure
saturate the fabric by brushing epoxy resin along the fabric, ensure that there is no bubble existing in the composite matrix( very crucial) 0.1-0.2kg/m2
if more following carbon fiber fabric layer, brush 4-6times each layer
FRP wrap operation is completed, however, keep the structure from any impact during the following 24hrs

• Over 8 years rich experiances in the field of

                    carbon/aramid/UHMWPE fibers and relative products;

• Having over 50 firm&faithful suppliers

                     which offer good prices and stable good quality;

• Providing constructive suggestions on

                     the products to client and help them to find a total solution.

We supply competitive price, high quanlity and satisfied service!

You will find we are the right supplier you are looking for!

Q1: Can I have a sample order?

A: Yes, you are welcome place a sample order to test and check quality your side before you place the bulk order. Mixed samples are also acceptable. Please let us know your courier account number to deliver it freight collected.

Q2: What is the lead time of an order?

A: For our standard product, sample order only needs 1-3 days, mass production usual needs 10-15 days but it’s according to the order quantity.

Q3: Do you have any MOQ limit?

A: Yes, we have different MOQ limit according to the type of product you want, but usually MOQ is small.

Q4: Can you accept mixed batch of different products?

A: Yes, we support different products mixed.

Q5: How do you ship the goods?

A: We can ship the goods by sea, air, train or courier.

Q6: Can you pack the goods on pallet or in crate?

A: Yes, we can provide such kind of package to facilitate loading and unloading the goods by forklift.

Q7: Can you print our logo on the outer package?

A: Yes, we can, but it’s only for big order, for small order, we just print it on the paper and paste it on the package.

Q8: Can we visit your company and factory?

A: Yes, you are welcome, if you need the airport pick up and hotel reservation, please let us know once you decide the itinerary.

Q9: What is your payment terms?

A: As usual, you are suggested to send the payment by t.t, 100% t.t in advance for order value less than $5000, for bigger order, it’s 30% deposit and 70% t.t against B/L copy.
