AL S PP Spunbond Nonwoven Fabric Making Machine For Shopping Bag Wall Paper Clothes Cover one time used production machinery

Material: PP chips
Fabric usage: Medical applicant,shopping bag,packing

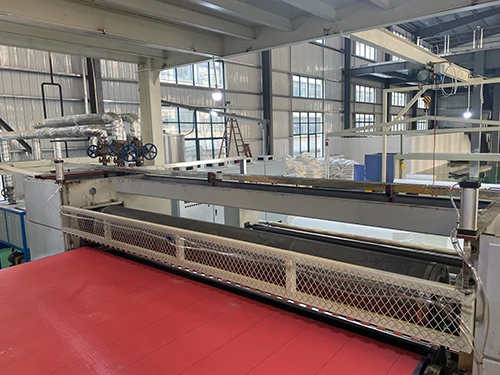

The line is application for PP chips as raw materials input, undergoes the process of extrusion, spinning, quenching, closure air stretching, web formation, calendaring, winding and cutting as per requirements and then packed for storage and delivery.

● The whole line is well-structured and easy to operate.
● The whole line highly automated.
● Control elements are of well-known make, high performance and reliable technologies.
● The whole line are controlled by PLC and operated with touch-screen.
● The allocation of the main frame and auxiliary equipment can be special designed and configurated according to customer's  requirements.

Packing and Linning: Bags for shopping and gift packet,  dust cover, sleeping bags for children, leather shoes, luggage, household decoration, water proof material, filtration material, fabric for roadbed and dam etc.
Medical and Health: Operation suit, exposure suit, cap, mask, massage cloth, adhesive tape.
Agricultural: Cover for plant to anti-frost, insect-resistant sunshades, awning clothes, packing bags for crops, etc.

Raw Material(Edge Material Recycling) - Extruder - Filter - Metering Pump - Spinning Box - Cooling Air Drawing( Up&Down Strenching Device ) - Web Forming Machine - Calender - Winding and Slitting Machine -Finished Products

Name: Extruder
Diameter: φ130mm for 1.6m,
                  φ170mm for 3.2m
                   L/D=30:1
Max speed: 75r/min for 1.6m,
                     85r/min for 3.2m
Motor: 90KW for 1.6m,
             132KW for 3.2m

Name:  Filter
Type: hydraulic or candle filter
Filtration precision: 45μm-60μm
Filtration area: 2.5㎡ for 1.6m
                          3.5㎡ for 3.2m
Max pressure: 12Mpa for 1.6m
                          16Mpa for 3.2m
Heat source: heat-transfer oil circular heating

Name: Metering Pump
Supply speed: 200cc for 1.6m
                        200ccx2 for 3.2m

Rotate speed: 5~35r/min
Max pressure: 35MPa
Temperature: ≤300℃

Name: Spinning Box
Orifice number: 11019 for 1.6m,
                           17651 for 3.2m
Orifice diameter: φ0.45mm
                              L/D=4:1
Max temperature: 300℃

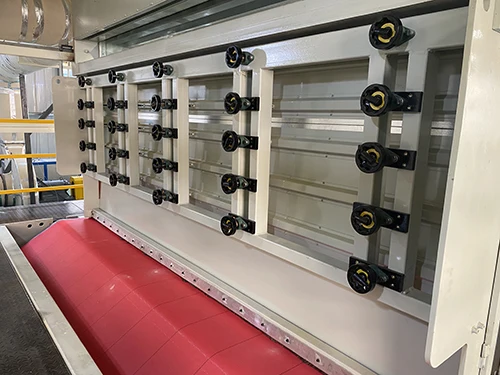

Name: Web Forming Machine
Speed: 10-150m/min for S type,
             10-300m/min for SS/SMS type
Max air passing through: 10000m³/㎡h
Max negative pressure: 500Pa
Temperature near the web: 20-30℃
Motor: 7.5KW for 1.6m,
             15KW for 3.2m

Name: Calender
Roller width: 2000mm for 1.6m,
                       3600mm for 3.2m
Roller diameter: φ420mm-520mm
Roller pressure: ≤150kg/c㎡
Calender material: 42CrMo
Speed: 10-150m/min for S type
             10-300m/min for SS/SMS type

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

A. How I get right Machine for me , If I have no ideal about the machine ?
B: It doesn't matter. Tell me what kind of fabric that you want  the machine , how much you want to produce  and factory szie etc. We will design for you.

A.I already have  one factory but there is a little of different  in the size ,For example  the height  can't meet the 13m , only 12m?
B:Don't worry. Your machine will be customized.

A How to make sure your machine's quality?how about the service?
B: Each machine gets ISO9001:2008,CE, SGS. And warranty is one year. you can enjoy the service  within production lifetime.
