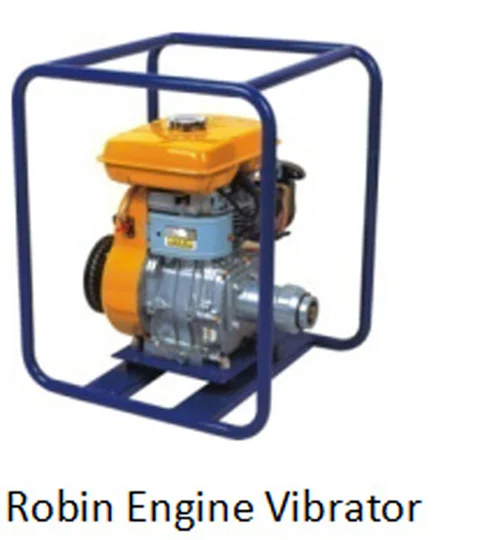

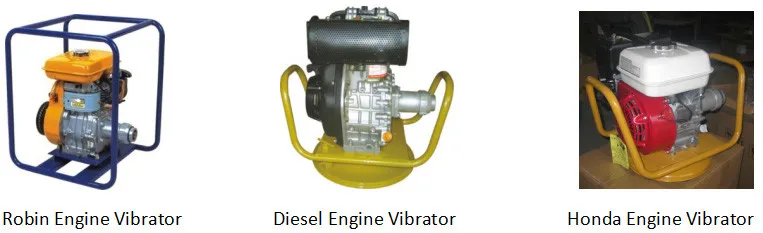

Description Internal concrete vibrators use the pendulum principle. 3,000rpm of the drive unit translates via the flexible shaft into 12, 000 vibrations per minute in the poker head. The low output speed ensures high reliability and extended service life. It can be used between two types of drive units (interchangeable): electrical motor and petrol or diesel engine drive units series, with 7 standard poker diameters. The vibrator poker is top of the range poker head suitable for professional application.
JK serials vibrator poker 4~12m length, Bar diameter 28mm, 32mm, 38mm, 45mm, 50mm, 60mm, 70mm
Features 1. stable operation 2. good mechanical performance 3. band pressing design, easy to mend the poker 4. good anti-wear performance
JK-SERIES Inserting Pendulum Vibrator Poker
Model
Vibrating Head Size
Vibration (V.P.M)
Vibration Amplitude (mm)

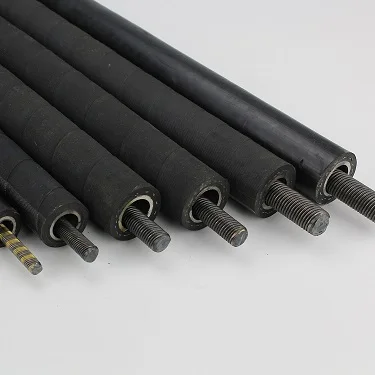

Flexible Shaft Diameter
Rubber Hose Diameter and Length
JK-28
28mmx47cm
10,000~15,000
0.9
8mm
JK-32
32mmx47cm
1.1
10mm
30mmx4m~6m
JK-38
38mmx47cm
1.6
10mm
30mmx4m~6m
JK-45
45mmx47cm
2.0
10mm
30mmx4m~6m
JK-50
50mmx47cm
2.2
13mm
32mmx4m~6m
JK-60
60mmx47cm
9,000~12,000
2.4
13mm
32mmx4m~6m
JK-70
70mmx47cm
2.6
13mm
36mmx4m~6m
Concrete Vibrator Driven unit- electrical vibrator motor
