500kg/h PP PE Waste Plastic Film Recycling and Granulating Machine
- Category: Plastic Granulators >>>
- Supplier: Zhangjiagang MC Machinery Co. Ltd.
Share on (60679239784):
Product Overview
Description
Product Description
Product Application
500kg/h PP PE Waste Plastic Film Recycling and Granulating Machine is mainly used for recycling and granualting waste PP PE film,woven bags,shopping bags,agriculture film into standard 3mm*3mm plastic granules.
Process Flow
Belt Conveyor---ZL500 Plastic Fil Agglomerator---SJ150/30 Single screw Extruder---Hydraulic Screen Charger---SJ150/10 Single Screw Extruder---Hydraulic Screen Charger---Water ring Pelletizing Device---Dewatering Machine---Vibrating Machine---Blower and Storage Hopper
Machine Type | Main Motor Power | Capacity |
SJ90 | 55KW | 150-200kg/h |
SJ100 | 75KW | 180-250kg/h |
SJ120 | 90KW | 200-300kg/h |
SJ150 | 110KW | 300-400kg/h |
SJ180 | 132KW | 400-500kg/h |
SJ200 | 160KW | 500-600kg/h |
Main Features
1)Extruder screw and barrel from Zhoushan,good quality with long life time.
2) Gearbox: From Jiangyin gearbox company,very famous brand in China,with nice outline, stable running, low noise and long service time.
3) Heating system: adopting cast aluminum heaters with stainless steel plate covers, wind fan cooling system, ensuring good features of cooling and heating, precision temperature controlling.
4) Driving system: adopting Siemens motor, using ABB inverter which provide stable torque output and various speed.
5) Hydraulic screen charger is double working station,non stop charging when machine working.
6) Dewatering machine main part is made by stainless steel
7) Vibrating machine main part is made by stainless steel
2) Gearbox: From Jiangyin gearbox company,very famous brand in China,with nice outline, stable running, low noise and long service time.
3) Heating system: adopting cast aluminum heaters with stainless steel plate covers, wind fan cooling system, ensuring good features of cooling and heating, precision temperature controlling.
4) Driving system: adopting Siemens motor, using ABB inverter which provide stable torque output and various speed.
5) Hydraulic screen charger is double working station,non stop charging when machine working.
6) Dewatering machine main part is made by stainless steel
7) Vibrating machine main part is made by stainless steel
Main Machine List
No. | Machine Name | Quantity |
1 | Belt Conveyor | 1 SET |
2 | ZL-800 Plastic Film Agglomerator | 1 SET |
3 | SJ200/30 Single Screw Extruder | 1 SET |
4 | SJ200/10 Single Screw Extruder (According to raw material,then decide if really need) | 1 SET |
5 | Hydraulic Screen Charger(Double Station,control two extruders) | 1 SET |
6 | Water Ring Pelletizing Device | 1 SET |
7 | Dewatering Machine | 1 SET |
8 | Vibrating Machine | 1 SET |
9 | Blower and Storage Hopper | 1 SET |
Detailed Images
Machine Parts
Name: Belt Conveyor
Brand: MC
Original: China
1)Belt effective conveying length:5 meter
2)Effective conveying width:600mm
Main Features

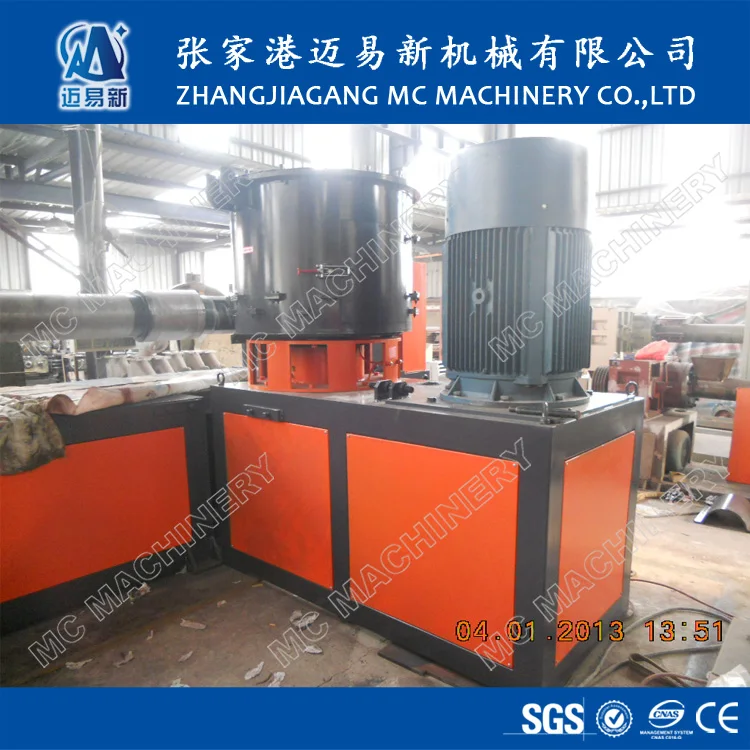

Name: ZL-800 Plastic Film Agglomerator
Brand: MC
Original: China
1)Total volume:800Liter
2)Main motor power:90KW
3)Fixed knife:16 pieces
4)Rotary Knife:12 pieces
Machine Parts
Name: SJ200/30 Single Screw Extruder
Brand: MC
Original: MC
1)Screw and barrel are all from Zhoushan
2)With vacuum gas exhausing device,make final granule quality much better.
3)Inverter:ABB
4)Motor power:160KW
5)Electric contactor:Siemens
6)Temperature controller:Japan OMRON
Main Machine Part
Name: SJ200/10 Single Screw Extruder
Brand: MC
Original: China
1)Screw and barrel are all from Zhoushan
2)Inverter:ABB
3)Motor power:45KW
4)Electric contactor:Siemens
5)Temperature controller:Japan OMRON
Main Machine Part
Name: Hydraulic Screen Charge(Double Station)
Brand: MC
Original: China
1)Mold head material:mold steel with high temperature quenching treatment and wear resisting treatment
2)Hydraulic pump:3KW
3)Screen charging method:non-stop automatic screen charging
4) Screen position:2
5) Screen diameter:250mm
Main Machine Part
Name: Water ring Pelletizing Device
Brand: MC
Original: China
1)Pelletizing knife:3 pieces
2)Pelletizing motor power:2.2KW
Main Machine Part
Name: Dewatering Machine
Brand: MC
Original: China
1)Main body material is stainless steel
2)Main motor power:11KW
Main Machine Part
Name: Vibrating Machine
Brand: MC
Original: China
1)Vibrating main part is made by stainless steel
2)Vibrating motor power:0.24KW*2set
Main Machine Part
Name: Blower and Storage Hopper
Brand: MC
Original: China
1)Blower motor:3KW
2)Storage hopper volume:1CBM
3)Storage hopper and transport pipe are all made by stainless steel
4)With a manual valve on the storage hopper
Main Machine Part
Name: Electric Cabinet
Brand: MC
Original: China
1)Cabinet is self manufacture by MC machinery
2)Electric contactor:Siemens
3)Temperature controller:Japan OMRON
4)Frequency inverter:ABB
Our Service
Pre-Sales Service
* We given client the details technician offer.
* Professional advice for Inquiry and technical support.
* supply the details layout, installation instruction, technician support for the clients
* View our Factory,sales manager accompany.
* 24 hours English support.
* Professional advice for Inquiry and technical support.
* supply the details layout, installation instruction, technician support for the clients
* View our Factory,sales manager accompany.
* 24 hours English support.
After-Sales Service
* We arrange engineer to install the machinery and training the workers for client abroad if clients required.
* We have 24 hours team to solve problems after sales.
* We have free spare parts with the right machine during warranty time.
* We supply whole machine lifetime spare parts for every customer with low cost after warranty time.
* We always update the new technology to every customer.
* We have 24 hours team to solve problems after sales.
* We have free spare parts with the right machine during warranty time.
* We supply whole machine lifetime spare parts for every customer with low cost after warranty time.
* We always update the new technology to every customer.
If you have interests in our machine,please do not hesitate to send us an inquiry!
Packing & Delivery
Related Products
PET Granulating Machine
PP PE Film Washing Machine
Plastic Film Agglomerator
Waste Plastic Film Crusher
Double Shaft Shredder
Single Shaft Shredder
Our Company
FAQ
1.How about the quality of your product? Marksim: 1)Our products manufactured strictly according to national and international standard 2)We have CE ,ISO,BV,SGS certification
3)We take testing on every product before delivery.
4)Our quality supervision department oversees the whole process during manufacturing and machine testing before machine made shippment.
2.What is the MOQ? Marksim:1 set.
3.If you can make machine custom-made?
Marksim:Yes,we can make products special design according to customer's requirements.
4.What is the machine voltage? Marksim:Normally 380V,50hz,3 phase.But we can change it according to customer's requirement, like 220V,240V,415V,440V,600V and so on.
5.What is this machine guarantee time?
Marksim:1 year
6.When the machine can be deliveried? Marksim:Normally 45 working days.
7.We want to visiting your factory first before order,if it is avaliable? Marksim:Yes,welcome to visit our factory any time,our factory normally have ready machines in stock,you can see real machine by your eyes and it will be the best for you to know our machine and our company.
8.If we finally buy your machine,you can send engineers to our country and help installation and training our workers?
Marksim:Yes,of course,if you needed,we will send engineer to your country to your factory to help installation and training your workers,but you have to bear our engineer's flight charge around,take responsibility of engineer's food and hotel during his visiting and pay salary USD100 per day for one person.
9.I’m a foreign customer,if the machine some part is broken one day,how can we get help from you? Marksim:If the machine part is broken,during warranty we will sending spare parts to you without any charge and help you make it change to new by phone or whatsapp or video.If out of warranty,we will also provide you spare part but with raw material cost,and we also will help you change to new instead of broken part.We provide spare parts and technical service whole machine lifetime .
