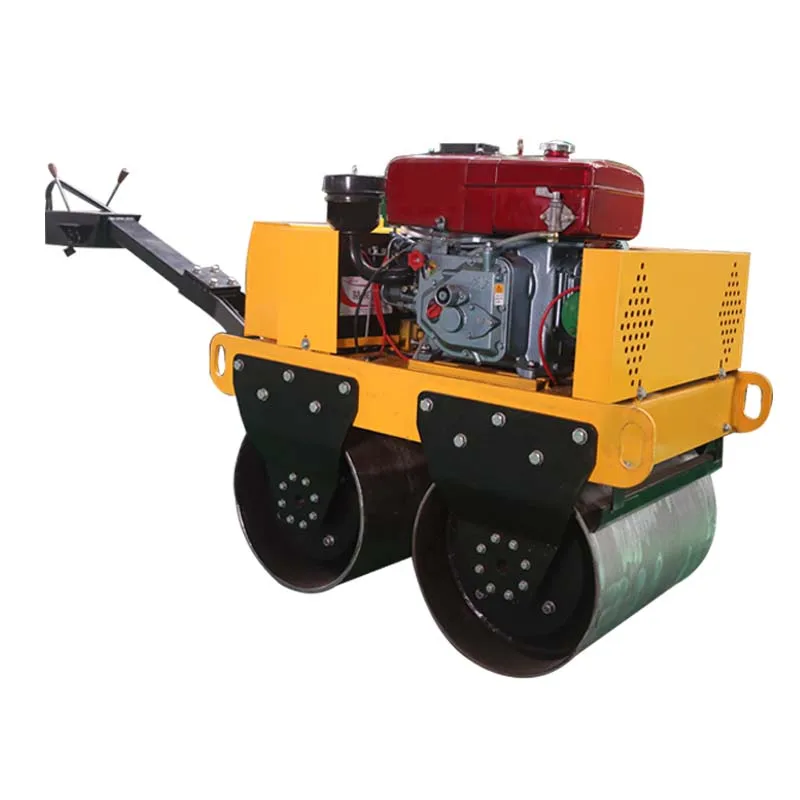

small asphalt pavement roller concrete machinery walk behind gasoline honda engine
- Category: Road Machinery >>>
- Supplier: Shandong,Storike,Engineering,Machinery,Co.,Ltd.
Share on:
Product Overview
Description

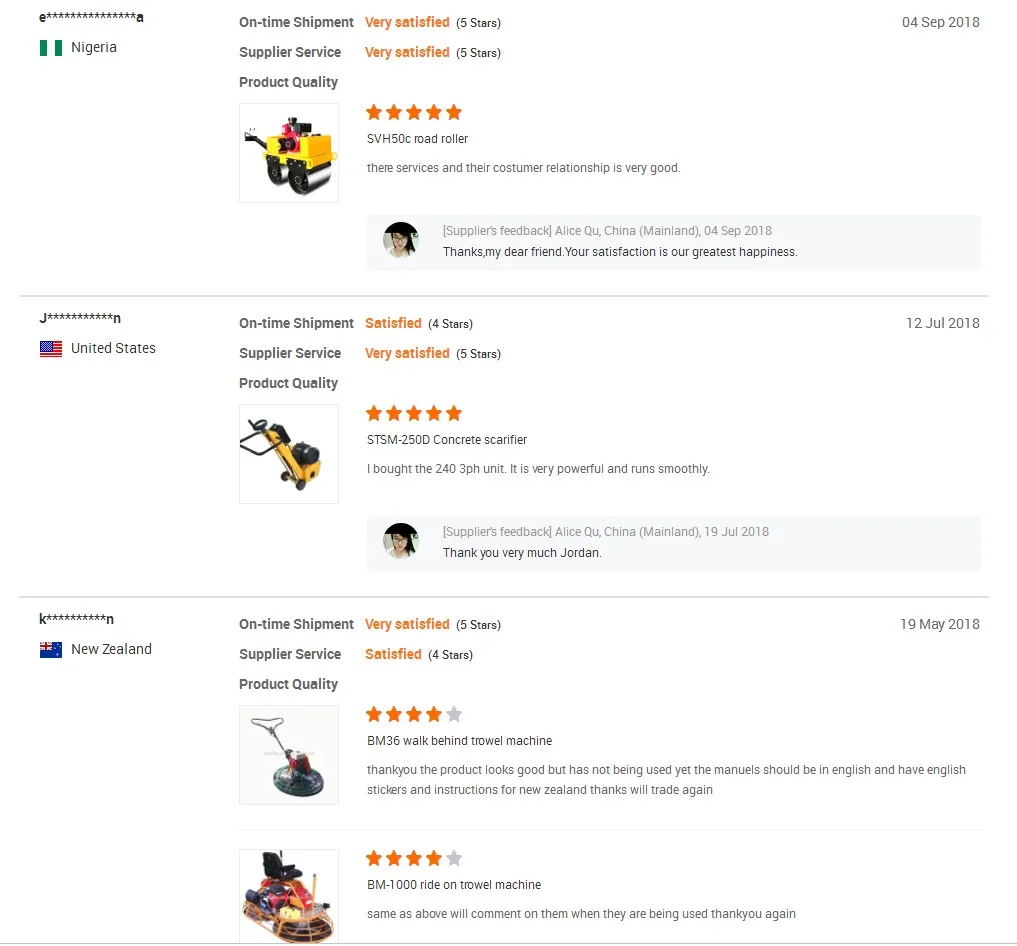

Buyer Feedback
Product Description
| ITEM NO/DETAILS | SVH50 | SVH50C | SVH50CS |
| ENGINE | |||
| Engine | HONDA GX270/LONCIN G270F | CHANGCHAI/ CHANGFA CF178 | CHANGCHAI/CHANGFA R180 |
| Engine type | Single cylinder, OHV, air-cooled, four-stroke, gasoline | Single cylinder, vertical, air-cooled, four-stroke, diesel | Single cylinder, vertical,water-cooled, four-stroke, diesel |
| Number of cylinders | 1 | ||
| Output power (KW) | 6.7 | 4.4 | 5.7 |
| Rating speed(RPM) | 3600 | 3600 | 2600 |
| Fuel Capacity(L) | 5.9 | 2.7 | 6.5 |
| Lubricating oil volume(L) | 1.1 | 1.1 | 2 |
| Start Up | Hand recoild/Electric start | ||
| DRIVING | |||
| Walking speed (KM/H) | 0--3.8 | ||
| Theoretical climbing ability(%) | 30 | ||
| Walking Way | Two-way hydraulic & chain drive | ||
| Vibration | Automatic centrifugal clutch | ||
| EXCITATION SYSTEM | |||
| Vibration frequency (HZ) | 70 | ||
| Vibration amplitude (MM) | 0.6 | ||
| Exciting force(KN) | 20 | ||
| SPRINKLING SYSTEM | |||
| Water spray form | Gravity-type water | ||
| CAPACITY | |||
| Hydraulic oil capacity(L) | 18 | ||
| Water tank capacity (L) | 20 | ||
| SIZE | |||
| Drum size(MM) | 426*600mm*2 | ||
| Machine length(Protective Frame Dumping)(MM) | 2480 | ||
| Machine Height(Protective Stand Erect)(MM) | 1820 | ||
| Full Width | 780 | ||
| Packing Size | 1350*890*1170mm | ||
| WEIGHT | |||
| Weight(KG) | 540 | 540 | 580 |
| Static load(N/CM) | 45 | ||
Specification
300KG:
500KG:
550KG:
600KG:
