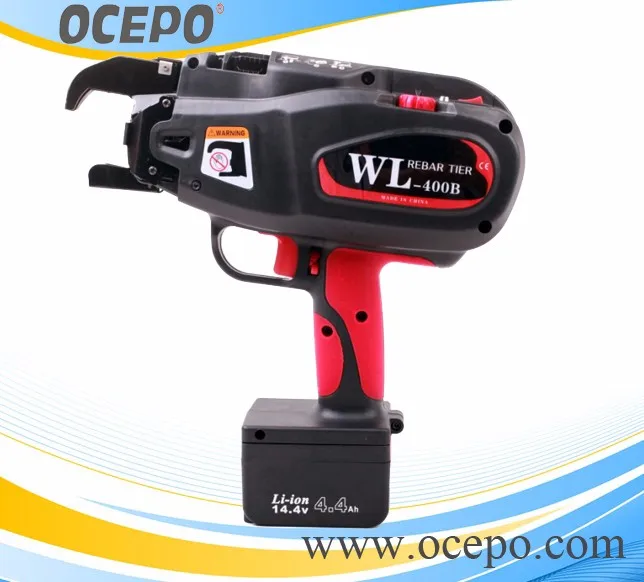

Construction Tools WL 400B Rebar Tying Machine MAX Rebar Tier
Construction Tools WL-400B Rebar Tying Machine MAX Rebar Tier
Construction Tools WL-400B Rebar Tying Machine MAX Rebar Tier
Construction Tools WL-400B Rebar Tying Machine MAX Rebar Tier
Construction Tools WL-400B Rebar Tying Machine MAX Rebar Tier
Construction Tools WL-400B Rebar Tying Machine MAX Rebar Tier
Construction Tools WL-400B Rebar Tying Machine MAX Rebar Tier

Construction Tools WL 400B Rebar Tying Machine MAX Rebar Tier

Share on (60679266248):


Price:

Quantity:


Product Overview

Description


Product Description

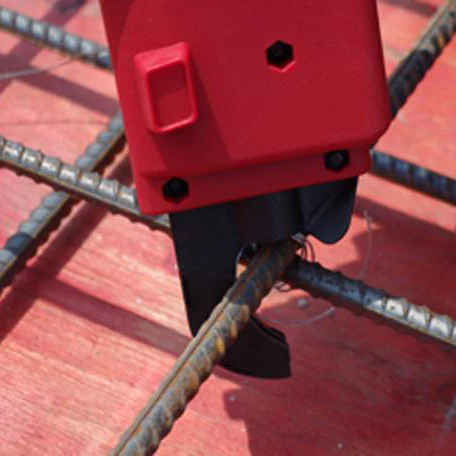

It is used to tie rebar in construction.

1. Automatic, very easy to operate.
2. High quality.

3. CE approved.

\t
Model No.
\t
WL-210 Li-ion
\t
WL-400B Li-ion
\t
Max Tying Dia.
\t
21mm
\t
40mm
\t
Voltage & Capacity
\t
DC14.4V(4.4AH)
\t
DC14.4V(4.4AH)
\t
Charge Time
\t
Approx.70 mins
\t
Approx.70 mins
\t
Tying Speed per Knot
\t
0.7s
\t
0.75s
\t
Ties per Charge
\t
Over 3200 ties
\t
Over 3200 ties
\t
Turns per Tie
\t
2 turns/3 turns
\t
2 turns/3 turns
\t
Ties per Coil
\t
Approx. 195 ties(3 turns)
\t
Approx. 130ties(3 turns)
\t
Length of Wire for Tying
\t
380mm/2 turns, 550mm/3 turns
\t
650mm/2 turns, 750mm/3 turns
\t
Wire type
\t
Black annealed wire or Galvanized wire
\t
Black annealed wire or Galvanized wire
\t
N.W.
\t
1.8kg
\t
1.9kg
\t
Dimension(LxWxH)
\t
275x120x275mm
\t
295x120x275mm

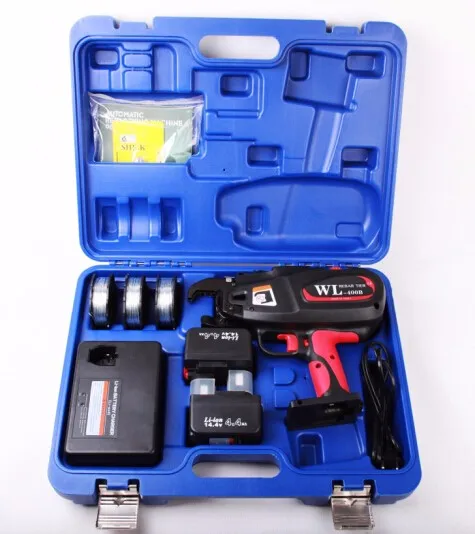

Products Show
Accessories

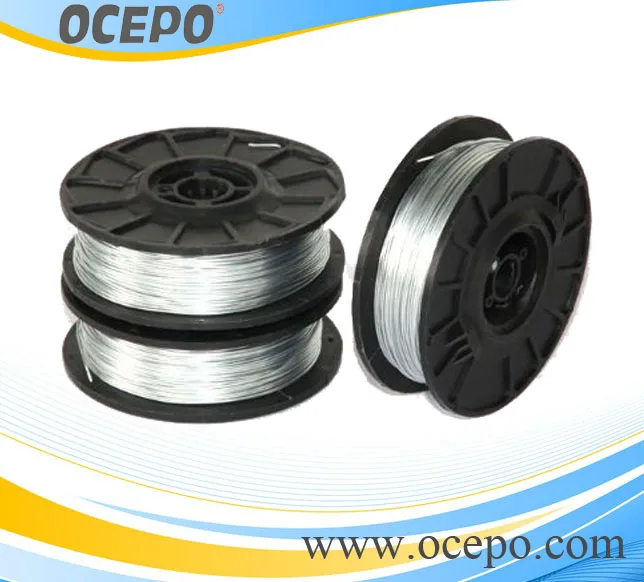

Wire

Model No.: WL

Dia: 0.8mm

Material: Q195

Length: 100m/roll

Packing: 50pcs/carton, 449*310*105mm, 20.5kg, 0.017CBM

2500pcs/pallet, 1020*920*1000mm, 1000kg, 0.94CBM

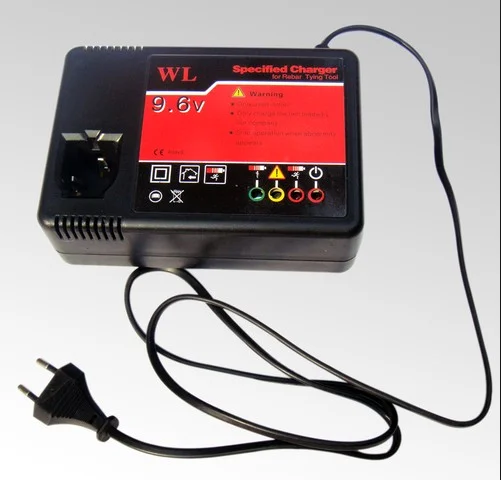

Charger

Model No.: WL-A4

Charger Voltage: 110-240V

                               50/60Hz

Battery

Model No.: WL-4SX Li-ion

Voltage&Capacity: DC14.4V(4.4AH)

Charge Time: App. 50min.

N.W.: 480g

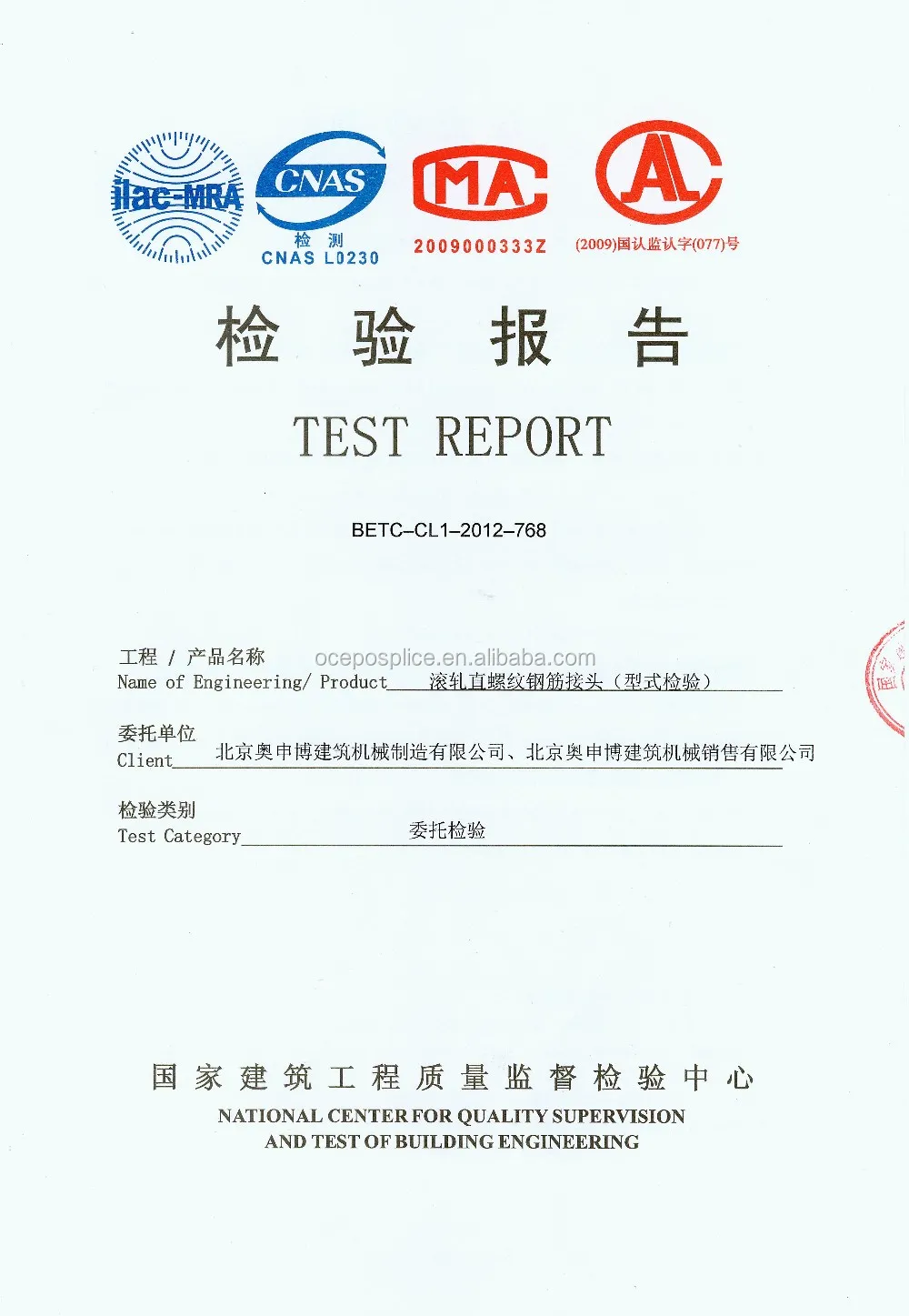

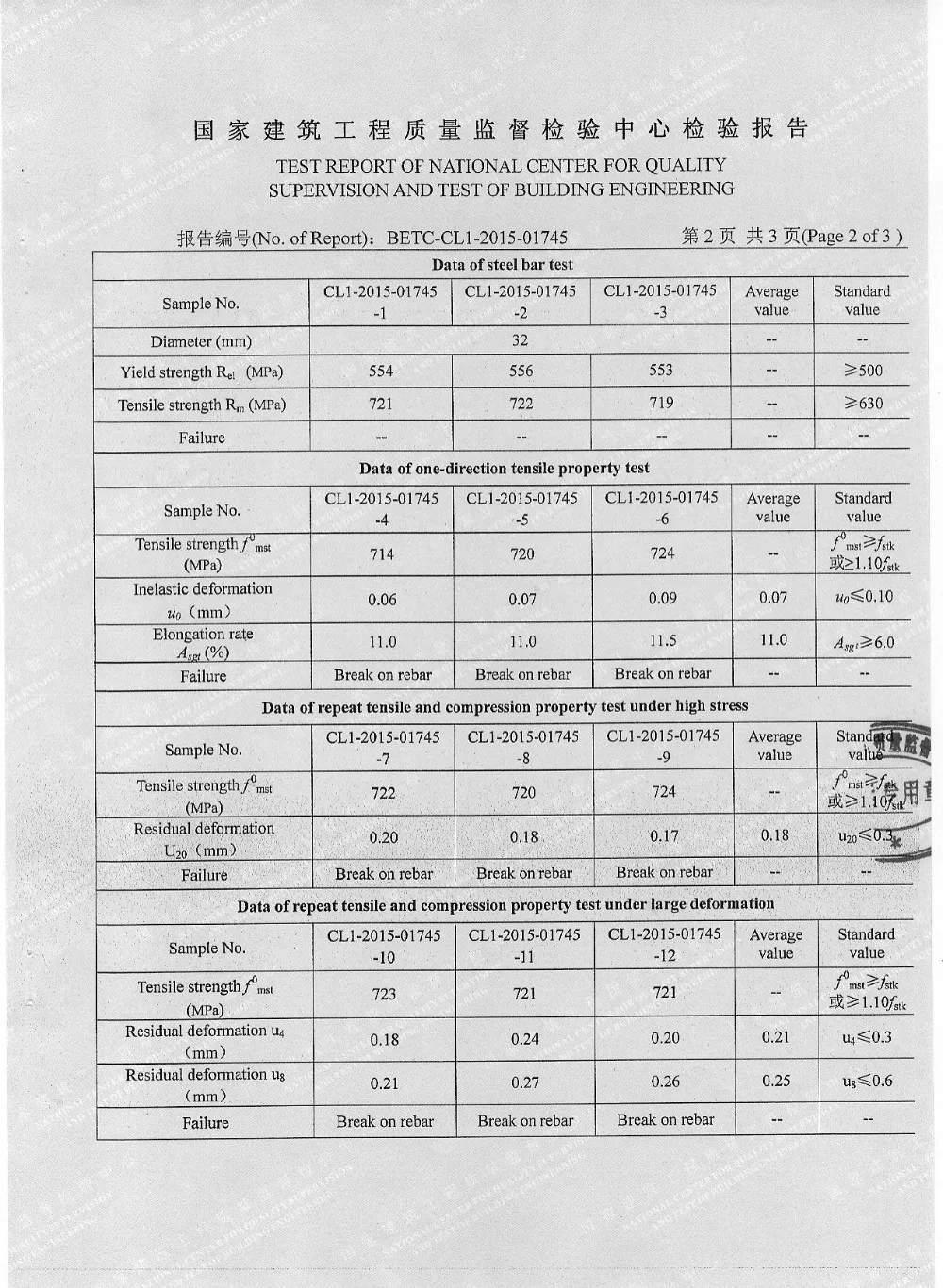

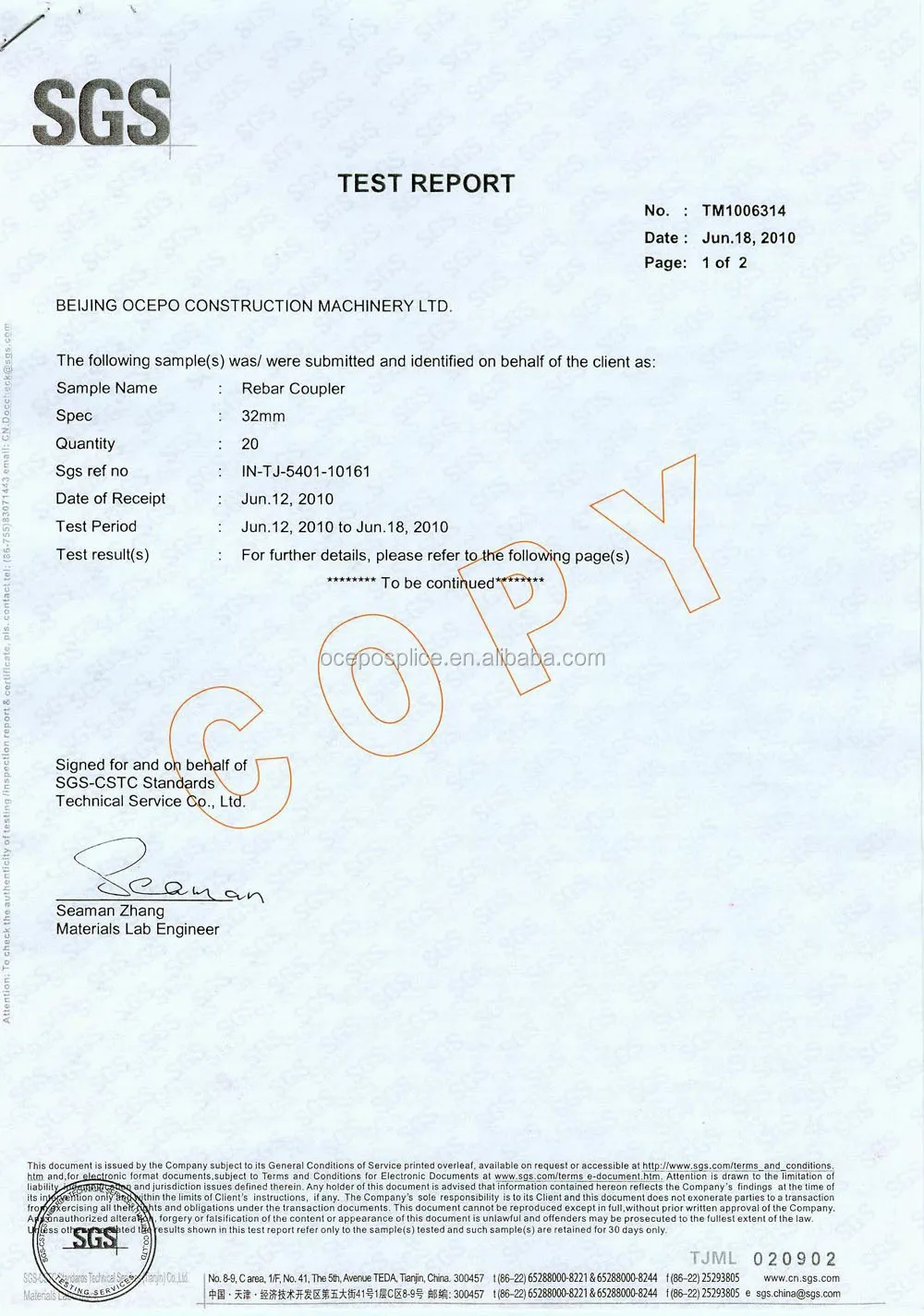

Our Certifications
Packing & Delivery

Packing Details  : Plastic box, 1pc, G.W.: 7.5kg

Delivery Details : 3 days after order.

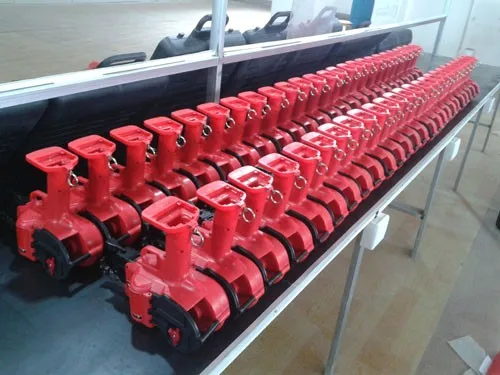

Production Line

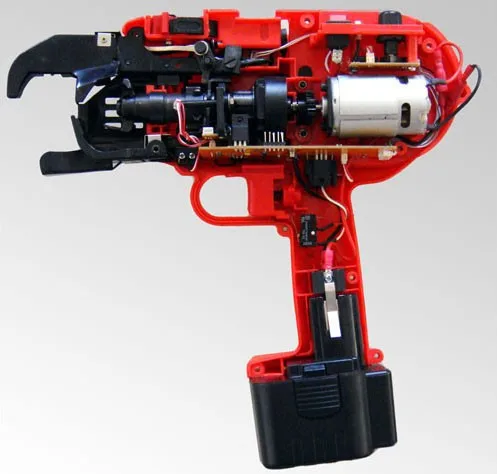

Inner View

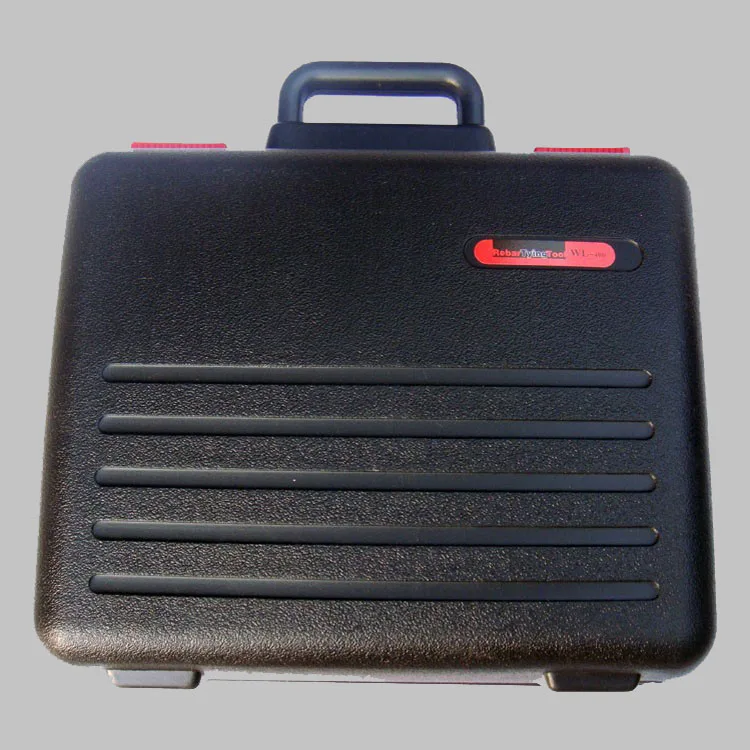

Outer Box

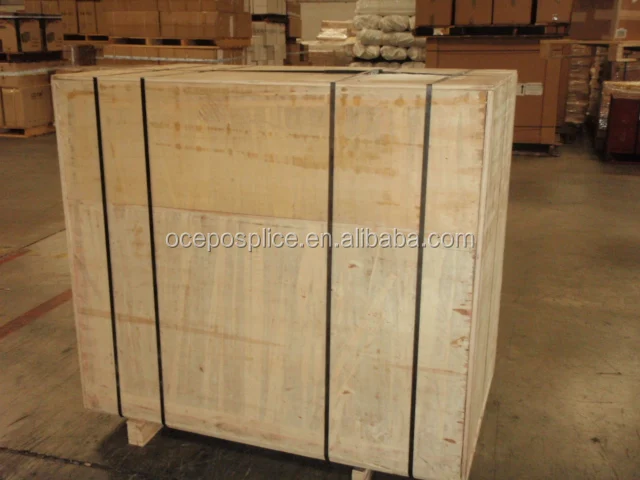

Plywood Box
Express
Transportation
Our Company

Factory

Workshop


Related Products

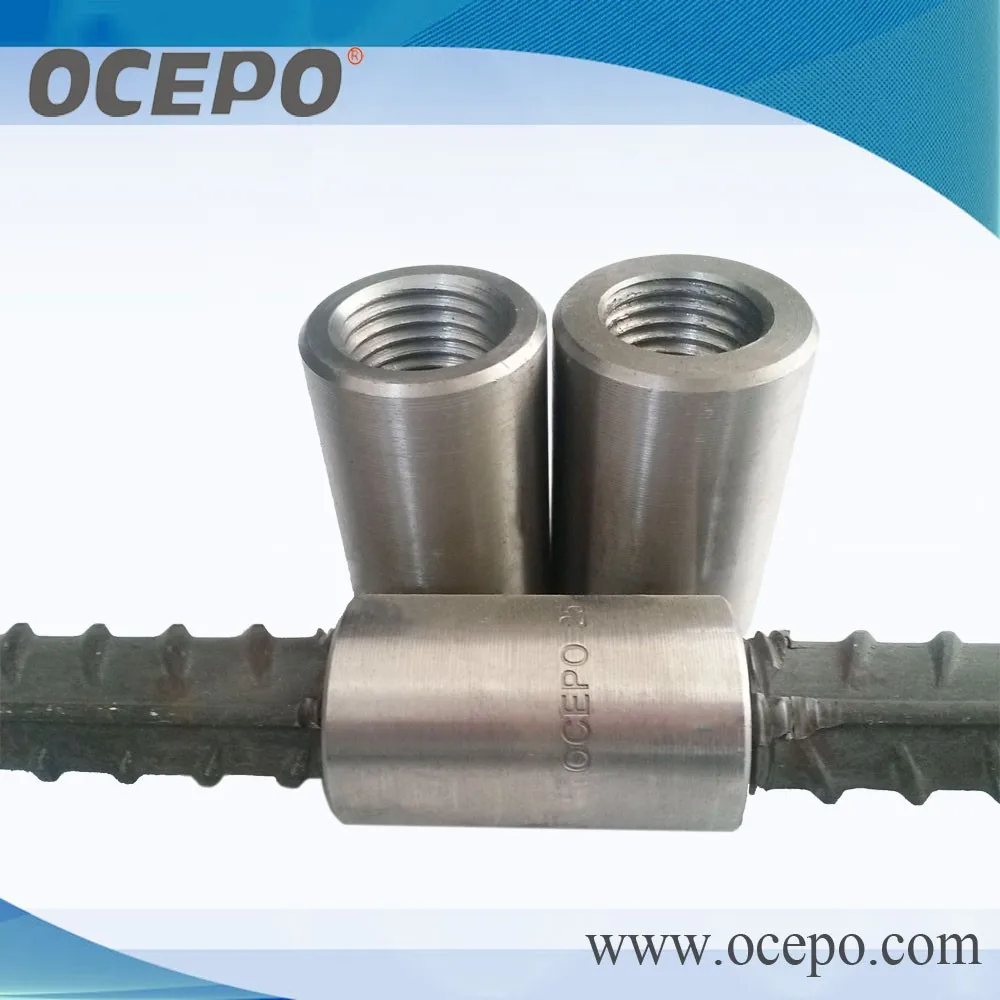

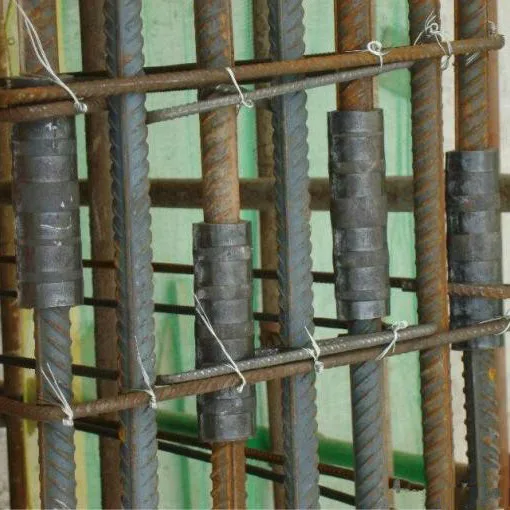

Rebar Coupler

Type: 16-40mm

Parallel, reducing, end upset forging, cold stamping, tapered, weldable coupler etc. for rebar mechanical connection.

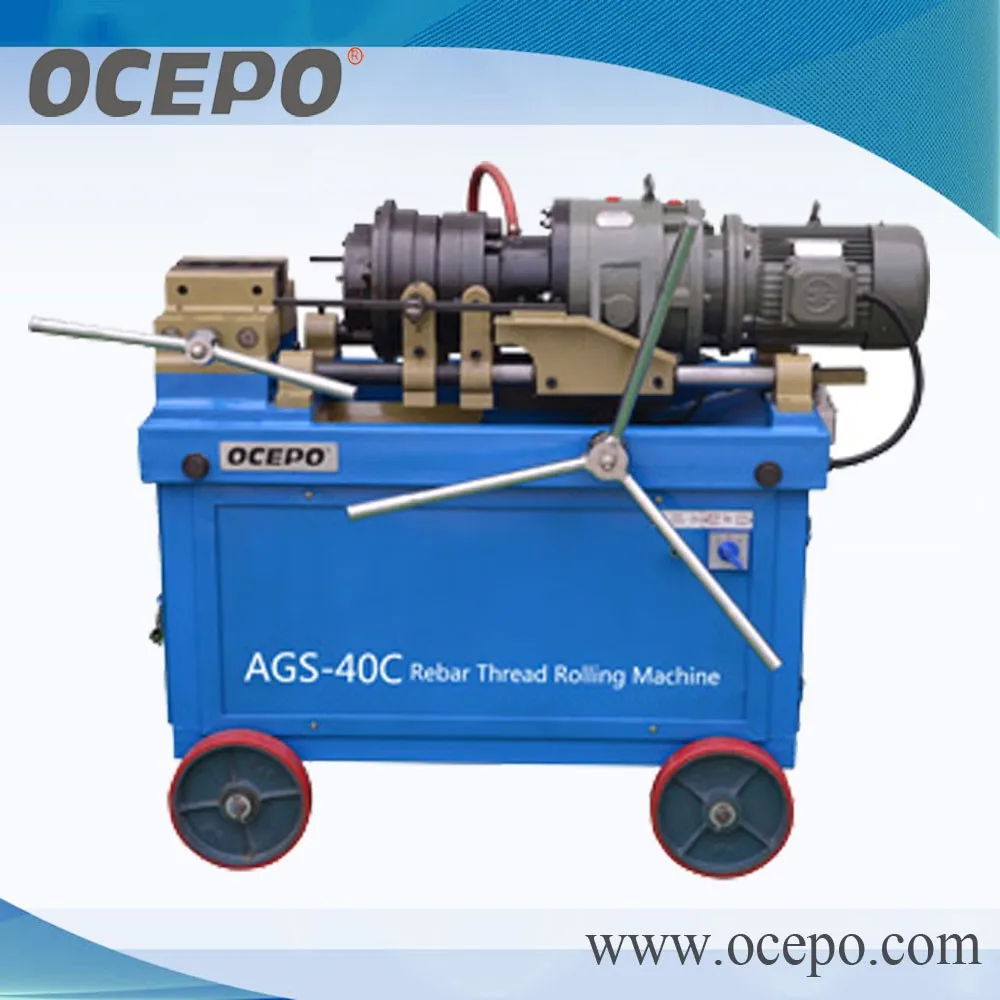

Thread Rolling Machine

Model No.: AGS-40C

Roll thread not cut thread, so could protect the highest tensile strength of parent metal. It meets requirements in JGJ107, ACI318, BS8110, DIN1045 and UBC1997 etc.

It could process rebar diameter 16-40mm

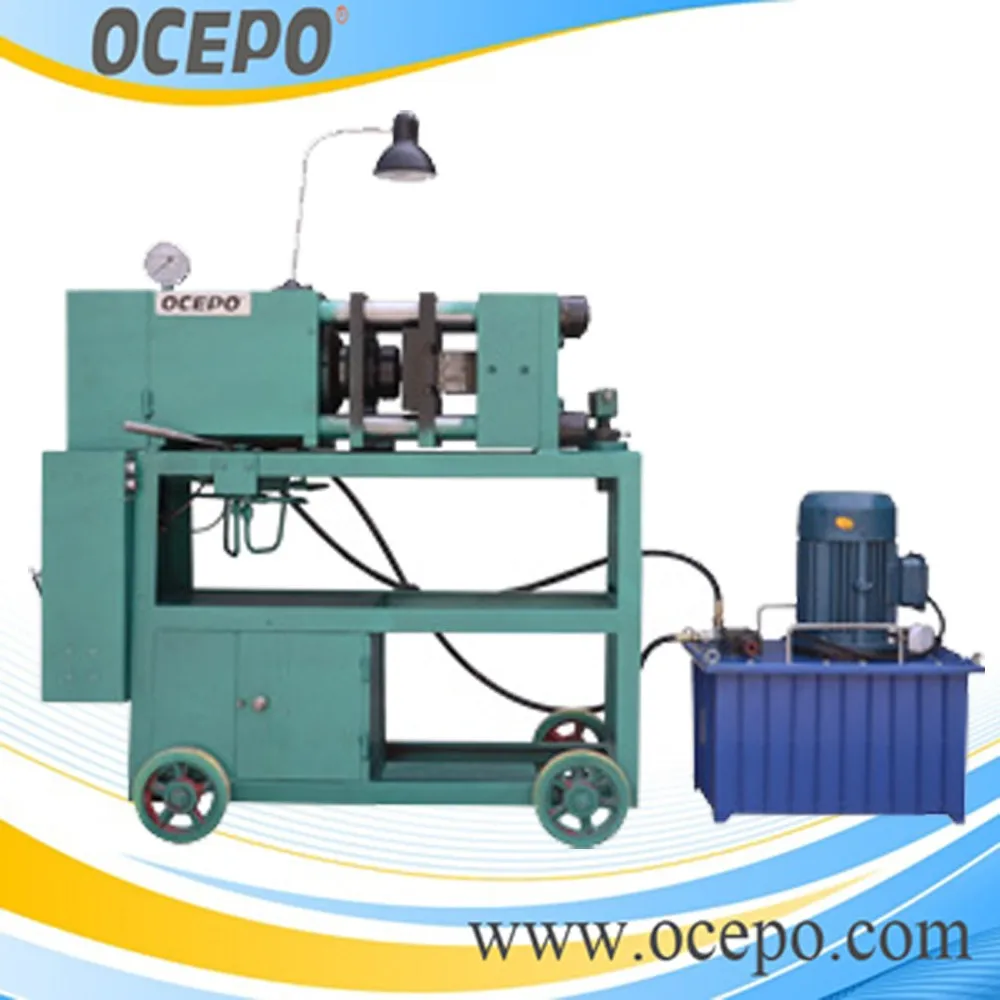

End Upset Forging Machine

Model No: GD-150

 It can meet standards: JGJ107, ACI318, BS8110, DIN1045 and UBC1997 etc. Be able to process rebar diameter 16-40mm.
