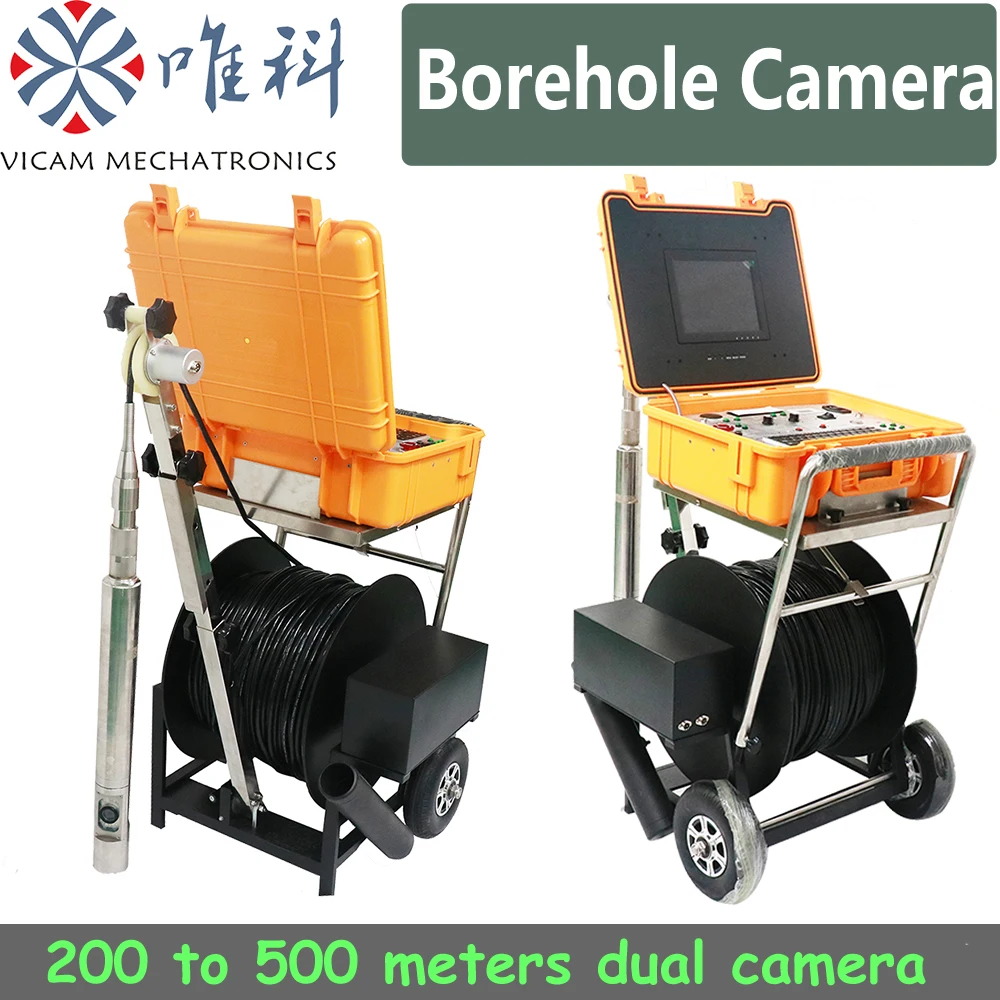

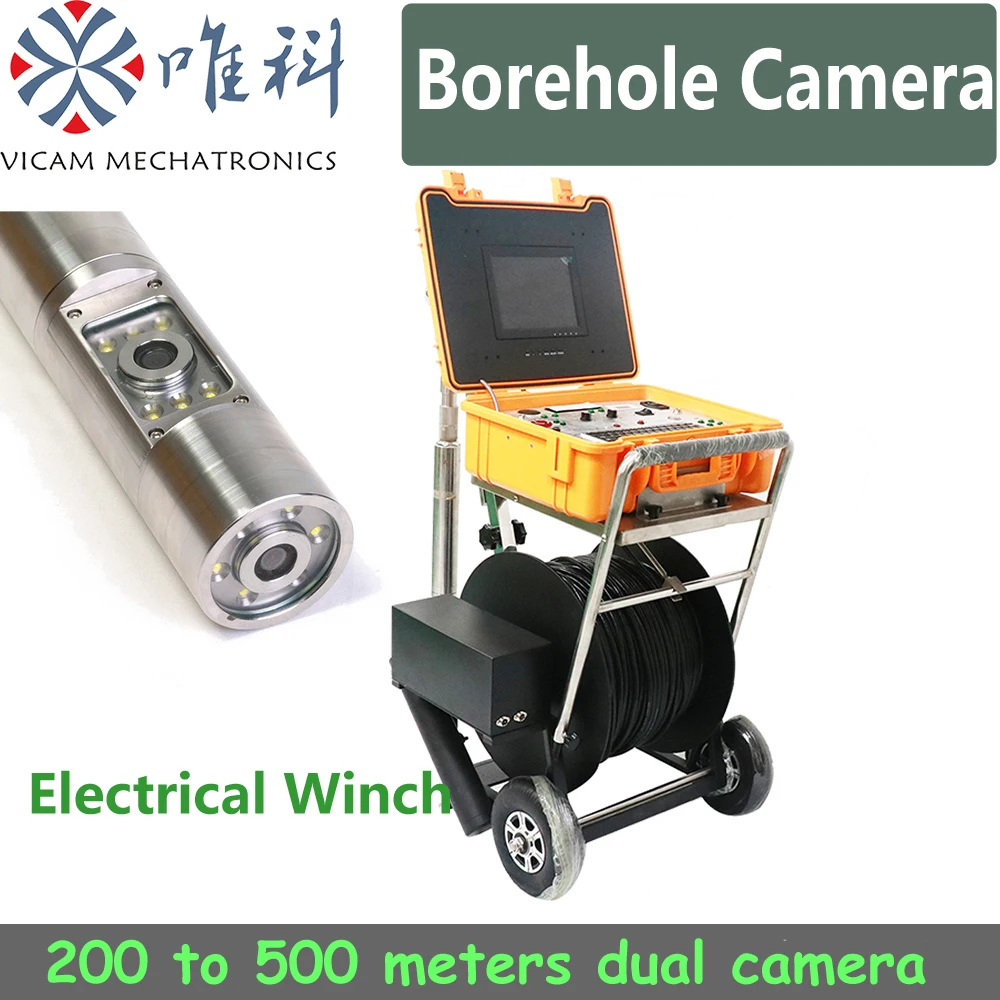

Vicam underwater camera 300m / 500m electrical winch water well inspection camera with 63mm dual camera head

Product Overview

Description

 Shenzhen VICAM 300m / 500m electrical cable winch underwater submarine camera 50bar waterproof borehole camera V10-BCS





Main feature:



1.Dual waterproof camera for deep well inspection

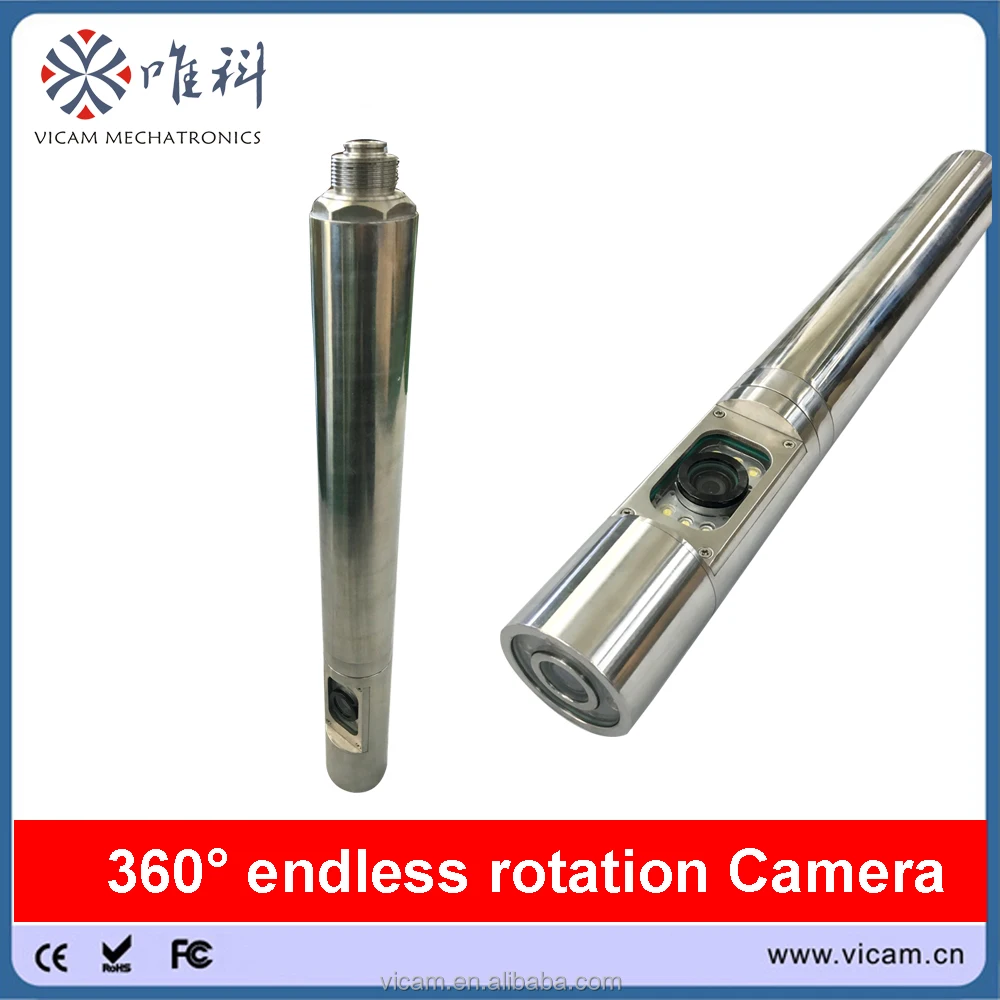

2.Dia.63mm x L570 stainless steel 700TVL  camera



3.IP68 waterproof ,up to 50Bars



4.200m to 600m twisted pair cable with electrical winch



5.Electrial winch winding speed adjustable



6.HD DVR control box with Audio,video recording function



7. Built-in 128G Hard disk to storage video /Audio files



8.10 inch HD LED screen



9.Built-in compass and temperature sensor function



10. Wide input voltage from AC110V to 230V or DC12V to 24V







Product Specifications

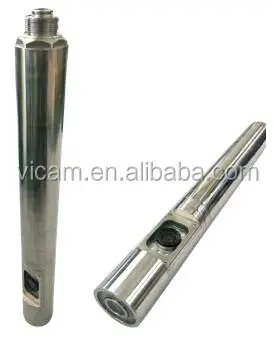

Dual ColorBorehole Camera Specifications:
Camera Size	Dia.63mm x L570mm
Camera Weight	4.0KG
Waterproof pressure	50m bars
Down Camera
Sensor	1/4 inch 700TV lines
Sensitivity	0.01Lux

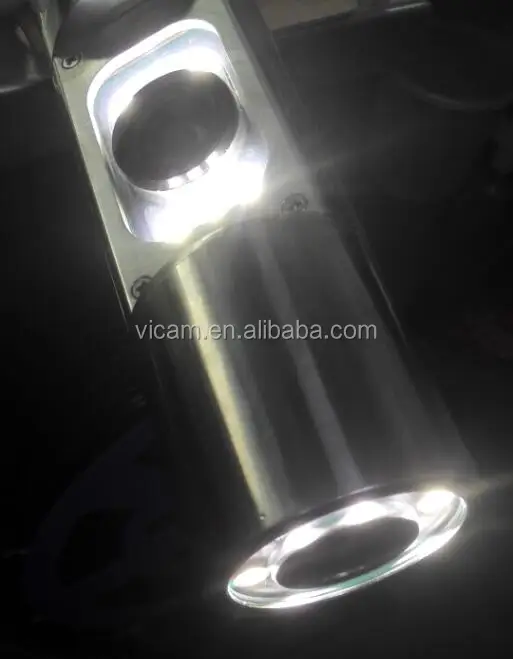

Illumination	6pcs White LED
Wideo viewing angle	120 degree
Camera housing material	Stainless steel
Horizontal definition	700TV Lines
Waterproof	IP68 , 50bars
Rotate	Pan 360 degree endless



Side Camera
Sensor	1/4 inch 700TV lines
Sensitivity	0.01Lux
Illumination	6pcs White LED
Wideo viewing angle	120 degree
Horizontal definition	700TV Lines
Waterproof	IP68 , 50bars
Rotate	Pan 360 degree endless

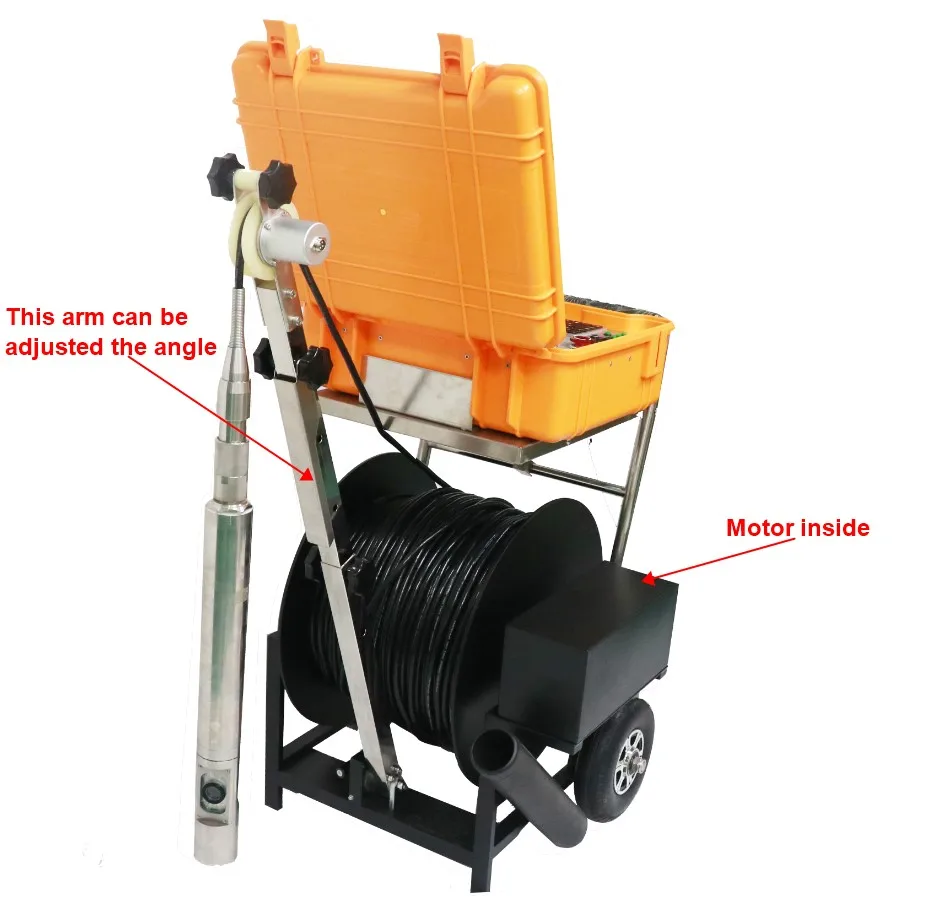

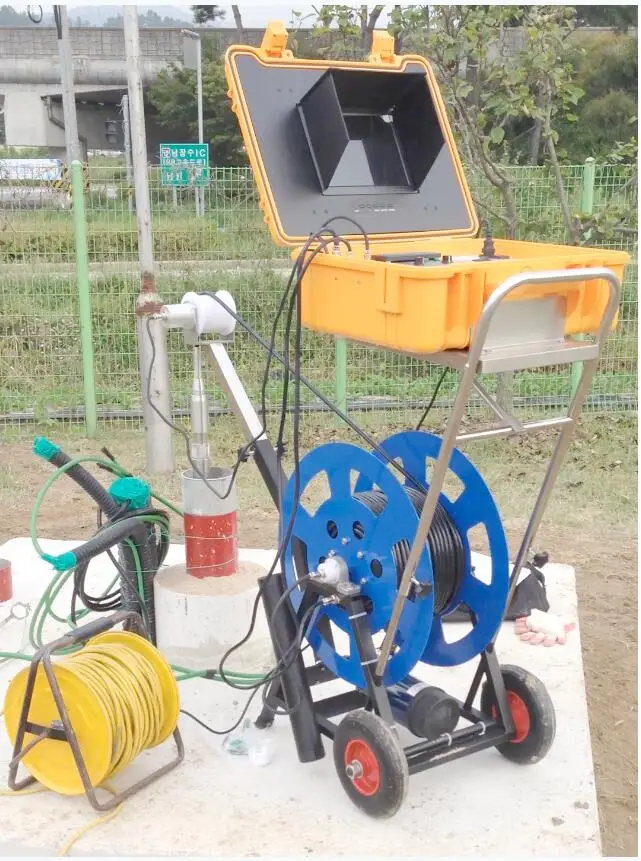

Borehole camera Electrical Winch Specification
Cable length	200m to 500m option
Winding Speed	Max 4s/rotate,Min 9s/rotate
Motor	250W 24V 12A
Cable diameter	10.5mm
Power supply	AC110V to 230V or DC12V to 24V
Camera fix positon	Yes
Meter counter function	Yes

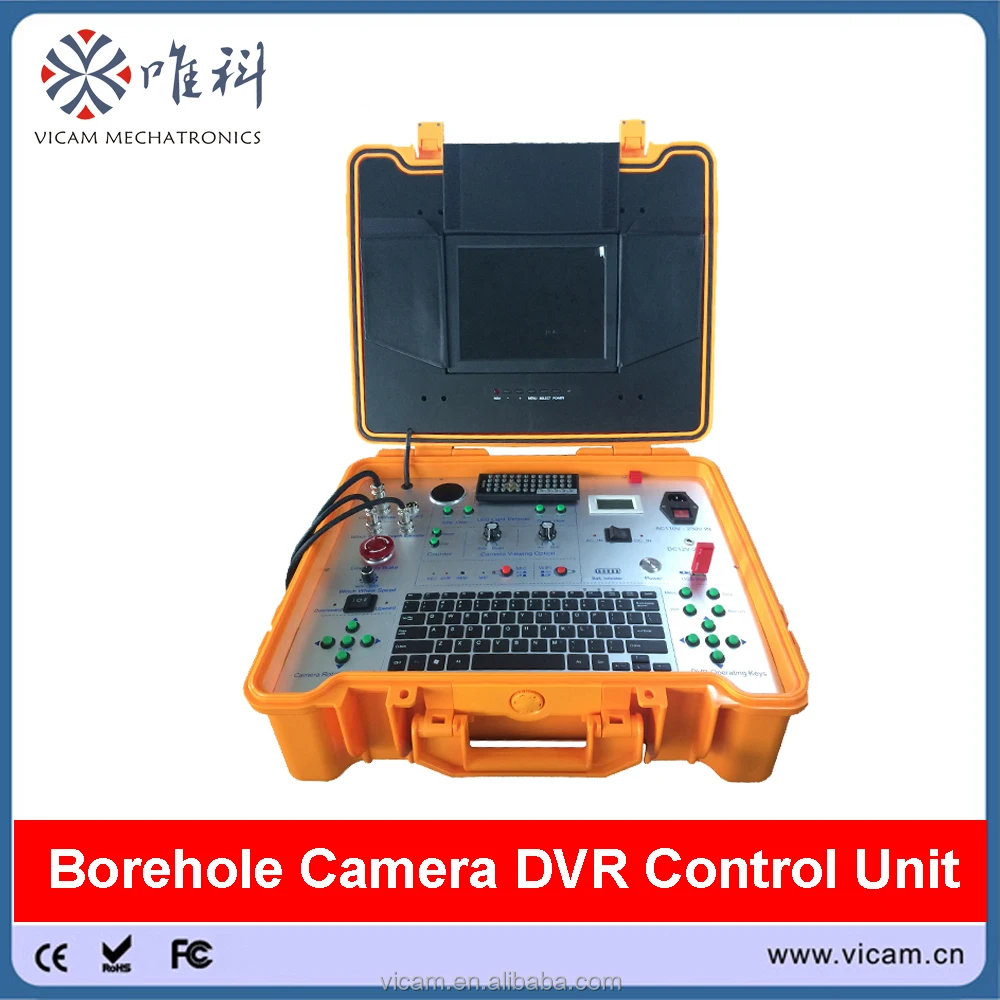

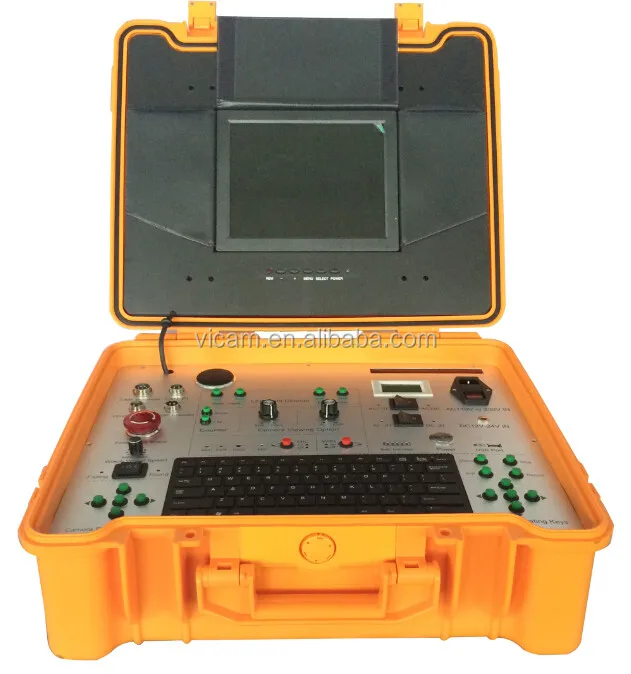

Borehole camera Control Box Specifiction
Monitor
Screen Size	10 inch Digital LCD
Display Ratio	4:3
Video input	AV1,AV2
DVR control function
Video Input	CAM_Borehole, CAM_PT
Audio Input	Built in Microphone
Video Output	Composite Video singal output
Audio Output	Stereo Audio Power Amplifier (3W) or Earphone
TV system	NTSC,PAL,480P,576P,720P,1080P
USB port	USB2.0
Video recording format	mpg2
Storege device	built in 128G SSD
Language	English, Espanol,Francais,Deutsch and Dutch

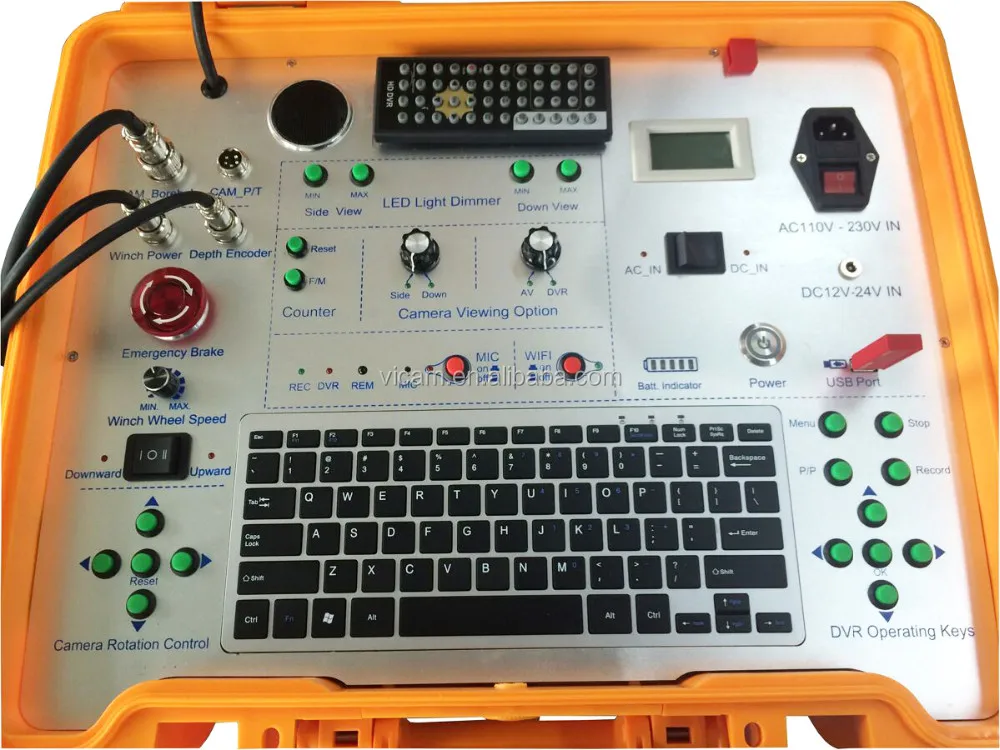

Control Box Panel button
Camera Rotate Button
DVR recording  Button
Winch speed adjust button
LED light adjust  button
Camera View Option



Power Supply
External Power	AC110V to 230V or DC12V to 24V
Battery capacity	Built in 8800mA Li-ion battery
Other function
Meter counter	Display on the screen
WIFI function	Using intelligent terminals as display and recording device
Compass funtion	Show the side camera direction and display on the screen
Temperature function	Inspect the camera environment temperatureand display on the screen

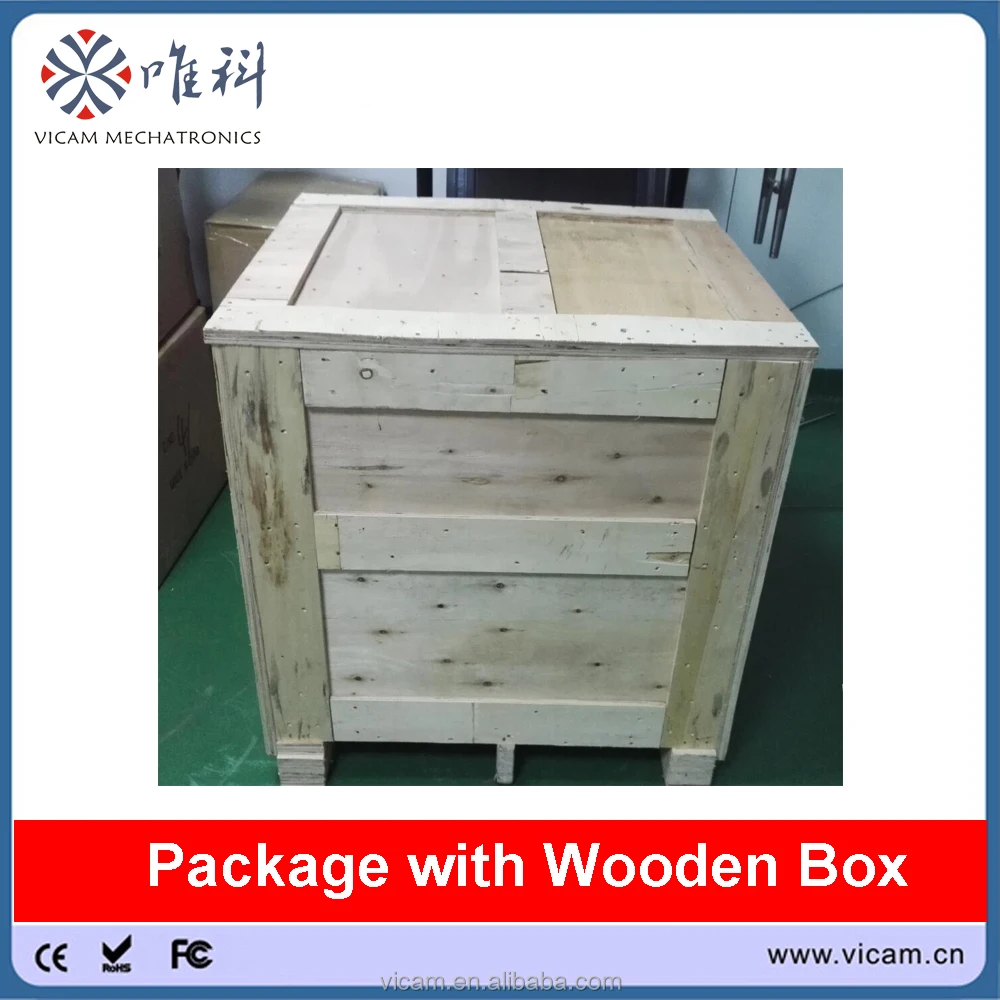

This goods will be packed two boxes.

Below package information is for 300m
One is wooden box. The size is 78x75x88cm. G.W is 135.0kg
The other is carton box .The size is 53x34x49cm. G.W is 20.0kg.

Total weight is 155.0kg
