Product Overview

Description

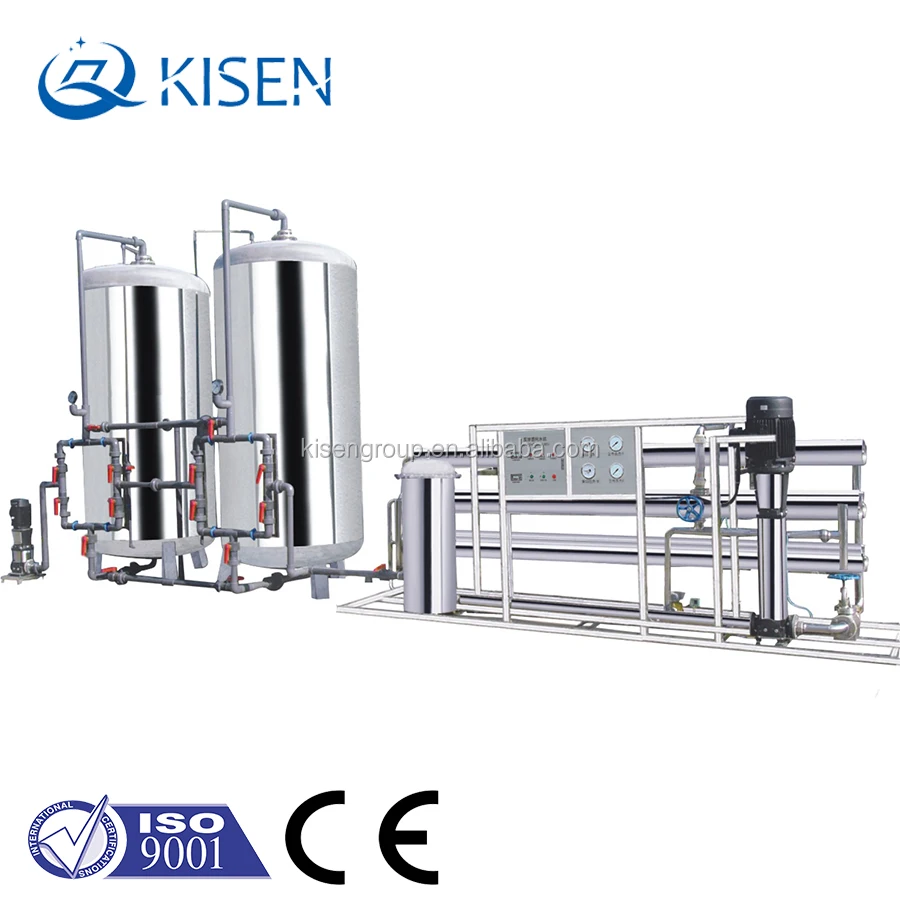

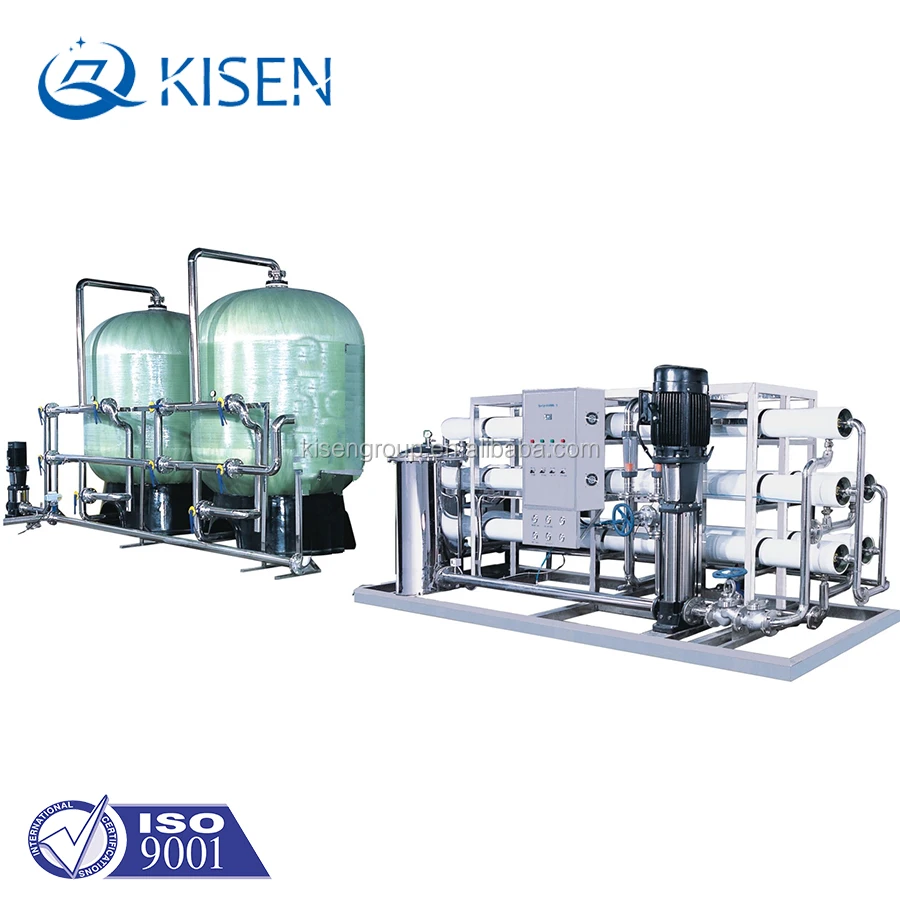

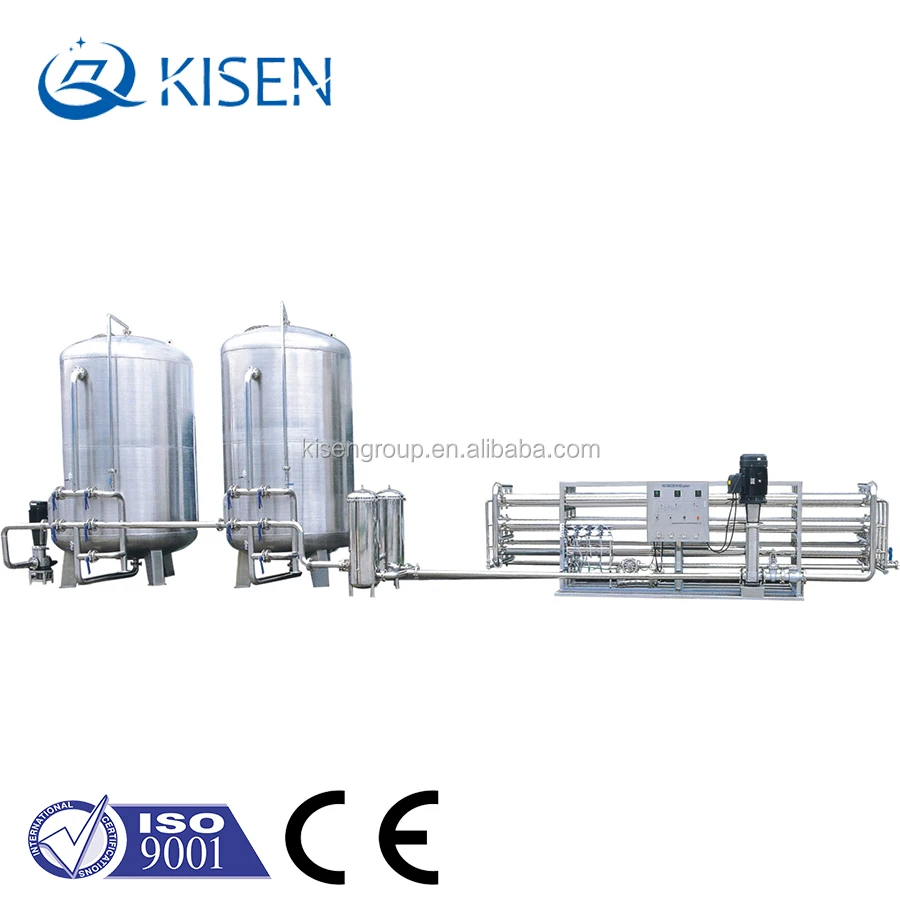

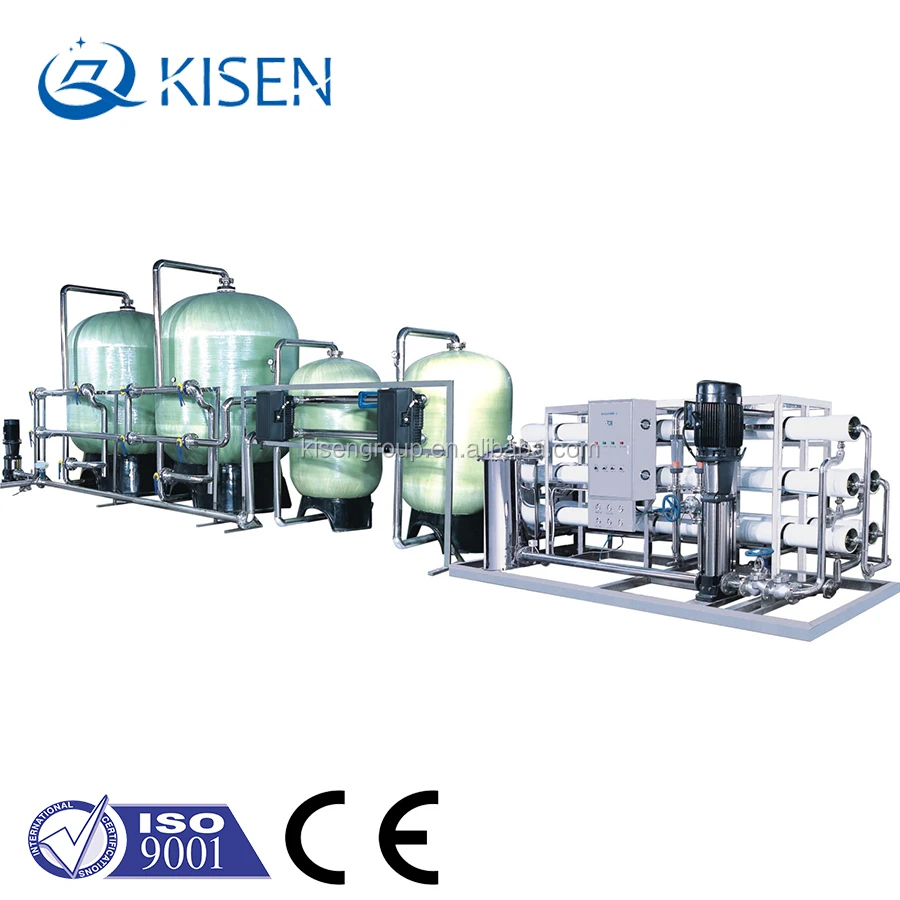

12T/H water filtration unit machine system

What is 12T/H water filtration unit machine system

water filtration unit machine system (R/O) is a water treatment process in which water is forced through a semi-permeable membrane that has very small holes or "pores". Clean water passes through and impurities that are too big to pass through the membrane are left behind and flushed away.



Working process:

 Raw water pump→ Quartz sand filter→ activated carbon filter→ (water softener)→security filter → high pressure pump →Reverse osmosis system→ (ozone generator)→ pure water tank



1.  Raw water pump-- provide the pressure to quartz sand filter/active carbon filter/ water softener

2.  Sand filter-- get rid of turbidity, suspended matter

3.  Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.

4.  Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.

5.  Security filter--prevent large particles into RO membrane, accuracy is 5um,

6.  High pressure pump-- Provide the high pressure to RO membrane

7.  RO system-- main part of the plant. The RO membrane's desalting rate can reach 97% and above, removing over 99% ions.



Application of water filtration unit/machine/system :

1.Textile, chemical industry, process water / chemical recycled water, chemical products manufacturing purification and preparation of water ;

2.Food and beverage industrial water, purified drinking water, beverages, beer, liquor, health care products such as water purification and preparation of water;
3.Seawater, brackish water desalination islands, ships, offshore drilling platforms, brackish water areas
4.Larger community, real estate property, schools, factories, hospitals, and the restaurants, hotels, beauty salons, canteens and other various types of enterprises and institutions.
5.Integrated circuits, silicon wafers, display tubes and other electronic components of electronic industrial water rinse water
6.Can be used for filling water bottled water, mineral water and other preparation work

Product	One-stage water filtration unit/machine/system
Pure Water Production Capacity	12,000 litre per hour(25°C)
Input water quality	TDS≤2000PPM(recommended)
Salt Rejection Rate	≥98%
Recovery Rate(pure water : inlet water)	50~75%
Input Power(standard)	AC380V / 50Hz
Quartz Sand Filter	Fiber glass tank Φ1200×2400mm×1PC including 1800KG quartz sand Or optional SUS304 stainless tank
Active Carbon Filter	Fiber glass tank Φ1200×2400mm×1PC including 630KG activated carbon Or optional SUS304 stainless tank
Scale inhibitor dosing device
Micron (PP Sediment) Filter	SUS304 tank (including 40" PPF filter × 10PCS)
Booster Pump	China Lingxiao CMF16-30

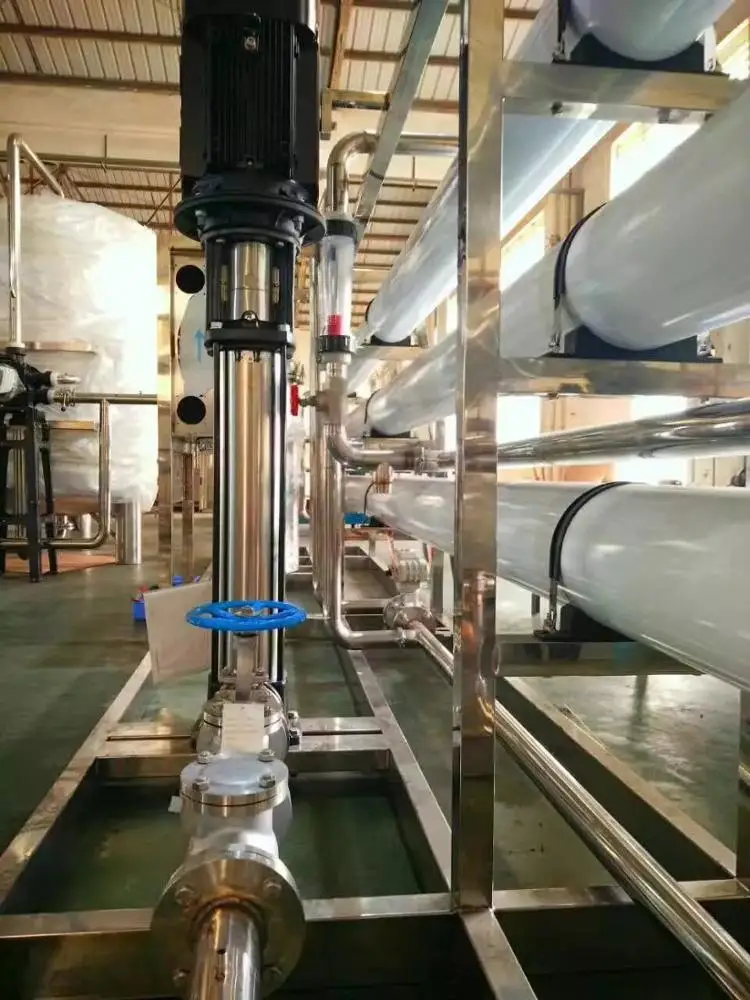

Multi-stage Pump	China Lingxiao CVF32-9

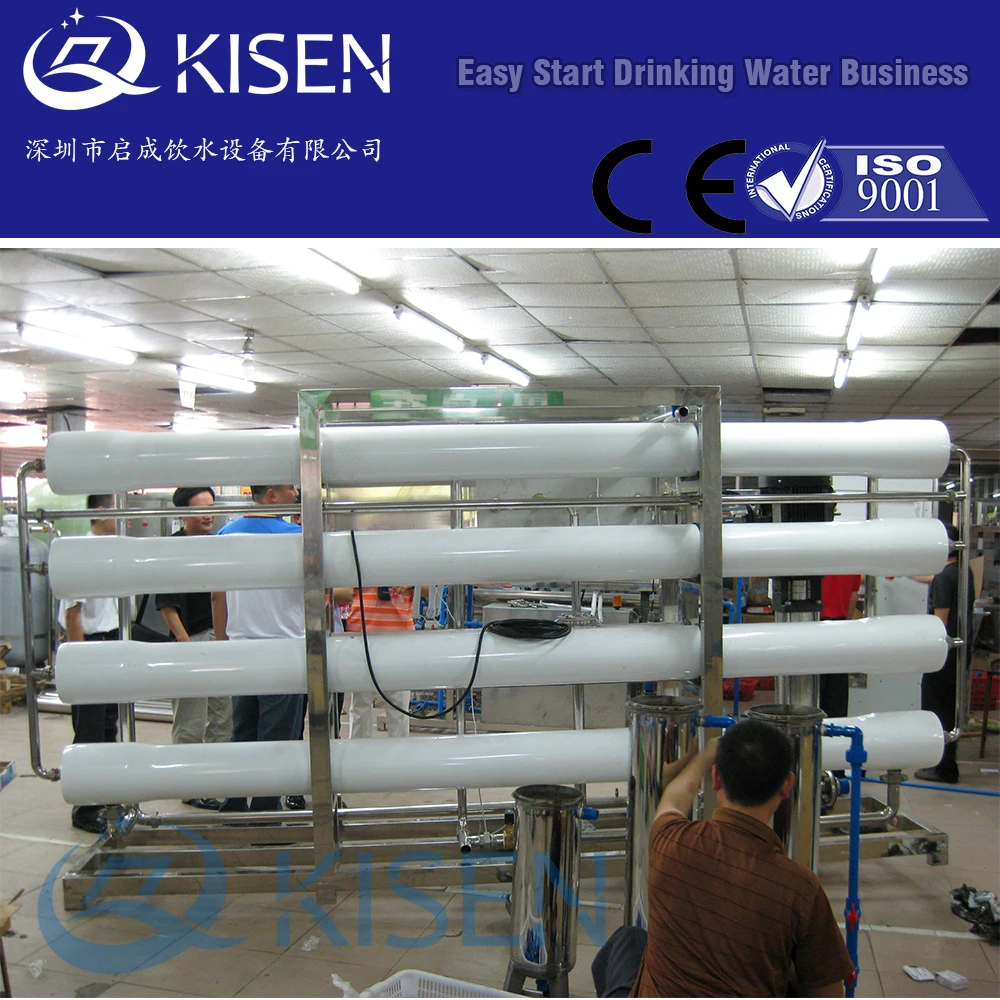

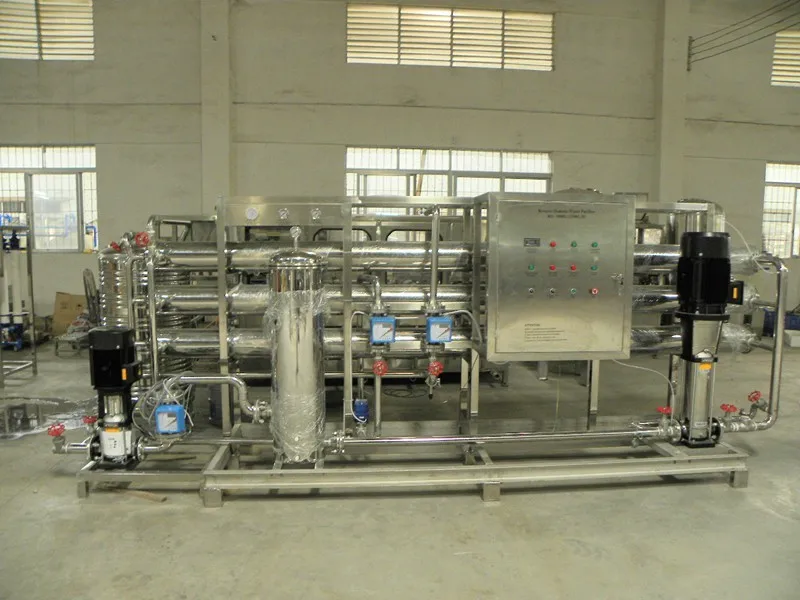

RO System
Membrane	BW30-400× 12PCS
Main frame	FRP8040-4×3PCS
