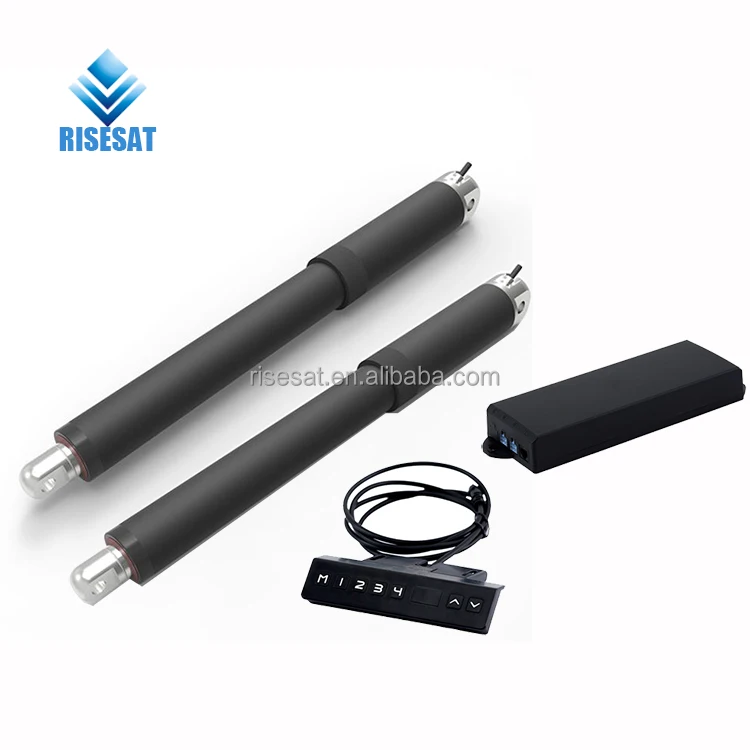

12V, 24V, 36V, 48V DC tubular Industrial Linear Actuator 28000N IP66 waterproof for solar panel tracking RS L8 75
- Category: >>>
- Supplier: Anhui Risesat Electronics Co. Ltd.
Share on (60679481113):
Product Overview
Description
Products Description
We are factory. We can OEM and ODM.

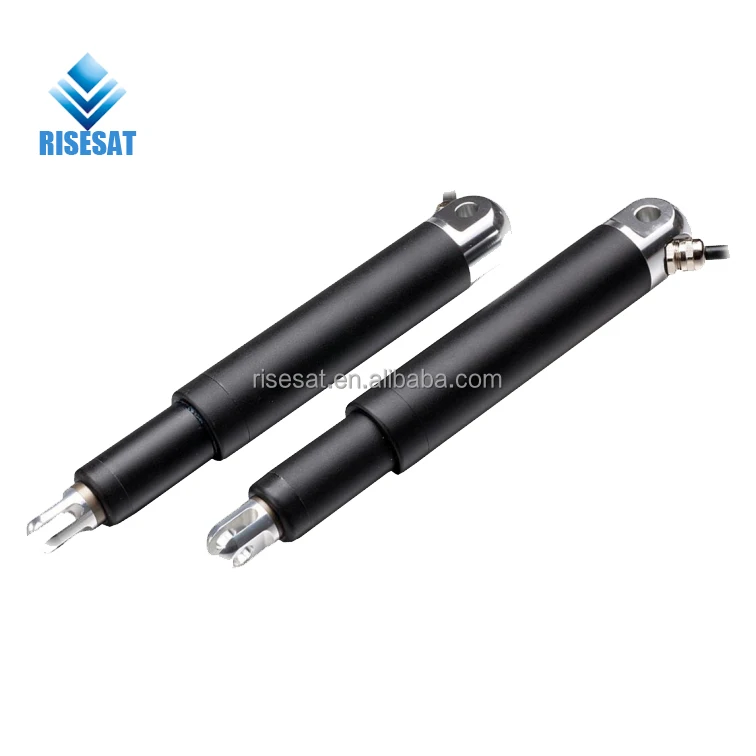

Linear Actuator RS-L8-75
Feature / Benefits
Voltage: 12V / 24V / 36V / 48V DC
Max. force: 28000N max.
Speed: 2.5 ~ 106mm/s
Stroke: 50mm-1800mm
Options: Hall Sensor,
Feature / Benefits
Voltage: 12V / 24V / 36V / 48V DC
Max. force: 28000N max.
Speed: 2.5 ~ 106mm/s
Stroke: 50mm-1800mm

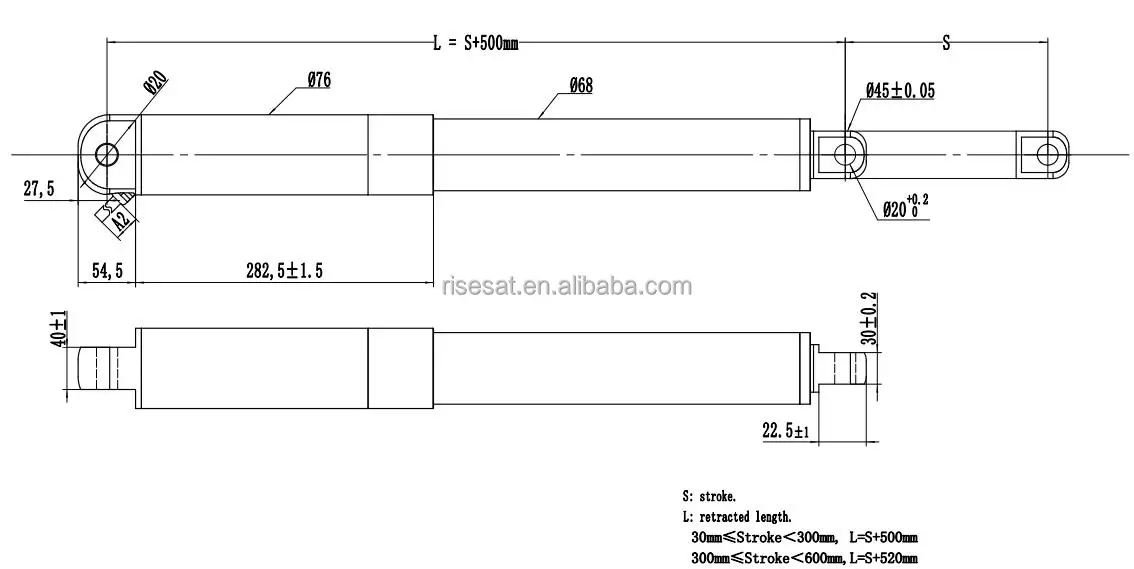

Retracted Length: stroke + 500mm
stroke + 550mm(S >400 MM）
Diameter of the outer tube: 75mm
Protection Class: IP66
Noise: ≤68dB
Color: Black
Duty Cycle: 10%
Limited Switches: built in (not adjustable)
stroke + 550mm(S >400 MM）
Diameter of the outer tube: 75mm
Protection Class: IP66
Noise: ≤68dB
Color: Black
Duty Cycle: 10%
Limited Switches: built in (not adjustable)
External(adjustable)
Ambient temperature -45°C to +80°C
Ambient temperature -45°C to +80°C
Options: Hall Sensor,
Passive signal
Product Paramenters

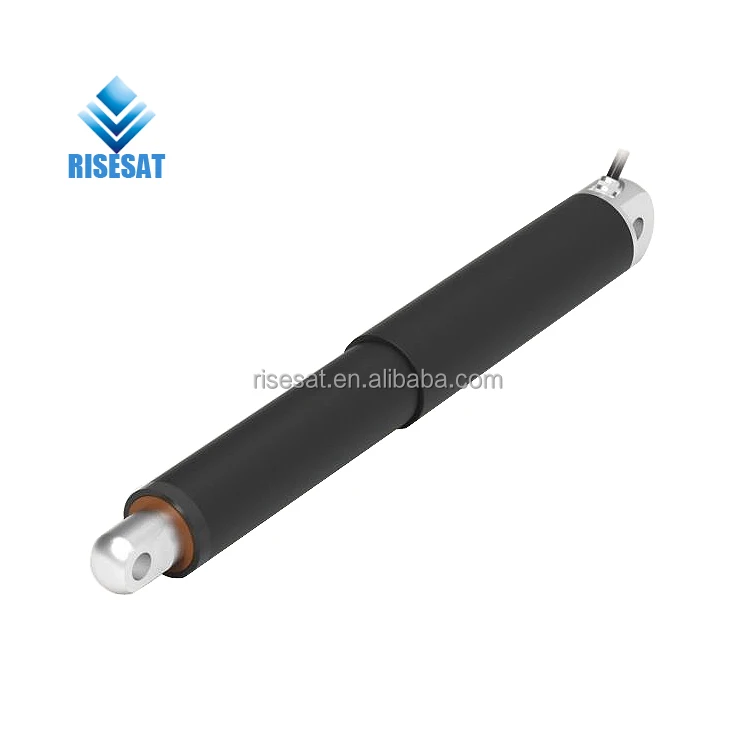

RS-L8-75 is a compact in-line linear actuator.
it is a slim in-line actuator with a robust design, high efficiency, hall sensor for positioning and synchronous function.
Applications
1. Solar Tracking
2. Industrial
3. Agricultural
1. Solar Tracking
2. Industrial
3. Agricultural
Type | Max. Force(N) | Self-lock load(N) | Max. Speed(mm/s) | Current (24v) | ||||
push | pull | no Load | full load | |||||
RS-L8-75-01 | 28000 | 28000 | 30000 | 2 | 1.5 | 8.1 | ||
RS-L8-75-02 | 20000 | 20000 | 20000 | 3 | 2.5 | 8.1 | ||
RS-L8-75-03 | 15000 | 15000 | 15000 | 4 | 3 | 7.2 | ||
RS-L8-75-04 | 12000 | 12000 | 12000 | 5.5 | 4.5 | 6.8 | ||
RS-L8-75-05 | 7500 | 7500 | 7500 | 10 | 8 | 6.8 | ||
RS-L8-75-06 | 4500 | 4500 | 4500 | 15 | 11 | 8.1 | ||
RS-L8-75-07 | 2500 | 2500 | 2500 | 28 | 22 | 8.1 | ||
RS-L8-75-08 | 1500 | 1500 | 1500 | 41 | 32 | 7.2 | ||
RS-L8-75-09 | 600 | 600 | 600 | 106 | 85 | 7.2 | ||
