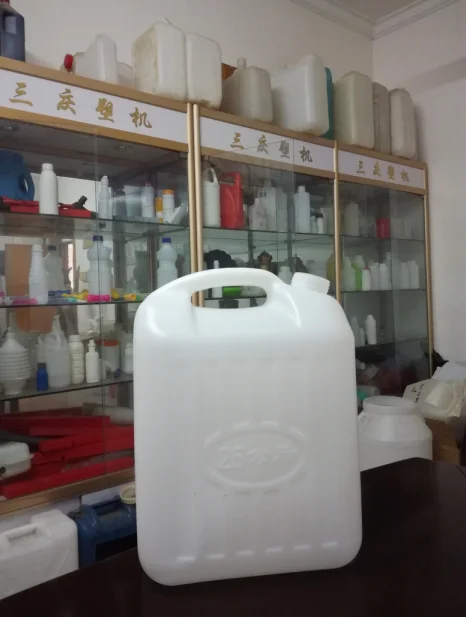

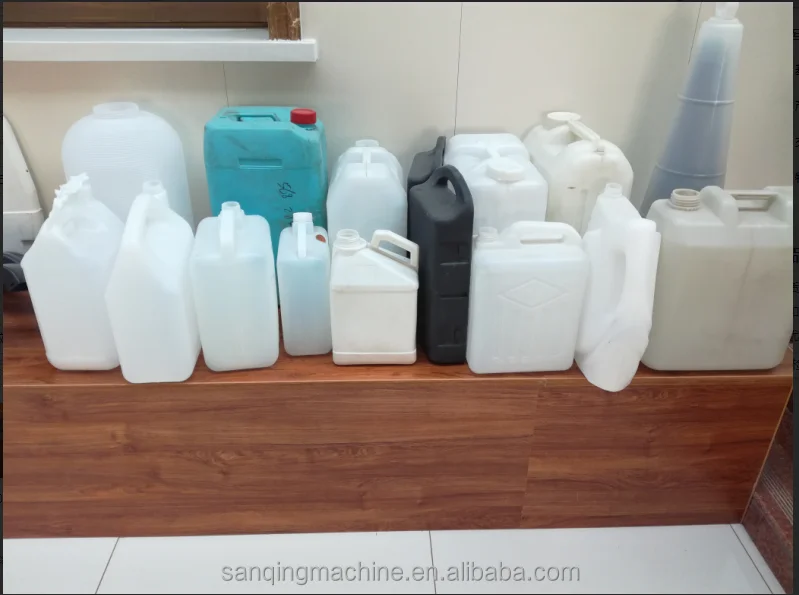

20 liter 30 liter 25 liter plastic jerry can ,drums extrusion blow molding machine
- Category: >>>
- Supplier: Hebei Sanqing Machinery Manufacture Co. Ltd.
Share on (60679507650):
Product Overview
Description
whatsapp 008613473702639 ; email sanqing03(at)126.com
Product Description

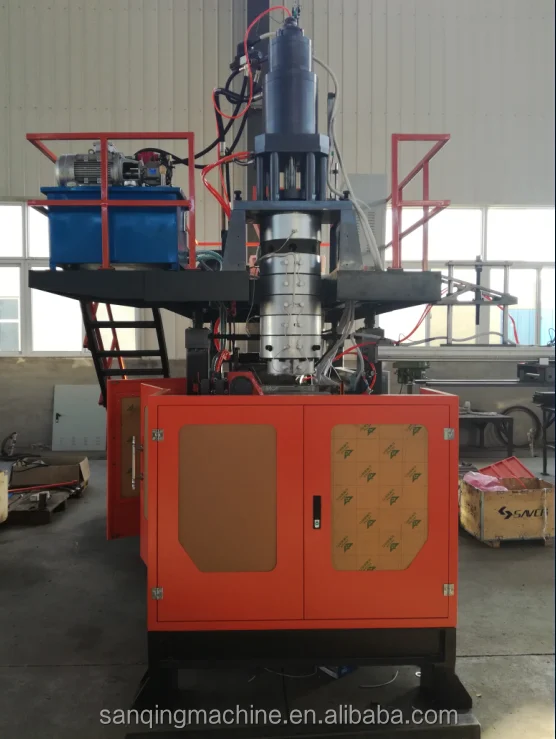

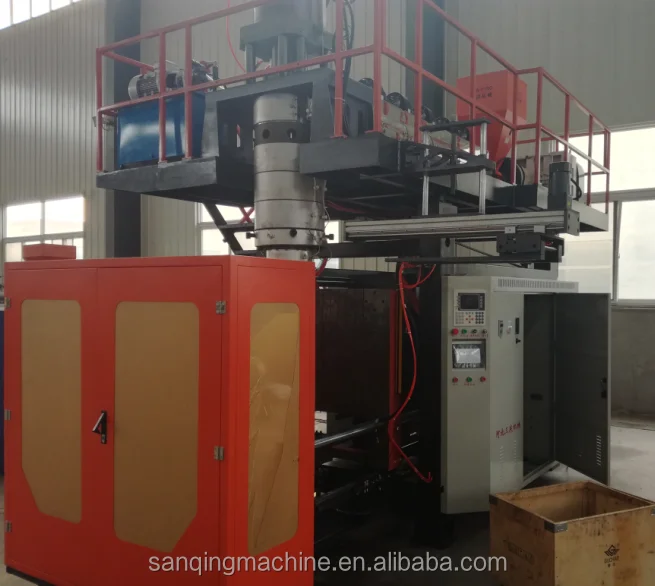

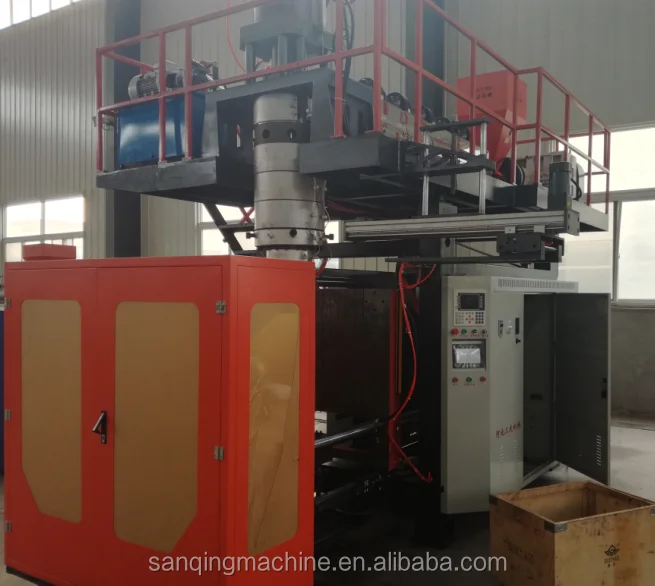

Sanqing blow molding machines could cover 1ml to 100L, so above 2 Liter, necessary to have hydraulic powered machine to achieve qualified product.
This type of hydraulic powered blow molding machine is able to produce until 40Liter.
This machine is controlled by PLC system, the working speed could be adjusted by operators over touch screen.
Equipment Technical Parameter
Name | Parameter |
Max. Product Volume | 40L |
Work Station | Single |
Raw Material: | HDPE,PP,ABS,PA etc. |
Extruder Electric Motor Power | 30kw |
Oil Pump Motor Power | 11kw |
Screw Rod Dia. | 80mm |
Screw Rod Length/Dia. | 25/1 |
Screw Rod Rotation Speed | 10-80rpm/min |
Plasticizing Capacity(HDPE) | 80kg/hr |
Production Capacity(free load) | 300pc/hr |
Material Storage Volume | 5L |
Die Max. Dia. | 280mm |
Clamping force | 240KN |
Installation Capacity | 108kw |
Average Energy Consumption | 60kw |
Machine Outside Dimension (L×W×H) | 3.6×1.8×2.8m |
Machine Weight | 6.3T |
SQYY80 Hollow Blow Molding Machine Main Parts Supplier
Hydraulic Parts
Name | Supplier |
Oil Pump | YUKEN |
Valve | Taiwan |
Oil pipe,coupling | Taiwan |
sealing parts | Japan |
Parison Controller
Name: Parison Controller control thickness of plastic
Brand: MOOG
Original: USA
This controller is used to control the weight and wall thickness of the bottle, so the bottle will be better quality. It is necessary to use this controller when the bottle requirement is high.
Packaging & Shipping
Our Services
Our engineers are available to service machinery overseas. We will provide technical support for your installation and operation. We can also send engineers to your country, if you need, for installing, debugging and operation of the machine. We warranty the quality of this machine for 12 months, if there is any problem with the machine, or any main parts are broken, we will repair it or replace new for free
