factory supply mini CNC router aluminium engraving machine/cnc router machine price
- Category: >>>
- Supplier: Jinan Lxshow Machinery Co. Ltd.
Share on (60679531700):
Product Overview
Description

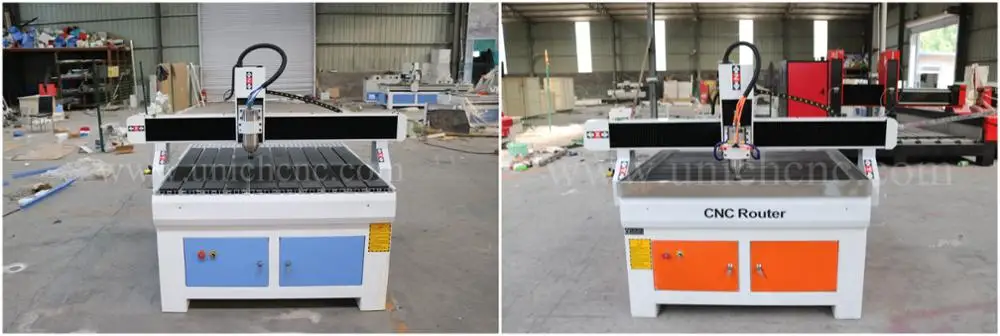

factory supply mini CNC router aluminium engraving machine/cnc router machine price

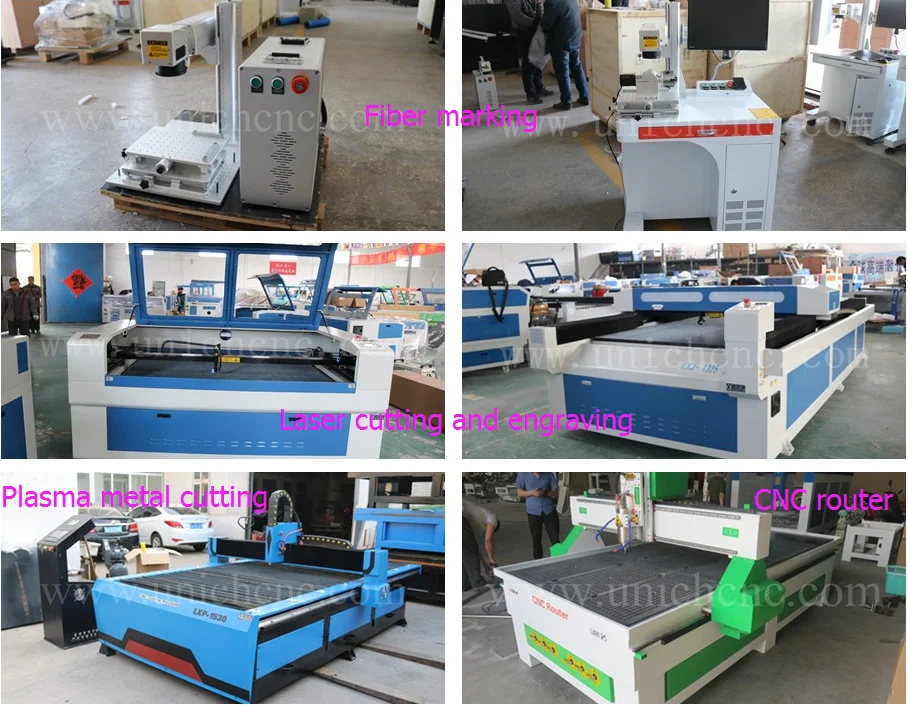

We are manufacturer and specialized in cnc router ,laser engraving and cutting machine,
plasma cutting machine and cutter plotter, with 16 years production and sales experience
in this field and 10 year export and service experinece for overseas’ buyers.
Services of router machine
1) Two year's Warranty. During the warranty, we will provide you new machine parts for replacing free of charge.(excepting the consumables, such as Lens and Reflectors)
2) 24 hours' Online Technical Service. You can get technical support byEmail/Skype/Telephone(Our qualified engineers will help you to solve any problem in time when problem happened.)
3) Easy operation. Working videos, operation manual of the machine are both available.
4) Quality control. Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure.

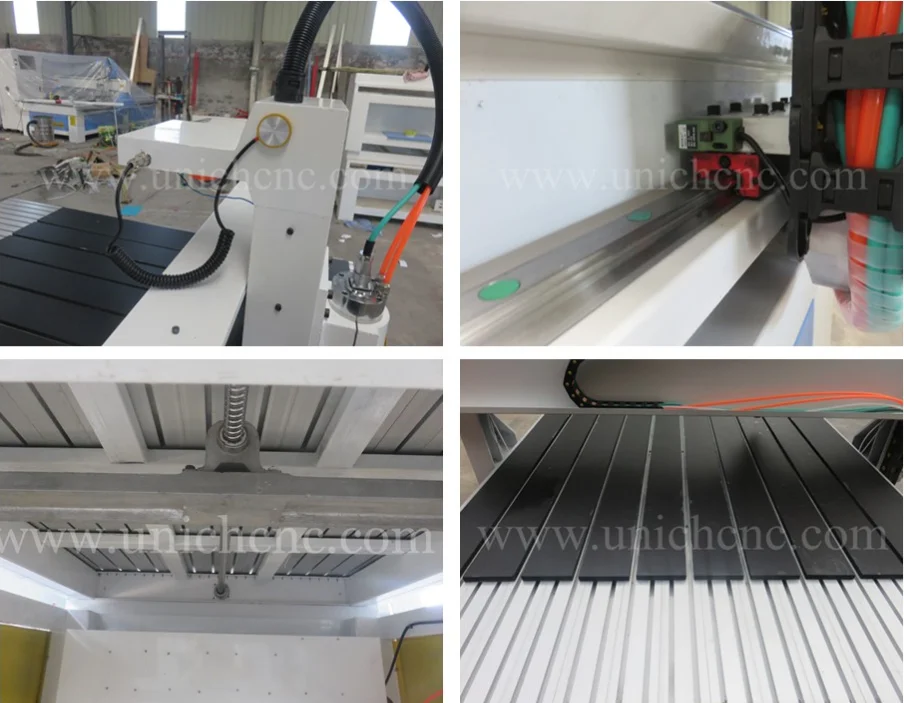

Advantages of cnc wood carving machine
1. Seamless square steel tube welding for the whole machine, good rigidity, not easy to deformation ,can bemore than 1000kg materials
2. Three axes adopt high precision square orbit; X and Y and Z axes adopt ball screw transmission, fast working, high efficiency and low cost.
3. 5 lines T slot , user can save vacuum pump power when the material is small.
4. High power spindle with good rigidity not only demonstrates superior performance in woodworking application, is also propitious to engrave and cut on copper, aluminum, iron and other metals.
5. Perfect oil lubrication system makes maintenance much easier.
And electric limit switch on all axis, make sure machine running well.
6. High soft, famous brand electric cables, with high Abrasion, fold, high temperature , acid and alkali resistant.
7. Software compatibility, compatible TYPE3, Artcam, carved JD, Wentai carving, UG, MasterCAM, PowerMill and other CAD / CAM design software.
Parameter of cnc wood carving machine

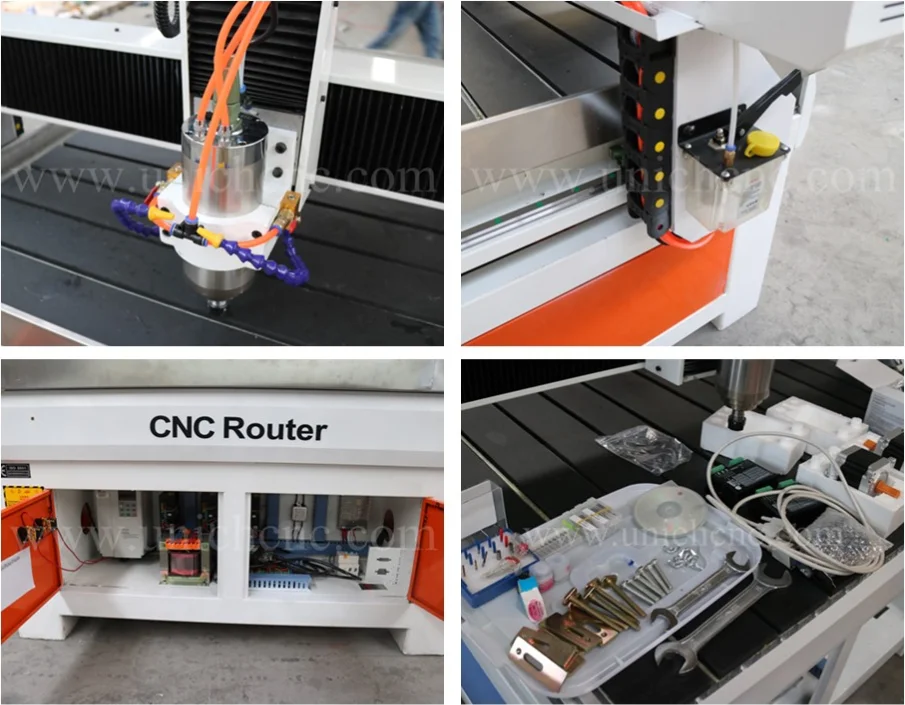

Standard Configuration: 1. Stepper motor 2. 1.5KW Water cooling spindle 3. Nc-studio controller 4. Leadshine860H driving system 5. T-slot worktable 6. X Y Z axis uses Taiwan TBI ball screw 7. X Y Z square rail of Taiwan imported brand 8. Fuling inverter 9. Auto lubrication system 10. ArtCam or Type3 software | |
Technical Parameters: | |
Model No. | LXM 1212 CNC Router |
Table Size | 1440mm*1440mm |
X, Y, Z Traveling Area | 1200mm*1200mm*120mm |
Table Structure | T-slot Table |
X Y Transmission | Taiwan TBI Ball screw |
Z Transmission | Taiwan TBI Ball Screw |
X Y Z Guide rail | Taiwan HIWIN Square Rail |
Spindle Power | 1.5KW Water Cooling Spindle |
Max.Spindle Speed | 24000 rpm/min |
Max. Traveling Speed | 45m/min |
Max. Working Speed | 38m/min |
Processing Accuracy | ±0.025mm |
Reposition Accuracy | ≤0.025mm |
Driving System | Stepper Motor |
Command Language | HPGL, G Code |
Control System | Nc-studio controller |
Working Voltage | AC380V, 50HZ |
Net Weight/Gross Weight | 450KGS / 550KGS |
Package Dimension | 1980*1830*1760 mm |
Optional Parts: 1. Japanese YASKAWA servo motor and YASKA drive system 2. Italy HSD 4.5KW air cooling spindle 3. Mach3/DSP control system. Any machine parts you need, we can tailor-made for you. | |
![)]N`[N`SM%QW8))I)_T6V7F.png](http://sc01.alicdn.com/kf/HTB1iiKHSpXXXXbqXFXX760XFXXXQ/223285094/HTB1iiKHSpXXXXbqXFXX760XFXXXQ.png)

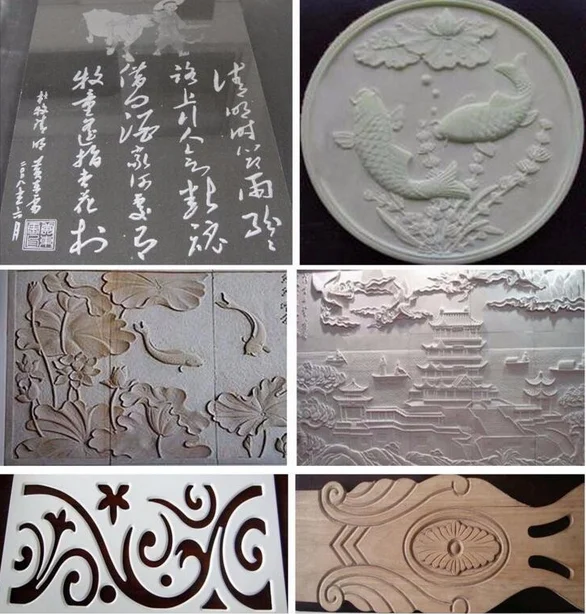

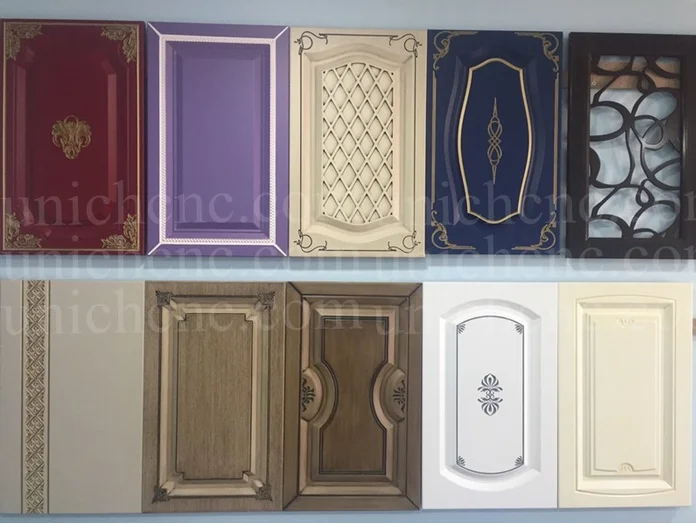

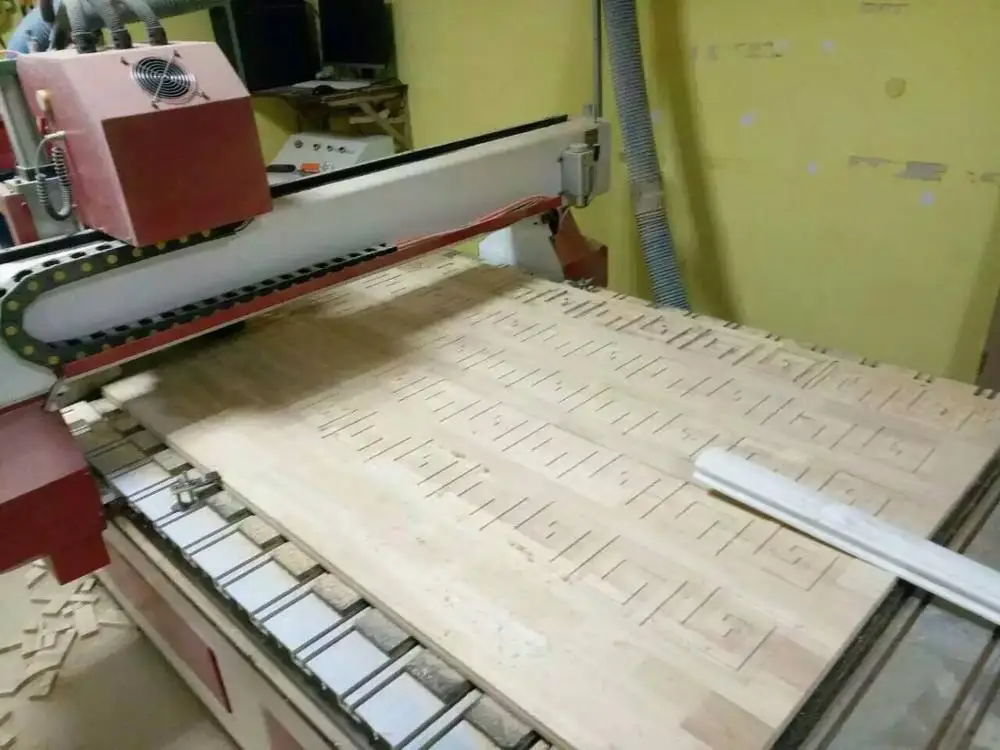

Application Router Machine
Wood processing | Processing of various wood materials, such as solid wood, soft wood, composite wood,etc |
Advertisement | Engraving and cutting various labels and number plate. |
Art craft | Engraving characters of any languages and graphics on gifts and souvenirs. |
Applicable materials | |
Wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials. | |

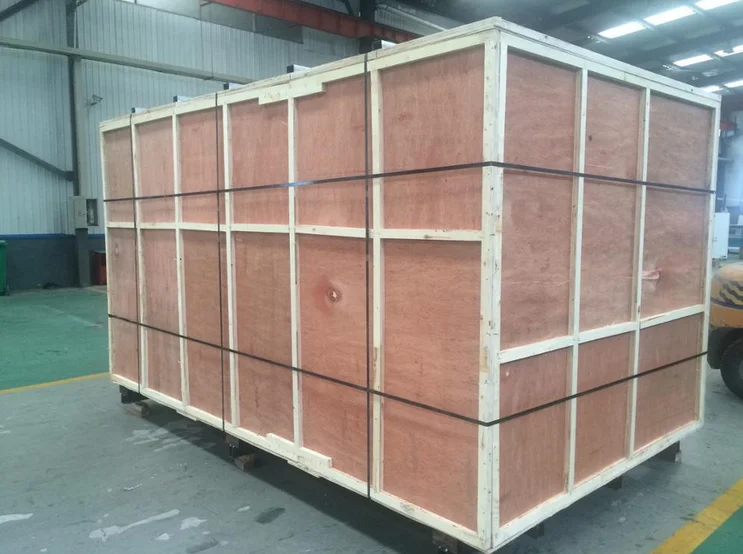

Packaging and shipping of cnc wood carving machine
Packaging Details: 1. Outside package: Standard marine export plywood case.
2. inner package: Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
FAQ
Q: I am not sure if this machine suitable for my work?
A: Don't worry, just tell me your working materials, max working area and cutting thickness,
then I will recommend you the most suitable machine for you.
Q: I am worrying about the service and operation of your machine?
A: Don't worry, if there is anything wrong with your machine within the guarantee time, we
will change a new one for you. And we will provide with the English operation manual and
video for your reference.
Q: How much will it cost shipping to my country?
A:Please tell me your nearest port or your location,then i will confirm to our forwarder.
Then I can tell you how much it will cost.

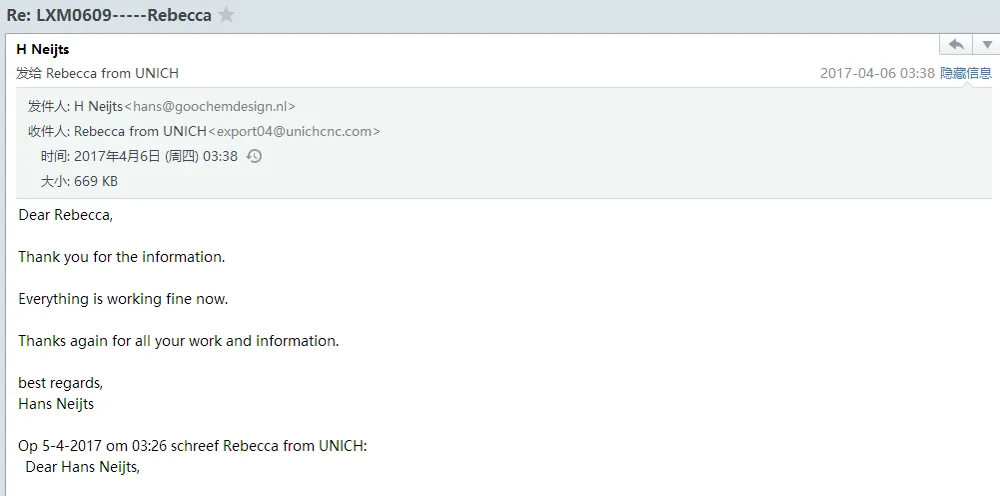

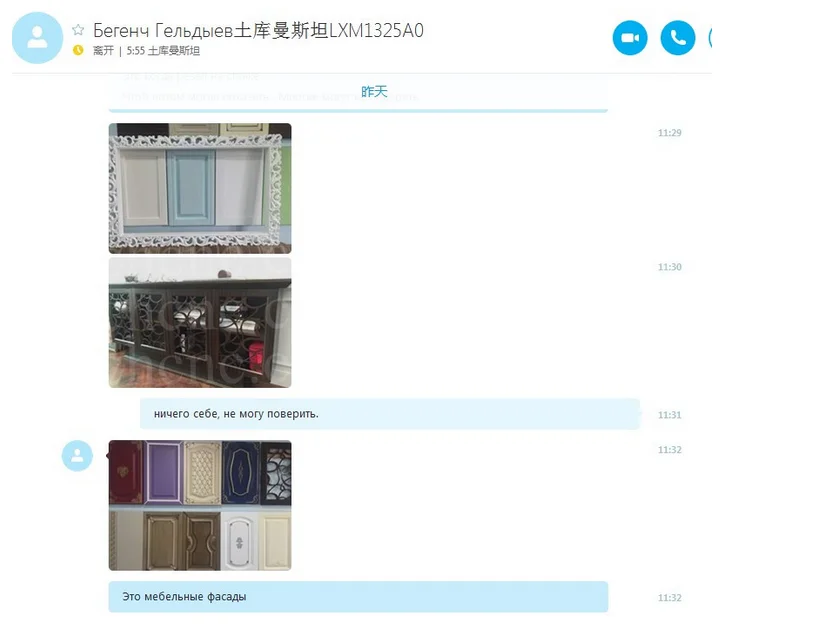

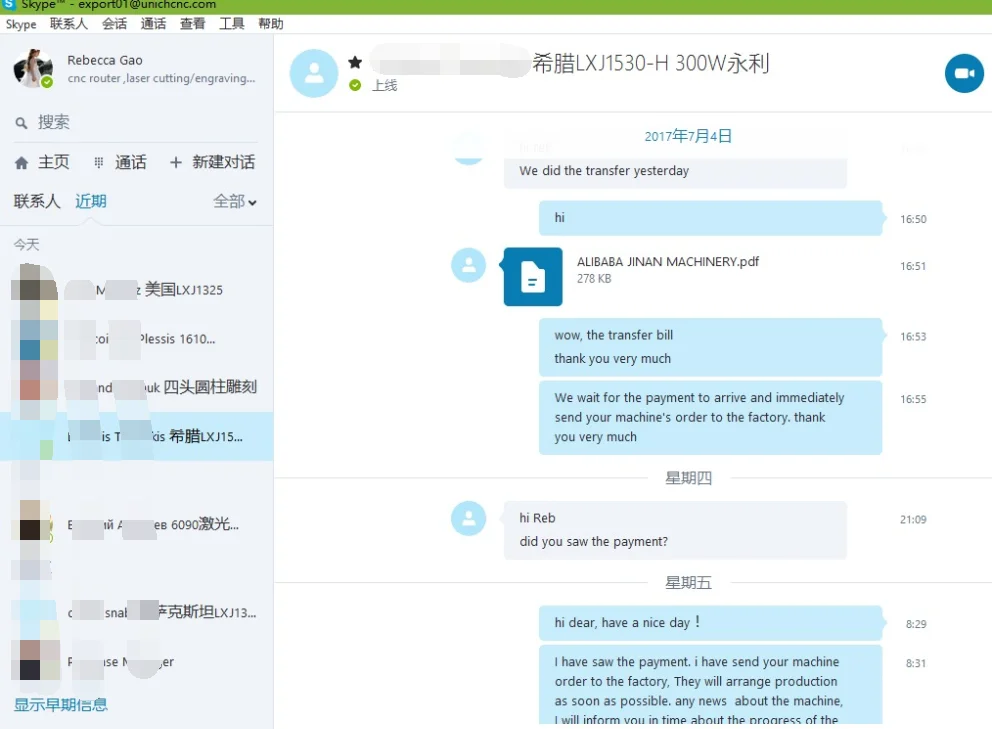

Customers feedback
