peltier air conditioner

Product Overview

Description

Range of application Peltier air conditioner



This series product can be widely use din enclosed area for climate control,such as wireless communication cabinet,battery cabinet,industry contrl cabinet etc.





The features ofPeltier air conditioner

1.Refrigeration system is not used refrigerants,few movement part ,small volume



2.strict process control and famous brand components to ensure high quality and reliability of this product



3.Circulation fans stepless speed regulation function



4.Multiple self-protection design & visible monitoring interface,RS485 communication protocol.



5.Eliminate hydrogen function optional



6.The heating function optional



7.Dry contact alarm output,NO/NC optional





The technial data of  Peltier air conditioner



Name	Thermoelectric(Peltier)air cooler
Model	T-200-4
Power supply	-48VDC nominal (-44VDC~-58VDC)
cooling capacity	200w@L32/L32
consumption	350w@L32/L32
heating capacity(optinal)	300w@L5/L5
internal airflow	240m³/h
working temperature	-10°C~+55°C
Noise level	67db
IP grade	IP55
Net weight	7kgs
mounting method	semi-embedded
dimensions	400*180*178MM (H*W*D)
CE&ROHS compliant	YES

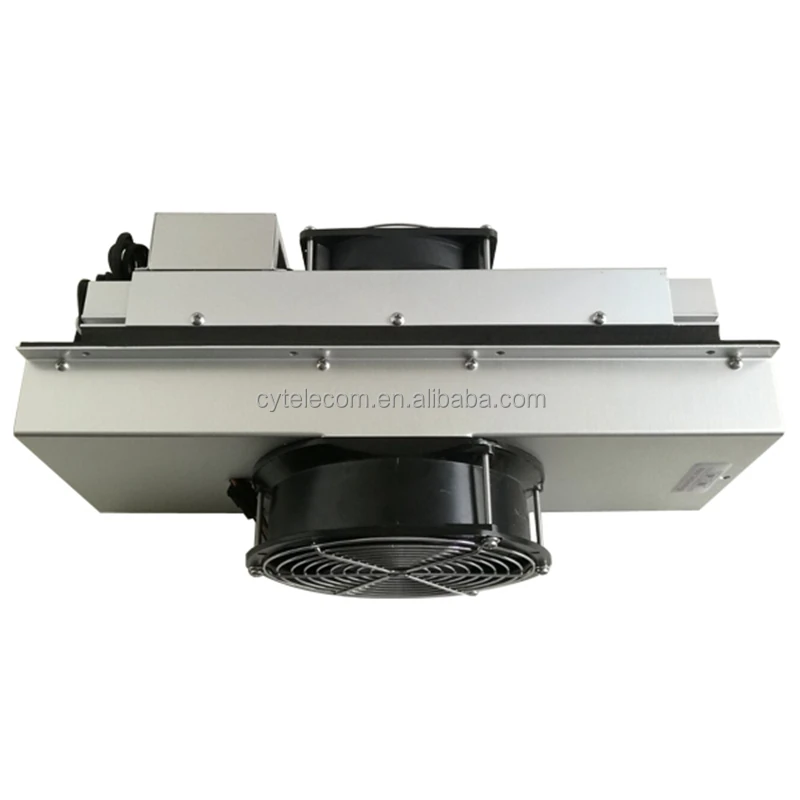

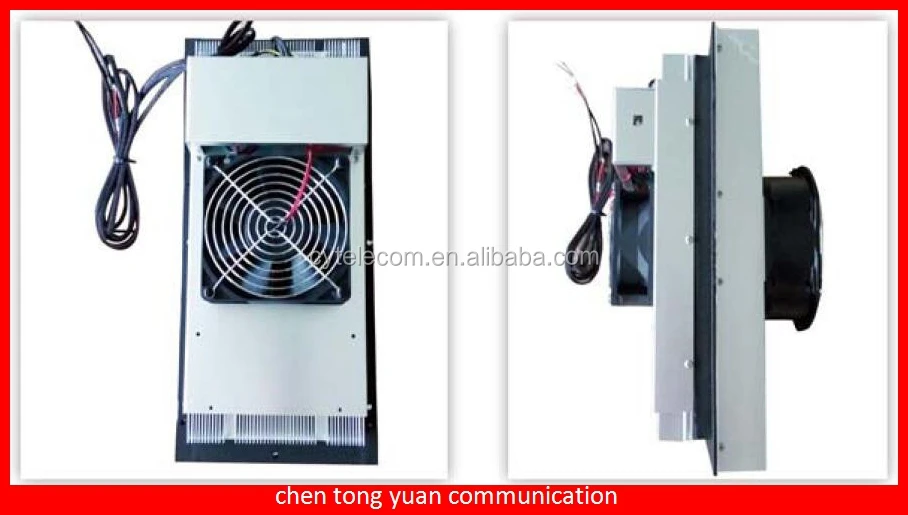

The pictures of Peltier air conditioner

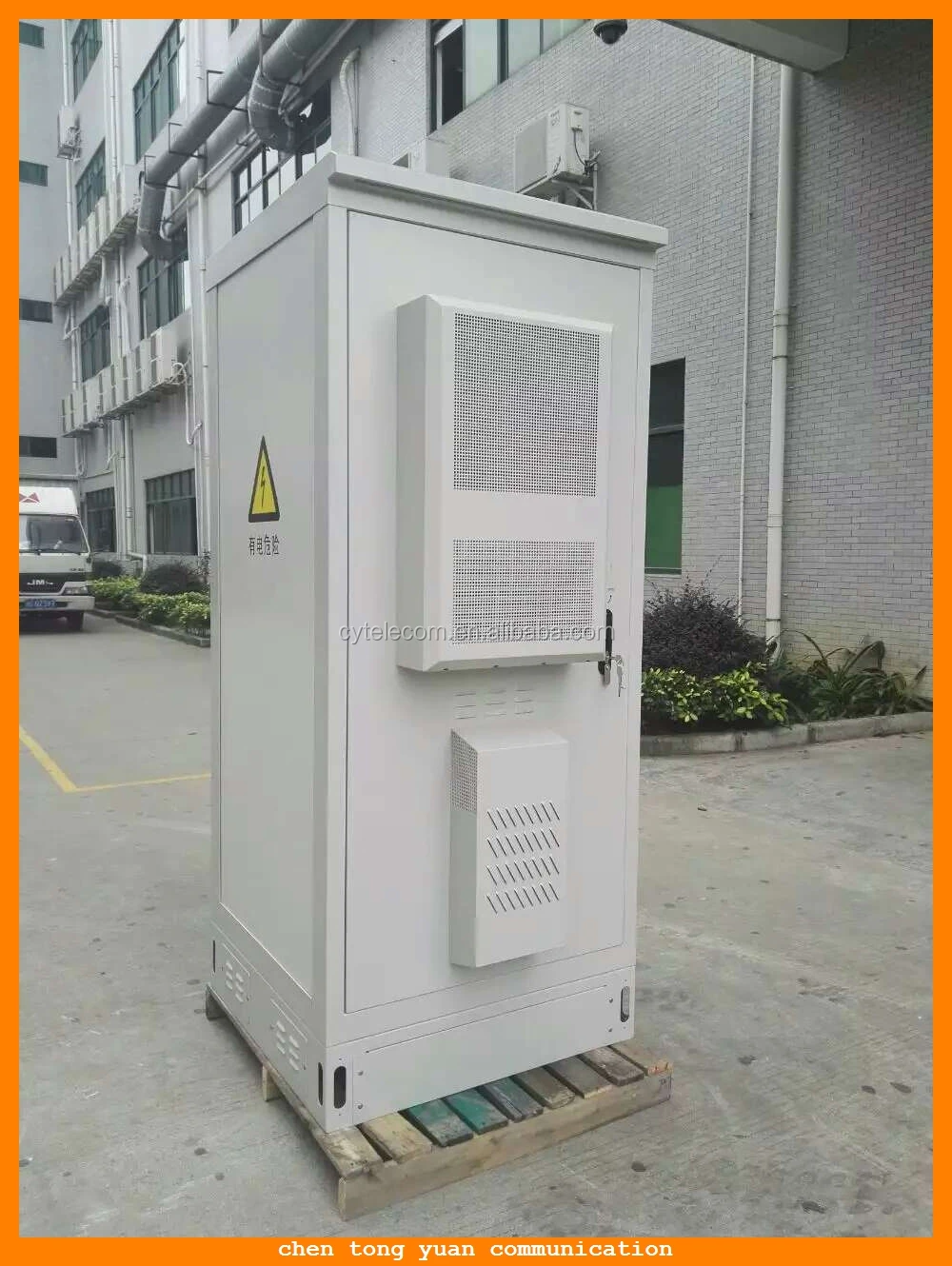

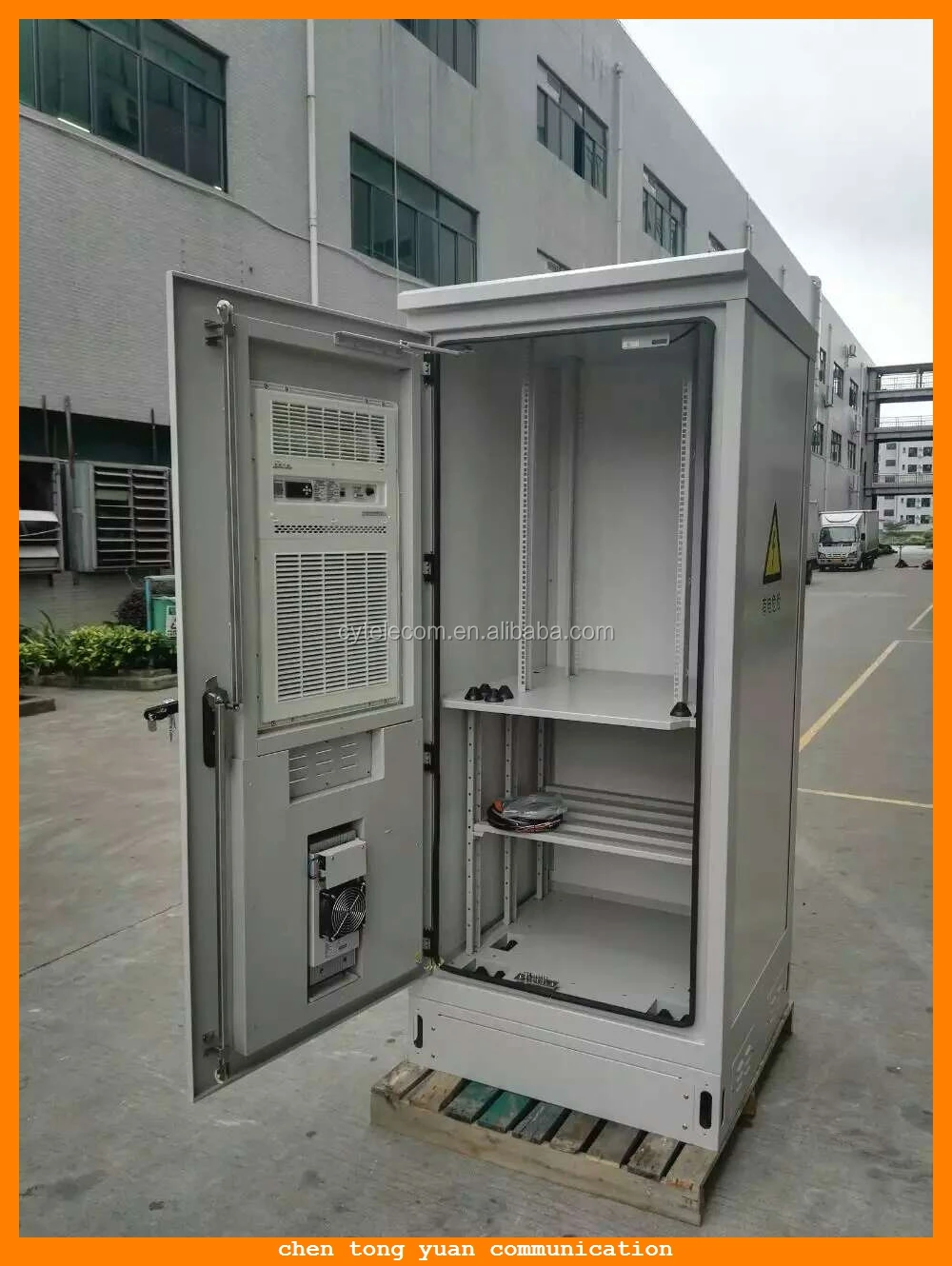

The applications of  Peltier air conditioner







Welcome your inqiury on  Peltier air conditioner .
