Professional manufacturer medical sheilding tcn 799 tungsten collimator for medical radiation shielding

Alibaba Professional manufacturer medical sheilding tcn 799 tungsten collimator for sale

Collimators contain and direct the beam of radiation during exposure. This results in improved radiograph quality and safer operating conditions. Tungsten panoramic collimators consist of a stainless steel housing containing two tungsten inserts. Tungsten directional collimators direct the radiation beam from a side port as a 60° conical side throws. All of our collimators can be attached directly to a SENTINELTM source guide tube. Wide ranges of collimators have been developed to meet the variety of applications and techniques used.

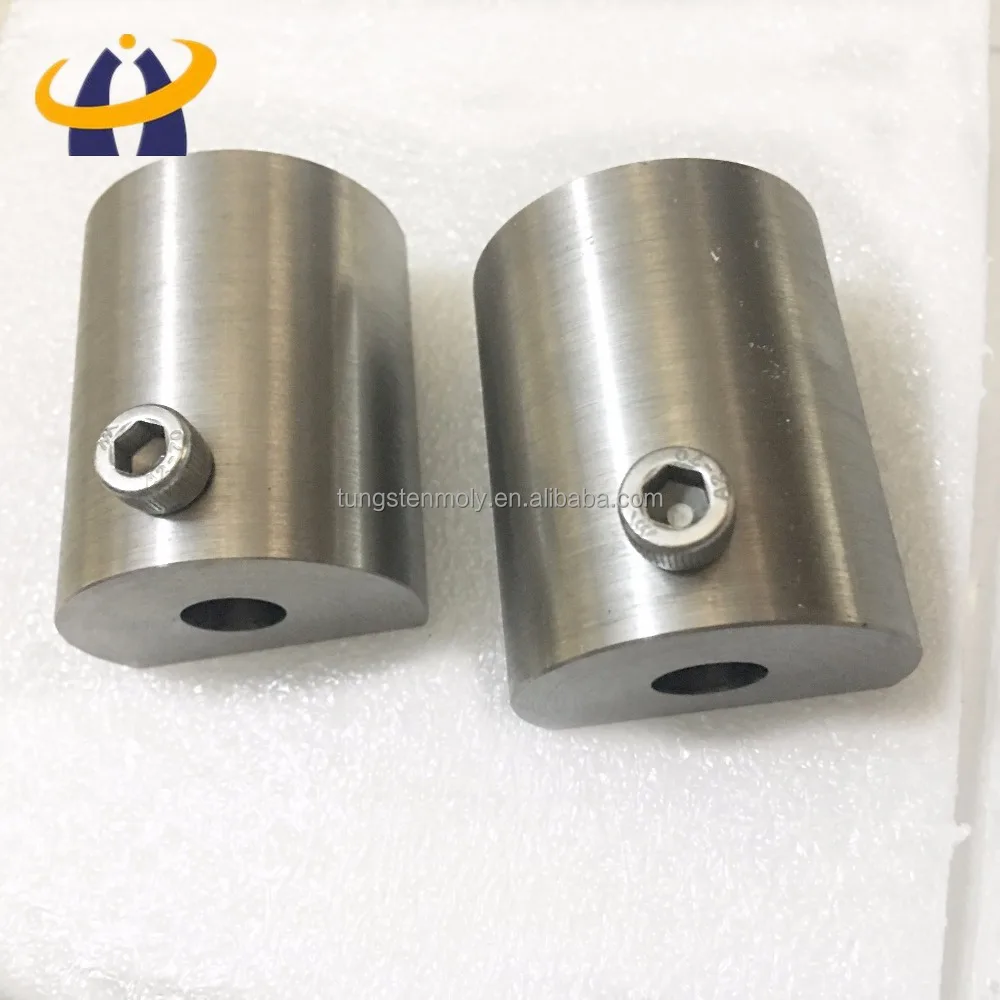

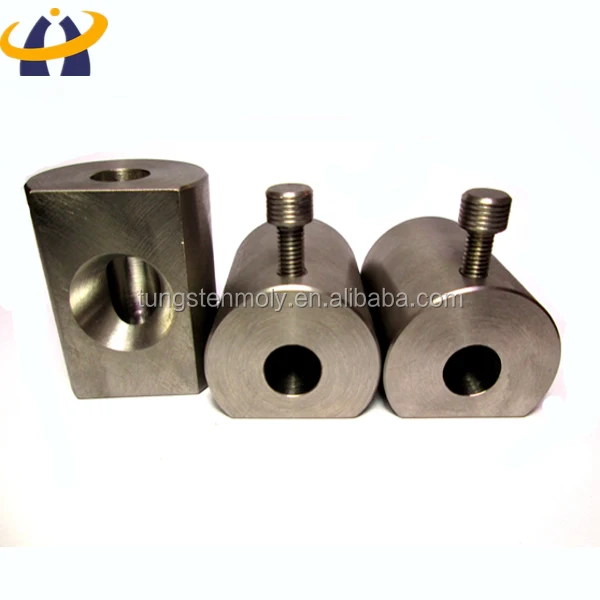

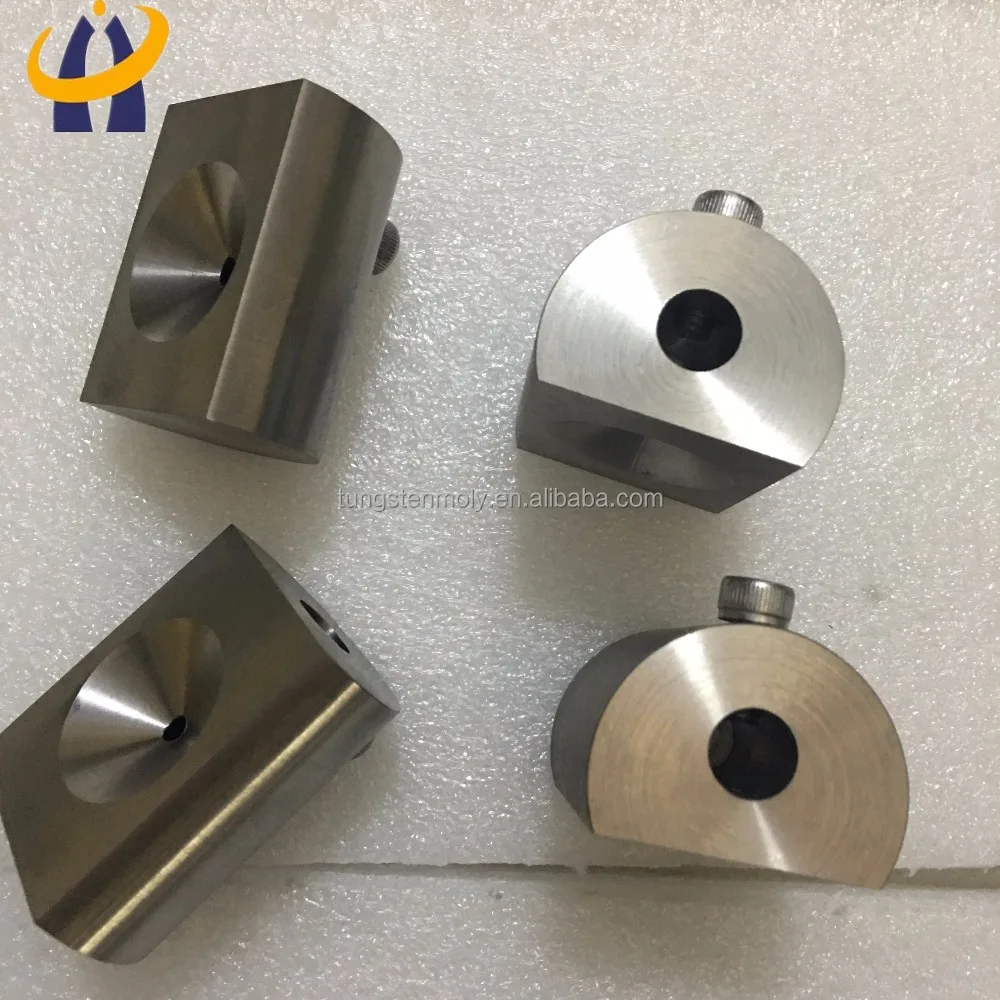

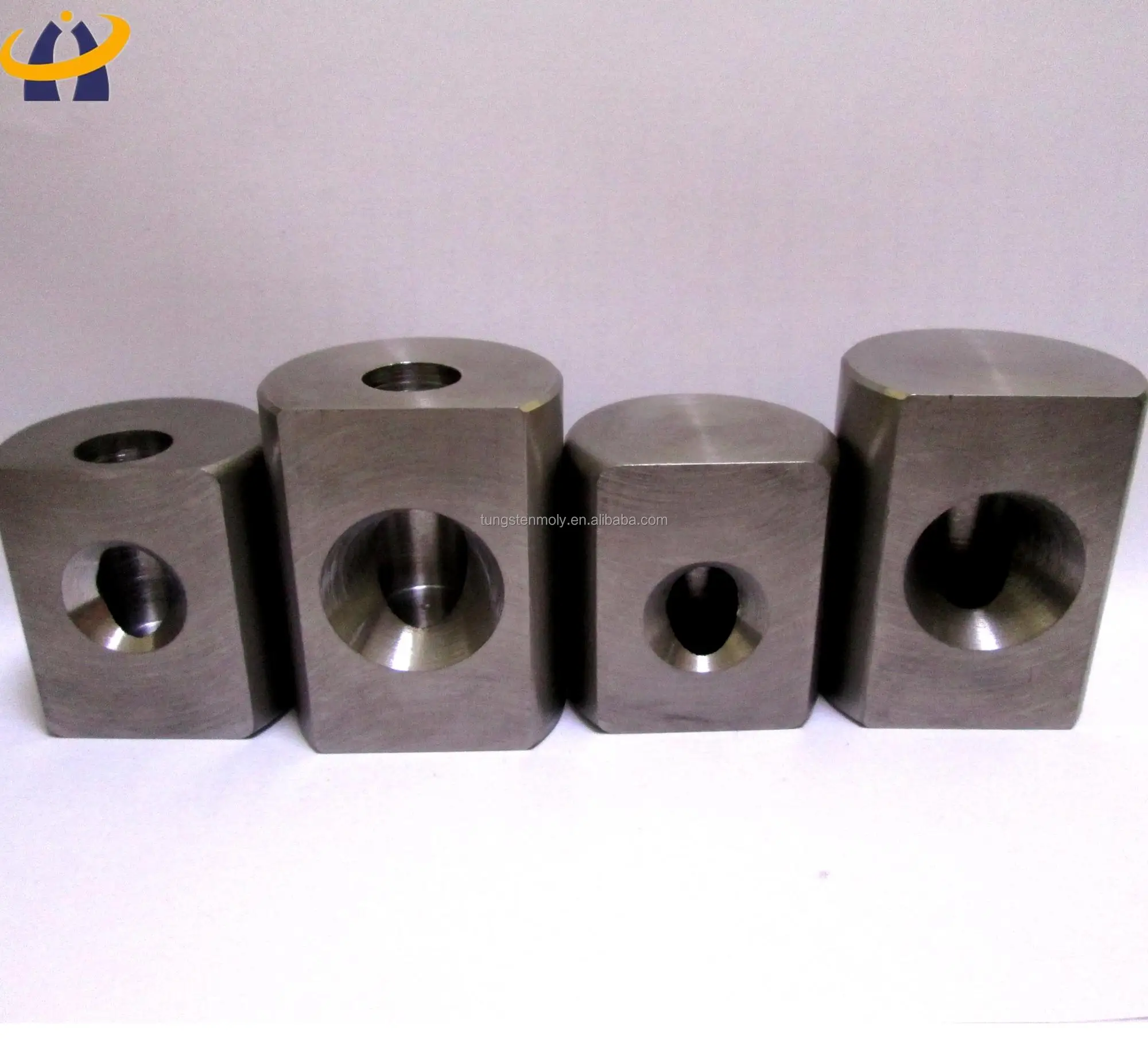

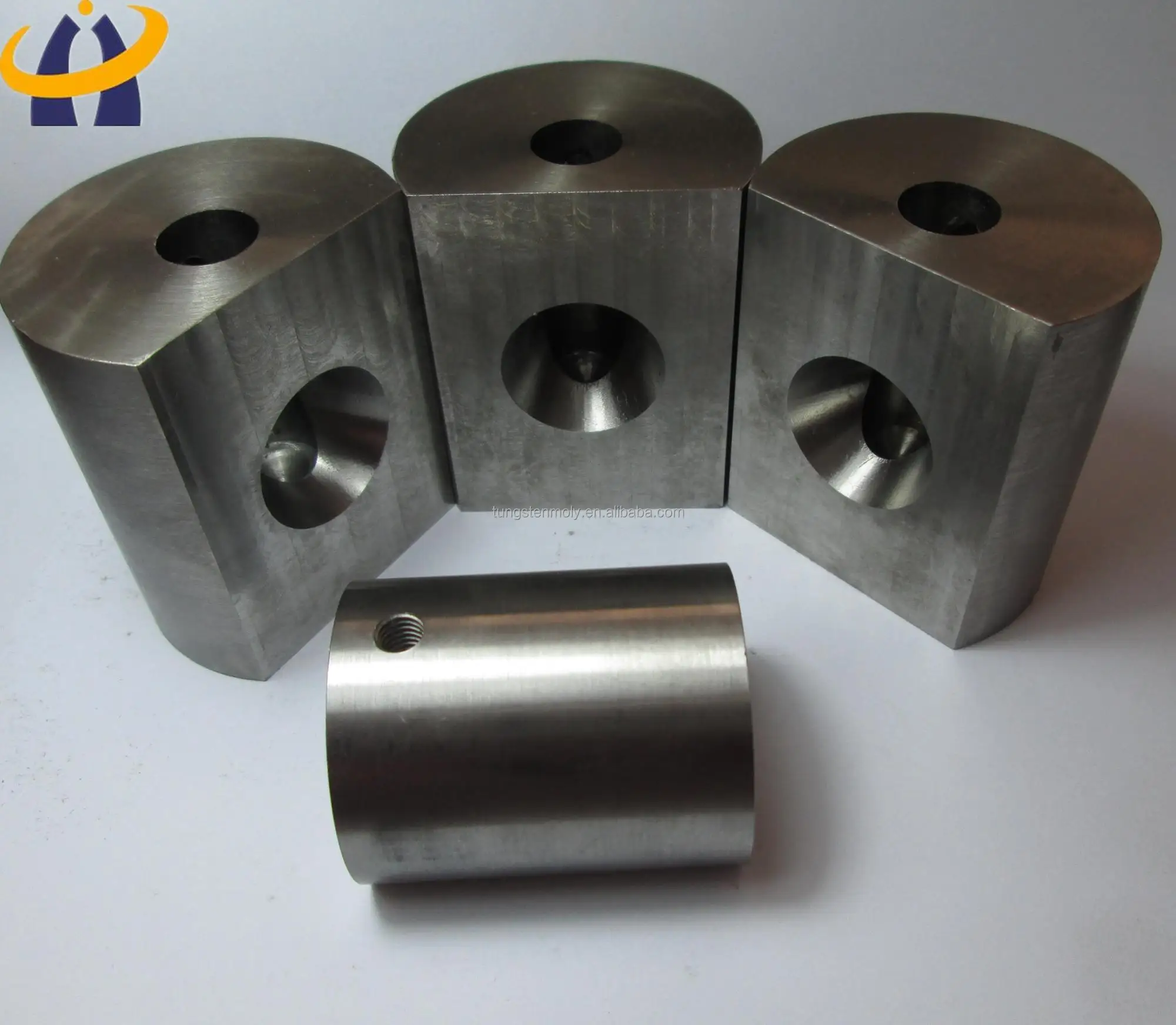

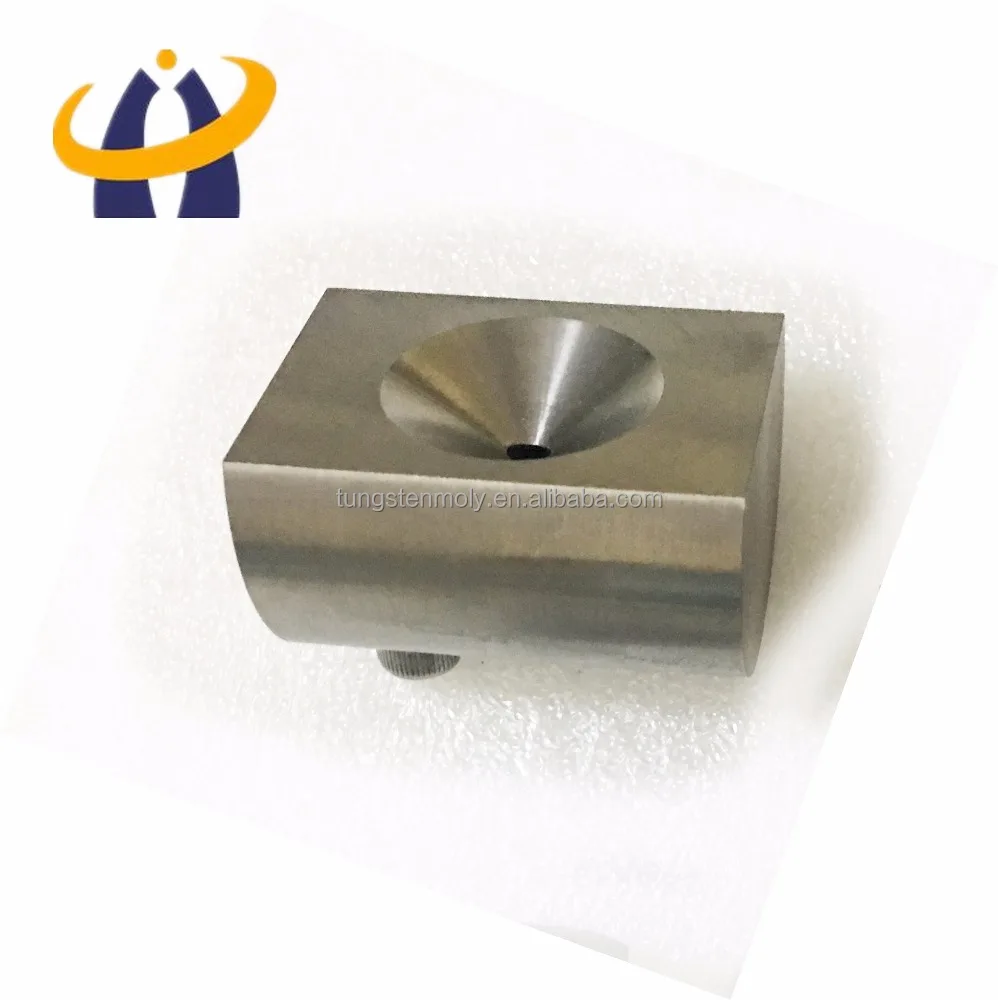

TUNGSTEN COLLIMATOR TCN799

Weight: 1.75 lb. (0.79 kg)
Dimensions: Length: 1.88 in, Diameter: 1.5 in
Attentuation: Co-60: 0.46 Ir-192: 0.05
Half Value Layers :Ir-192: 4.30 Co-60: 1.12
Beam Size: 60° conical side throw

TUNGSTEN COLLIMATOR TCN828

Weight: 9.5 lb 4.32 kg
Dimensions: Length: 3.5 in Diameter: 2.5 in
Attentuation: Co-60: 0.17 Ir-192: 0.003
Half Value Layers: Ir-192: 8.30 Co-60: 2.50
Beam Size: 60° conical, side throw

.

MingGUAN metal factory produce the other related items in radiation shielding application.please check below radiation shielding,if you can not find your requested shape,you can also contact us back for custom made

Packing Details  : Packing, wood case or iron metal bucket

Delivery Details : 3-30 days after order

A: We are factory for 12years in tungsten and molybdenum

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
