100W Fulree DC DC Converter 12V 24V to 72V 90V 2A Adjustable Step up Boost Power Supply Module
- Category: >>>
- Supplier: Shenzhen Fulree Electronics Co. Ltd.
Share on (60679718927):
Product Overview
Description

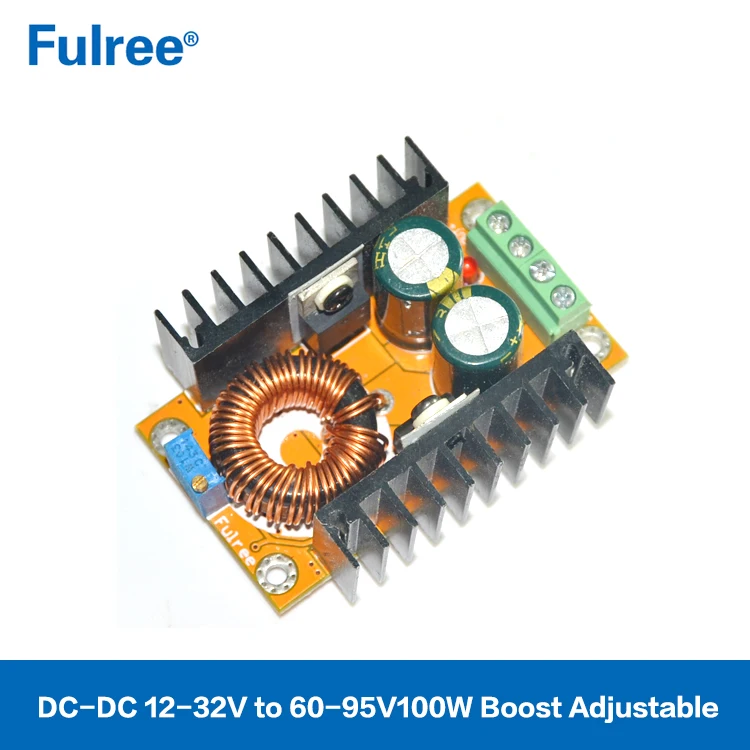

100W Fulree DC DC Converter 12V 24V to 72V 90V 2A Adjustable Step up Boost Power Supply Module
| Model | FULREE B1690 |
| Module Properties | non-isolated step-up module (BOOST) |
| Input rated voltage | DC 12V |
| Input voltage range | DC 10-32V |
| Input Current | 16A MAX (Please enhance heat dissipation if more than 10A) |
| Conversion efficiency | 85% typical |
| Output voltage | DC 60-95V Adjustable |
| Output current | 2A MAX |
| Output rated power | 70W MAX natural cooling |
| Output peak power | 100W MAX enhance heat dissipation |
| Voltage regulation | ± 0.5% |
| Load regulation | < 2% |
| Working temperature | -40°c ~+85°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Output Ripple | 2% (MAX) 20M-bandwidth |
| Rectification | synchronous rectification |
| Full load temperature rise: | 45°c |
| No-load current | 35mA typical |
| Dynamic response speed | 5% 200uS |
| Protection | Over-current, Over-temperature |
| Short-circuit protection | NO, if need pls add fuse on the positive pole on input |
| Input Reverse Polarity Protection | None (Please Series diode at the input port.) |
| Connection | solderless terminal |
| Wiring | the above chart, .IN + input positive, IN- input negative, OUT + Output +, OUT- output negative. |
| Product Weight | 70G |

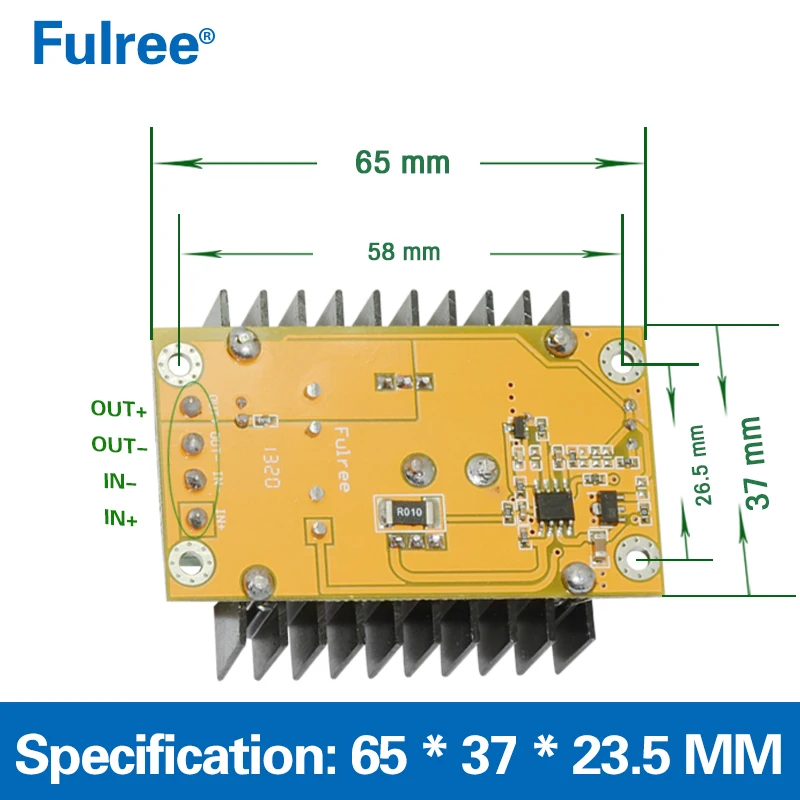

| Product size | 65*37*23.5mm |
Applications: | 1) DIY an output adjustable car power supply, only need access to your 12V power input, the output voltage you can (60-95V) continuously adjustable freely, but the output voltage can not be less than the input voltage. 2) Boost charger, you can use more than 12V power supply for 12V battery charging, for example, 72V battery. 3) In order to power your electronic devices, as long as the voltage regulator to your desired voltage and current does not exceed the rated current can all be working. 4) Solar battery charger for electric vehicles |
Attention | 1. Within one meter lead wire length not less than 1.5 square feet, if greater than 1 m length wire, bold, recommended 2.5 to 4 square feet of line is better 2. The module operates at high power, high temperature, plus time to install the fan housing, low power without adding a fan, be sure the module heat sink temperature should not exceed 80 degrees. 3. Using the input can not be reversed output can not be shorted. 4.12V battery discharge voltage can not be lower than 10.5V, Li-ion battery used in tandem (single 3.7V) discharge voltage can not be lower than 2.7V. |
Other output current option for 12V to 24V | 1A, 2A, 3A, 5A, 8A ,10A, 12A, 15A(pls contact with our sales manager if need) |
Attention: | |
