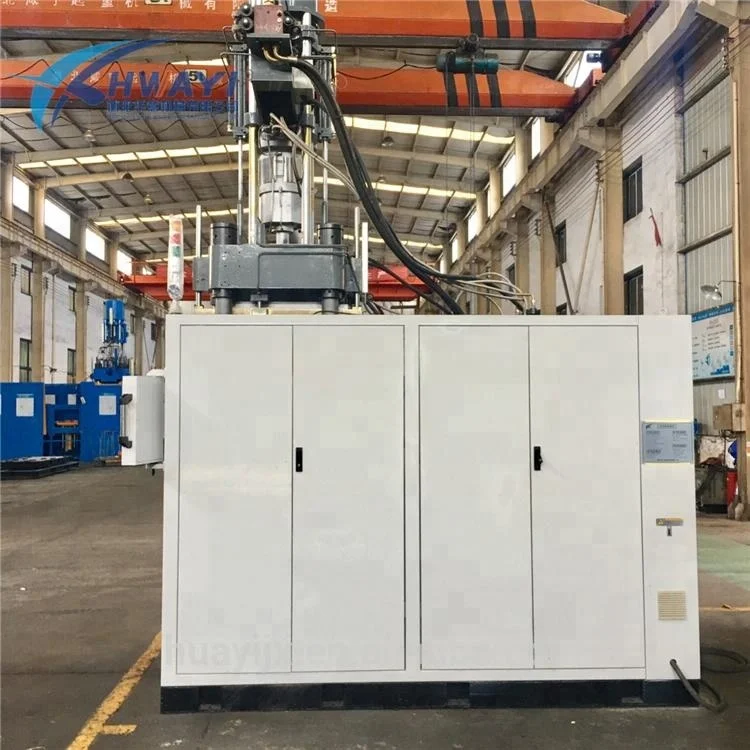

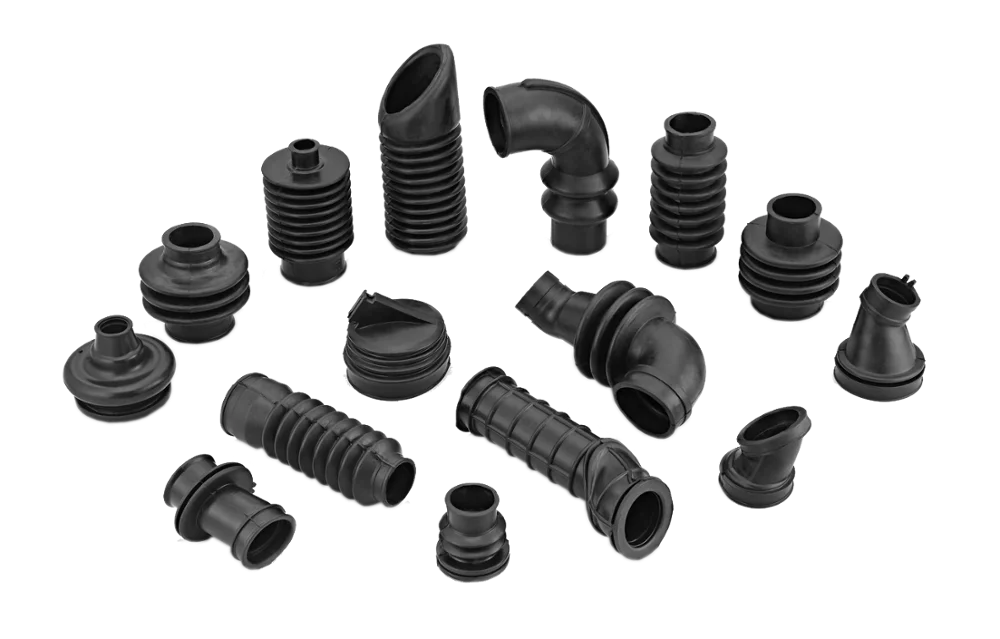

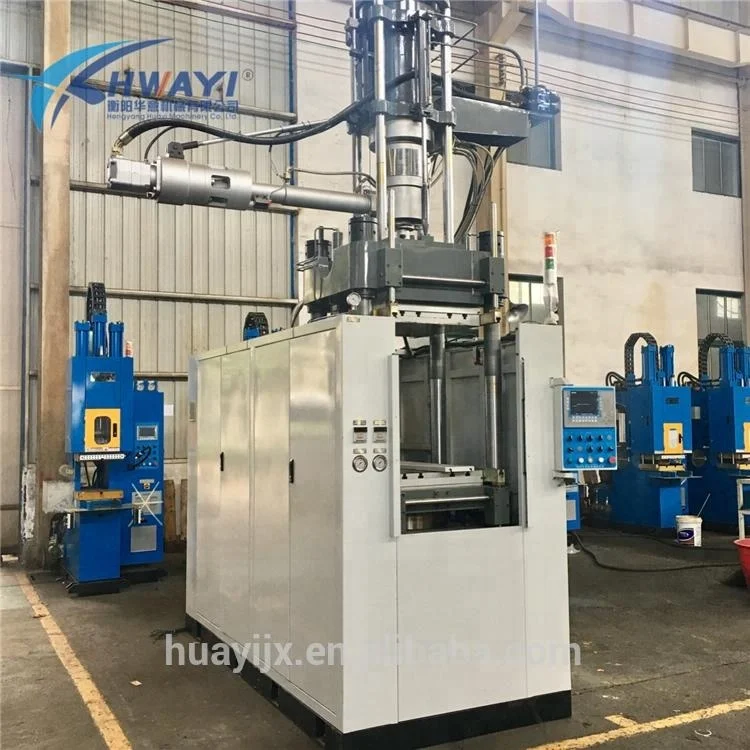

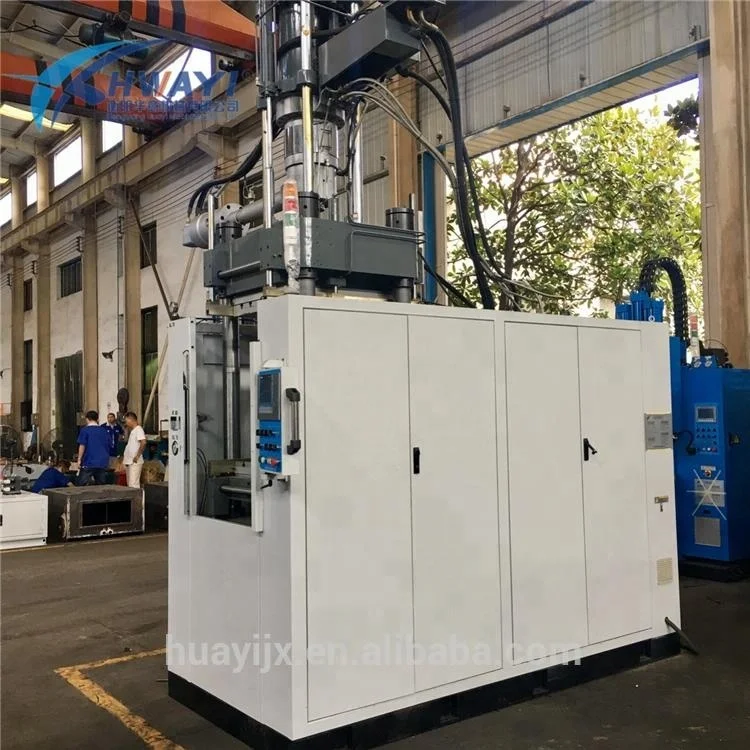

HYZ-300A Rubber Injection Machine is vertical type, suitable for making rubber seals, rubber gaskets, rubber tubes, rubber absorbtions, 90% of rubber parts for car ,truck and other vehicle.
SPECIFICATIONS FOR HYZ-300 TON Rubber Injection Machine for rubber auto parts making
Injection Unit
Injection Volume
cc
3000
Piston diameter
(φmm)
115
Injection force
(MPa)
170
Clamping unit
Clamping Force
(Kn)
3000
Max. distance between platens
(mm)
750
Platen size
(mm)
600x700
Power system
Working force
(MPa)
18
Motor power
(kW)
15
Cooling water pressure
(Mpa)
0.3-0.6
Main Points of HUAYI rubber injection machine
1, Four-Column structure ensures machine durability. 2, Multi-step setting of injection pressure and speed. 3, Precise measurment of metering stoke. 4, To realize precise metering by slowing down plasticizing screw and speed before ending metering. 5, PID control vulcanizing temperature and time. 6, To protect mould by low pressure mold clamping. 7, Three phases of mold openning/clamping force and clamping speed setting. 8, Automatic mould plate sliding and side ejection function(Optional)
Certifications

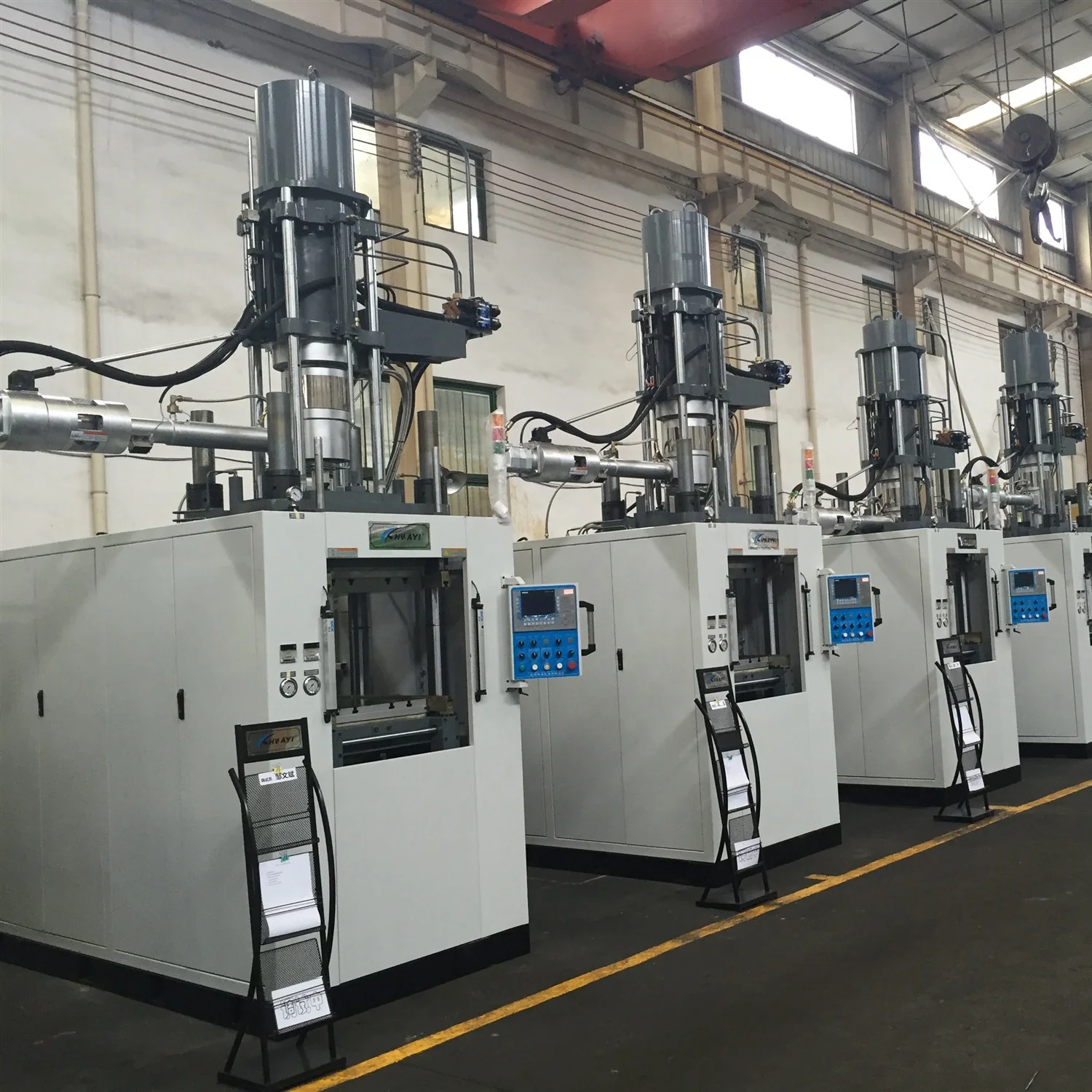

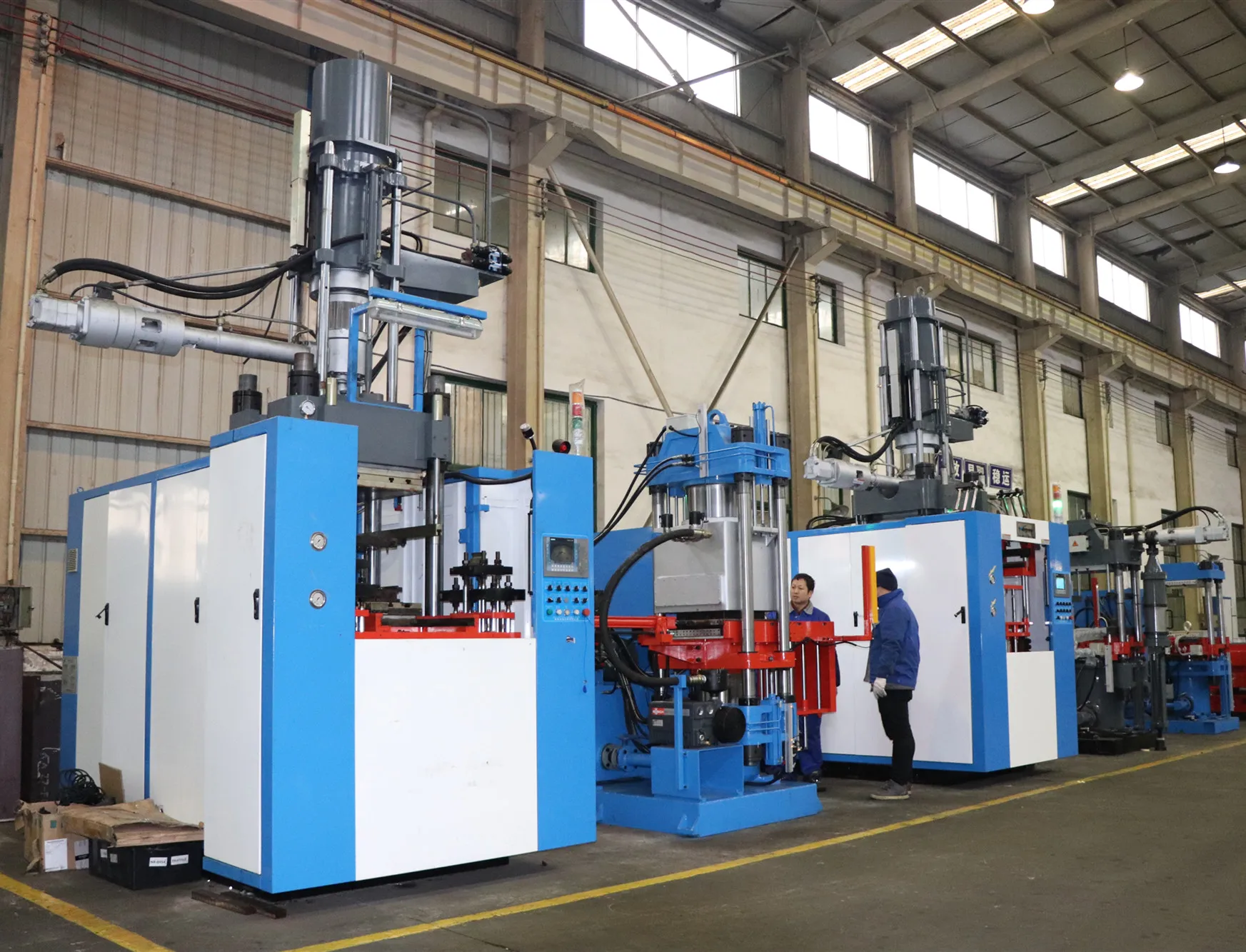

Detailed Images
Machine Parts

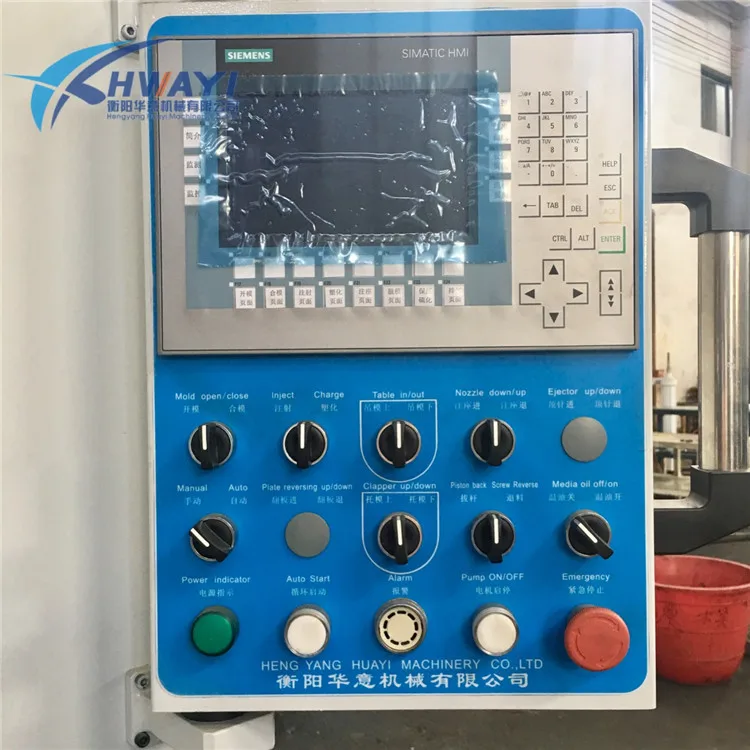

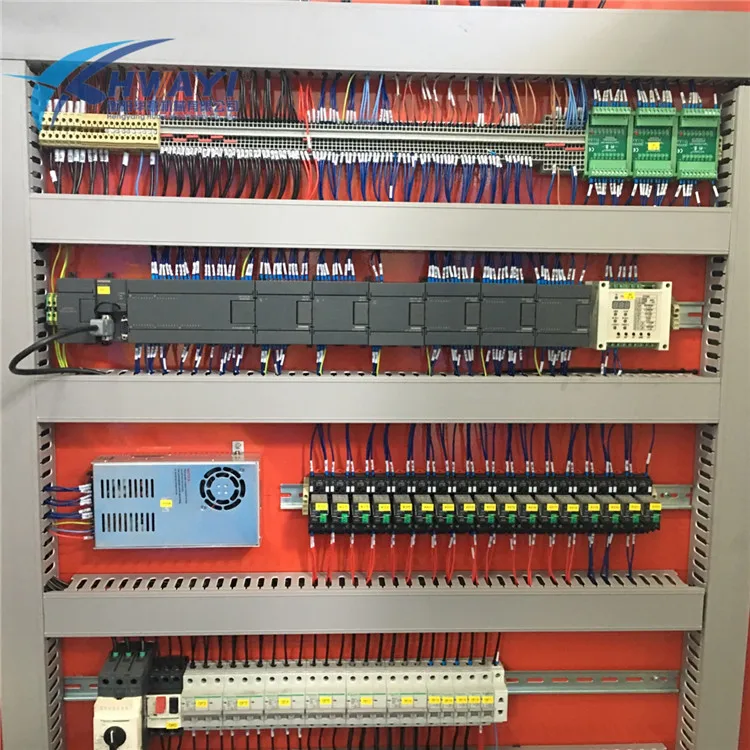

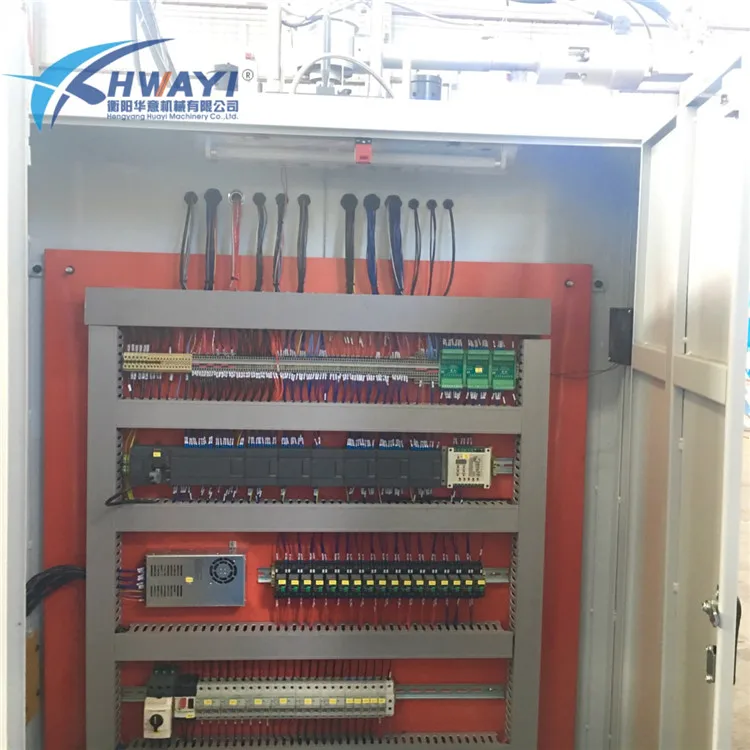

Name: PLC
Brand: SIEMENS
Original: Germany
Our rubber injection machine is the world's most advanced PLC industrial control system, PLC chip, digital module, analog module, temperature control system PID, proportional pressure amplifier, proportional flow amplifier and a set of control systems are used Germany Siemens industrial control System.
Main Features of good rubber injection molding machines
1, Good stability, high reliability and strong adaptability to the working environment.
2, PLC is the most advanced models of Siemens, it has a fast response, high sensitive buttons, with function of the various data reception, analysis and transmission speed is several times faster than ordinary PLC Control system.
3, Good durability and low failure rate.
4, High temperature control accuracy.
5, The control system is powerful, can save more than 300 sets of mold parameters
6, It is very convenient to edit and rewrite the program

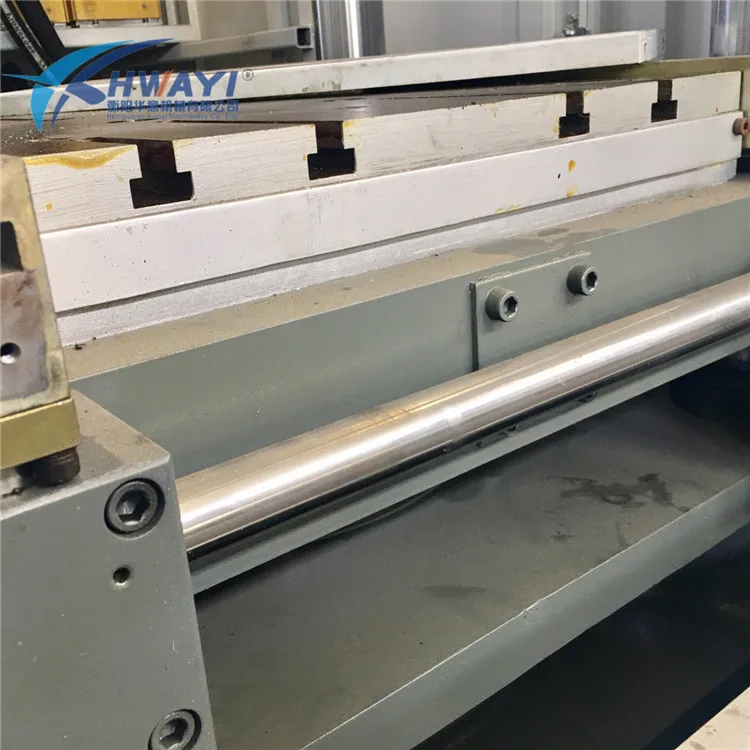

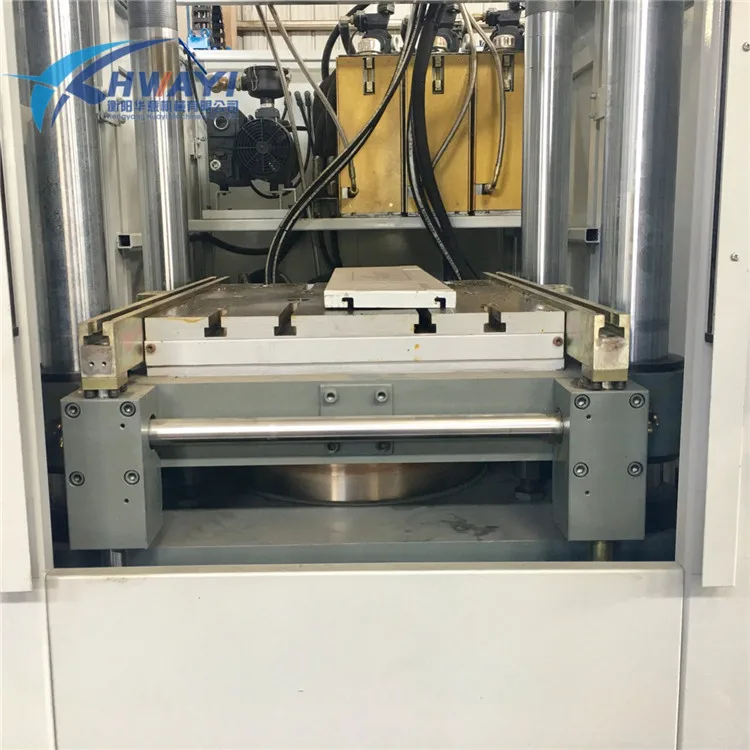

Rubber Injection Machine Bottom Platen
Name: T slots for easlly mold mounting, hydraulic sliding for mold loading

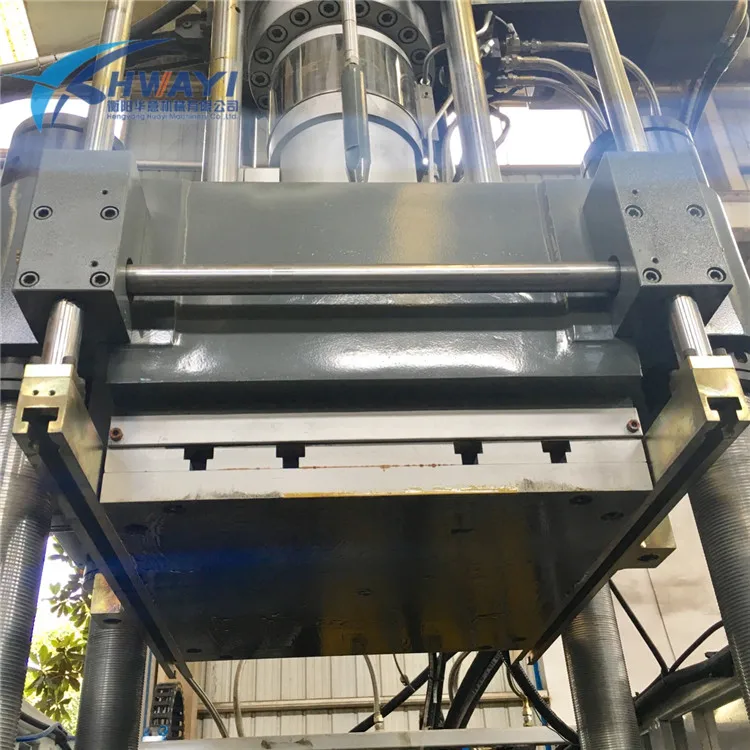

Rubber Injection Machine upper platen
Name: Hydraulic upper mold lifter , optional for lifting the top mold plate, easily to remove the vulcanized rubber compound
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support
* View our Factory.
After-Sales Service

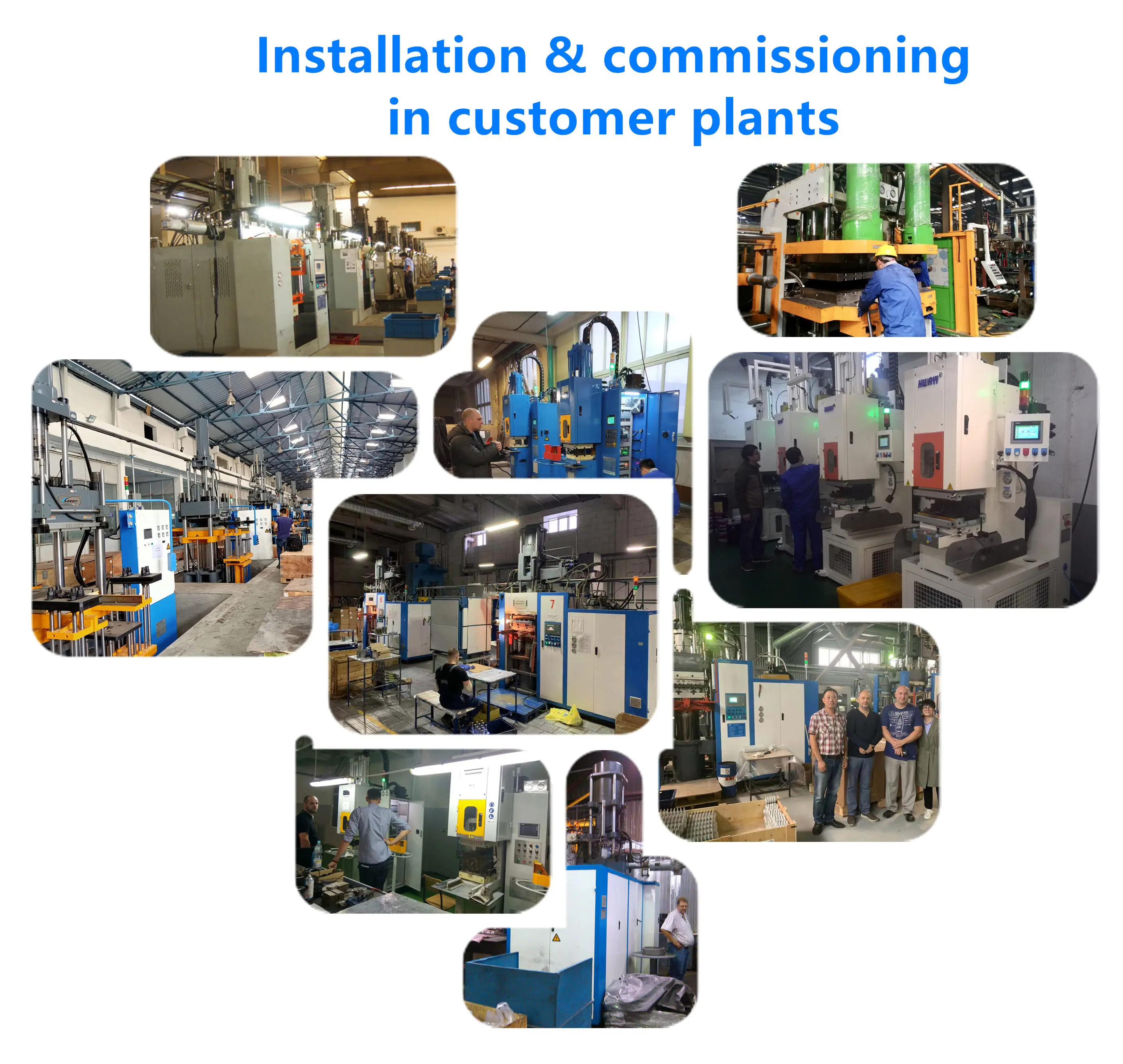

* Training how to instal the rubber injection machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Packaging Details
After the machine tested successfully, our engineer dept will offer a solution that how to disassemble the machine in two or three units, so that we can ship the machines by containers,also consider the easily assembling work in customers' factory.
Packaging
Packaging Details
Injection Unit will be packed separatedly with steel frame to protect the components and structure
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer since 2001.
Q: How long is your delivery time?
A: Generally it is 90 days, after your place the order, we will review the production line as our real production plan, If the goods are in stock, max one month for delivery the machines. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge if customer provides molds and rubber and materials, but samples delivery cost is on the acount of the buyer.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment. We accept TT, LC at sight.
Q: If i purchased the machines from you, the machines got problems, how to do?
A: Firstly, get connection with sales, tell us the machine series no. on machine namecard, discrible what happened on the machines, by sending pictures or vidoes for better understanding.( If we have service people or representive in your countries, you also contact them)
Our service email address is huayijx@huayijx.com, Tel: 0086 7348323019, Whatsapp or wechat: 0086 15073424261. Secondly, Sales will contact engineers for solution and reply you in 24 hours. If need deep communication, we will build online commnication group with you,your operator and our engineers to help you figure out the problems. Thirdly, if only relative parts got problems or broken, changed the parts by local suppliers or sending from HUAYI plants. If program problem, we will use remote support service to update the program, no need to send engineers If problems are serious, could not solve by online support, we will send engineer to your plant for checking and recovery the machine. If you have another question, pls feel free to contact us at any time !
