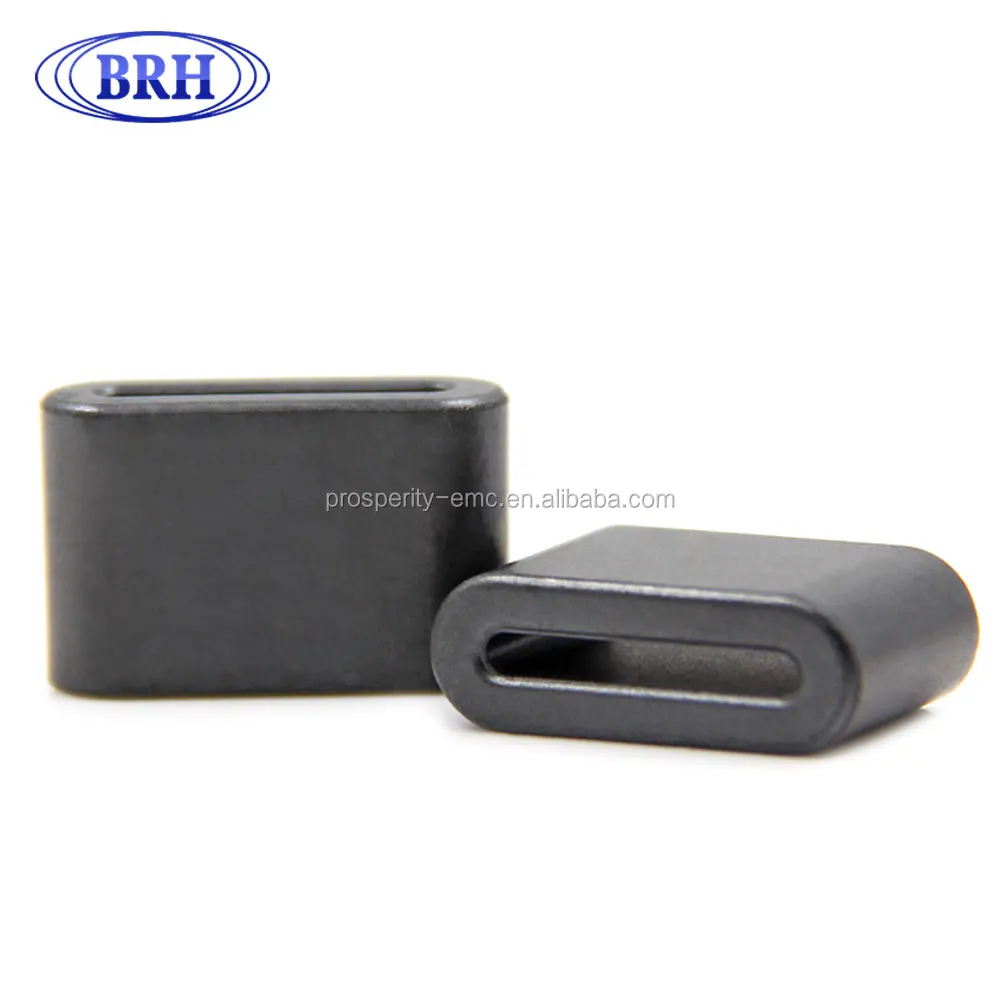

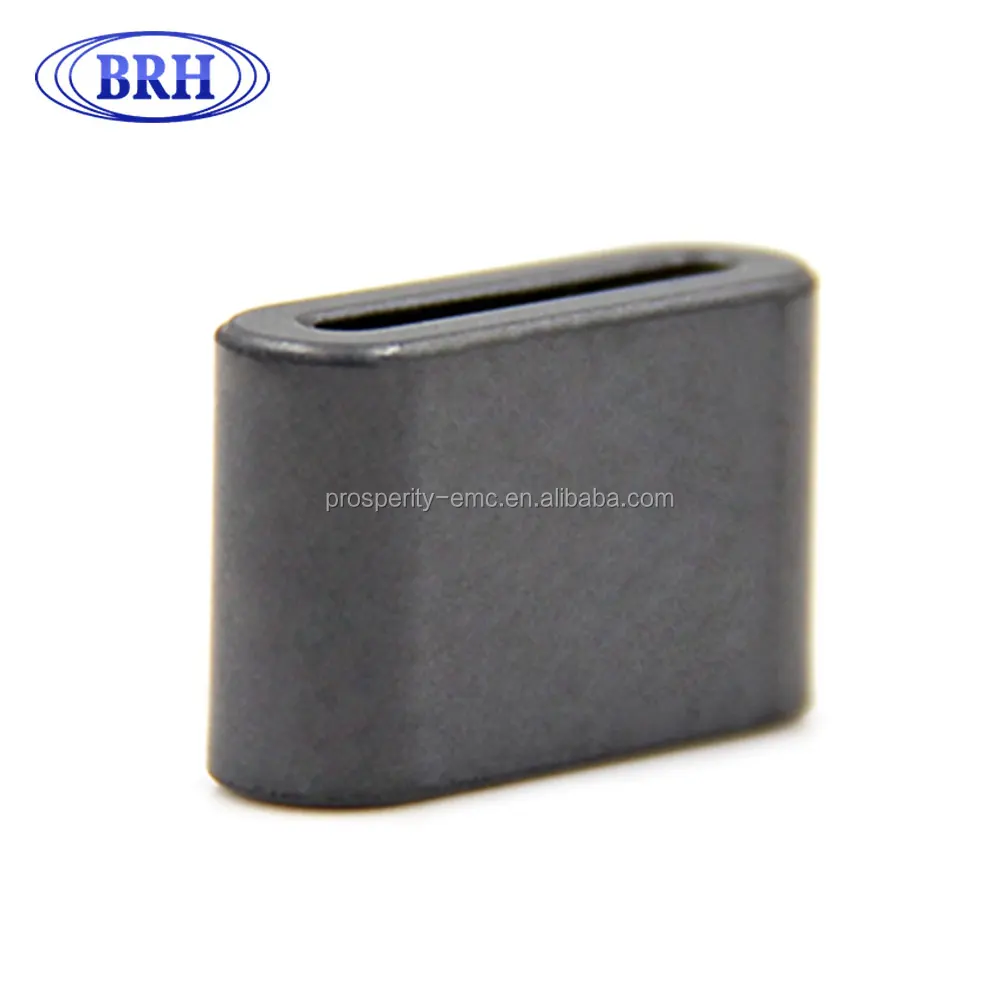

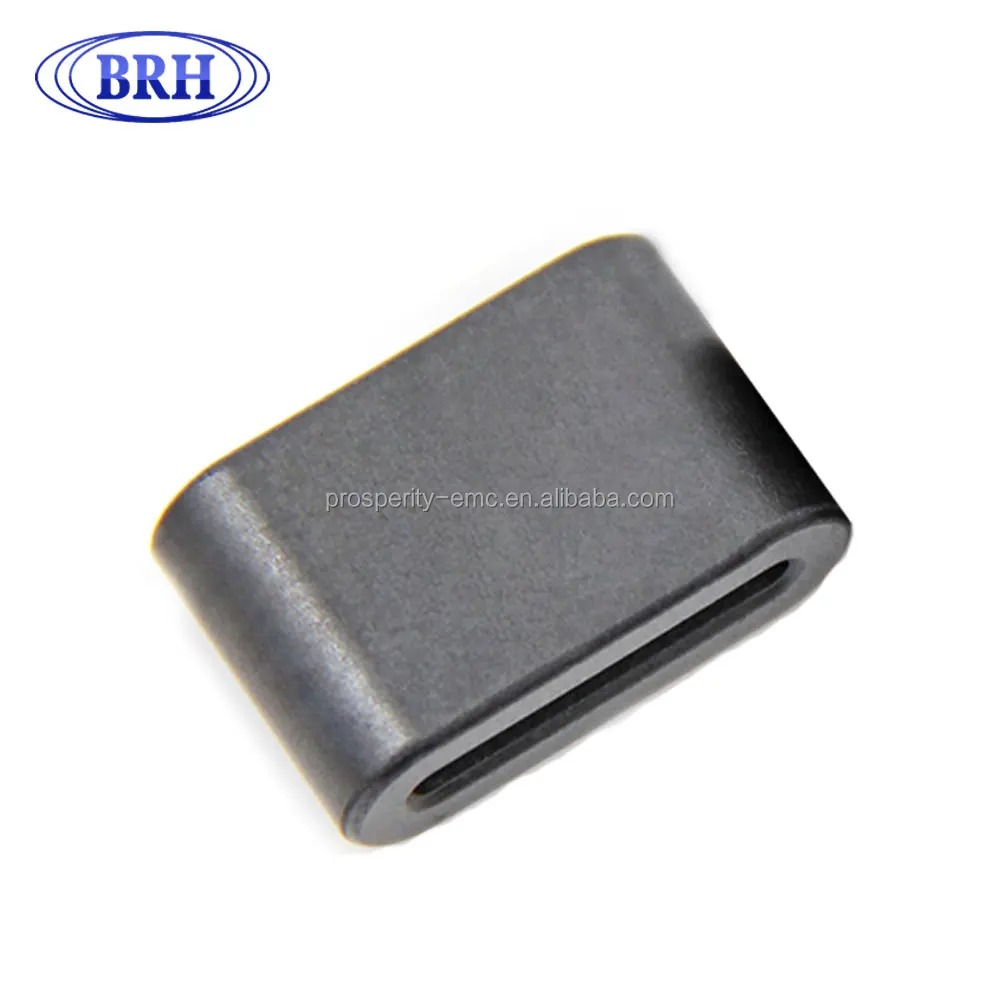

EMI soft flat core ferrite for flat cable
EMI soft flat core ferrite for flat cable
EMI soft flat core ferrite for flat cable
EMI soft flat core ferrite for flat cable
EMI soft flat core ferrite for flat cable

EMI soft flat core ferrite for flat cable

Share on (60679848221):


Price:

Quantity:


Product Overview

Description


Description
\t

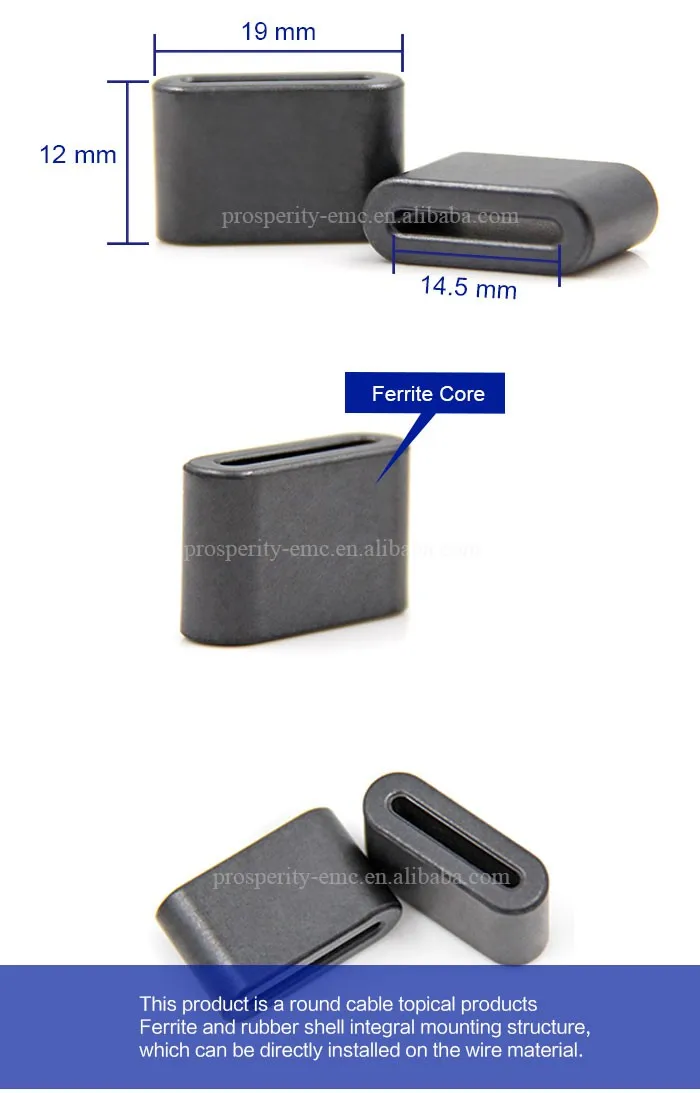

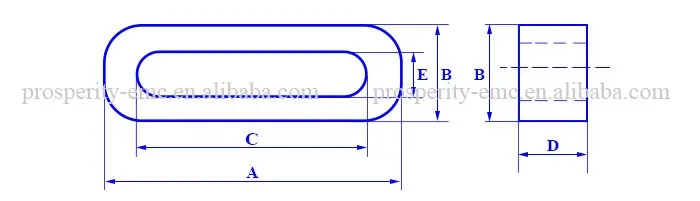

SIZE CODE (mm)
\t
A
\t
B
\t
C
\t
D
\t
E
\t
A2 FS 19*6.5*14.5*12-2.5
\t
19.0±0.5
\t
6.5±0.4
\t
14.5±0.5
\t
12.0±0.5
\t
2.5±0.5

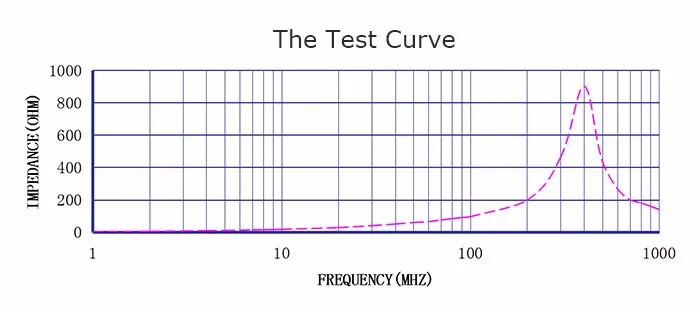

Parameter
\t
Electrical Requirements
\t
SIZE CODE (mm)
\t
A2 FS 19*6.5*14.5*12-2.5
\t
at 25 MHz
\t
25Ω MIN
\t
at 100 MHz
\t
75Ω MIN
\t
TEST INSTRUMENTS
\t
HP 4191A
\t
LCR METER
\t
HP 4286
\t
WIRE
\t
0.65T.C.W*100m/m 1/2Ts
\t
TEMPERATURE
\t
15℃ to 35℃
\t
HUMIDITY
\t
25% to 85% RH
\t
Test Data For Pre Production Samples
\t
MEAS. Item
\t
Ω
AT 25MHz
\t
Ω
AT 100MHz
\t
A
 m/m
\t
B
 m/m
\t
C
m/m
\t
D
 m/m
\t
E
 m/m
\t
Suggest
\t
25Ω MIN
\t
75Ω MIN
\t
19±0.5
\t
6.5±0.4
\t
14.5±0.5
\t
12±0.5
\t
2.5±0.5
\t
1
\t
35.64
\t
92.07
\t
19.02
\t
6.52
\t
14.47
\t
11.95
\t
2.18
\t
2
\t
35.52
\t
90.81
\t
19.01
\t
6.48
\t
14.49
\t
11.98
\t
2.23
\t
3
\t
36.13
\t
92.54
\t
18.96
\t
6.52
\t
14.48
\t
12.03
\t
2.19
\t
4
\t
35.78
\t
91.35
\t
18.98
\t
6.49
\t
14.51
\t
11.98
\t
2.21
\t
5
\t
35.67
\t
89.37
\t
19.03
\t
6.51
\t
14.49
\t
11.95
\t
2.21
\t
6
\t
36.51
\t
90.64
\t
19.04
\t
6.52
\t
14.53
\t
12.02
\t
2.23
\t
7
\t
35.96
\t
92.15
\t
19.04
\t
6.48
\t
14.48
\t
12.01
\t
2.2
\t
8
\t
35.48
\t
92.51
\t
18.97
\t
6.48
\t
14.47
\t
11.96
\t
2.19
\t
9
\t
36.87
\t
90.65
\t
18.96
\t
6.51
\t
14.53
\t
12.05
\t
2.18
\t
10
\t
35.75
\t
90.48
\t
18.97
\t
6.52
\t
14.53
\t
11.97
\t
2.21
\t

\t

\t

\t

\t

\t

\t

\t

\t
X-bar
\t
35.93
\t
91.26
\t
19.00
\t
6.50
\t
14.50
\t
11.99
\t
2.20
\t
R
\t
1.39
\t
3.17
\t
0.08
\t
0.04
\t
0.06
\t
0.10
\t
0.05
\t
The above test data for reference,Actual results may differ due to different production batches.
