Popular nema17 stepper motor 42HS48 1504 for 3d printers
- Category: >>>
- Supplier: Changzhou Dewo Motor Co. Ltd.
Share on (60679857977):
Product Overview
Description
nema17 1.8degree 2 phase stepper motor for 3d printers
Products Description
General Specifications
Step Angle | 1.8 degree |
Frame Size | 42*42mm |
Phase | 2 |
Temperature Rise | 80℃ Max |
Ambient Temperature | -20℃ Max~+50℃ |
Insulation Resistance | 100M ΩMin.,500VDC |
Dielectric Strength | 500VAC for 1 minute |
Shaft Radial Play | 0.02Max (450g-load) |
Shaft Axial Play | 0.08Max (450g-load) |
Max.Radial Force | 28N (20mm from the flange) |
Max.Axial Force | 10N |
OEM Service | Accept |
Warranty | 3 months - 1 year |

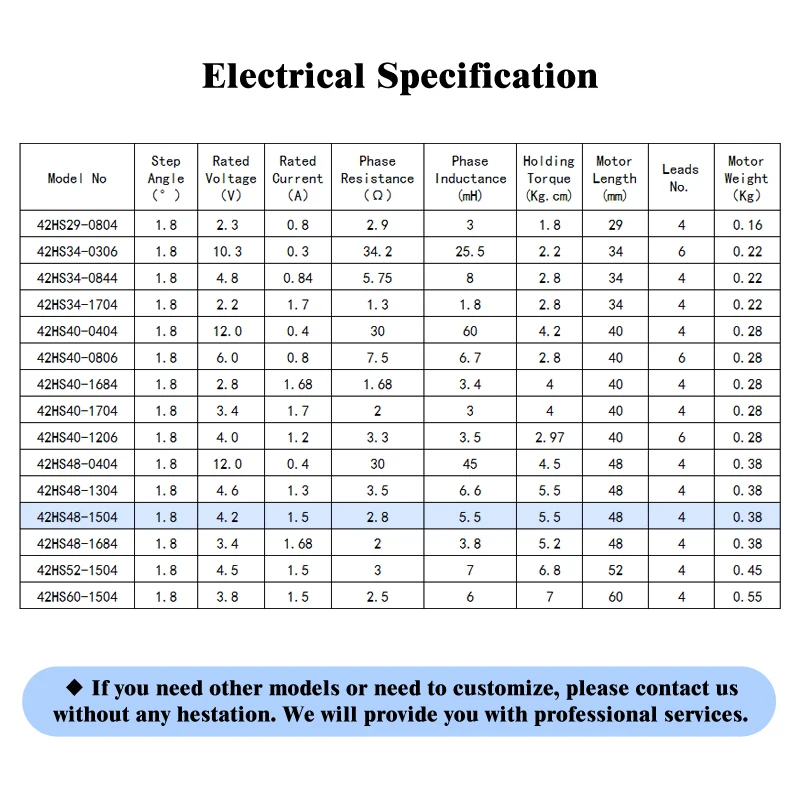

Electrical Specifications
Model No | Step Angle（°） | Rated Voltage（V） | Rated Current （A） | Phase Resistance（Ω） | Phase Inductance (mH) | Holding Torque (Kg.cm) | Motor Length (mm) | Leads No. | Motor Weight（Kg） |
42HS29-0804 | 1.8 | 2.3 | 0.8 | 2.9 | 3 | 1.8 | 29 | 4 | 0.16 |
42HS34-0306 | 1.8 | 10.3 | 0.3 | 34.2 | 25.5 | 2.2 | 34 | 6 | 0.22 |
42HS34-0404 | 1.8 | 12.0 | 0.4 | 30 | 35 | 3.2 | 34 | 4 | 0.22 |
42HS34-0844 | 1.8 | 4.8 | 0.84 | 5.75 | 8 | 2.8 | 34 | 4 | 0.22 |
42HS34-1704 | 1.8 | 2.2 | 1.7 | 1.3 | 1.8 | 2.8 | 34 | 4 | 0.22 |
42HS40-0404 | 1.8 | 12.0 | 0.4 | 30 | 60 | 4.2 | 40 | 4 | 0.28 |
42HS40-0804 | 1.8 | 5.4 | 0.8 | 6.8 | 12 | 4.5 | 40 | 4 | 0.28 |
42HS40-1684 | 1.8 | 2.8 | 1.68 | 1.68 | 3.4 | 4 | 40 | 4 | 0.28 |
42HS40-1704 | 1.8 | 3.4 | 1.7 | 2 | 3 | 4 | 40 | 4 | 0.28 |
42HS40-1206 | 1.8 | 4.0 | 1.2 | 3.3 | 3.5 | 2.97 | 40 | 6 | 0.28 |
42HS48-0404 | 1.8 | 12.0 | 0.4 | 30 | 45 | 4.5 | 48 | 4 | 0.38 |
42HS48-1004 | 1.8 | 4.5 | 1 | 4.5 | 10 | 5 | 48 | 4 | 0.38 |
42HS48-1304 | 1.8 | 4.6 | 1.3 | 3.5 | 6.6 | 5.5 | 48 | 4 | 0.38 |
42HS48-1504 | 1.8 | 4.2 | 1.5 | 2.8 | 5.5 | 5.5 | 48 | 4 | 0.38 |
42HS48-1684 | 1.8 | 3.4 | 1.68 | 2 | 3.8 | 5.2 | 48 | 4 | 0.38 |
42HS48-0406 | 1.8 | 12.0 | 0.4 | 30 | 28 | 3.2 | 48 | 6 | 0.38 |
42HS52-1504 | 1.8 | 4.5 | 1.5 | 3 | 7 | 6.8 | 52 | 4 | 0.45 |
42HS60-1504 | 1.8 | 3.8 | 1.5 | 2.5 | 6 | 7 | 60 | 4 | 0.55 |
◆ If you need other models or need to customize, please contact us without any hestation.We will provide you with professional services.

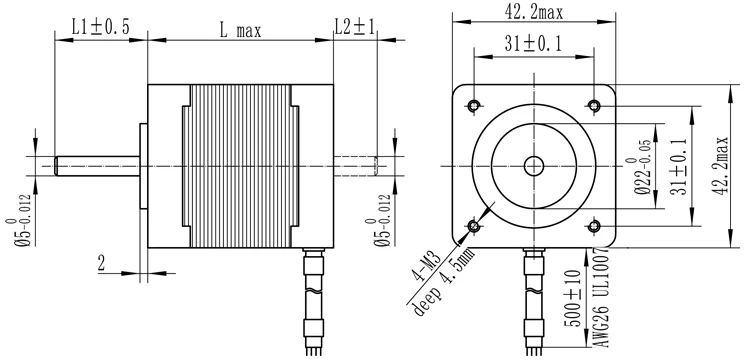

Dimensions (mm)
Remark: L1 and L2 can be customized according to customers' requirements.

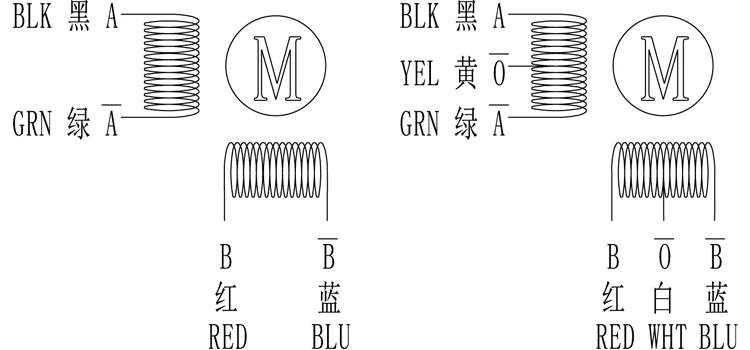

Wiring Diagram
Company Profile
Changzhou Dewo Motor Co.,Ltd. located in Changzhou city close to Shanghai of China, specialized in acting as produce Hybrid Stepper Motors and its drivers, also agent spindle motor,servo motor, brushless dc motor, related drivers, swith power supply and Accessoriesetc. We accept OEM and ODM orders！
Our main products include from size Nema8, Nema11, Nema14, Nema16, Nema17, Nema23, Nema24, Nema34, Nema42, Nema52 series hybrid stepper motor, and variable sizes linear stepper motor, stepper motor with gear box, stepper motor with brake. And we have products about closed loop systems for nema23, nema24 and nema34 sizes. In addition, we can produce suitable drivers for all the motors. And we always research and develop new products.
Our products are widely applied in printing equipment, engraving machine, textile machine, computer external application equipment, medical instruments, stage light equipment, robot, CNC machine and other automatic controlling system.
We have pass ISO9001:2008, and have got the certification of CE. On the way of development, the principle of "efficiency is the life, quality is the fundamental. We take the market as guidance, provide high quality products and good service to customers. We also designs and builds products and provides factory-direct support to Original Equipment Manufacturers (OEMs). We are expecting the cooperation with more friends from home and aboard in the near future.

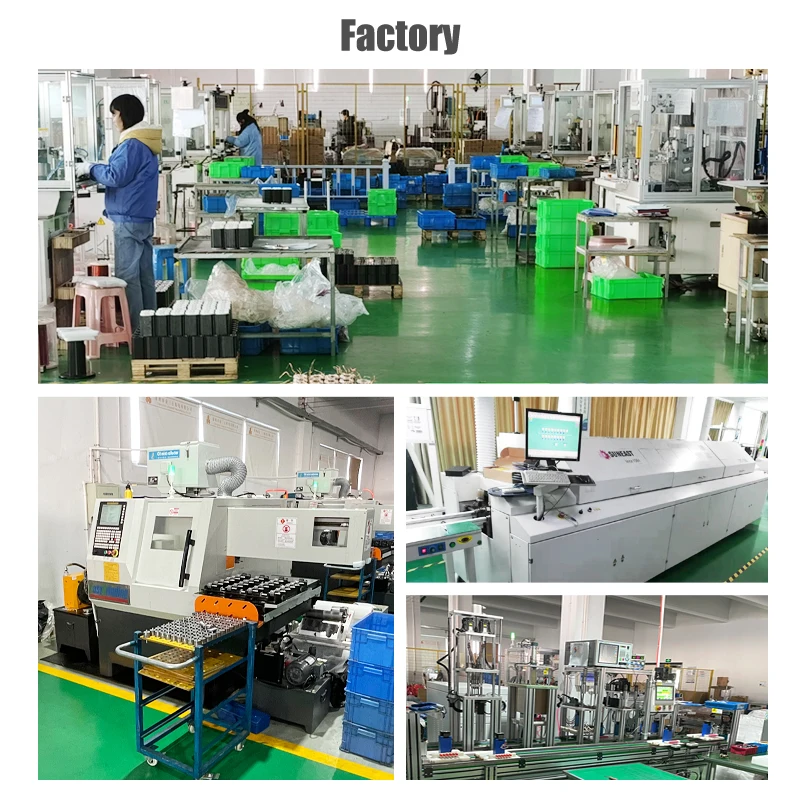

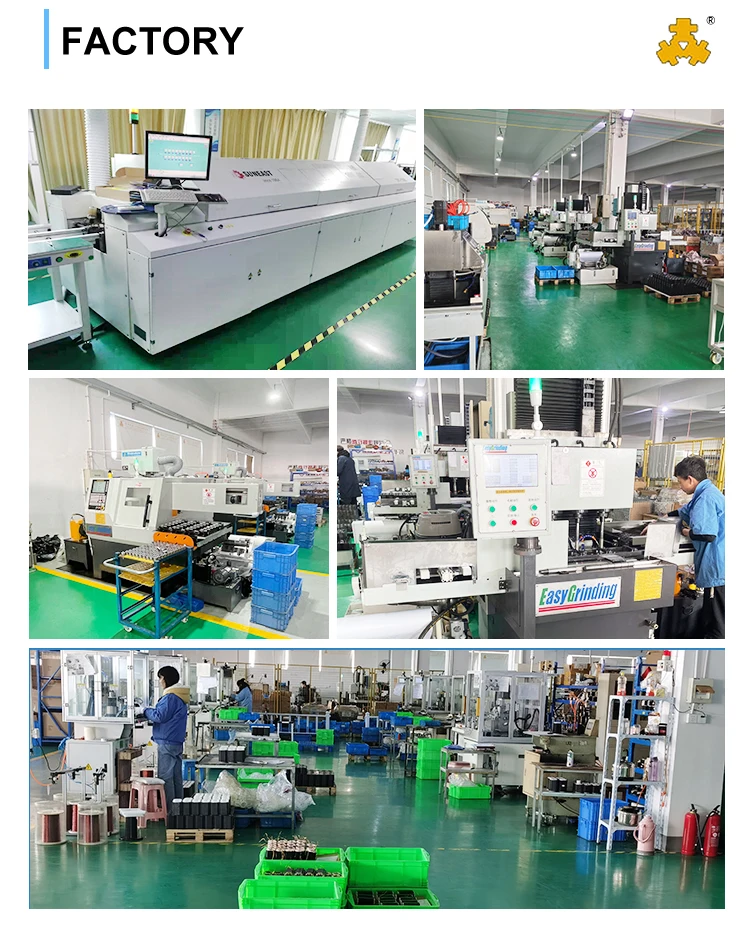

Factory Photos
Certifications
Packaging
FAQ
Q1: How to choose the suitable stepper motor? | ||||||||
A: There are several important items: size, length of stepper motor, holding torque, voltage, current etc. After confirm some them and told us, we can send you the suitable one. | ||||||||
Q2: Any other methods to finalize the model? | ||||||||
A: Sure, you can send us the model you are using, we can help you find the suitable one. | ||||||||
Q3: When can I get the drawing of stepper motor? | ||||||||
A: We will provide drawings of stepper motor after you place the order. | ||||||||
