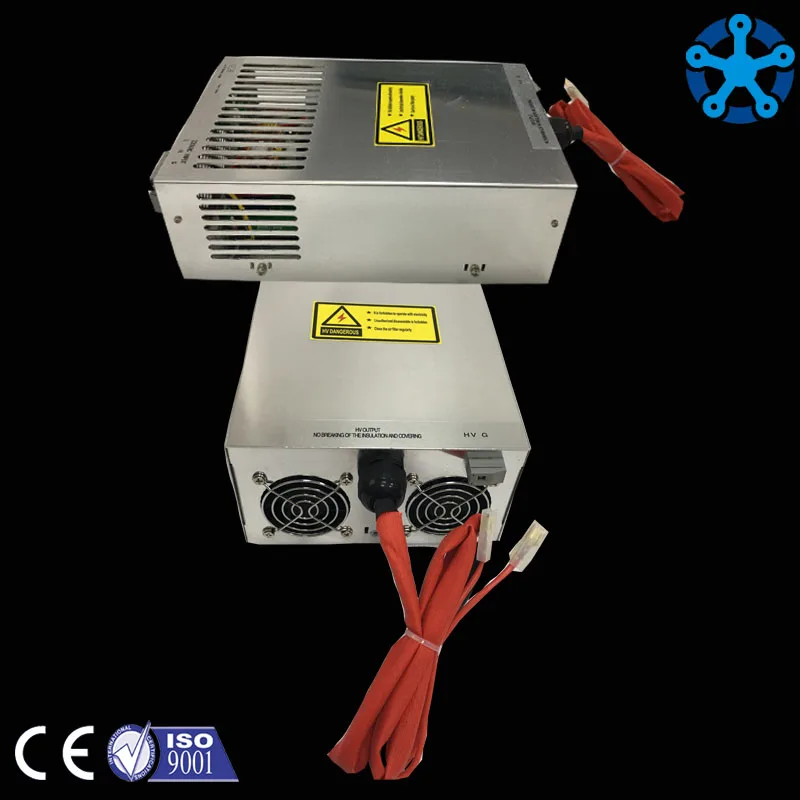

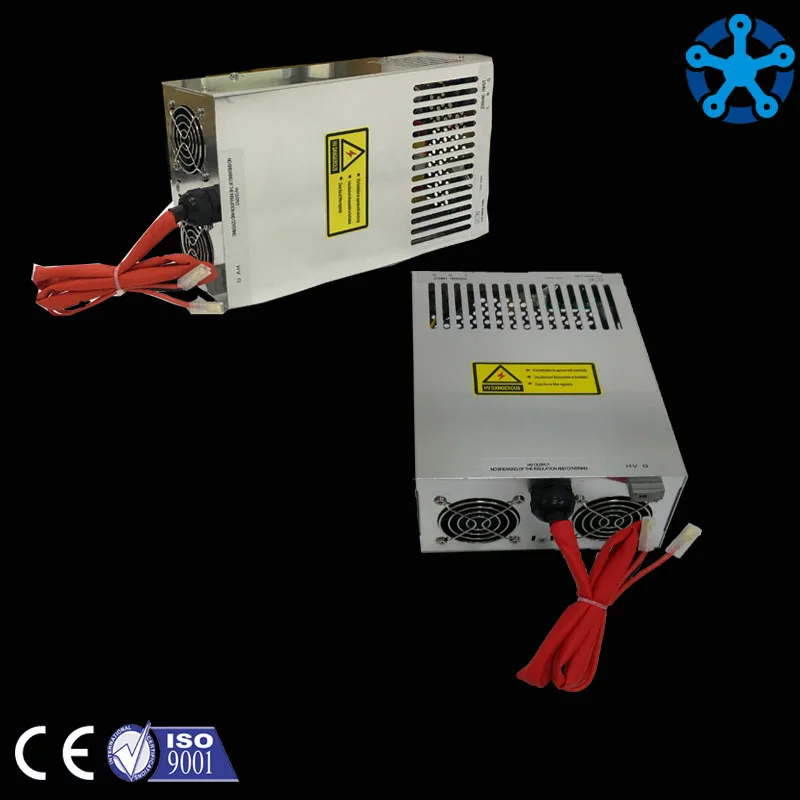

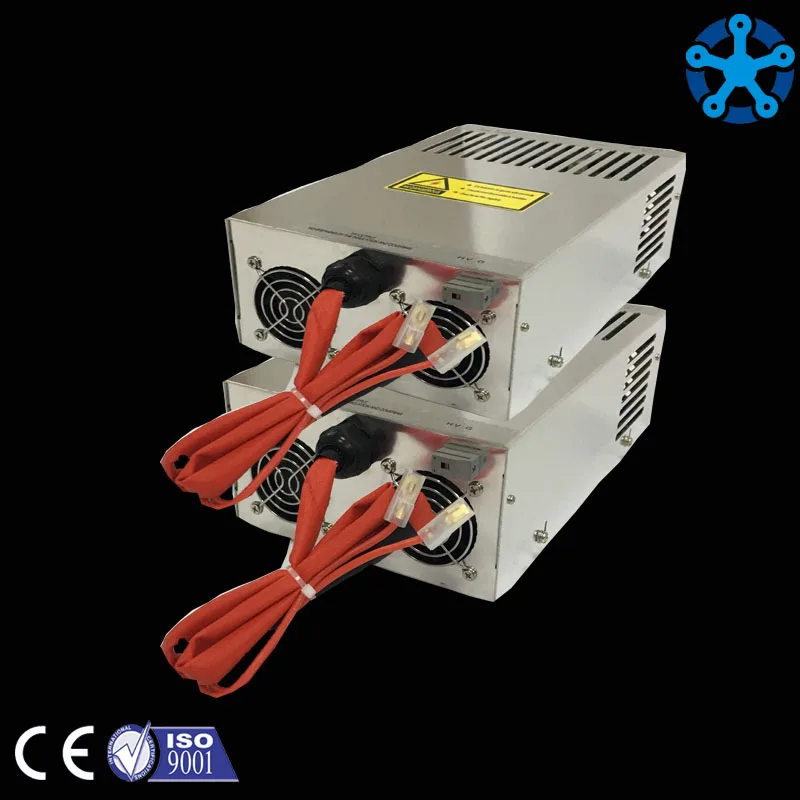

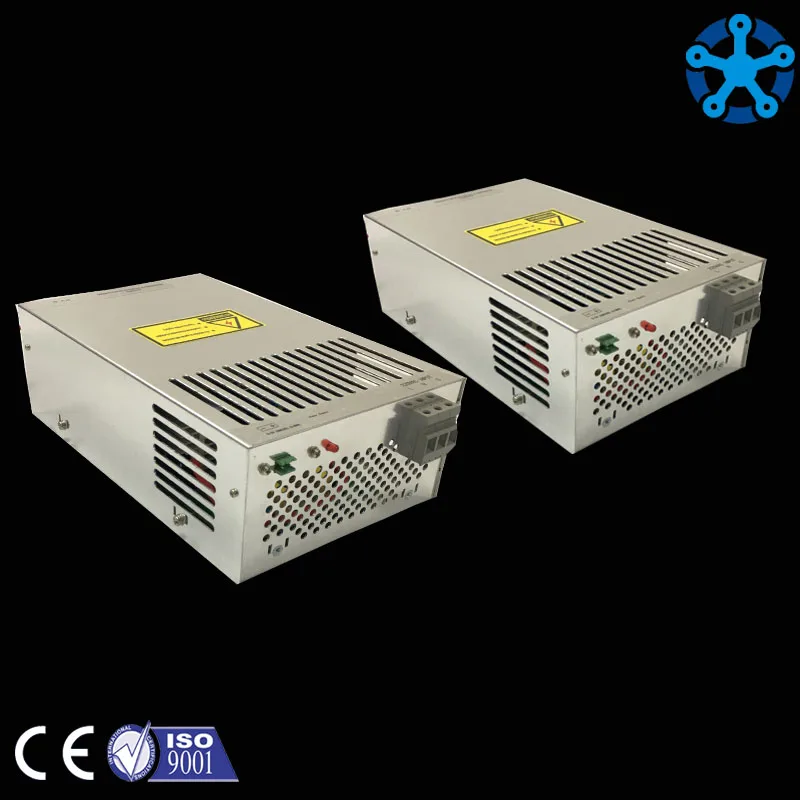

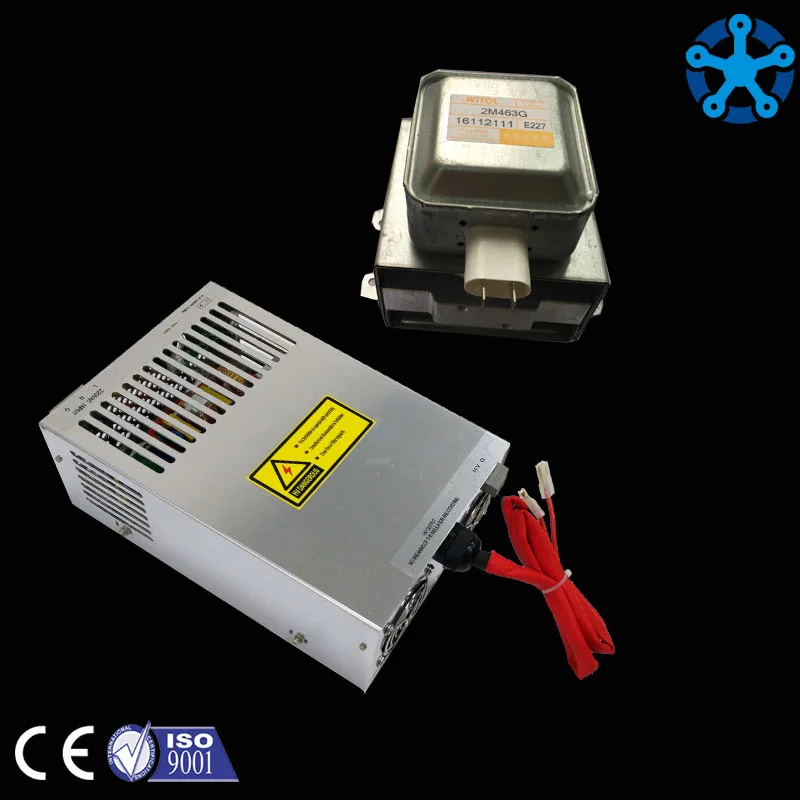

1.5kw 1500w magnetron generator microwave switching power supply magnetron switch mode power supply

Specifications

Model		YB-MP1500ZQ	YB-MP1500KT
Input	Input Voltage Range	185-265VAC	185-265VAC
	Frequency Range	50-60Hz	50-60Hz
	Input Current	0-12A	0-12A
	Input Power	0-2.4KW	0-2.4KW
Output	Anode Voltage	3.8kv~4.4kV	3.8kv~4.4kV
	Anode Current	Max.480mA	Max.480mA
	Filament Voltage	3.3Vdc	3.3Vdc
	Filament Current	6-11A	6-11A
	Output Power	0~2000W	0~2000W
	Efficiency	≥ 90%	≥ 90%
Power control mode		Boot directly activated	0~5V analog voltage
Environment	Working temperature	-30~65℃ Recommended; OTP in 75℃
Cooling method	Forced air cooling (pay attention to use condition, completes the dustproof measures)
Grounding method	shell + wire connection
Installation forms	Case bottom is equipped with installation plate, plate and fixed plane with four M4 screw connection, backplane screw hole located in four Angle square, square side length 100 mm.
Filament line	Silica gel high tension line, pressure level 30 kv, the standard length of 1 m.
Size/weight	254 (L) x 173 (W) x 92 mm (H)
Warning and safety	(1)Warnning:Over 8kV will be generated when YB-MP2000 operates.
	(2)All the connection, installation and operation of YB-MP1000 should be conducted by professional specialists following this instruction
	(3)Be aware that the power supply should be handled with the same as 8kV power line!
Note	(1)All the installation and connection operation of YB-MP1000 should be  conducted only under power off condition. No   directly or indirectly contaction when operating!
	(2)Open or destroy of the case, accessory lines, terminals or others is forbidden.
	(3)Users is not permitted to extend the output high voltage line!

Features

(1)Cost performance ,High efficiency, small ripple, unpollute for power grid;
(2) Conversion efficiency, compared to other power sources more energy-efficient;
(3)Allow the magnetron to achieve the best working point;
(4) Power adjustable, voltage signal control;
(5) Has a soft switching function, support multiple power and machine use.
(6) Can drive a variety of long-term work magnetron;
(7) Undervoltage, overvoltage, over-temperature protection;
(7) Wide input voltage range, 185-265V / 50-60Hz AC input stability;

(8)Forced air cooling by built-in 2 DC fan,Operating Tempreture :-30℃ to 65℃

(9)Protections: Short circuit / Overload / Over voltage/Under voltage ,moisture / corrosion / rust

(10)Small size, light weight, easy to install.

 Why Choose Us?
1.Any inquiries will be replied within 24 hours.
2.Tech company , welcome to visit our website and our factory.
3. OEM/ODM available:
• Print logo on our products
• Customized specification
• Customized color package box
• Any your idea on our products,we can help you to design and put it into production

4. High quality , fashion design , reasonable & competitive price , fast lead time.
5. After-sale service:
•All products will have been strictly quality checked in test house before packing
•All products will be well packed before shipping
•All products have 1-2 years warranty, and we sure the products will be free from maintenance within warranty period
6. Faster delivery:
Sample order in stock,  for bulk production that depends on your order.
7. Payment term:
L/C T/T open account transaction,WU & Paypal
8. Shipping:
We'll choose faster,safety and cheaper shipping to meet all your demands based on your order.

Established in 2014,Enbiens Photoelectric Limited(hereinafter referred to as Enbiens) possess cutting-edge R&D capacity based on Xidian University's tech, research and resource supports. As a high-tech company ,Enbiens focuses on R&D,production, and marketing service of magnetron power supply.

 1.What is your MOQ?

 A: Basically 1 pieces

2.What is the payment term?

Answer:1.T/T 30% in advance, T/T 70% before delivery.

Paypal ,Western union, Money gram, L/C

3.Can you offer sample?

A: yes,Sample first is ok and sample in stock.

4.Which certificate you have?

A:We are able to support you in terms of your market and quantity.

5.Can I get discount?

A:Yes, we have ladder price,the more the cheaper.
