Echocardiograph Machine Portable B Ultrasound Scanner For Sale In Beijing
- Category: >>>
- Supplier: Beijing Konted Medical Technology Co. Ltd.
Share on (60679969241):
Product Overview
Description
Echocardiograph Machine Portable B Ultrasound Scanner For Sale In Beijing
Product Description
With its small size and humanized design, C6B ultrasound is very easy to carry. It helps doctors to scan from its quick start, long standby batteries and various kinds of probes. Build-in patient's data management system makes patient's diagnostic data being stored very easily, fast reviewed and efficiently managed. By connecting to printers, diagnostic report will be printed out directly.
Specifications
Technical Specifications Portable B Ultrasound Scanner
| Technical Specification | |
| Modes: | B, M ,2B ,B/M ,4B C,PW, Power,DirPower,THI |
| Gray Level: | 256 |
| Display: | 15”LCD monitor |
| Transducer Frequency: | 2-11Mhz |
| Digital Technology: | Wide-angle imaging |
| Panoramic focusing technology | |
| Rolling M technology | |
| Scanning Depth: | 220mm |
| Probe ports: | 3 active transducer connector ports |
| Peripheral ports: | 2 USB ports, 1 networking port, 1power inlet,video |
| Power supply: | 100-240V~ 50/60Hz <100VA |
| Measurement and Calculation | |
| B mode: | Distance, angle, area, volume, trace length,distance ratio |
| M mode: | Distance, time, slope, heart rate |
| Application package: | Abdomen, OB, Gynecology, Cardiac, Small parts |
| Function | |
| Cine loop: | 334 frames movie playback stored |
| Zoom: | Pan zoom for the active imaging |
| Qopt: | One-key optimize |
| THI: | Tissue harmonic imaging |
| DICOM: | Supported |
| Print: | Report print for text&graph&image |
| Dimensions(main unit) | 360mm(W)*360mm(L)*90mm(H) |
| Packing dimensions | 415mm(W)*435mm(L)*140mm(H) |
| Net weight | About 4.5kg |
| Gross weight | About 5.5kg |
Image Processing Technology
Pre-processing :
- Cloud processing technology
- Fine blood flow imaging, high sensitive
- Gain
- 8-segment TGC
- Dynamic range
- Persistence
- M soften
- Noise suppression
Post-processing:
- Image enhancement
- Gray-scale map
- Pseudo color map
- Interface to turn 180°
- Left/right reverse
- Up/down reverse

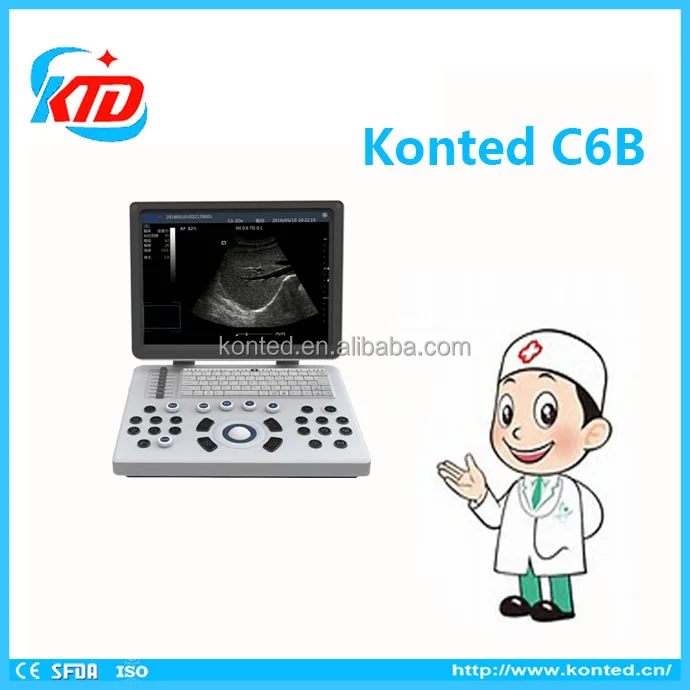

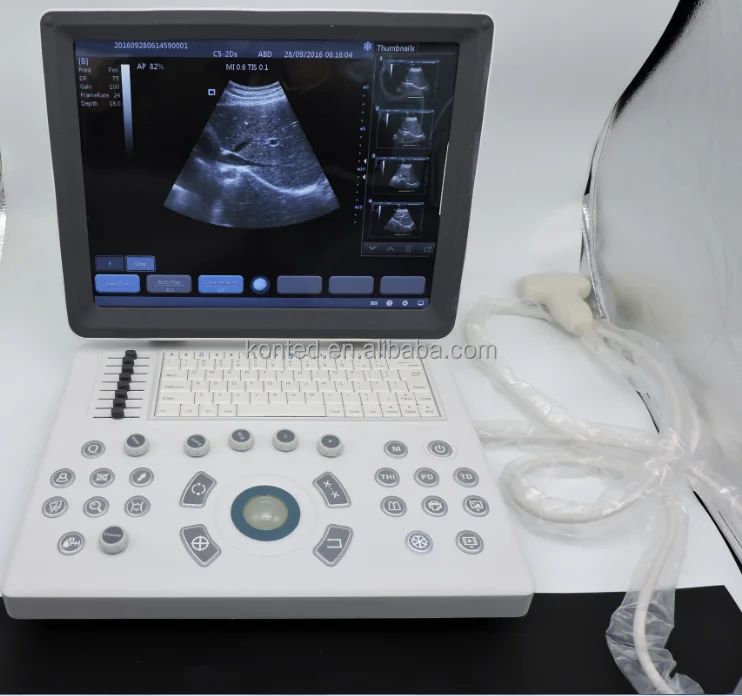

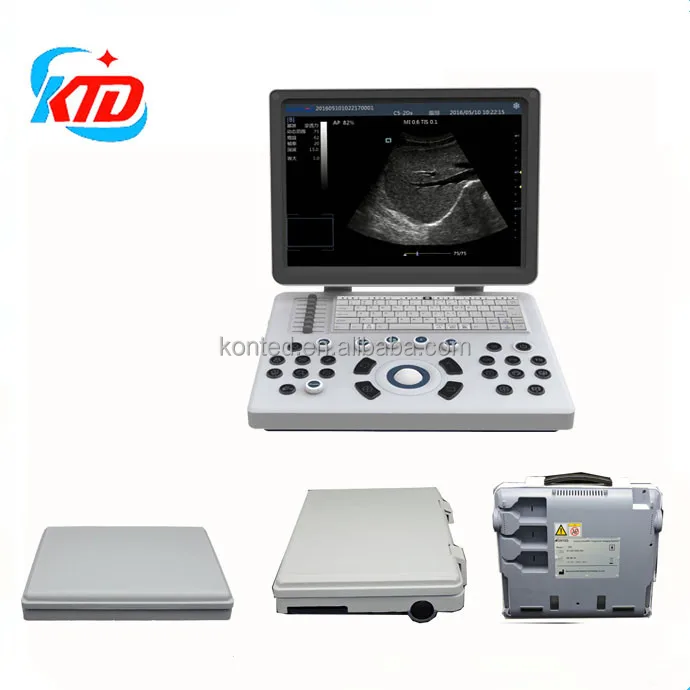

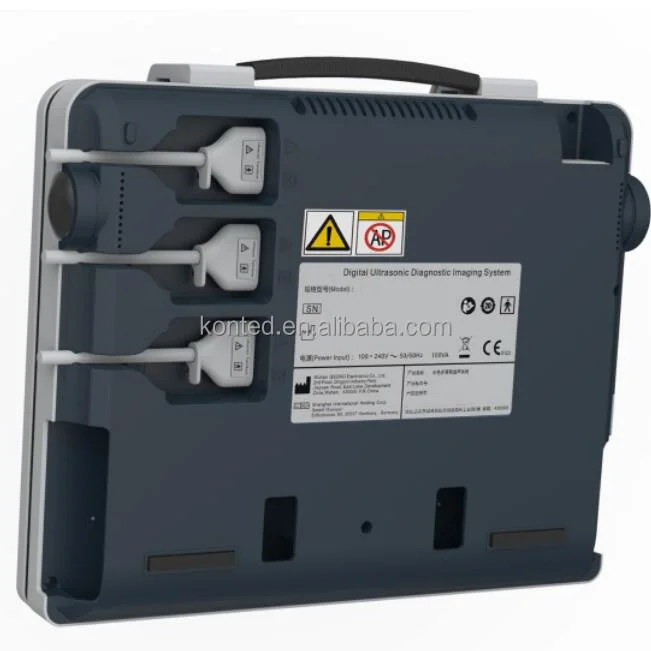

Product Display
Image Quality
Packaging & Shipping
Company Information
Beijing Konted Medical Technology Co.,Ltd
A medical ultrasound company engaged in R&D,production,sale and after-sales service.We persistently cooperated closely with domestic and international famous medical ultrasound R&D organization and keep in contact with related university,labs professors and doctors to update latest data of ultrasound machines,also professional clinical applications experience.
