Good Sale Super critical Co2 Extraction Machine/Extraction Equipment for CBD Oil
- Category: >>>
- Supplier: Careddi Technology Co. Ltd.
Share on (60679990905):
Product Overview
Description

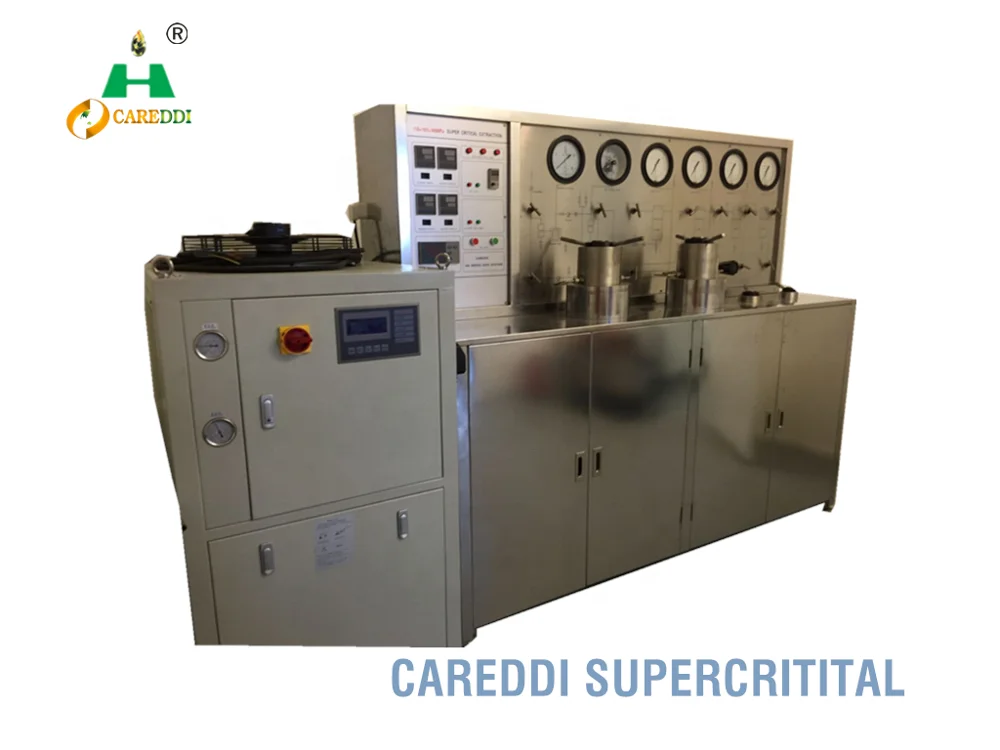

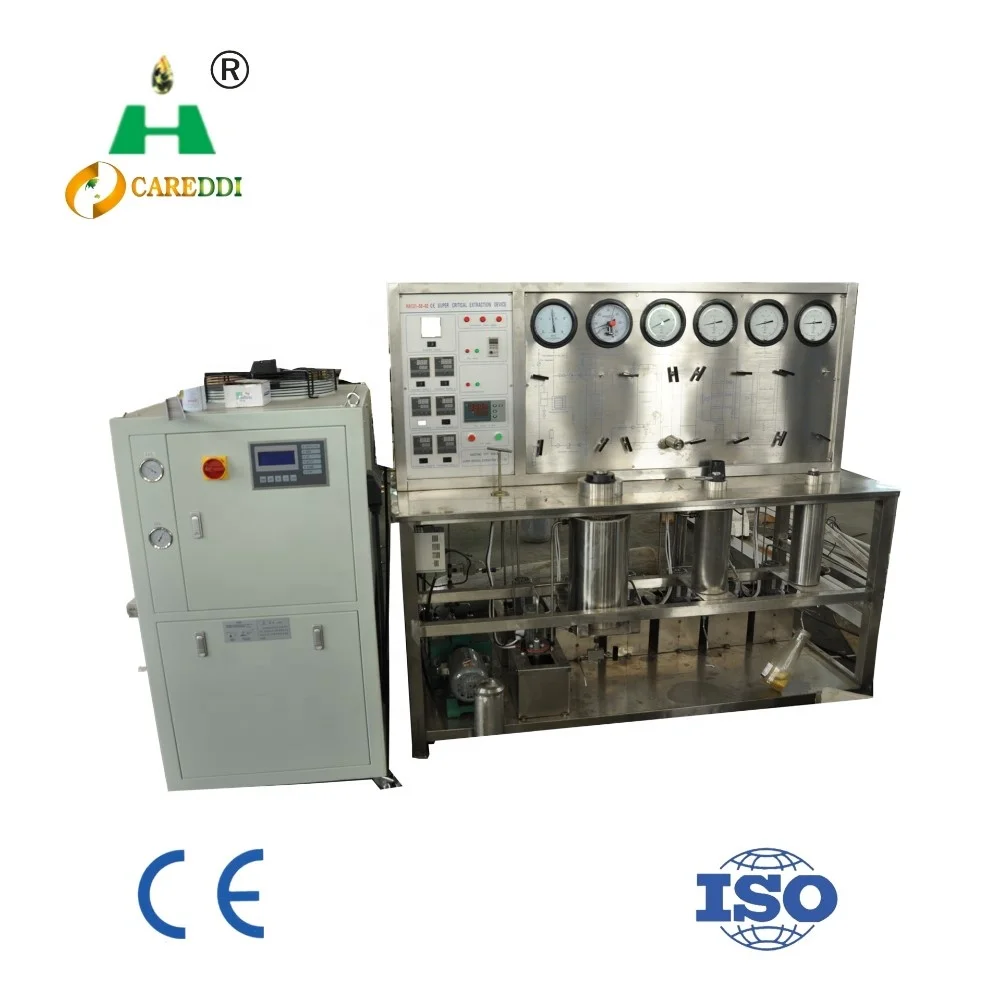

Machine Introdution

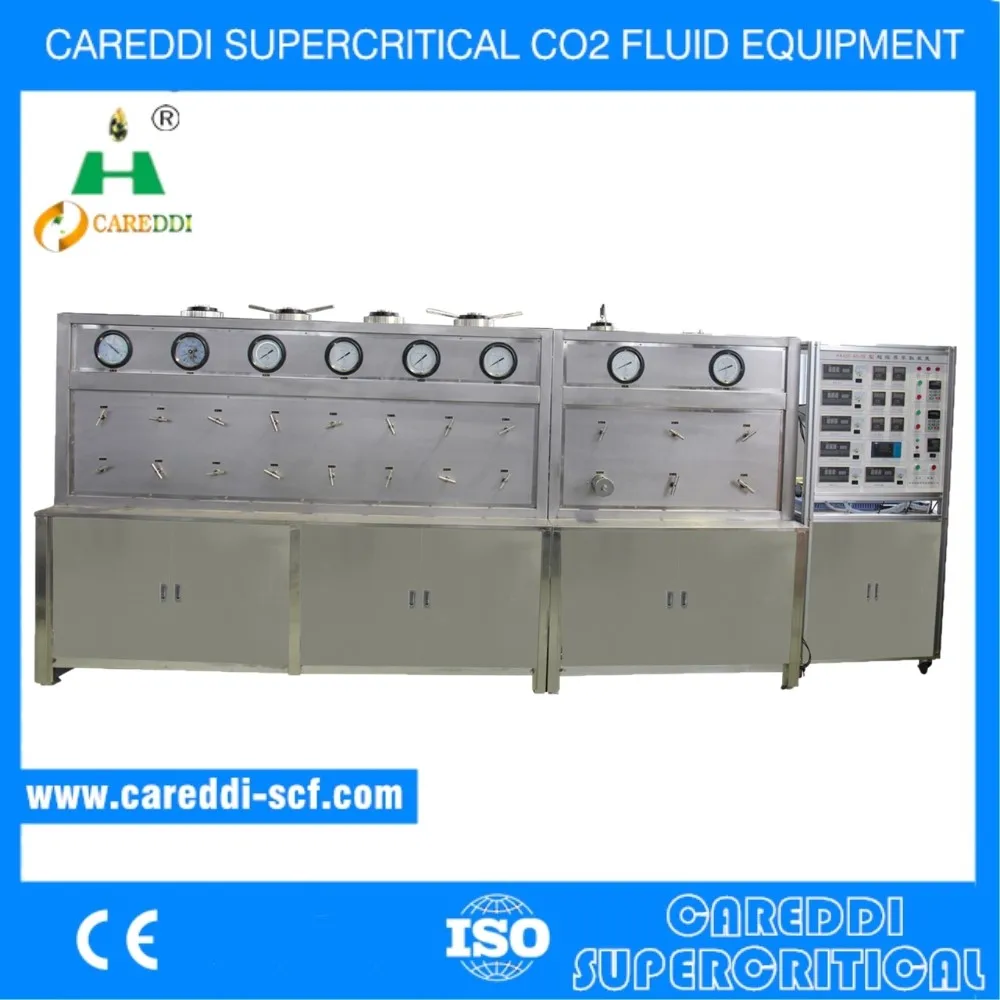

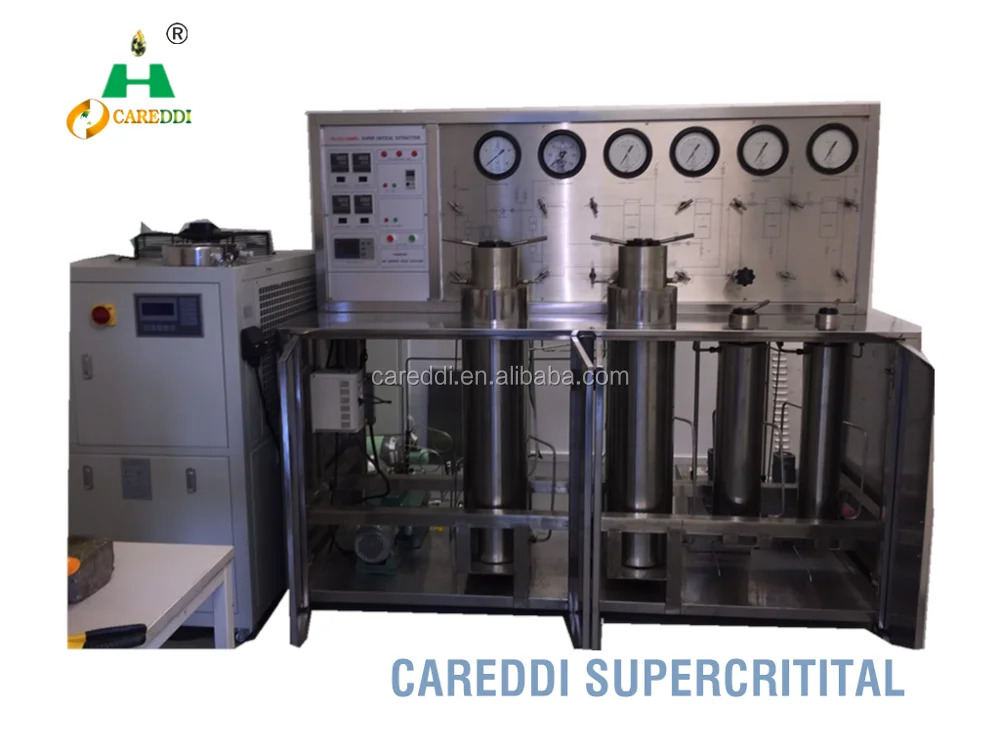

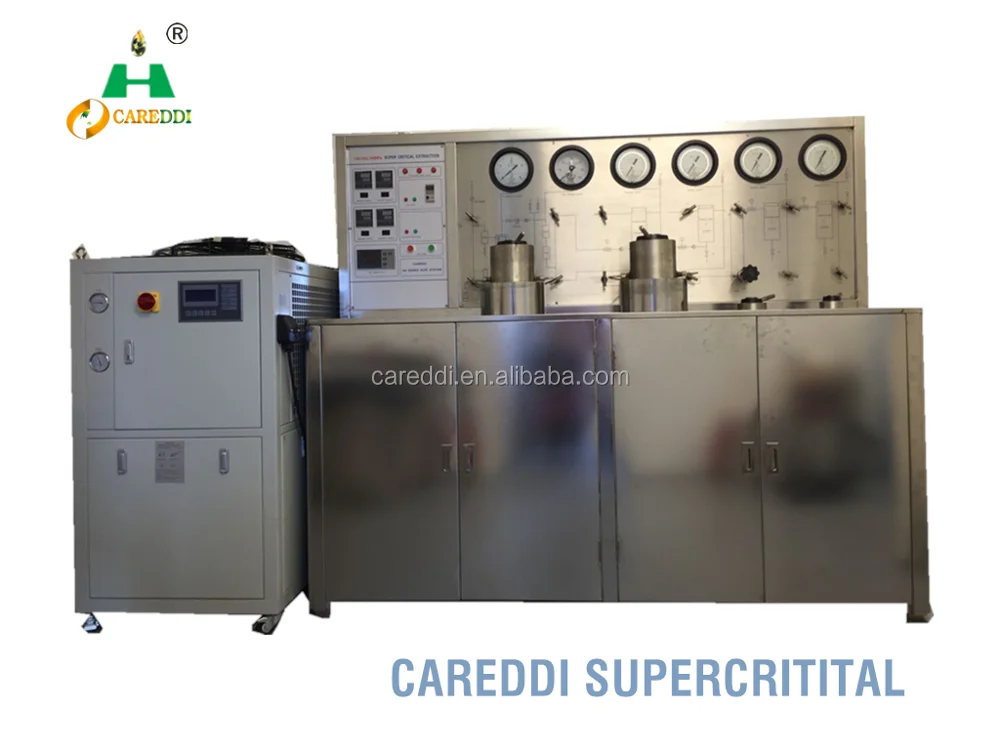

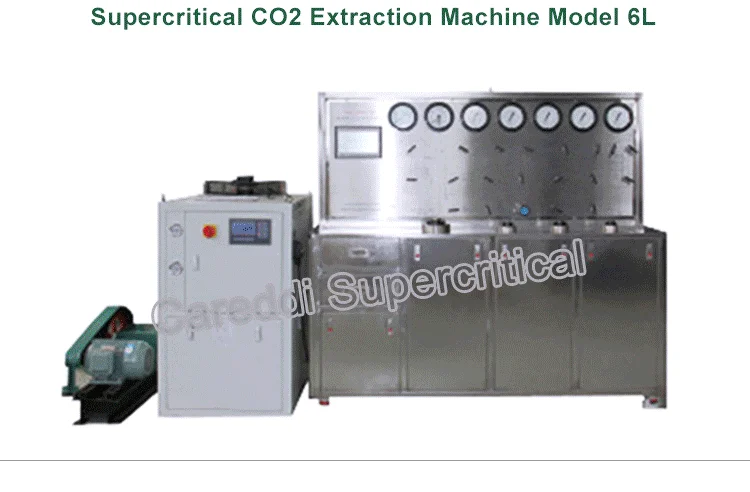

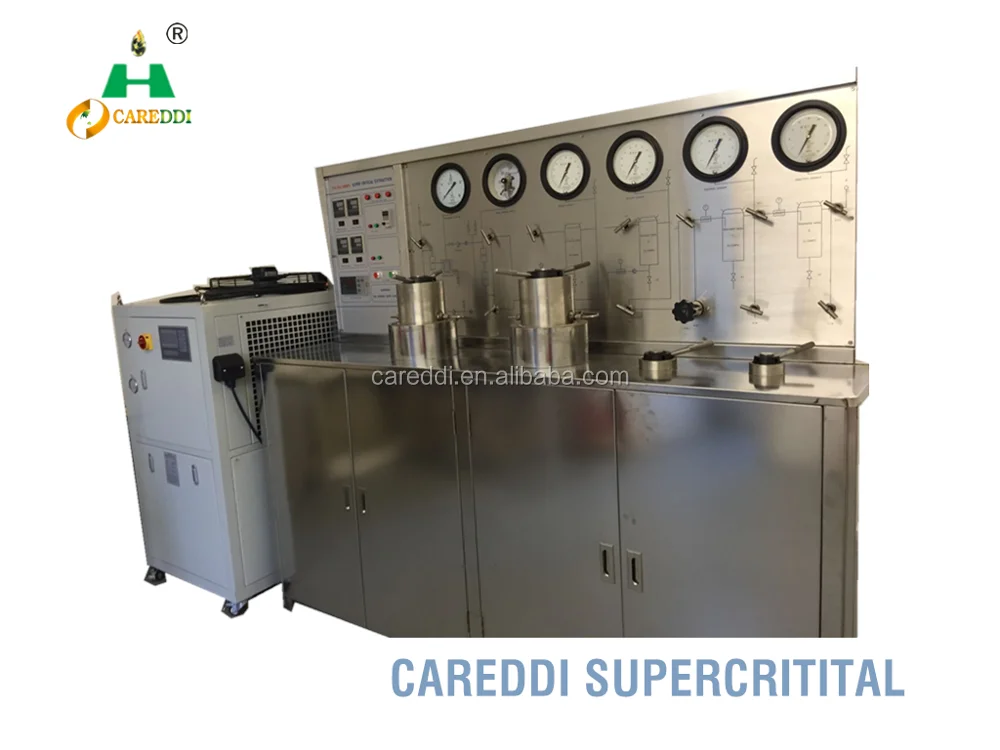

Supercritical co2 extraction machine is used under high pressure and suitable temperature suitable to extract valuable content from material (solid or liquid), it is to change the pressure and temperature conditions of the separator tanks to let the dissolved substances separated out to achieve the purpose of separation. The whole equipment beauty, safety and easy operation, pressure temperature flow number can be showed from pressure meter and digital instrument. The material of pipe parts, valves, pipe lines, are all stainless steel(0Cr18Ni9Ti).

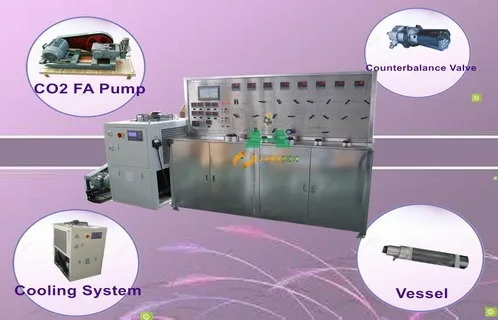

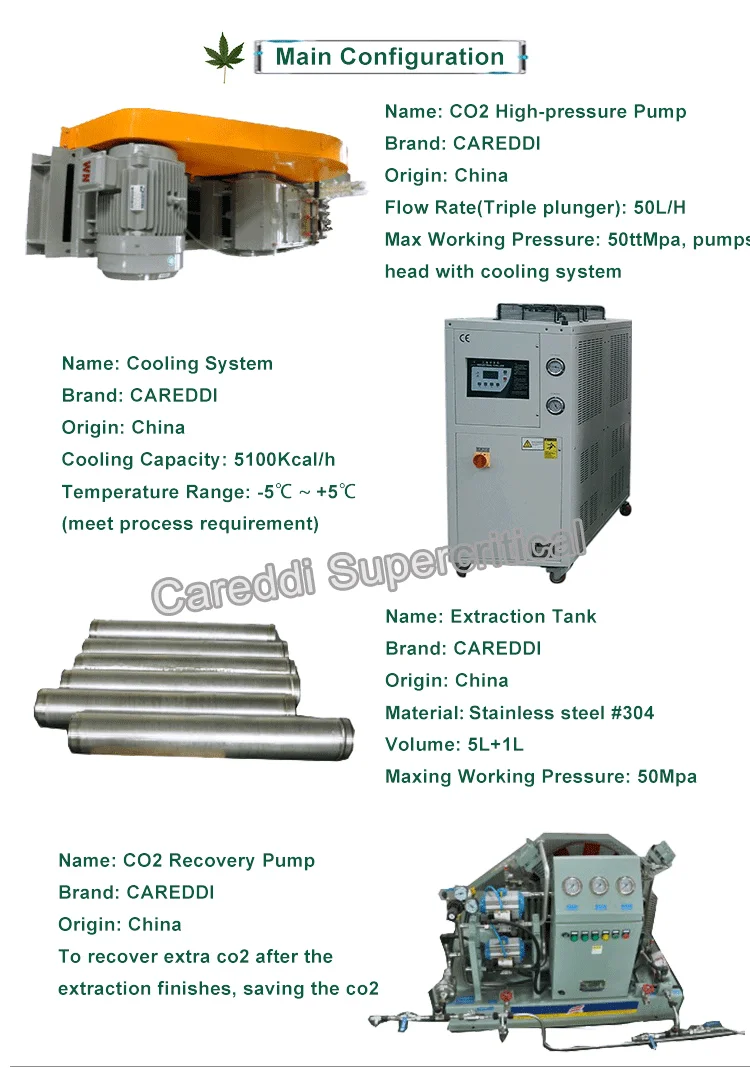

Main Configuration
SIGN | MAIN CONFIGURATION | REMARK |
1 | Extraction Tank | Volume:5L+1L (2 tanks),Max working Pressure:50MPa |
2 | Separation Tank | Volume:1×2L and 1×1L,Max working Pressure:30MPa |
3 | Pump | CO2 high-pressure pump,Co-solvent pump |
4 | Cooling System | Temperature range:-5℃~+5℃ |
5 | Heating Exchange System | Max working Pressure:50MPa |
6 | Purification System | Max working Pressure:50MPa |
7 | CO2 Storage Tank | Max working Pressure:16MPa |
8 | Flowrate Meter | Model:Metal tube float (6.3-63L/H) |
9 | Temperature Control System | Temperature Range: Room temperature~75℃ |
10 | Safety Devices | Pressure gauge at high pressure pump outlet,overpressureprotection The extractor, separator, evaporator, dry purifier and mixer have safety valve to keep safe of system. |
11 | User-supplied | Installation dimension: 2700×2500×1500mm |
Characteristics
Supercritical co2 extraction machine:
★ Low Critical temperature suitable for extraction and purification of heat sensitive compound.
★ Being capable to provide inert environment to avoid oxidation of products and affection of effective content of extracts.
★ Fast extraction speed, no toxicity, non-flammable, safe application and no pollution upon environment.
★ No residue of solvent, no nitrate and ions of heavy metal.
Material
Some Utilized Resources
supercritical co2 extraction machine:Sea buckthorn fruit oil ,grape seed oil oidiophore oil of glossy ganoderma ,fish oil,arteanuin ,netmeg oil,menthence,mother chrysanthemum oil, curcuma oil pigment, lycopin, cortex magnoliae officinalis extract, olibanum extract,Gingerol, pepper haematochrome ,dried tiny shrimp ,haematochrome, Zanthoxylum oil,garlic oil ,tobacco leaves essence oil.
