Squid Gold Ore Jigging Machine for Metal
- Category: >>>
- Supplier: Jiangxi Jinshibao Mining Machinery Manufacturing Co. Ltd.
Share on (60680019595):
Product Overview
Description
Product Description
Diaphragm Diaphragm Jig has the advantage of simple operation, large capacity, and can obtain the final concentration or the tailing in one beneficiation.
It is widely used in dealing with the coarse or medium-grained ore.
It is suitable for classification the larger differential density of tungsten, tin, iron, manganese and chrome ore; Also for ferrous metal and non-ferrous metals containing the gold and rare metals.

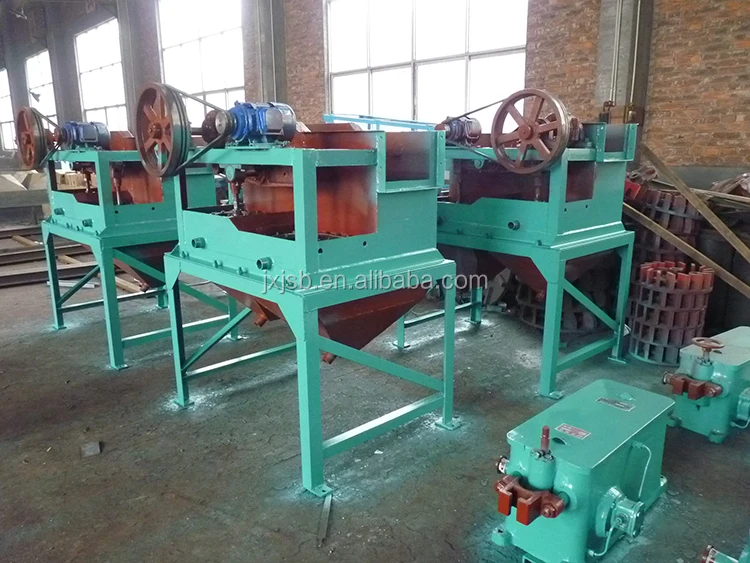

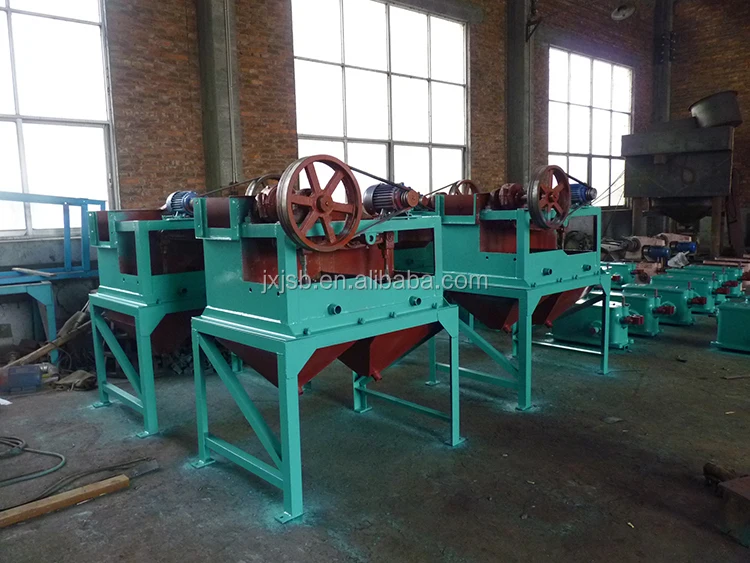

Ore Jigging Machine Ore Jigging Machine Ore Jigging Machine Ore Jigging Machine Ore Jigging Machine
Ore Jigging Machine Ore Jigging Machine Ore Jigging Machine Ore Jigging Machine Ore Jigging Machine
Ore Jigging Machine Ore Jigging Machine Ore Jigging Machine Ore Jigging Machine Ore Jigging Machine
Structure
Ore Jigging Machine Ore Jigging Machine Ore Jigging Machine Ore Jigging Machine Ore Jigging Machine

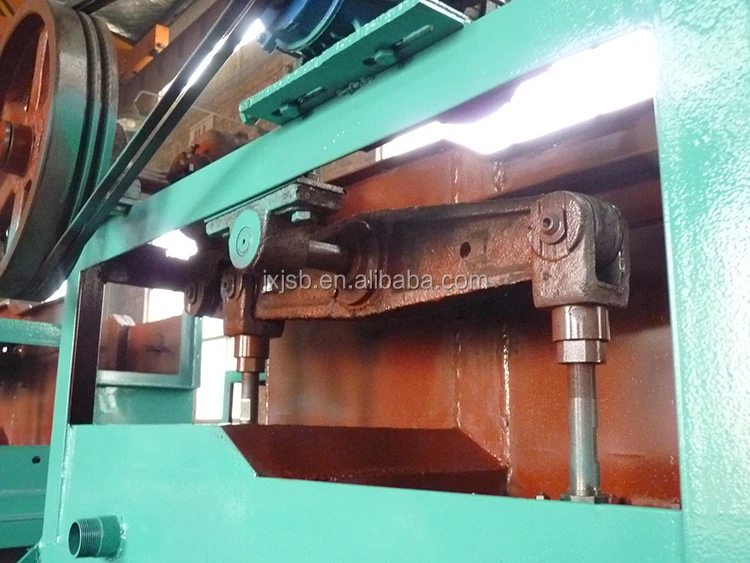

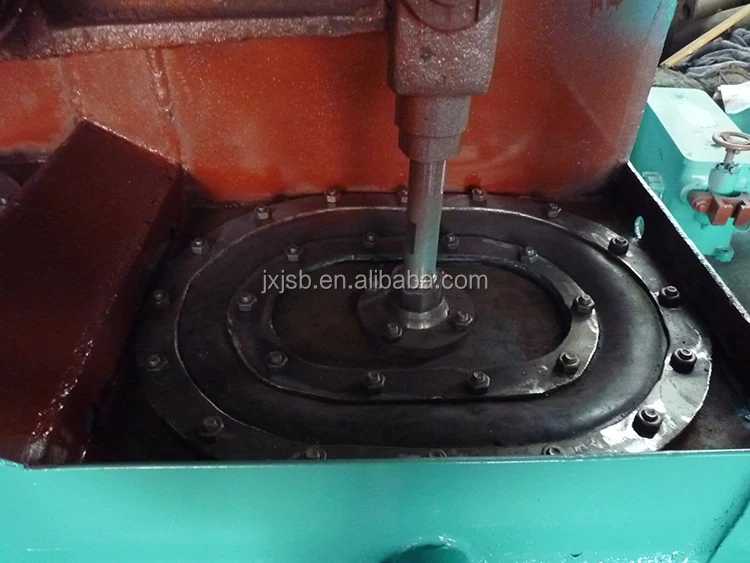

1, Motor 2, Transmission Sets 3, Separator 4, Rocker Arm 5, Link 6, Rubber Diaphragm
7, Feed Chamber 8, Diaphragm Chamber 9, Jigging Chamber 10, Frame 11, Output Port
Working principle

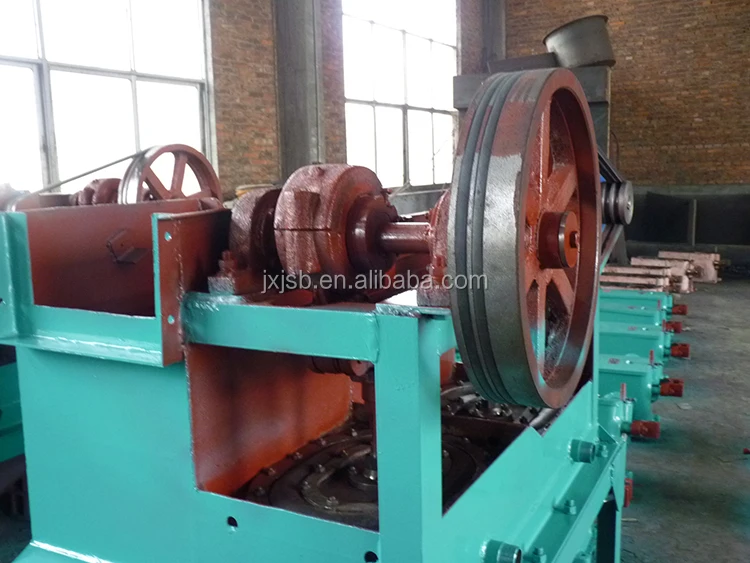

There are two jig buckets with different sizes and each diaphragm is divided into jig area and diaphragm area by clapboard. The rubber diaphragm pumping to make medium (water) moving is the jigging course. The triangle belt drives big belt pulley by electric motor so connecting rod of the eccentric gear and rocker are up and down moving. Another connecting rod is connected with the rubber diaphragm which is moving up and down to jig.
Technical parameters
Model |
Chamber No | Jig area m2 | Feed Size mm |
Capacity t/h |
Stroke mm |
Frequency r/min |
Power kw |
100×150 | 1 | 0.15 | <3 | 0.18-0.6 | 0 | 420 |
0.55 |
300×450 | 2 | 0.27 | <12 | 3-6 | 0-26 | 322 |
1.1 |
370×360 | 2 | 0.26 | <6 | 1-3 | 5-25 | 200-250 |
1.1 |
670×920 | 2 | 1.44 | 4-8 | 7-10 | 18-24 | 240-300 |
1.1
|
1000*1000 | 2 | 2 | 1-5 | 10-25 | 0-26 | 200-350 |
1.5 |
Company Information
Jiangxi Jinshibao Mining Machinery Manufacturing Co.,LTD Established in 2001, are one of the most famous Mining Machinery manufactuer and exporter in China, we have sucessfully export to over 50 countries such as Australia, South Africa, North America, Southeast Asia, East Europe, North Africa,South America etc. Our Brand has been awarded as “Famous Brand” by China Government since 2005.
