Product Overview
Description

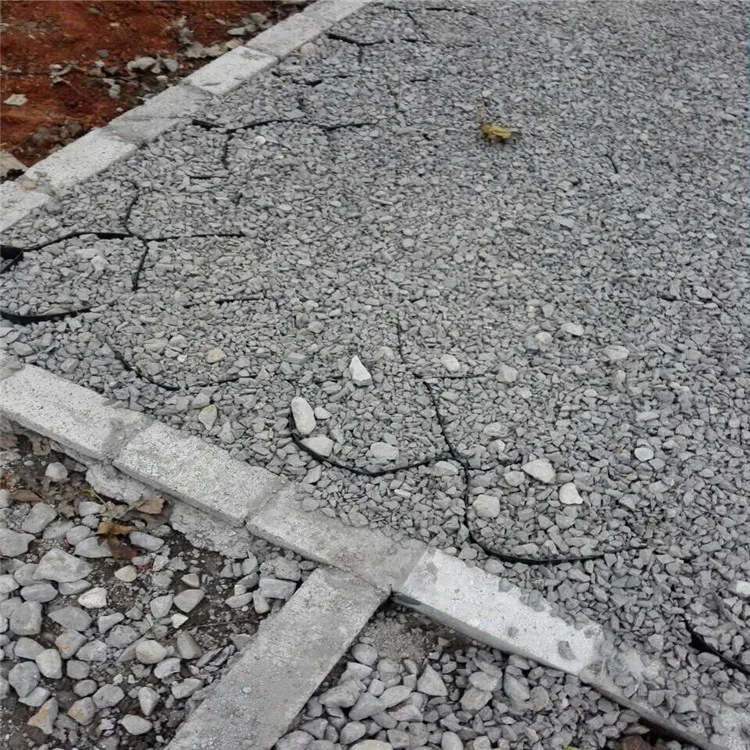

Cheap Price Plastic with 150mm Hdpe Honeycomb Floor Driveway Fence stabilizer 4 Geocell Gravel Grid
Product Description
The BOLV® geocell geosynthetic cellular confinement system is a matrix of lightweight, expandable and flexible thermoplastic strips that are ultrasonically
bonded to form a strong, dimensionally stable and inert honeycomb structure.
The BOLV® geocell is honeycombed three-dimensional grid structure which is welded by high-strength HDPE sheet. The BOLV® geocell is easy to stretch. It can be folded up when transport and opened to fill the earth or concrete when use it. It will constitute a strong lateral and large stiffness of the structure when use it. In the geotechnical engineering, soil, sand, stone, concrete and other fill together constitute a different cohesion, different reinforcement strength, different depth of the cushion. The cushion can be placed in the required position accordance with the requirements of the project for Reinforcement of roads, railways and soft soil foundation, slope protection, green structure, the construction of retaining walls and so on. The most important feature is can solve and complete a variety of difficult problems which can’t be dealed with use conventional method in geotechnical engineering,such as bridge jumping, soft base subsidence, fouling, landslides and desert subgrade.
FEATURES
1.Light weight, wear-resistant, chemical stability, light oxidation aging, anti-acid/alkali corrosion, applied to different geological conditions, such as saline soil, desert, etc.
2.Wide temperature range, high tensile strength, good rigidity and toughness, good load capacity and anti-erosion ability.
3.Size is relatively stable, change the height and welding distance can meet the needs of different projects.
3.Retractile, easy to transport.
4.Easy to use, can use the local materials and achieve rapid construction, reduce construction costs.
5.Can be used repeatedly.
APPLICATION
1) Soil Retention
•Earth walls

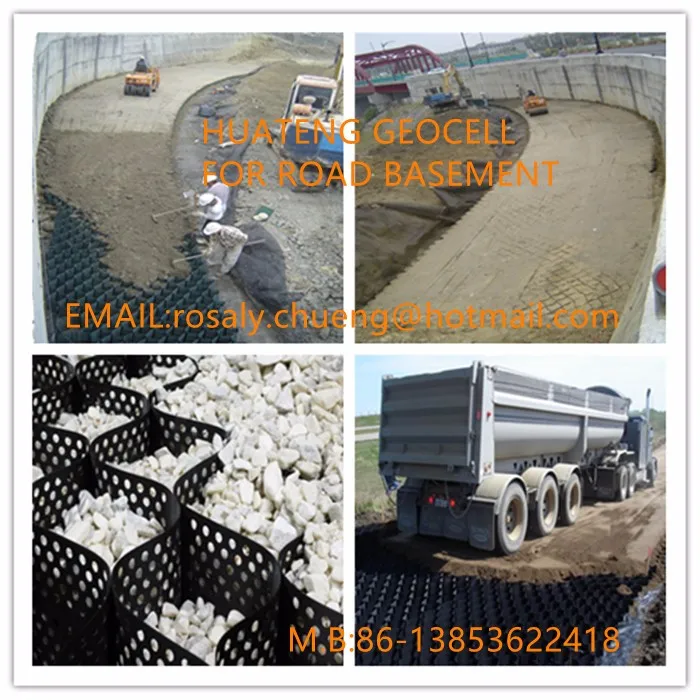

2) Load Support
•Roadways & Verges •Pathways •Railway bases

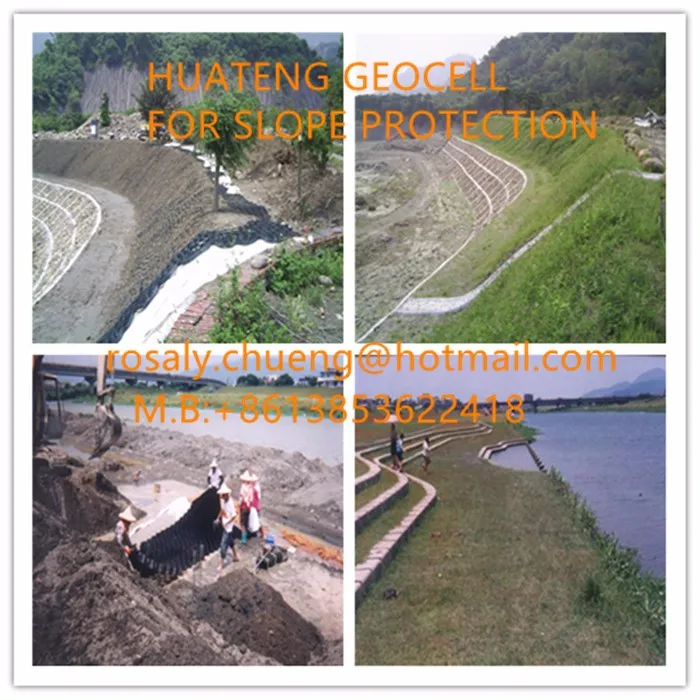

3) Slope Protection
•Vegetative slopes •Road-side banks •Embankments
4) Channel Protection
•Embankment walls •Waterway channels
Methods

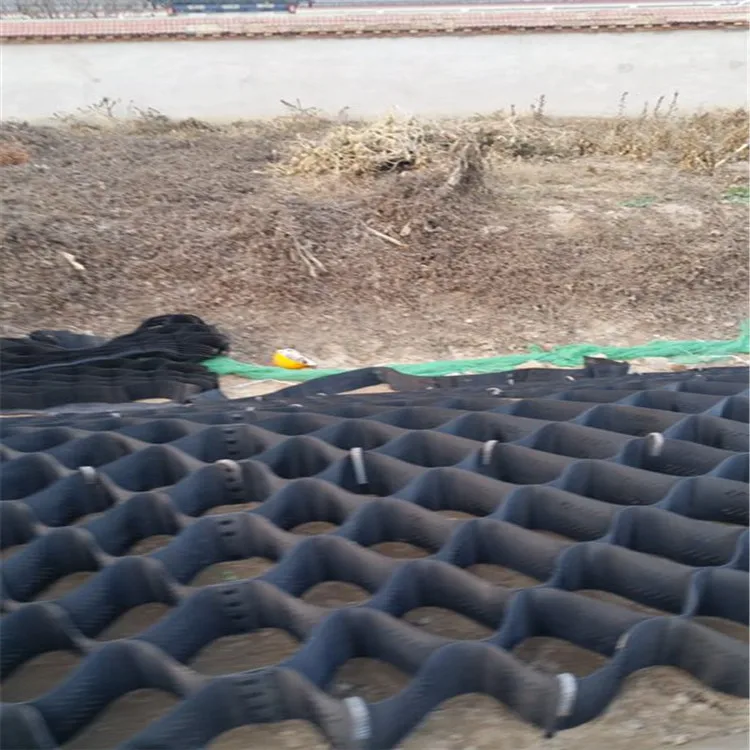

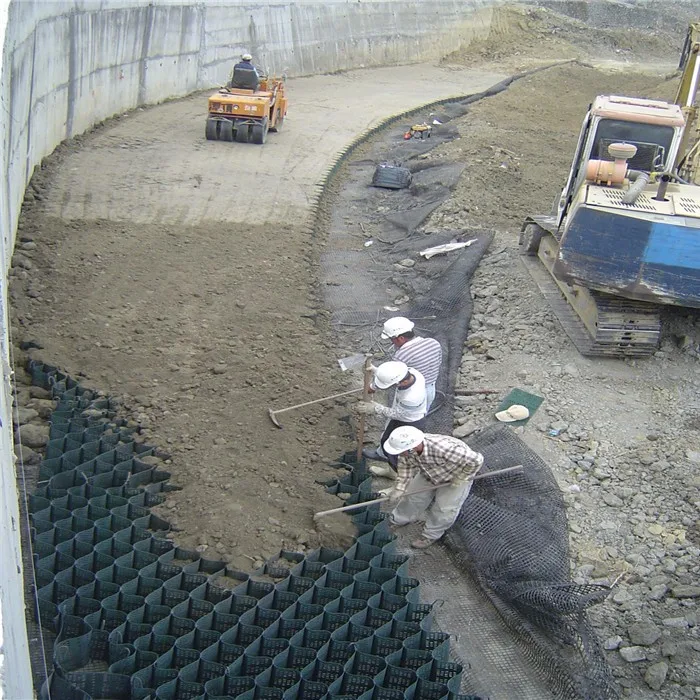

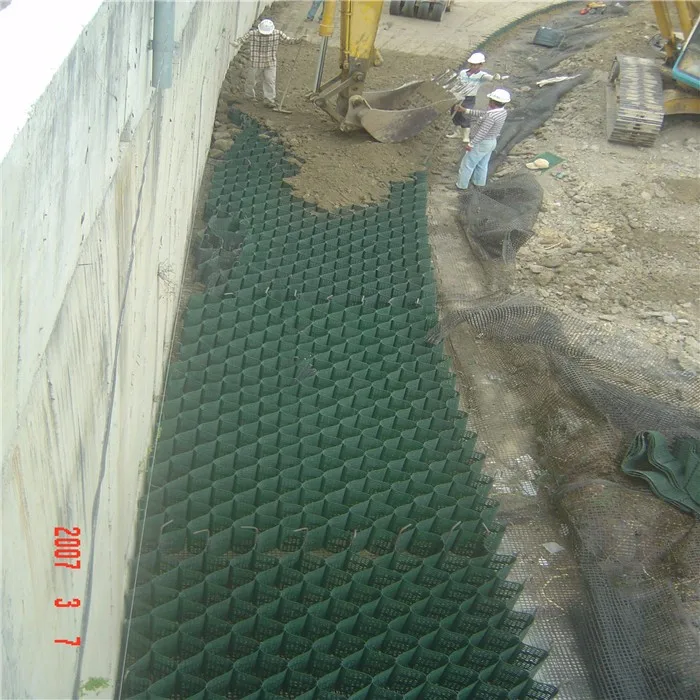

In construction, the geocell can be pulled into a network and launched into a three-dimensional honeycomb grid, then filled with soil, macadam, concrete or other granular materials to constitute to be a structure with strong lateral restriction and large stiffness.
Concrete construction method
1.Open the superimposed geocell.
2.Fixed with nails or connected with the framework of stretching device.
3.Fill the particle filler until the full and beyond standard room to the top, then vibrate or roll to finish the primary work.
4.At this point, cell chamber system can support all kinds of construction equipment. The construction can be done directly in the above.
Technical indexes
Product Type | Height(mm) | Welding Distance(mm) | Thickness (mm) | Tensile Strength of Welding Points(N/cm) | Tensile Strength of Connection of Cells(N/cm) | Tensile Strength at Yield of Each Sheet(N/Mpa) |
Flat and Not Perforated | 50≤H≤250 | 330≤A≤1000 | 1.1/1.2 | ≥100 | ≥120 | ≥20 |
Flat and Perforated | 50≤H≤250 | 330≤A≤1000 | 1.1/1.2 | ≥100 | ≥120 | ≥20 |
Embossed and Not Perforated | 50≤H≤250 | 330≤A≤1000 | 1.5 | ≥100 | ≥120 | ≥20 |
Embossed and Perforated | 50≤H≤250 | 330≤A≤1000 | 1.5 | ≥100 | ≥120 | ≥20 |
Remarks: Width of the product can be made according to the customer’s demand, and the other special standards will be carried out by agreement or contact. (The product has past CE certification) | ||||||
Our Services
FREE SAMPLES
TO BE YOUR CONSULTANT AND PROVIDE THE PERFECT SUGGESTION ACCORDING TO YOUR CONDITIONS
HIGH QUALIT FOR THE BULK
BEST AND IN TIME DELIVERY
TIMELY RESPONSE
PROFESSIONAL QUOTATION

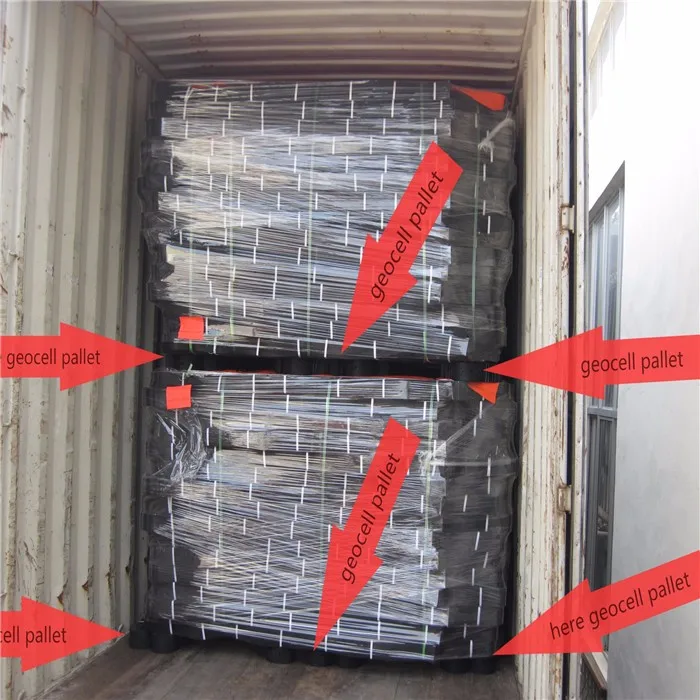

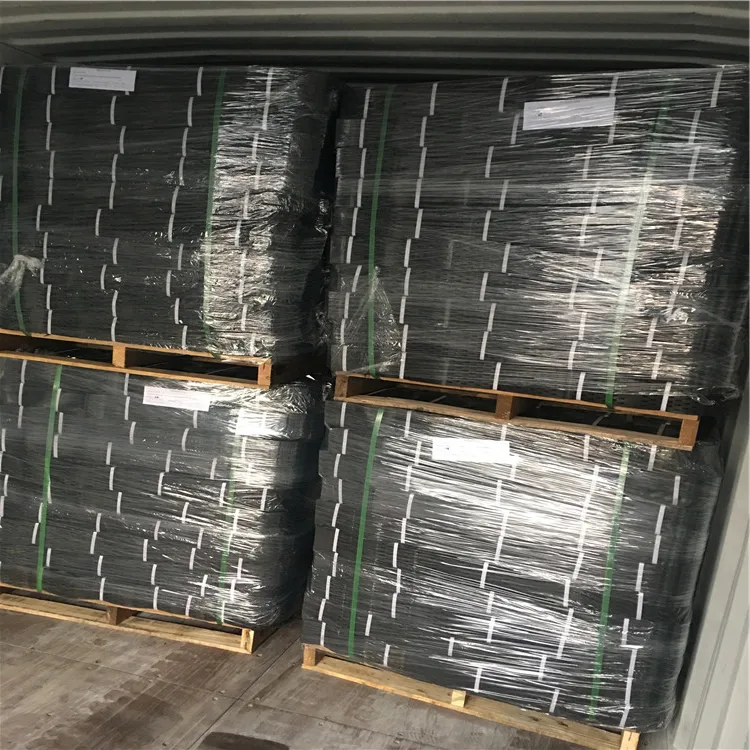

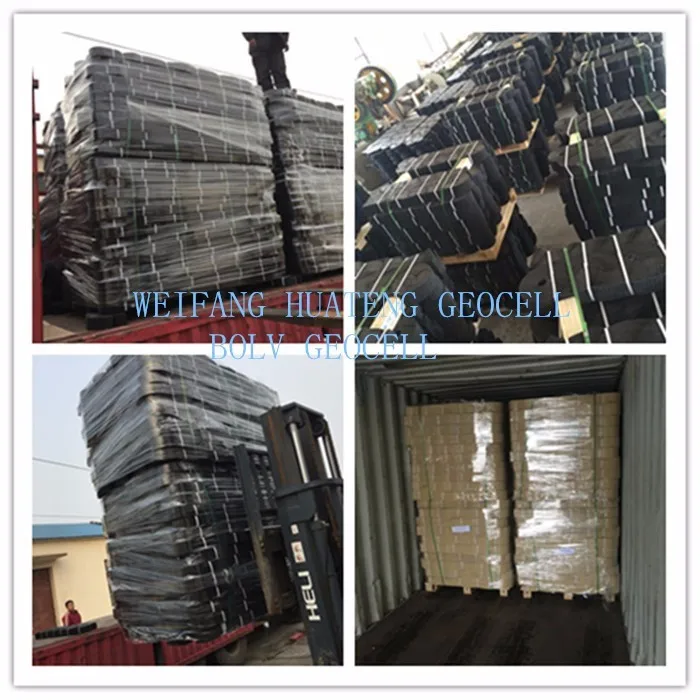

Packaging & Shipping
WITH CLIENTS
FAQ
Q1:Where is your company located?
A:our company is located in Weifang City,Shandong Province,China
Q2:Can you provide a sample for us?
A:yes,we can provide for your free samples based on freight collect.
Q3:What is your MOQ?
A:MOQ is 1sqm.
Q4:What is payment terms?
A:T/T,L/C
Q5:What is your lead time?
A:According to your order quantity,usually 7days for 1*40HC
Q6:Do the customized design accepted?
A:We welcome customized design.
