Product Overview

Description

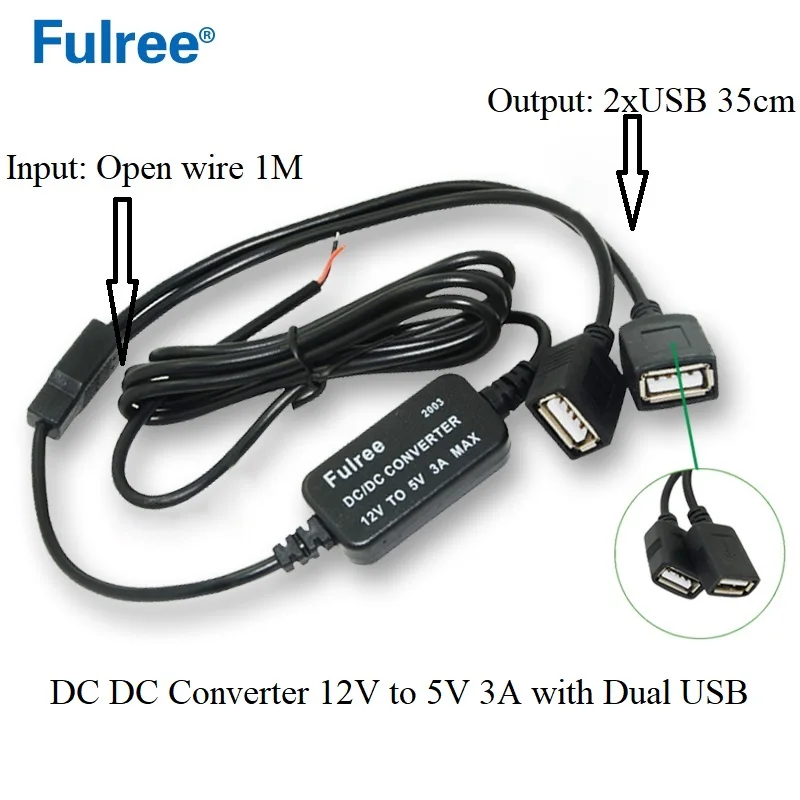

Car Charger with 2 USB Ports DC DC Converter 12V to 5V 3A USB Phone Charger Power Adapter

Click the right "Start Order“ button to order the product directly. If any question, click the "Contact Supplier" button to check.

 >Output voltage:DC 5V

>Output current:  3A

>Output Power: 15W

>Output Type:   2 type A USB female Ports.

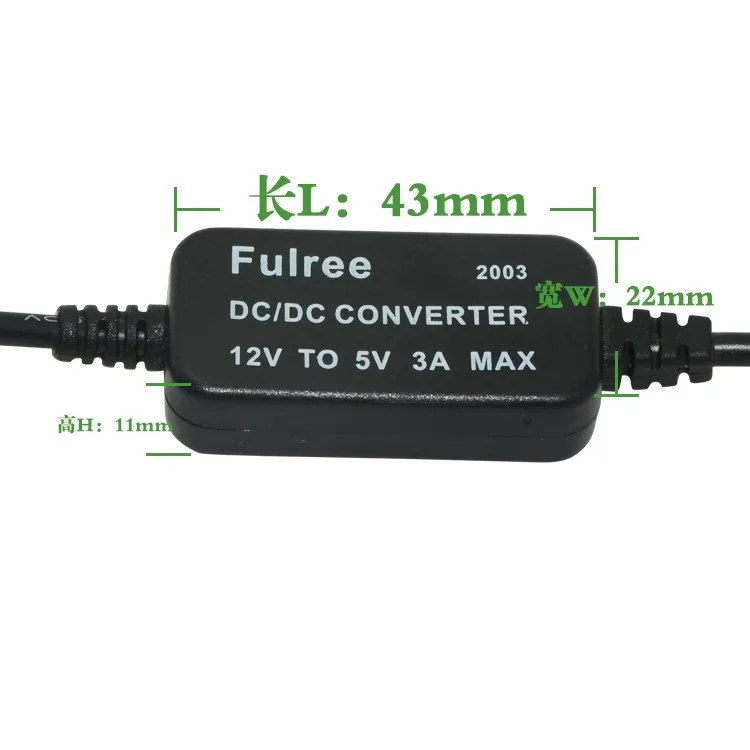

>Size: L43mm*W22mm*H11mm(not include the cable)

Benifits: Eas Install Wire Charger for Car DVR GPS Tablet Phone Device.





Specifications:

 • Module Properties: non-isolated buck module (BUCK)

 • Rectification: synchronous rectification • Minimum pressure difference: 3V

 • Conversion efficiency: 90% • Soft-start time: 500mS • Output ripple: 50mV (MAX) 20M-

bandwidth

 • Full load temperature rise: 50°c

 • Load regulation: ± 1%

 • Voltage regulation: ± 2%

 • Dynamic response speed: 5% 200uS • Operating Temperature: Industrial (-40°c to +85°c) ( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)



Feature:

  • Overcurrent protection • Short-circuit protection • Input Reverse Polarity Protection • Waterproof: NONE
