3.7~4.2v 3.8~4.35v 900mah 902248 lithium ion polymer battery batteries with long cycle life
- Category: >>>
- Supplier: Shenzhen Juheyuan Science & Technology Co. Ltd.
Share on (60680237992):
Product Overview
Description
3.7V/450mAh rechargeable lithium ion polymer battery.
Product Description
| Battery model | JHY902248 |
| Design scheme | Battery+Seiko PCM board+Wire+Connector (avavilable) |
| Nominal voltage | 3.7V |
| Minimum capacity | 900mAh |
| Charging voltage | 4.2V |
| Discharging cut-off voltage | 3.0V |
| Standard charging | 0.2C/4.2V |
| Max charging | 1.0C/4.2V |
| Standard discharging | 0.2C/3.0V |
| Max discharging | 1.0C/3.0V |
| Weight | Appr: 10.0g |
| Shipment voltage | ≥3.85V |
| Operating temperature | Charging: 0℃~45℃ |
| Discharging: -20℃~60℃ | |
| Storage (at 50% SOC and specified temp, recoverable capacity in % VS time) | -10℃~25℃ |
| -10℃~45℃ | |
| -10℃~55℃ | |
| 20±5℃ is the recommended storage temperature. | |
| Visual Inspection | There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on on the surface of the cell. |
Packaging & Shipping

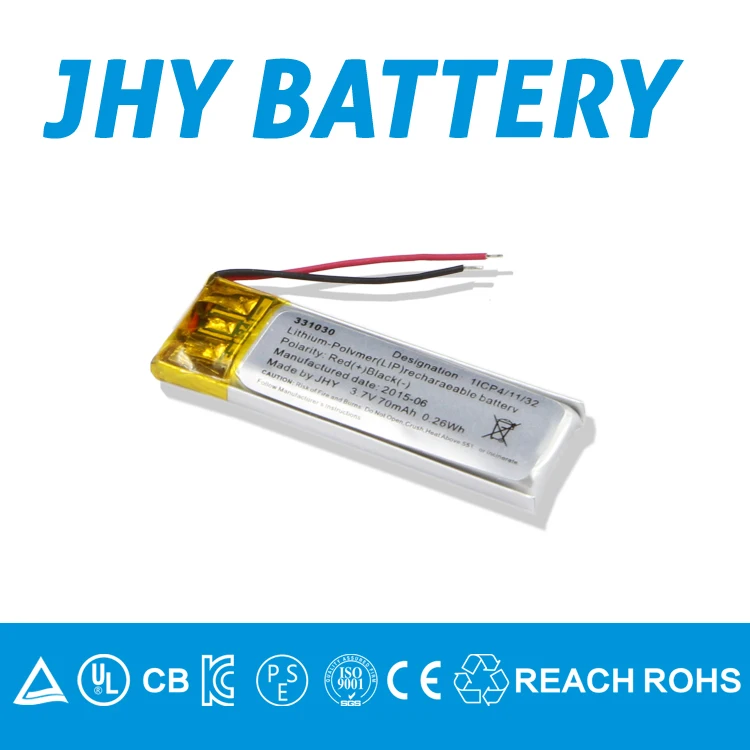

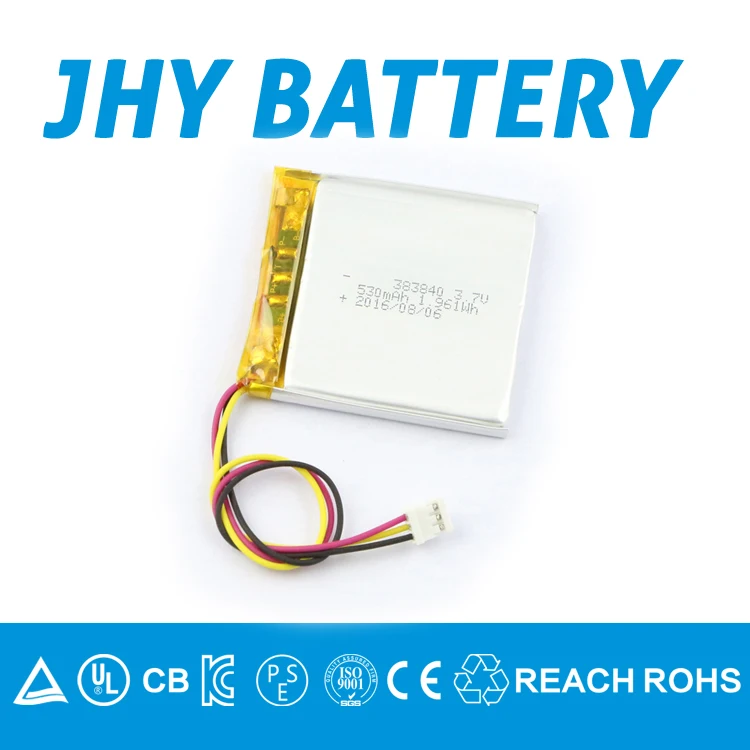

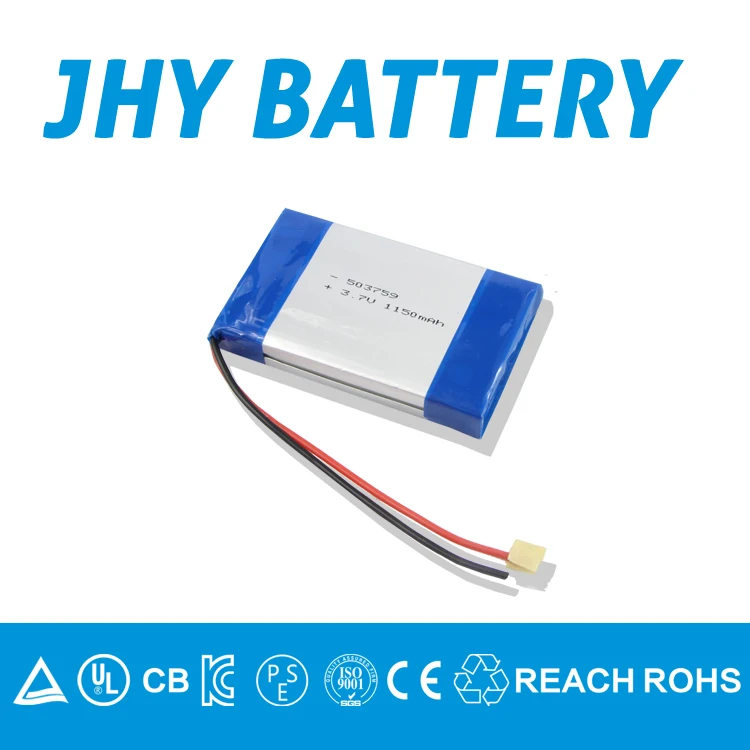

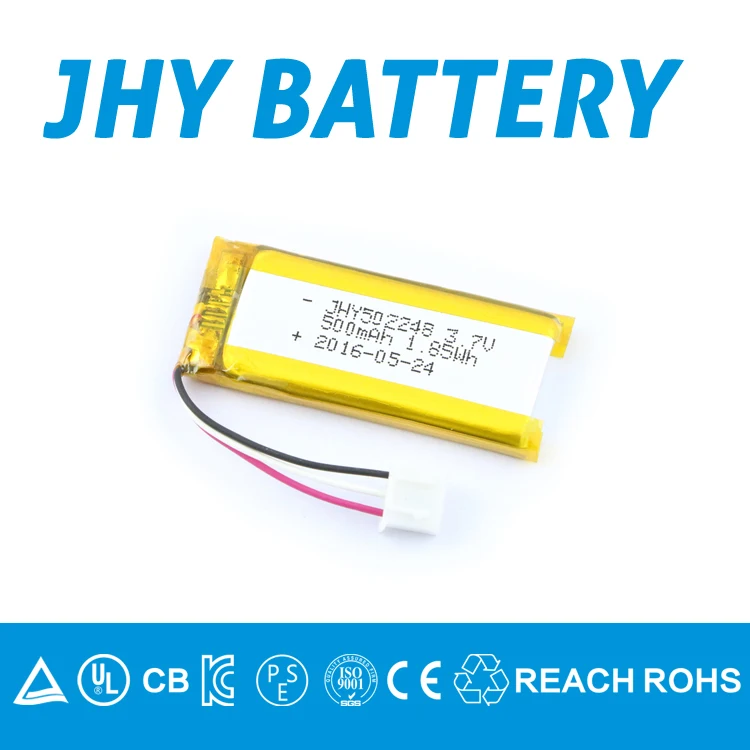

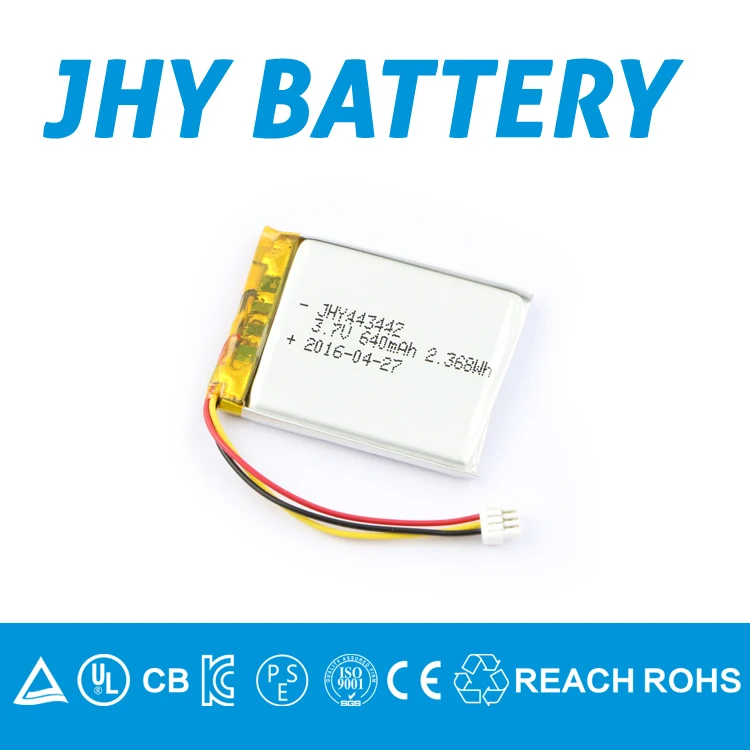

- Battery image

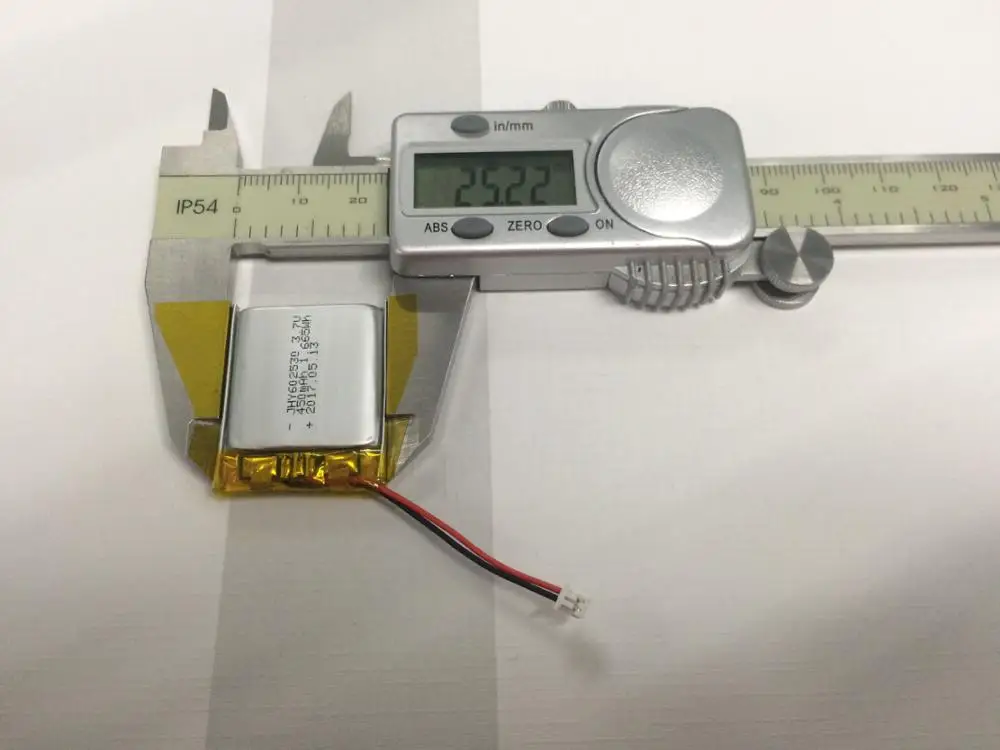

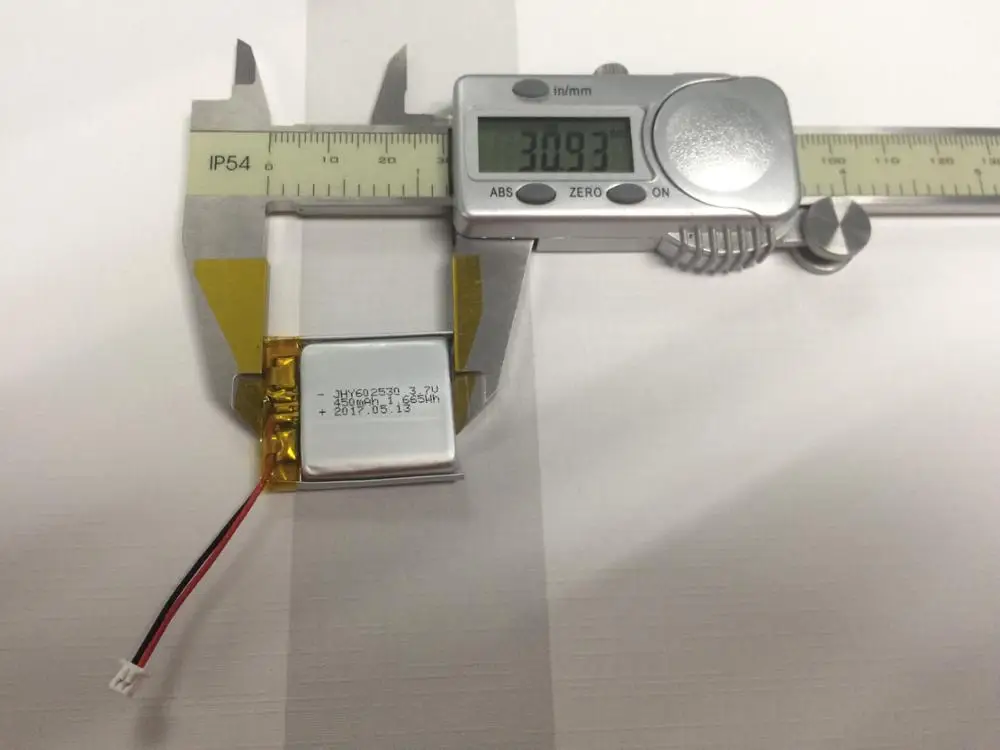

- Battery width
- Battery length

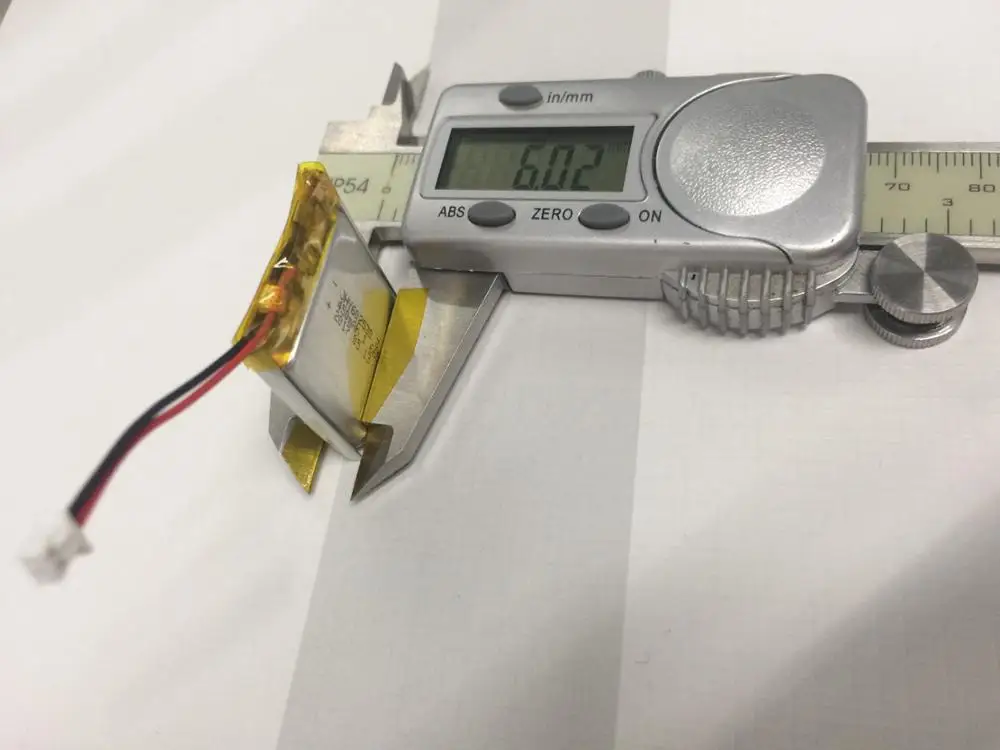

- Battery thickness
Company Information
Shenzhen JUHEYUAN Science & Technology Co., Ltd. is a leading high-tech enterprise and professional solution provider specializing in lithium ion battery in China.
JHY battery ranks top 3 within industry.
Over the years, JHY has accumlated a lot of know-how and experience:
JHY superior products:
Ultra thin & ultra narrow lithium ion polymer battery (able to reach the thickness of up to 1.3 mm)
High rate lipo battery: 3C to 30C, DOD reaches to 95%.
High & low temperature lipo battery: workable temperature from -35℃ to 85℃.
Products range:
High capacity lthium polymer battery up to 6000mAh;
Long cycle life lithium polymer battery with 500-1000 cycles;
Lithium polymer battery with high-temperature range;
Lithium polymer battery with low-temperature range;
High & low-temperature lithium polymer battery;
High-rate lithium ploymer battery up to 30C;
Ultra-thin flexible lithium polymer battery with thickness of up to 1.3 mm;
Diamagnetic lithium polymer battery etc.
Product application:
Wearables, Bluetooth products, POS machine, GPS system, tablet PCs, RC models, Medical equipents, etc.
Certificates:
Most of our lipo batteries are apprived on CE, CB, EN/IEC62133, FCC, UL1642, UL2054, UN38.3, MSDS, REACH, PSE, KC, BIS etc.
Also we are proud that JHY is fully RoHS compliant and has achieved accreditation to ISO 9001:2008.
Markets:
In the early stage of our business, we were focusing in domestic market, with strong support of our R&D team, companies to develop new products, selling products throughout the country and exported to overseas countries and regions, won the trust of all customers, products in the domestic industry leader.
With a wide coverage of market in Asia, Middle East, North America and Latin America and Europe, the annual sales volume of JHY battery is increasing dramatically.
Our customers put their trusts in us, we also think we can have your trusts. Hope there is a chance to serve you, any your inquiries are welcome to us, regardless of your order qty.
Battery data sheet (or battery spec.) and battery samples available at your request.
You buy, we rush !

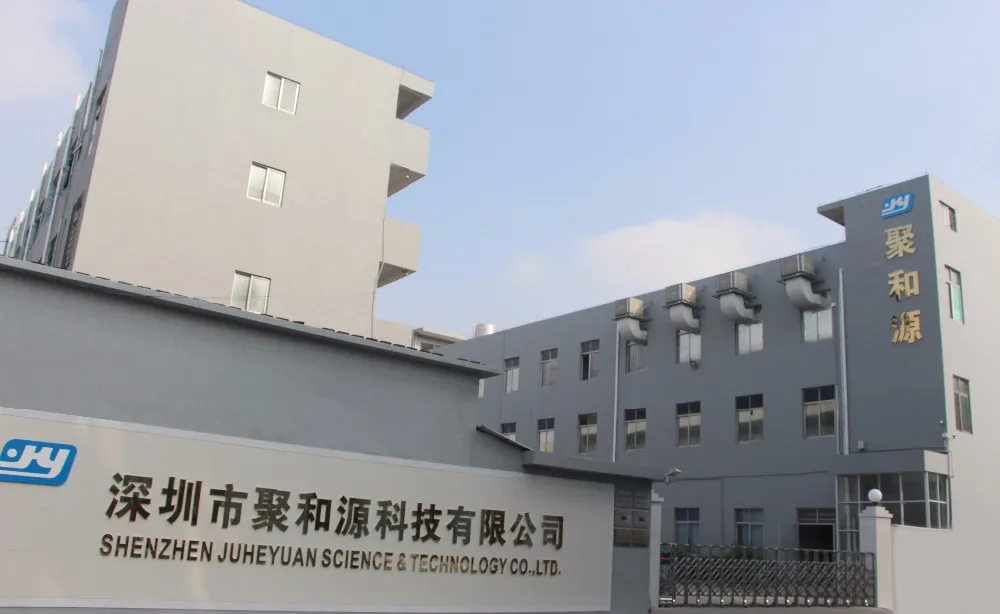

- The panorama of our company:
- Our receptionist behind the front

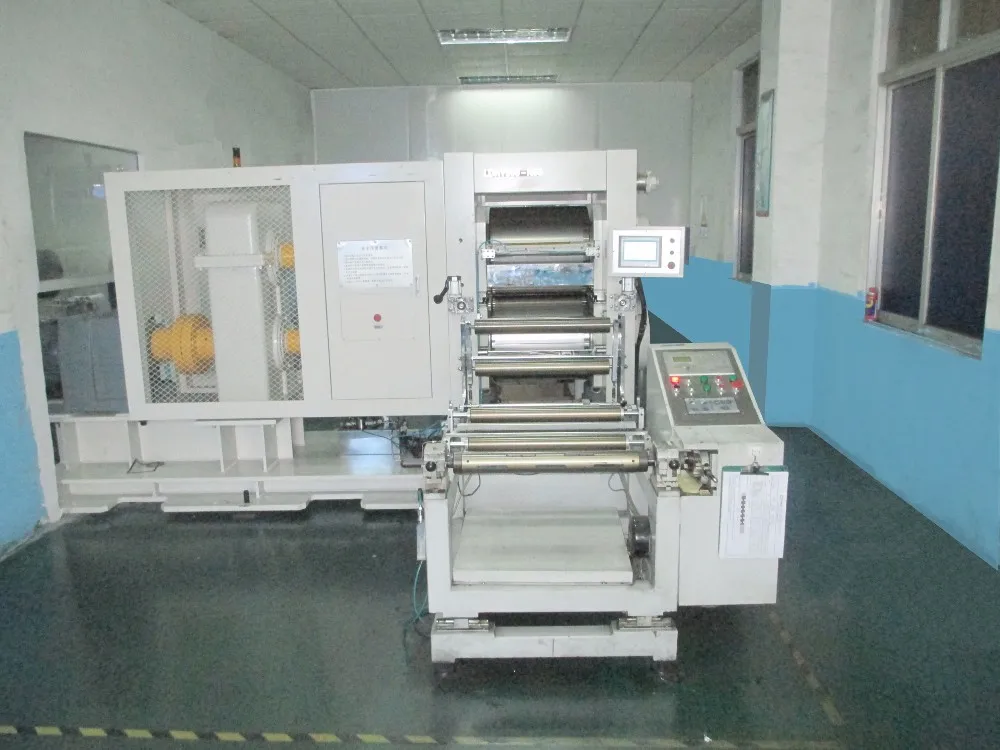

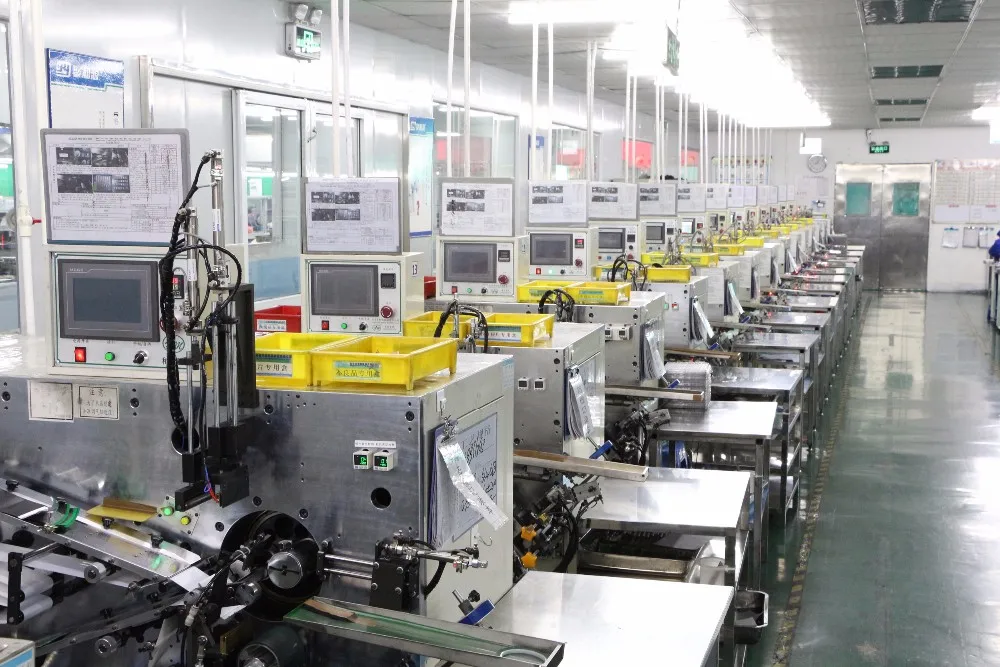

- Our plant equipments:

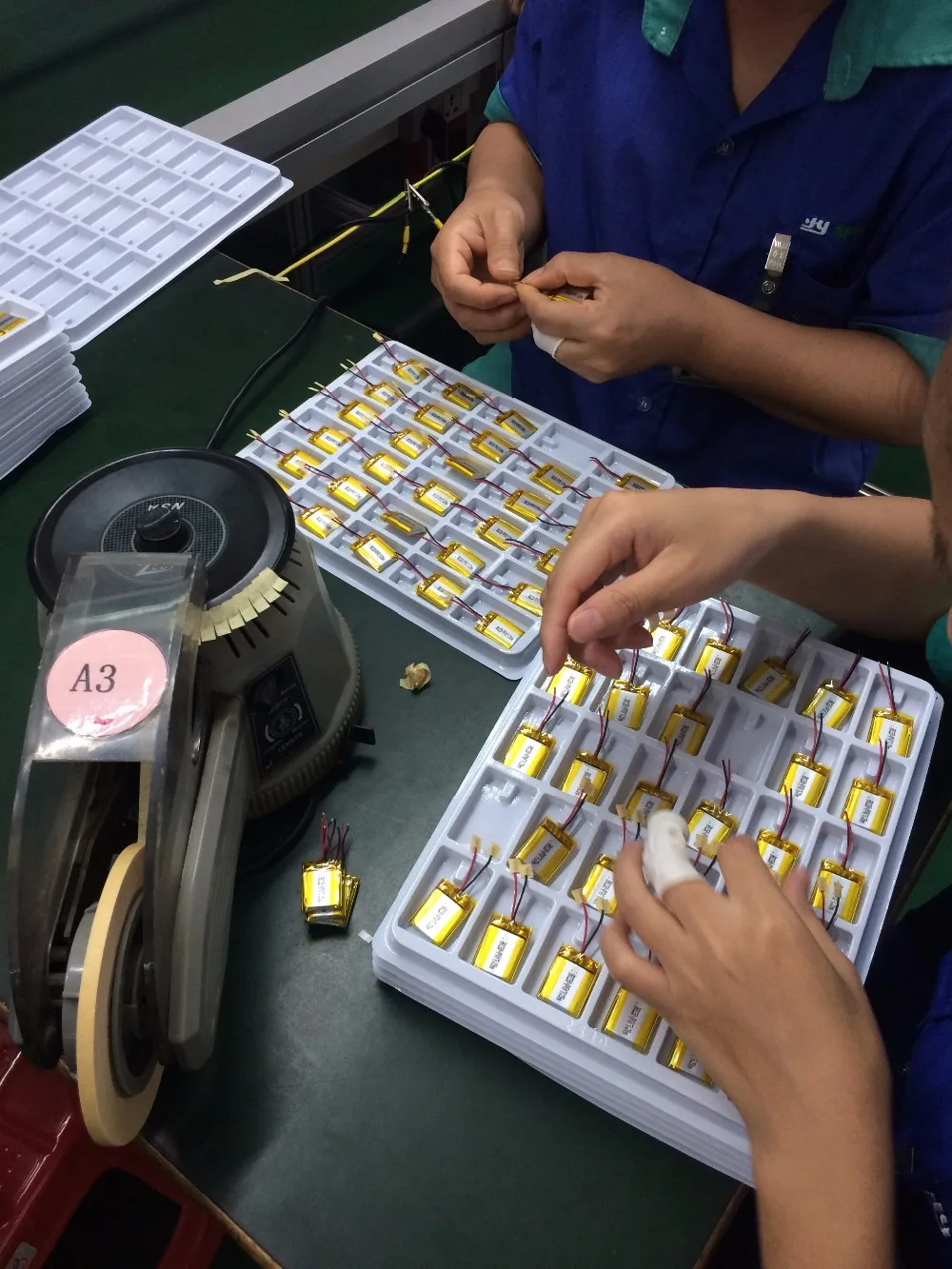

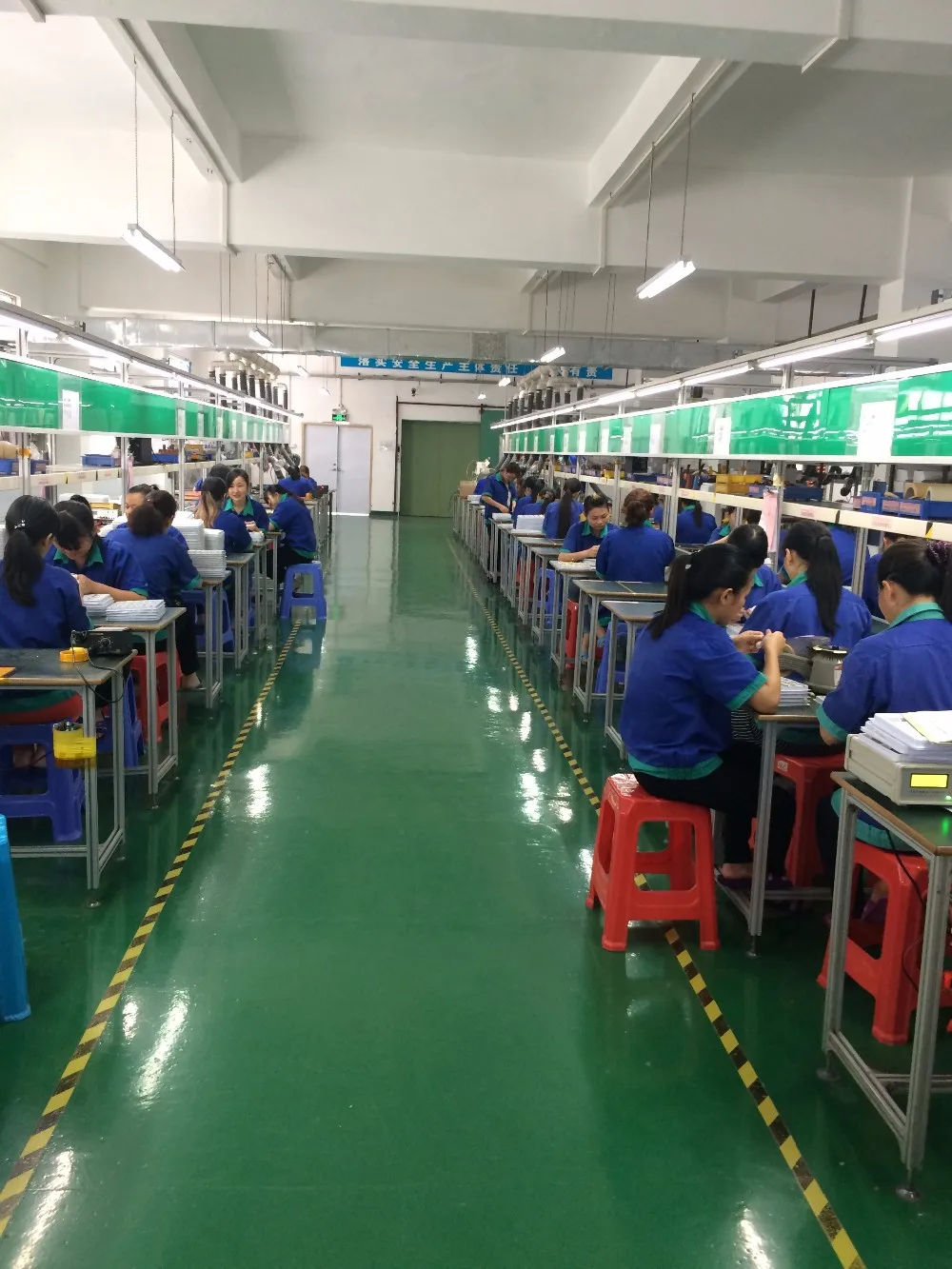

- Our people in office and workshop:
- Our certificates:
- Our Exbihitions:
FAQ
You are welcome to Shenzhen JUHEYUAN Science & Technology Co., Ltd.
Add: Building 1, 2, 3, No.3, Tianlong Lane, Qingshui Rd, Longxi Community, Longcheng Street, Longgang District, Shenzhen.
Tel: +86-755-84516430
Fax: +86-755-84516756/84516178
Web: www.jhyenergy.com
Q: I would like to get good prices, what could I do?
A: Please send us a mail and show us your interested models & quantity, and more project details. Larger qty, more discount.
Q: I would like to buy only one battery, is it OK?
A: For sure, we are willing to offer one for your testing and using. No worry on that.
Q: I can't find any models fit for our products, how could I do?
A: Every week we make some new models but don't update our battery models list in time. Please share your more details, like the battery dimension range (length*width*thickness) and capacity. We will work out our best battery solution for you.
Q: I would like to buy some batteries, how could I pay?
A: We accept payment via PayPal, Western Union or T/T.
Q: I want battery assembled connectors, can you do that?
A: Yes, can assemble connectors such as Molex, JST or SMK. Please send me the connector part number, we will offer our solution accordingly.
Q: What is your lead time?
A: Generally speaking, our lead time is 30 days after confirmation on the order based on 5K-10K. If it is very urgent for you, we will pull in our process on the basis of the good production quality, of course. You buy, we rush.
