T 205A 2 Way 5 Inch Audio Commercial 70 Volt In Ceiling Speakers

Share on (60680258642):


Price:

Quantity:


Product Overview

Description

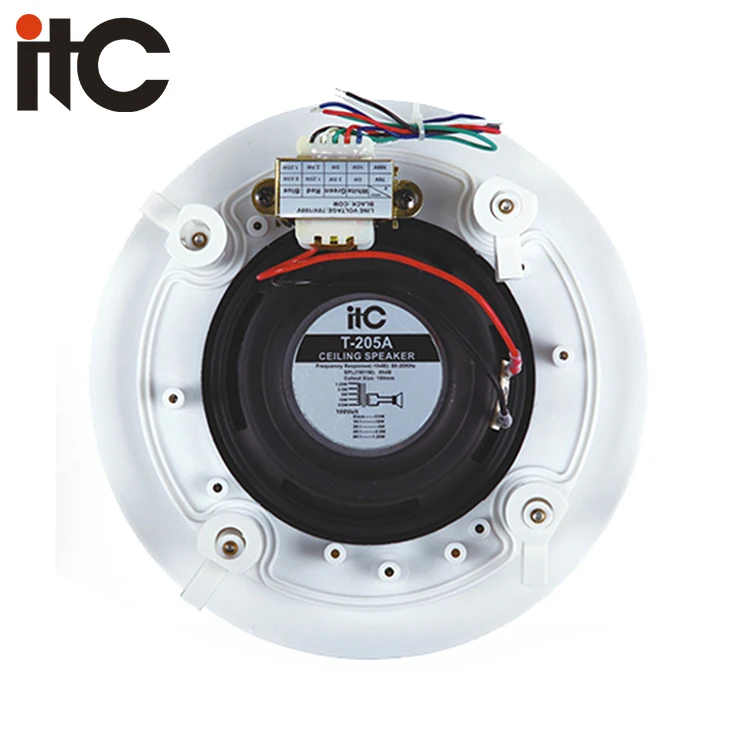

T-205A 2 Way 5 Inch Audio Commercial 70 Volt In Ceiling Speakers

Product Description

Product Description.jpg



  • Built in 100V/70V transformer
  • Superior sound quality speaker for music & speech
  • Coaxial speaker ceiling mounted
  • 5" +1.5" coaxial plastic full range speaker unit
  • Power taps 1.25W, 2.5W, 5W & 10W @100V
  • Metal grille & ABS baffle
  • Paint in white color
  • Flush mount easy & secure installation

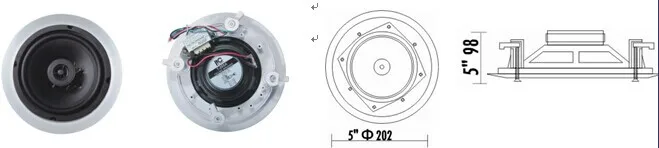

 T-205A  T-206A  T-208A.jpg

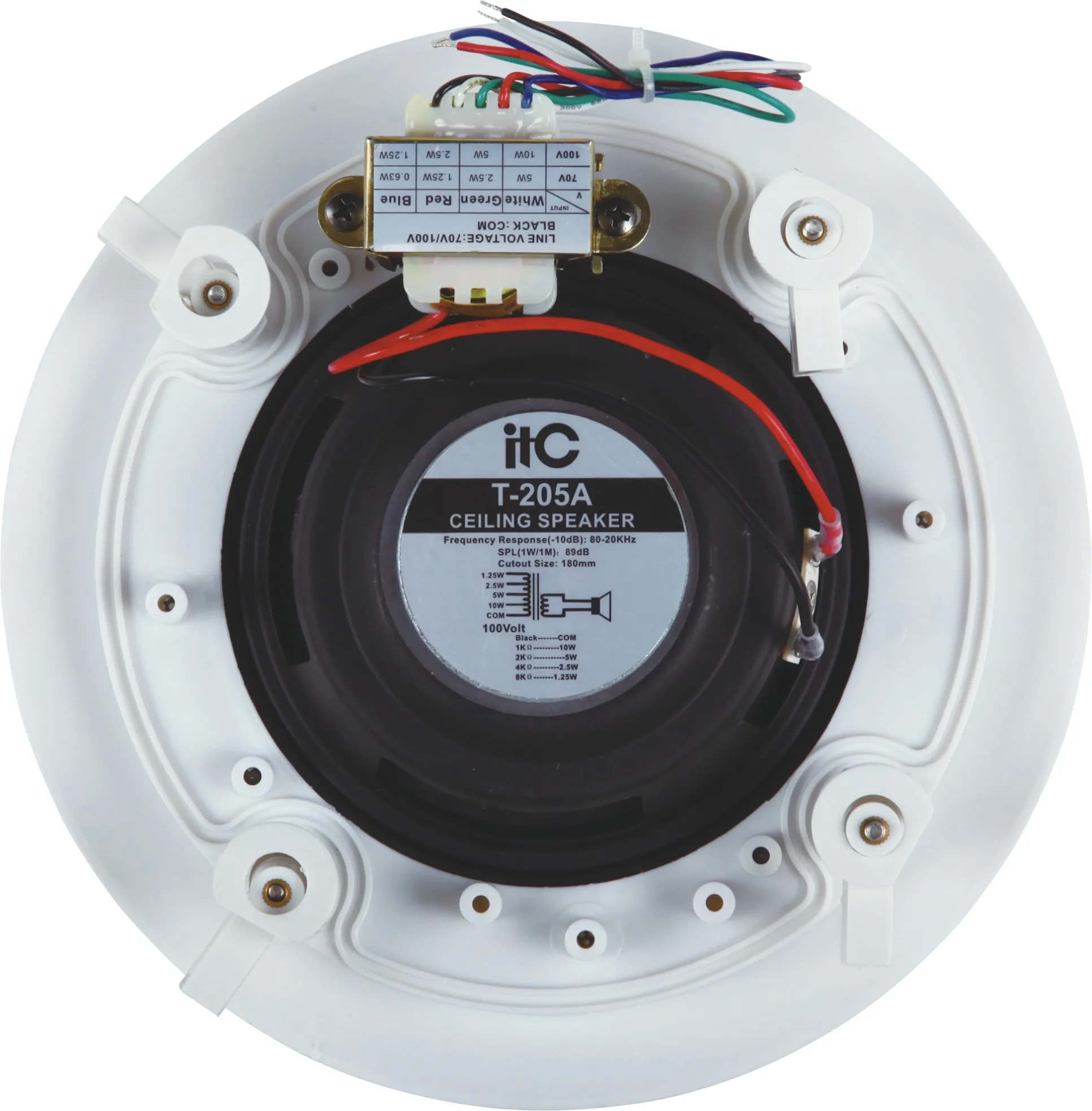

T-205A  T-206A  T-208A-.jpg








Specification



Model

T-205A

Power Taps @100V

1.25W, 2.5W, 5W, 10W

Power Taps @70V

0.65W, 1.25W, 2.5W, 5W

Impedance

Black: Com Blue:8KΩ Red:4KΩ

Green:2KΩ White:1KΩ

SPL(1W/1M)

89dB

Max. SPL (Rated W/1M)

99dB

Frequency Response (-10dB)

80-20KHz

Finish

Baffle: ABS, White   Grille: Steel, White

Speaker Driver

5" x 1   1.5" x 1

Cutout Size

180mm

Dimension

202 x 98mm

Weight

0.8Kg

Mounting

Flush-mount dog ears



Related products

 ceiling-speaker_01ceiling-speaker_02



Widely use

 ceiling-speaker_03



Company Information

_05 ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference systemvideo conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide. _07_09_11_13_15
