0.8t Tirfor Wire Rope Manual Hand Pull Winch
- Category: >>>
- Supplier: Nanning Yongte Electromechanical Equipment Co. Ltd.
Share on (60680341775):
Product Overview
Description
Product Description
0.8t Tirfor Wire Rope Manual Hand Pull Winch
VIT model cable pulling winch is a kind of small-sized, compact, hand-operated lifting tool. It features light weight, compact structrue, wide range of applications and easy maintenance. This type of hoist is suitable to use outdoor sites under advrse circumstances.
Model | VIT-800 | VIT-1600 | VIT-3200 | VIT-5400 | ||||
Capacity(t) | 0.8 | 1.6 | 3.2 | 5.4 | ||||
Rated forward hand power(N) | 343 | 441 | 441 | 745 | ||||
Rated forward travel(MM) | ≥52 | ≥55 | ≥28 | ≥30 | ||||
Rope diameter(MM) | 8.3 | 11 | 16 | 20 | ||||
Wire rope safty factor load capacity(TIMES) | 5 | 5 | 5 | 5 | ||||
Max travelling load(KG) | 1200 | 2400 | 4000 | 8000 | ||||
Net weight(KG) | 6 | 11 | 22 | 58 | ||||

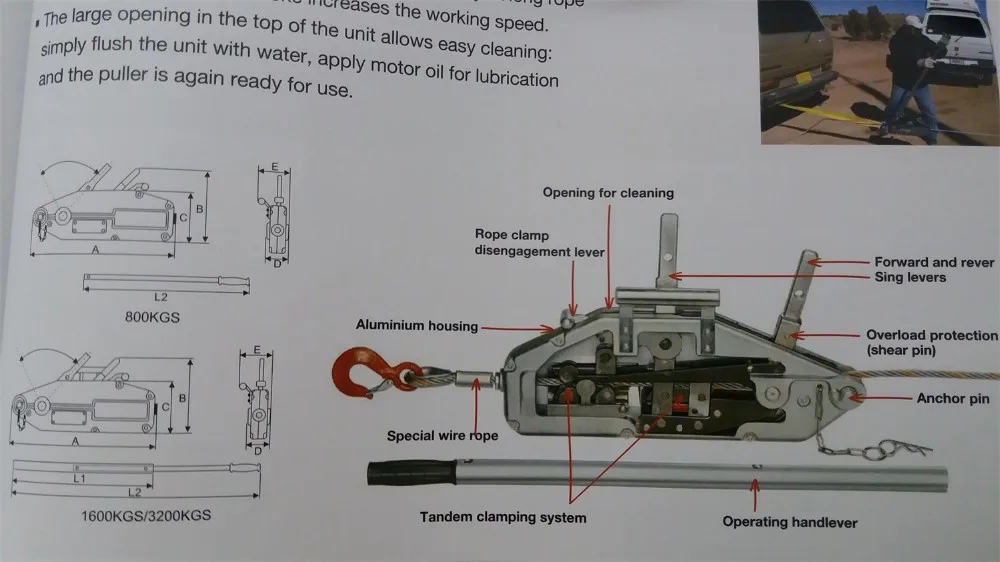

Max outer size mm | A | 426 | 545 | 660 | 932 | |||
B | 235 | 280 | 325 | 425 | ||||
C | 64 | 97 | 116 | 300 | ||||
L1(CM) | 88 | 80 | 80 | 88 | ||||
L2(CM) | 136 | 120 | 136 | 120 | ||||
Packing ( L*W*H) (CM) | 43*6.4*24 | 54.5*9.7*29 | 66*12*35 | 110*110*73 | ||||
Main Features
1) Capacity: 0.8T x 20M, 1.6T x 20M, 3.2T x 20M, 5.4T x 20M.

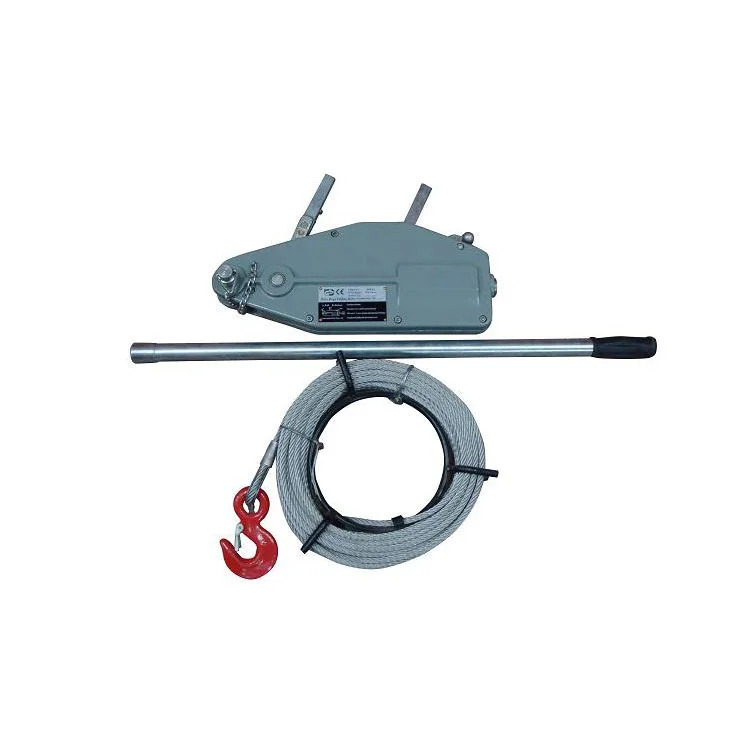

2) All hoists are supplied complete with 20 meter wire rope and an extendable operating lever.

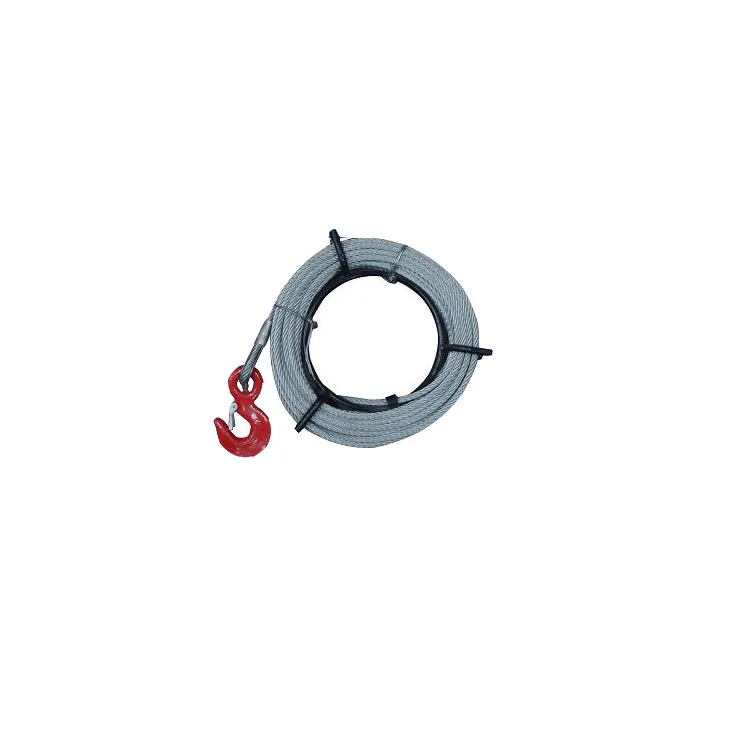

3) Wire rope is tapered one end and fitted with a hook and safety catch at the other end.
3) The hoist has low maintenance requirements and is easy service.
4) Overload protection ensures high personal safety when in operation.
5) Specially built-in shear pins can be replaced without removing the load.
2) All hoists are supplied complete with 20 meter wire rope and an extendable operating lever.
3) Wire rope is tapered one end and fitted with a hook and safety catch at the other end.
3) The hoist has low maintenance requirements and is easy service.
4) Overload protection ensures high personal safety when in operation.
5) Specially built-in shear pins can be replaced without removing the load.
Certifications
Detailed Images
Every wire rope which is operationally tested to 150% of the rated of capacity and is issued with and individual test certificate.
Adjustable handle for easy operation.

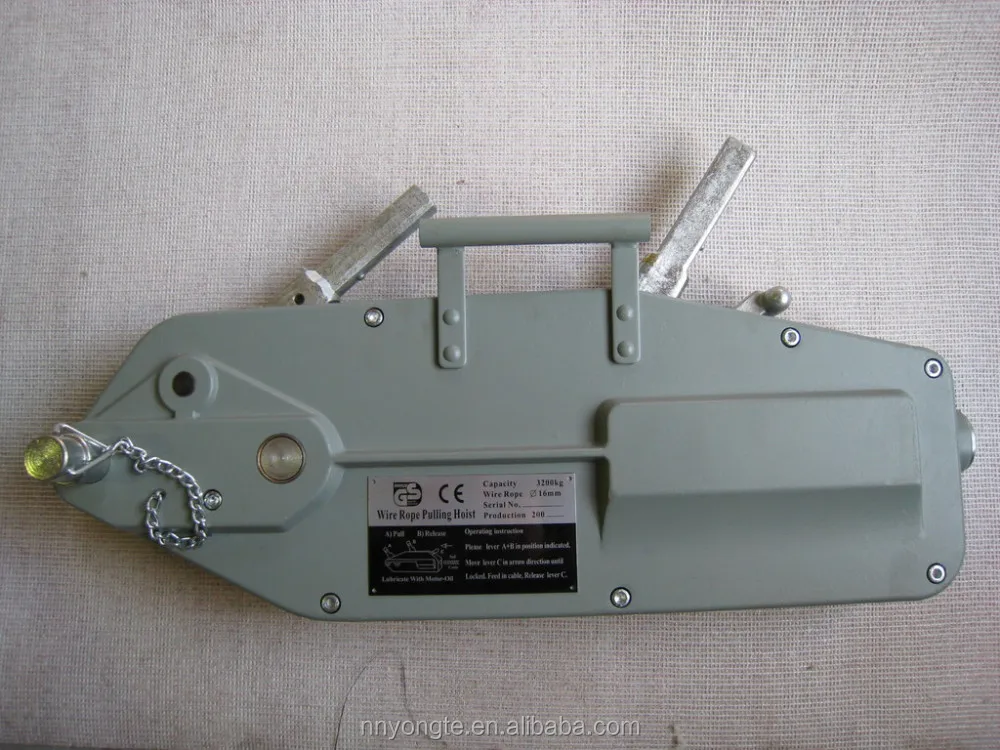

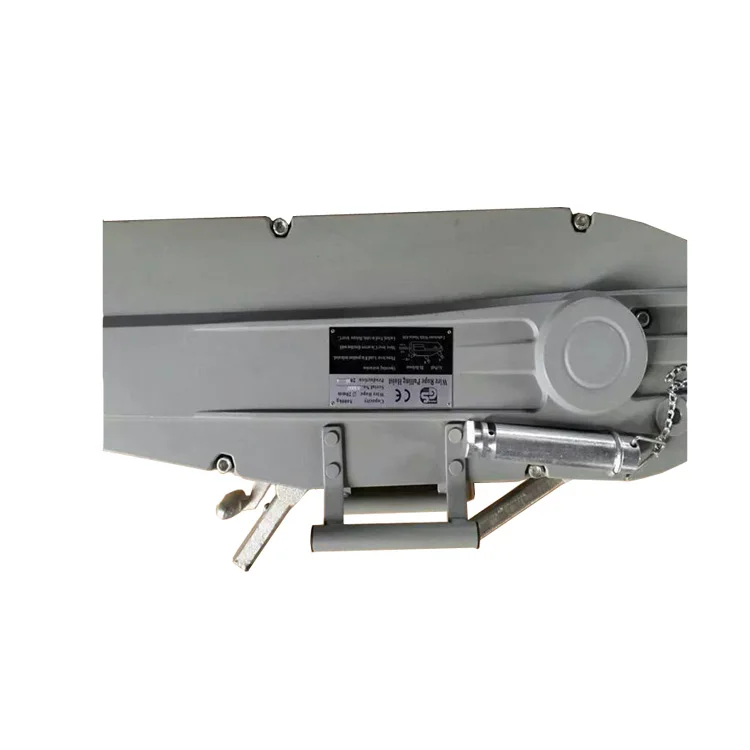

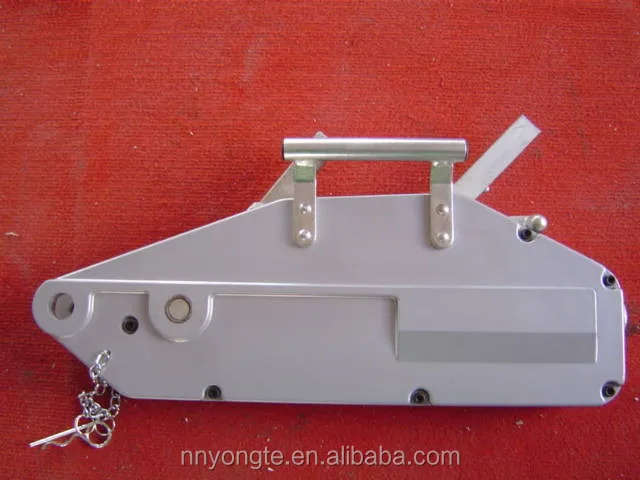

Leight weight , compact,highstrength aluminium alloy housing with a large flat bottom surface for increased stability in horizontal as well vertical working position
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Payment
Packing & Delivery
Packaging | ||
Size | 1100 (L) * 1100 (W) * 1100 (D) | |
Weight | 247kg | |

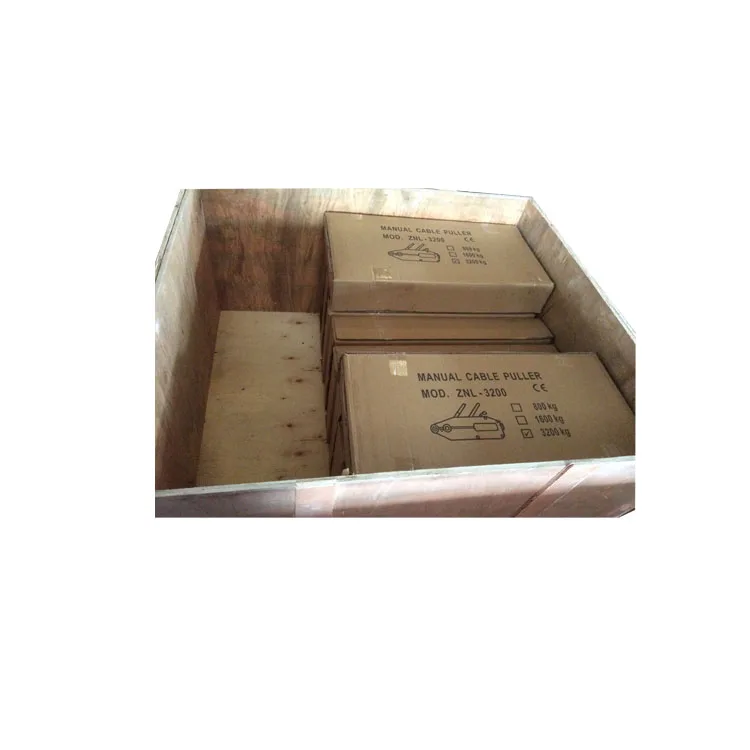

Packaging Details | The normal package is wooden box(Size: 1100L*1100W*1100H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 430(L) * 64 (W) *24 (D) | |
Weight | 49 | |
Packaging Details | The normal package is carton box(Size: 430*64W*24H).If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Our Company
Nanning Yongte Electromechanical Equipment Co., Ltd. is a company with superior quality, competitive price, excellent service. Found in 2003, located in the capital of Guangxi Zhuang Autonomous Region--Green city Nanning. Our products include Machinery Industry, Hardware Industry, Tool Industry, Lifting Equipment, Lashing Equipment, Material Equipment and many others. The company's products serve a wide variety of commecial and industrial applications that require the safety and quality provided. We only offer the best products with best quality to customers.
