Best Hot Sale Stainless Steel Structure Deck Post Metal Decking Design Galvanized Steel Floor Decking Sheet

At present, multistory and tall building usually take profiled steel sheet with some ribs -concrete composite floor,which has the disadvantages of high thickness, reducing inner height of building, unflattering of under floor, lots of reinforcement binding, hard control of distances between ribs and thickness of concrete.

To solve these problems, we research and develop the Third Generation profiled steel products-Steel Truss Deck.

Best selling stainless steel deck post metal decking design galvanized steel floor decking sheet

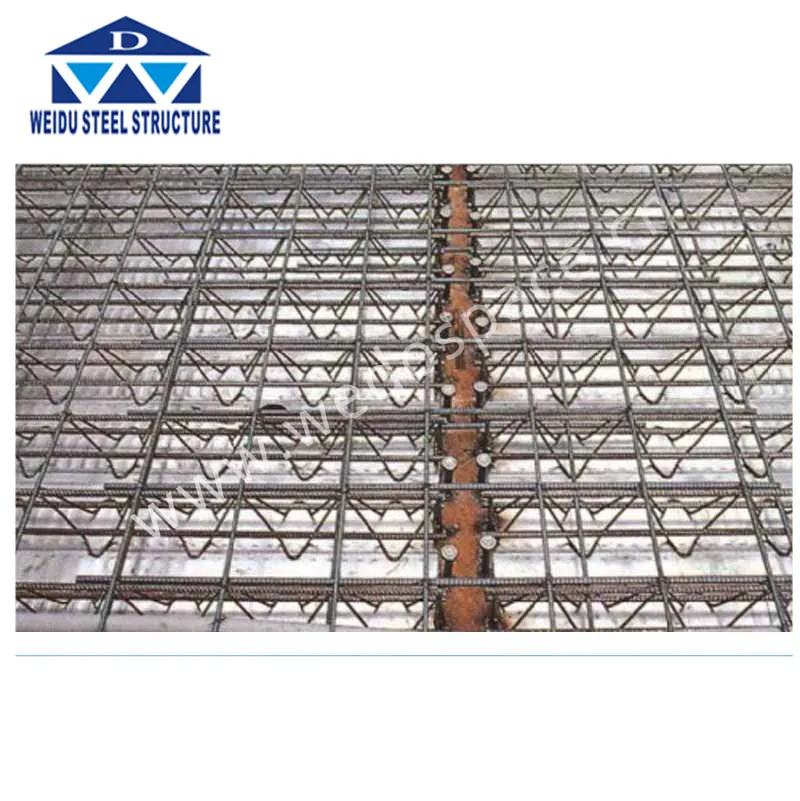

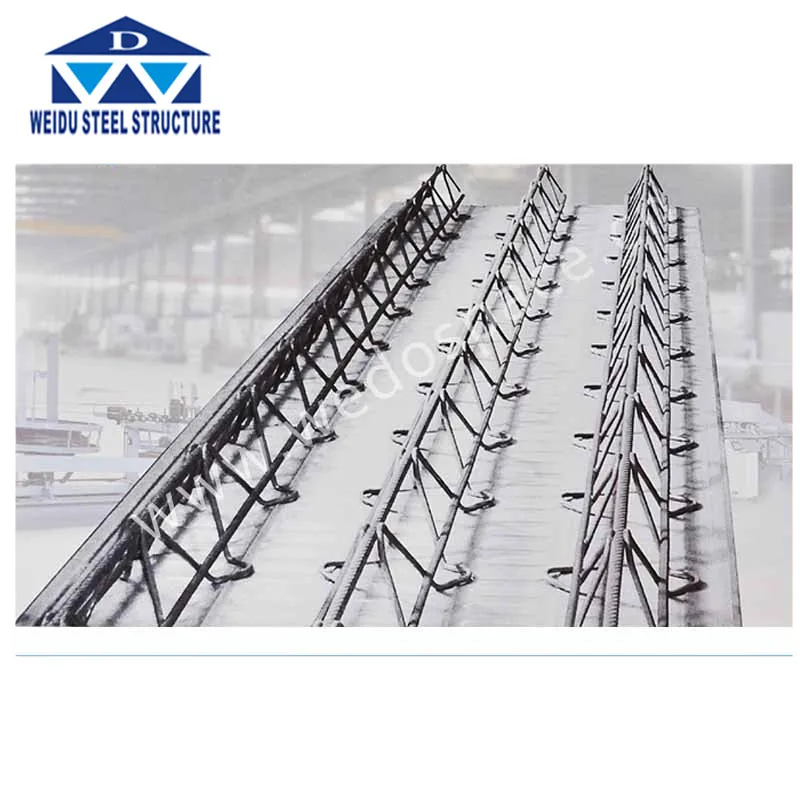

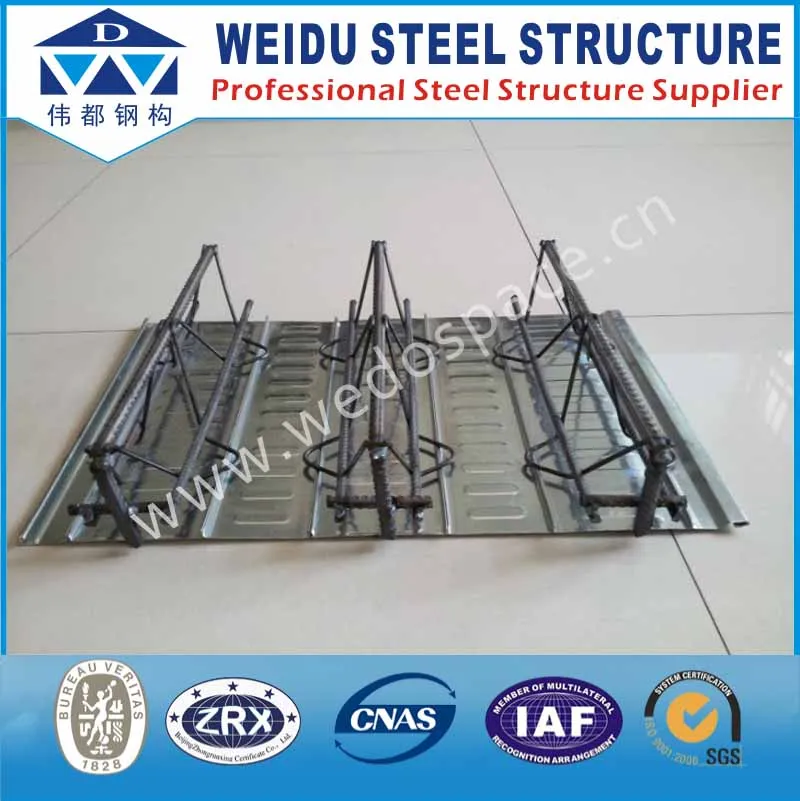

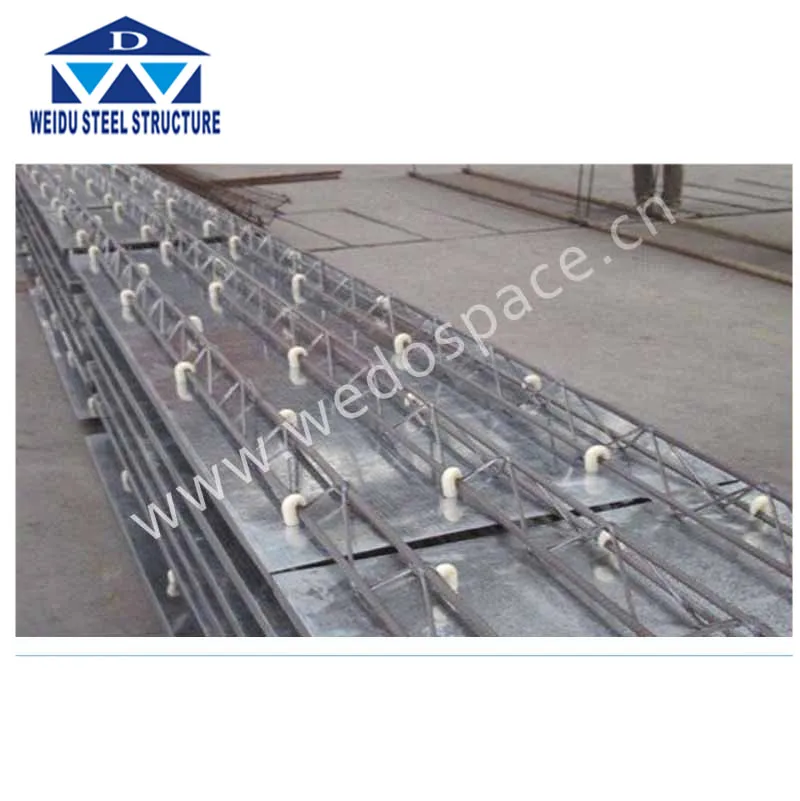

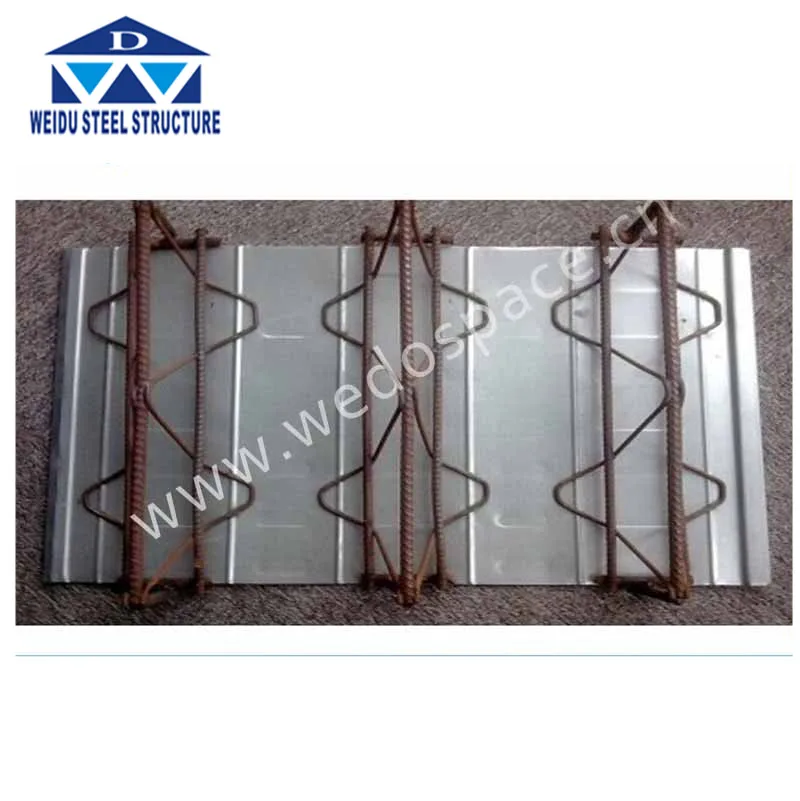

The steel bar truss deck is a kind of built-up plate which consists of the steel bar truss and the zinc coating profiled steel sheet.

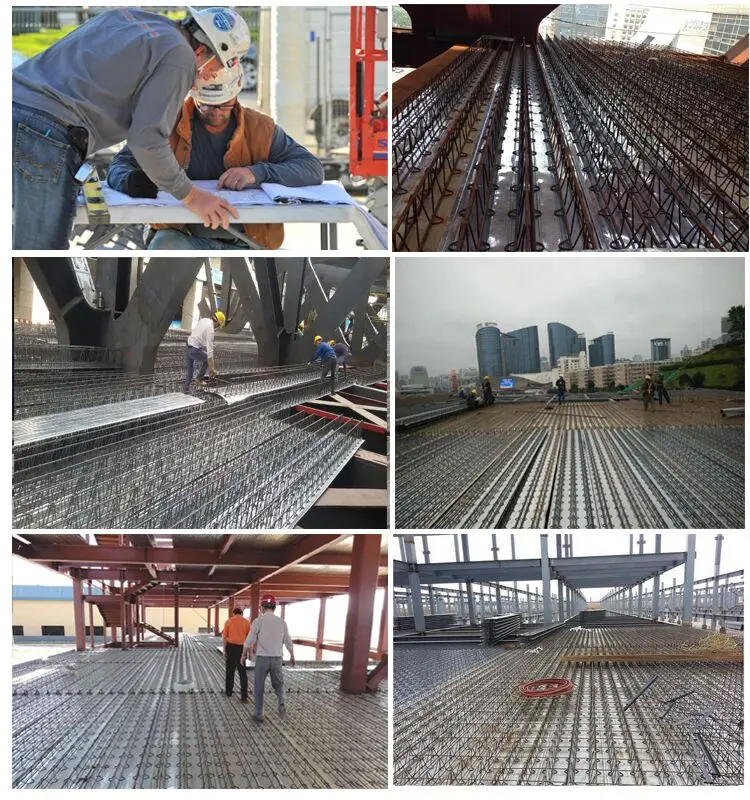

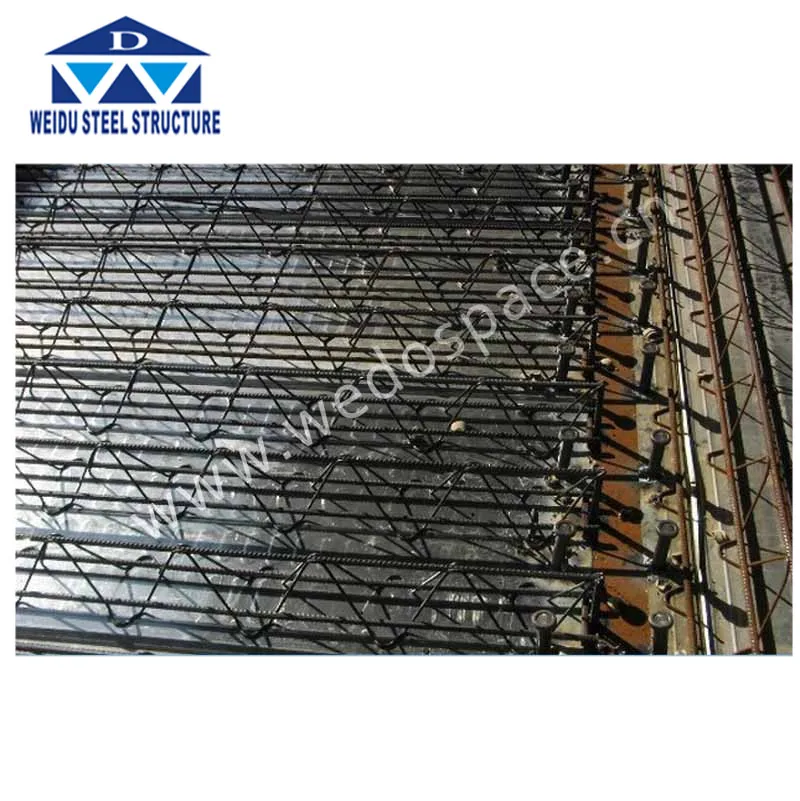

Steel bars are made into the steel truss and then welded onto the zinc coating steel sheet. Because the deck can bare the construction load, it can be directly put on girders. After the simple rebar-tying work, workers can directly pour concrete on the truss deck. The application of the steel bar truss deck greatly reduces the workload of mould putting and teardown. In a word, it can help increase the work efficiency and advance the project period.

1, steel bars are evenly arranged and the bearing mode is reasonable, which greatly reduces the engineering quantity  of temporary support.

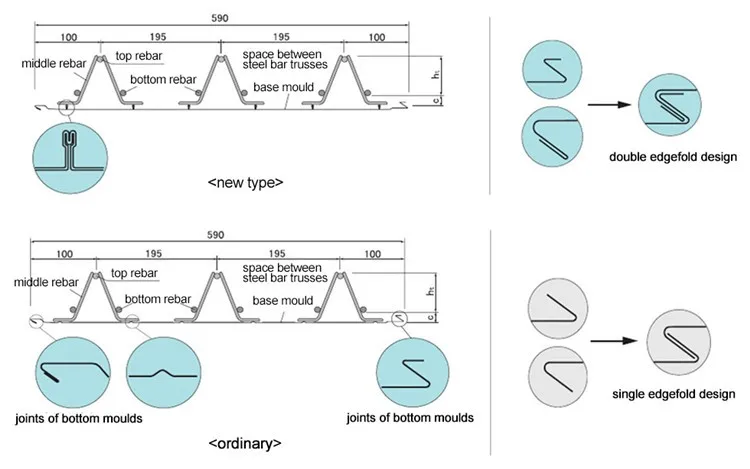

2, the double edge fold design can effectively ensure the quality of the engineering.

3, it can shorten the time by reducing 60% to 70% work load of binding steel bars.

4, it has the same mechanical properties and fire resistance as that of traditional cast-in-place floors. Because  the bottom mould does not join in the load-baring, it is unnecessary to consider fire proof and anticorrosion.

                             8th year gold suppller of alibaba group
                          10years experience in exporting business.good reputation in industry

Now we has projects across the country, and also extends business to over thirty countries in Western Europe, Southeast Asia, Africa and South America,such as France, Russia, Brazil, Venezuela, India, Tanzania, Mozambique, Senegal,Angela , Uganda, Rwanda, Guinea,  Algeria, and Mauritania etc . The company is deeply accepted and trusted by clients.
