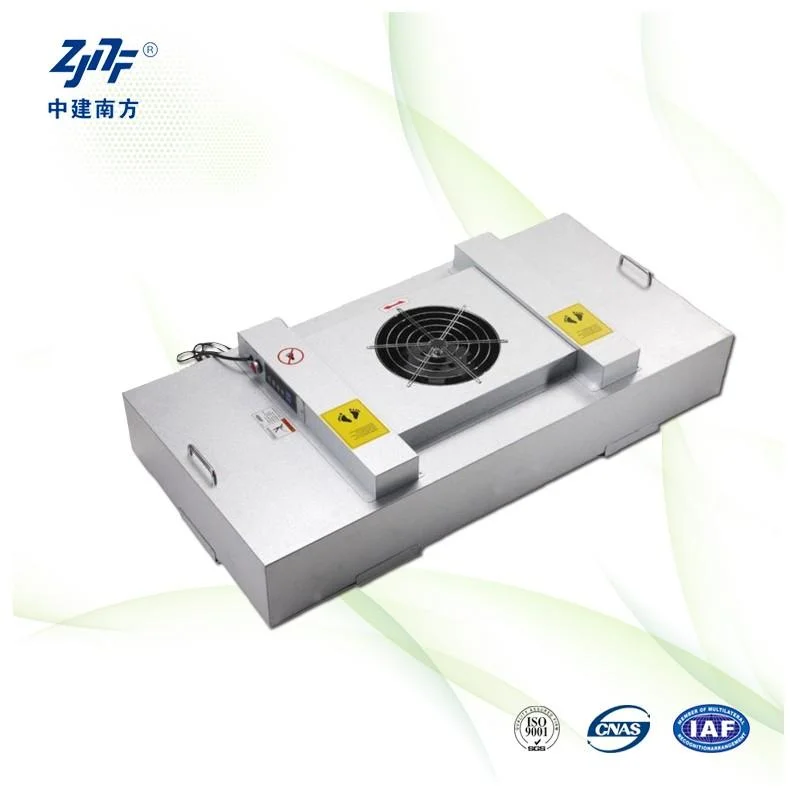

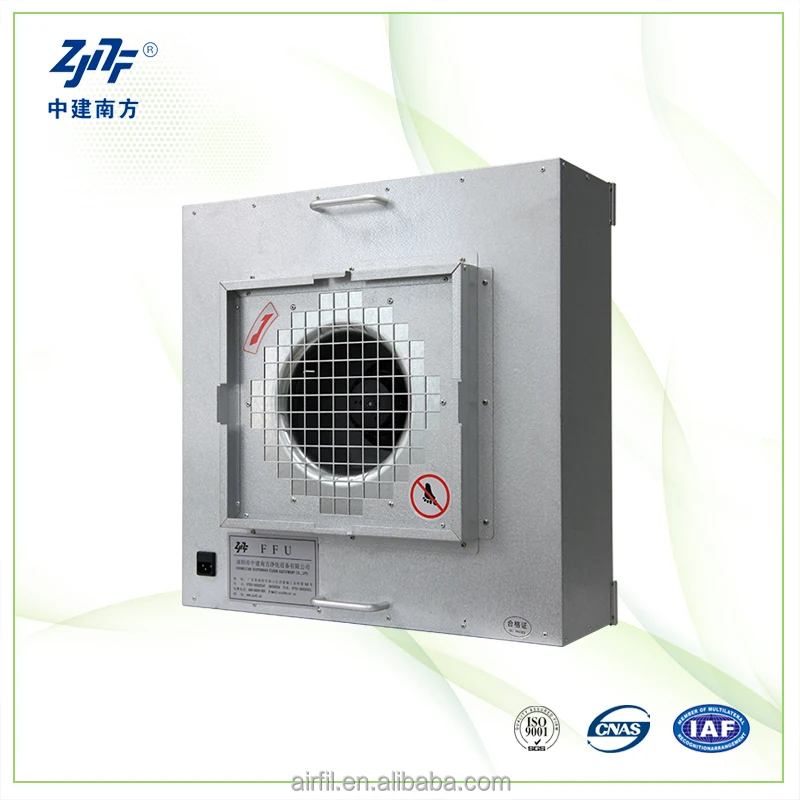

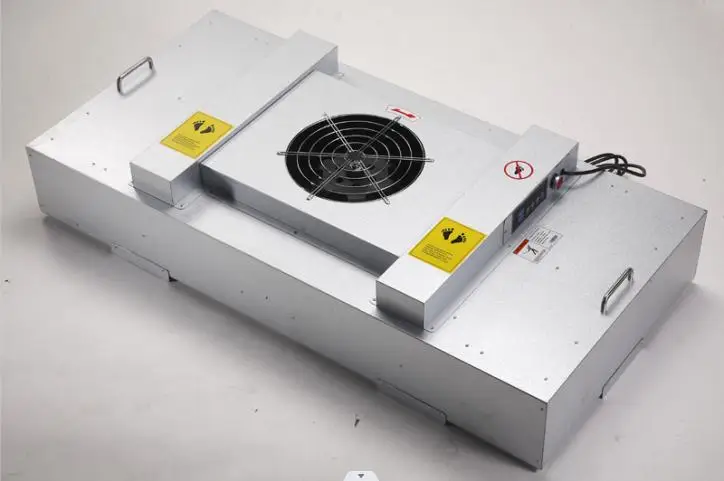

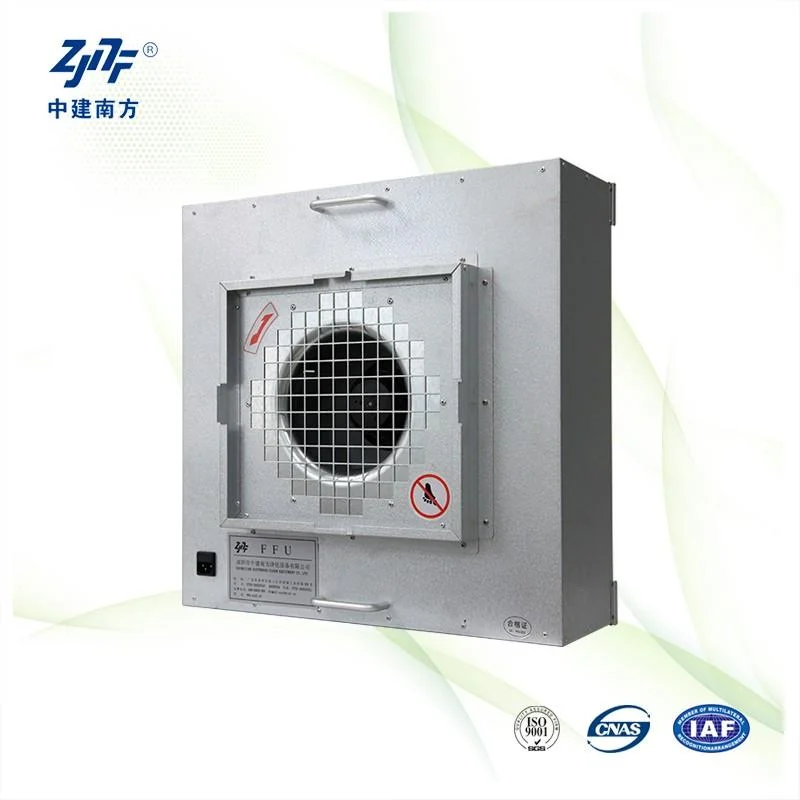

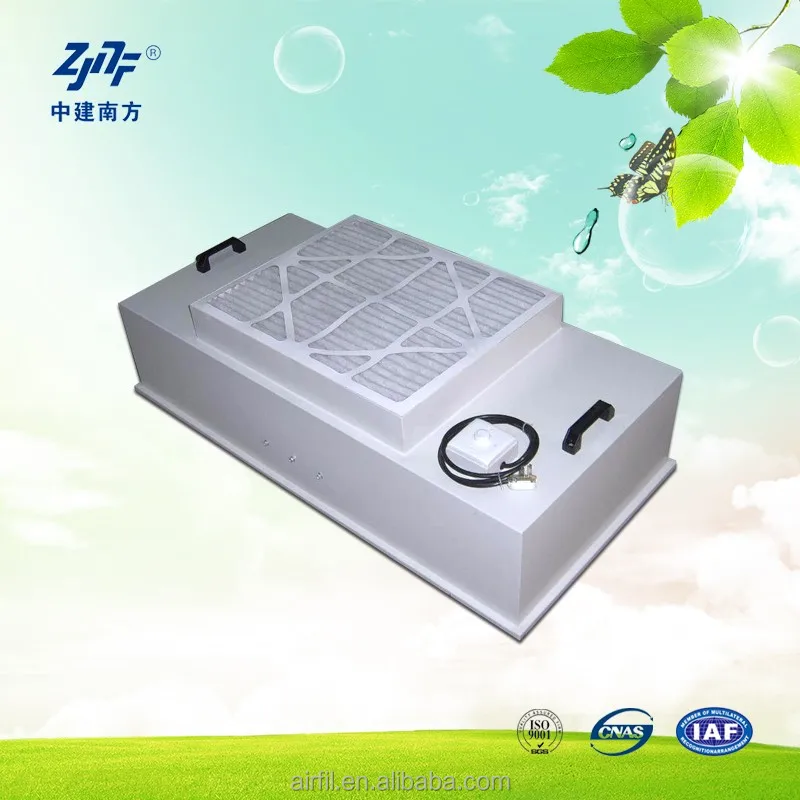

Fan filter unit Laminar Air Flow Hood Cabinet 1175 With High Efficiency Stainless Steel FFU Hepa Filter for Clean Room Hospital
- Category: Air Cleaning Equipment >>>
- Supplier: Shenzhen Zhong Jian South Environment Co. Ltd.
Share on (60680419239):
Product Overview
Description
Product Description
Model | ZN-FFU-1 | ZN-FFU-2 | ZN-FFU-3 | ||
FUU size | 610*1220*350(mm) | 610*610*350(mm) | 1174*574*350(mm) | ||
Filter size | 600*1210*69(mm) | 610*610*69(mm) | 1170*570*69(mm) | ||
Air flow | 2000m3h | 1000 m3h | 1300 m3h | ||
Speed control | Stepless air flow regulator can arbitrarily adjust the air flow | ||||
Voltage/current | Single phase 220V/50Hz | ||||
Output power | 140W-240W | ||||
Filter efficiency | HEPA 0.3um is above 99.99% | ||||
Body material | SUS304/430 mirror stainless steel plate 1.1T//PP powder coated steel plate | ||||
Weight | 25Kg | 16Kg | 25Kg | ||
Fan Filter Unit（FFU）

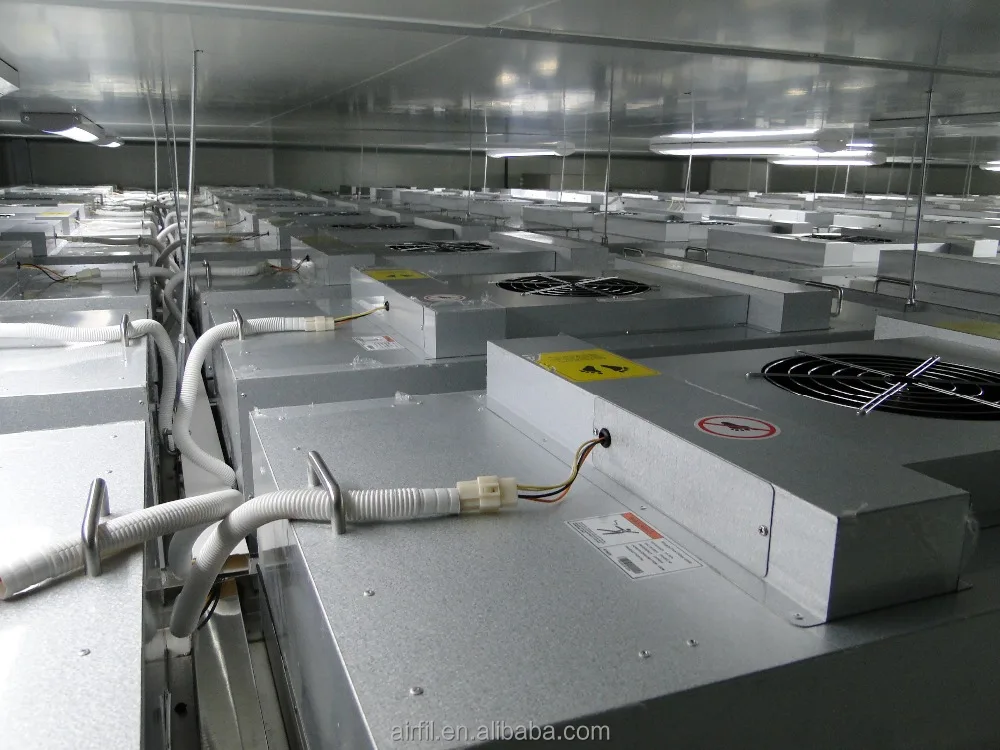

FFU is air cleaning equipment to supply purified air to the clean room
for manufacturing semiconductor, liquid crystal, etc. The installation space is the system ceiling grid.

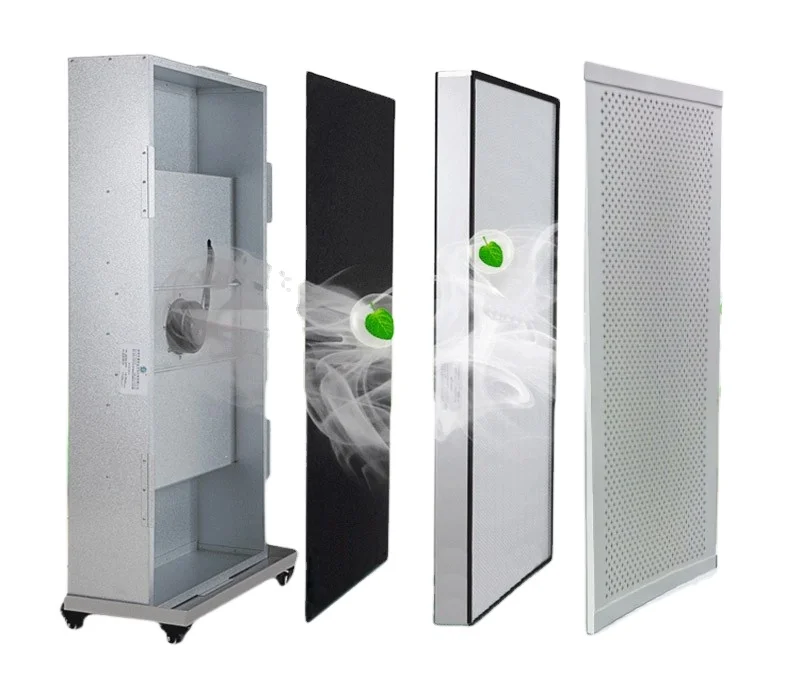

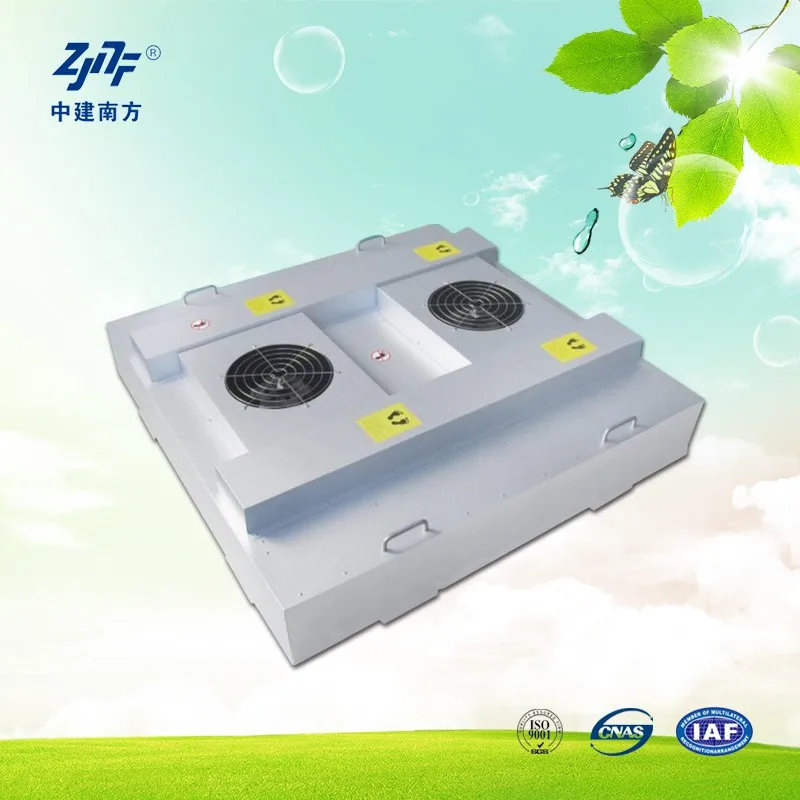

Details Images
Features:
1. Wind speed：0.35m/s，0.45m/s
2. Nois：49-63dBA
3. Power：220V，50Hz
4. Highly efficient filter (filtration efficiency is 99.99%)
5. Material：armor plate, stainless steel
6. Adjustable speeds
7. Excellent performance
8. Highly-efficient centrifugal air blower
9. Durable，low noise，low vibration
2. Nois：49-63dBA
3. Power：220V，50Hz
4. Highly efficient filter (filtration efficiency is 99.99%)
5. Material：armor plate, stainless steel
6. Adjustable speeds
7. Excellent performance
8. Highly-efficient centrifugal air blower
9. Durable，low noise，low vibration
Advantage of clean room with FFU
1. The construction period can be shortened
2. The degree of cleanness from class 10 to class 1000 can be set and the degree of
cleanness can be set at each area
3. Because the back in the ceiling is a low-pressure,the potential of the leakage is low
4. Bay method or through the wall method ispossible by the arrangement of layout of FFU
5. The velocity ofthe airflow can be set at each area
6. Flexible increase or change of the clean room is possible by the arrangement of FFU
2. The degree of cleanness from class 10 to class 1000 can be set and the degree of
cleanness can be set at each area
3. Because the back in the ceiling is a low-pressure,the potential of the leakage is low
4. Bay method or through the wall method ispossible by the arrangement of layout of FFU
5. The velocity ofthe airflow can be set at each area
6. Flexible increase or change of the clean room is possible by the arrangement of FFU
Company Introduction
Shenzhen Zhong Jian South Environment CO.,LTD , the first high-tech enterprise to propose solution of Micro Air Pollution Control and Treat. The company is engaged in the design and installation of clean room, which is specialized in controlling and treating of Air PM2.5, benzene, formaldehyde,VOC, and other poisonous or harmful substance.
Related Products
Packing&Shipping
FAQ
Q: What kind of air filter you make?
A:The main products include the primary air filter ,mid efficiency air filter, high efficiency air filter, activated carbon air
filter, cartridge air filter, liquid air filter, air filter machine ,pocket air filter, cold media air filter, etc. Besides we
also design and build clean room.
Q: Are you really manufacturer or trading company?
A: We have our own factory and engineer team. The service including offering the technology and support of building the clean room
oversea.
Q: What is the international standard for air filter?
A:Euro: Pre (G1---G4), Medium (F5----F9), HEPA (H10--H14), ULPA (U15--17)
American: Pre (Merv1---7), Medium ( Merve8----14), HEPA (Merv15---19), ULPA (Merv20)
Q: What is your MOQ?
There are different standard of MOQ for different goods. If you want to customize the size and shape of air filter, but your
quantity is small, the price will be higher than the normal one. Because we give the quotation according to the cost of
production.
Q: Do you have any certification to ensure the quality?

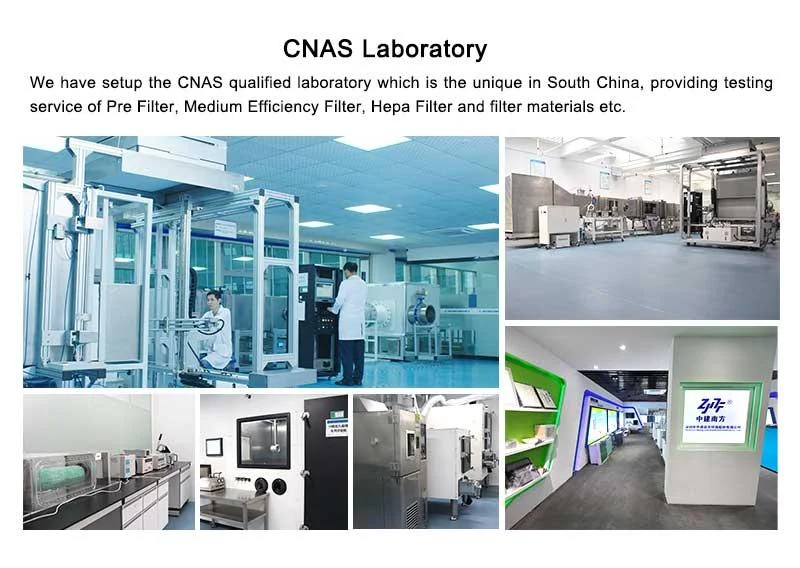

A:ISO9001 ,and patents for some products. The company builds the laboratory with the elite college to research and development new products.
Q: Could the filter be used for high temperature or humidity circumstance?
A:There are anti temperature and humidity filtering materials available, please tell the sale in advance what the condition your air filter is used. The air filter can be customized according to your need
A:The main products include the primary air filter ,mid efficiency air filter, high efficiency air filter, activated carbon air
filter, cartridge air filter, liquid air filter, air filter machine ,pocket air filter, cold media air filter, etc. Besides we
also design and build clean room.
Q: Are you really manufacturer or trading company?
A: We have our own factory and engineer team. The service including offering the technology and support of building the clean room
oversea.
Q: What is the international standard for air filter?
A:Euro: Pre (G1---G4), Medium (F5----F9), HEPA (H10--H14), ULPA (U15--17)
American: Pre (Merv1---7), Medium ( Merve8----14), HEPA (Merv15---19), ULPA (Merv20)
Q: What is your MOQ?
There are different standard of MOQ for different goods. If you want to customize the size and shape of air filter, but your
quantity is small, the price will be higher than the normal one. Because we give the quotation according to the cost of
production.
Q: Do you have any certification to ensure the quality?
A:ISO9001 ,and patents for some products. The company builds the laboratory with the elite college to research and development new products.
Q: Could the filter be used for high temperature or humidity circumstance?
A:There are anti temperature and humidity filtering materials available, please tell the sale in advance what the condition your air filter is used. The air filter can be customized according to your need
