er yag dental of laser road yag rod

Product Overview

Description

Er yag dental of laser road yag rod machine of eye safe laser

Erbium-doped Yttrium Aluminum Garnet (Er:YAG) is a pale green crystal with various output wavelength. Typically, highly doped Er:YAG, about 50% Yttrium atoms replaced by Erbium, is used as laser medium for 2940 nm wavelength. Due to the strong water and human body fluid absorption at this wavelength, Er:YAG laser has a wide dental and medical applications. For example, low doped Er:YAG, about (0.1~1)% Yttrium atoms replaced, plays an efficient role in generating high power 1600 nm 'eye-safe' laser. The excellent optical and mechanical properties and a wide pump band of 600~800 nm make Er:YAG an ideal laser crystal.





Features of er yag dental of laser road yag rod

Ø  Works in a relatively eye-safe wavelength region

Ø  Strongly absorbed by water, hydroxyapatite and human body fluid

Ø  Wide pump band from 600~800 nm

Ø  Works well under room temperature

Ø  High slope efficiency

Ø  Good optical quality

Applications of er yag dental of laser road yag rod

Ø  Medical laser systems including skin disorder therapy, hard tissue removal, blood sugar monitoring, orthopedics

Ø  Dental laser systems including tooth enamel, cosmetic surgery

Chemical and physical properties of er yag dental of laser road yag rod

Property	Value
Chemical formula	Er3+:Y3Al5O12
Crystal structure	cubic - la3d
Lattice parameters	12.01 Å
Density	4.56-5.11 g/cm3
Melting Point	1950 °C
Refractive Index	1.7838@2940 nm
Thermal Conductivity /(W·cm-1·K-1@25°C)	0.14
Specific Heat/ (J·g-1·K-1)	0.59
Thermal Expansion /(10-6 /°C@25°C )	7.8
Hardness (Mohs)	8.5
Young`s Modulus /GPa	317
Shear Modulus / GPa	54.66
Extinction Ratio / dB	30
Orientation	[100] or [111] < ±0.5°
Poisson Ratio	0.25

 Laser properties of er yag dental of laser road yag rod

Property	Value
Concentrations	50 at.% (highly doped); (0.1~1) at.% (low doped)
Laser transition	4I11/2 → 4I13/2 (highly doped) 4I13/2 → 4I15/2 (low doped)
Emission wavelength	2940 nm (highly doped) 1645 nm (low doped)
Pump wavelength	600~800 nm (highly doped) 1530 nm (low doped)
Fluorescence lifetime	0.23 ms (highly doped) 2~5 ms (low doped)
laser transition peak cross section, σl (E-20 cm2)	3
Coatings	< 0.25% @ 2940 nm

 Polishing Specification of er yag dental of laser road yag rod

Property	Value
Orientation Tolerance	< 0.5°
Thickness/Diameter Tolerance	±0.05 mm
Surface Flatness	<λ/8@632 nm
Wavefront Distortion	<λ/4@632 nm
Surface Quality	10/5
Parallel	10 ″
Perpendicular	5 ′
Clear Aperture	>90%
Chamfer	<0.1×45°

 Standard products of er yag dental of laser road yag rod

Doped concentration	Dimensions	coating	Surface quality
50 at.%	Diameter:3~6 mm, Length:50~120 mm	<0.25%@2940 nm	10/5
0.1~1 at.%	Diameter:3~6 mm, Length:50~120 mm	<0.25%@2940 nm	10/5
customer designed products available

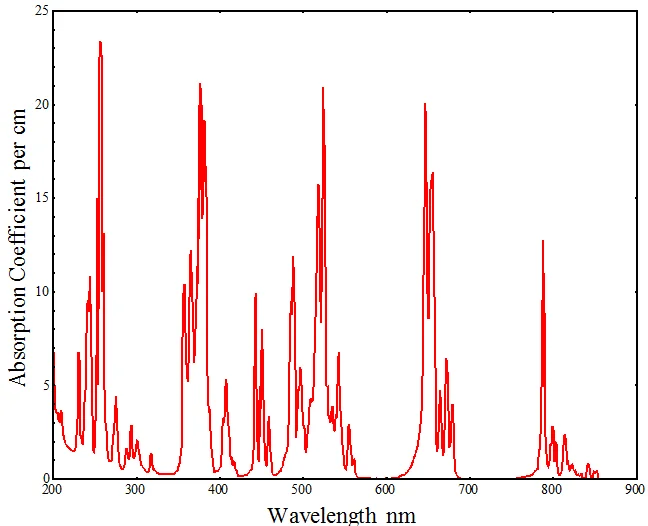

Absorption Spectrum of 50% Er³⁺ YAG crystal





Q1: Can I have samples to test?

A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available.

Q2: Do you have any MOQ limited? A: Our MOQ: 1pcs Q3: What’s the lead time?

A: Sample :2-3 days.Mass production: 15-20 days.

Q4:How do you ship the goods and how long does it take?

A: We usually ship goods by UPS,FEDEX,TNT. It usually takes 3-5 days to arrive.

Q5: Do you offer guarantee for your products?

A: After test them if not pass test,you can return the goods at any time, we will re-offer you again and also bear shipping fee.

Q6: Do you accept OEM?

A: We have our own brand-metalaser. OEM is also acceptable.
