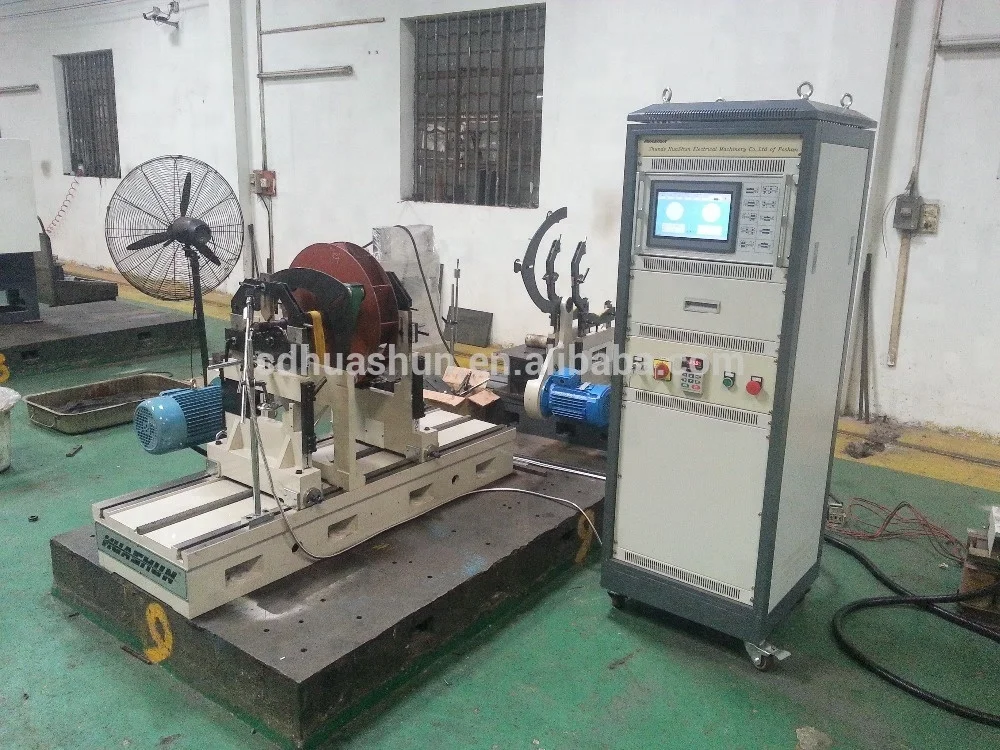

2018 HUASHUN balancing machine for fan, blower, motor rotor, pump

Product Overview

Description

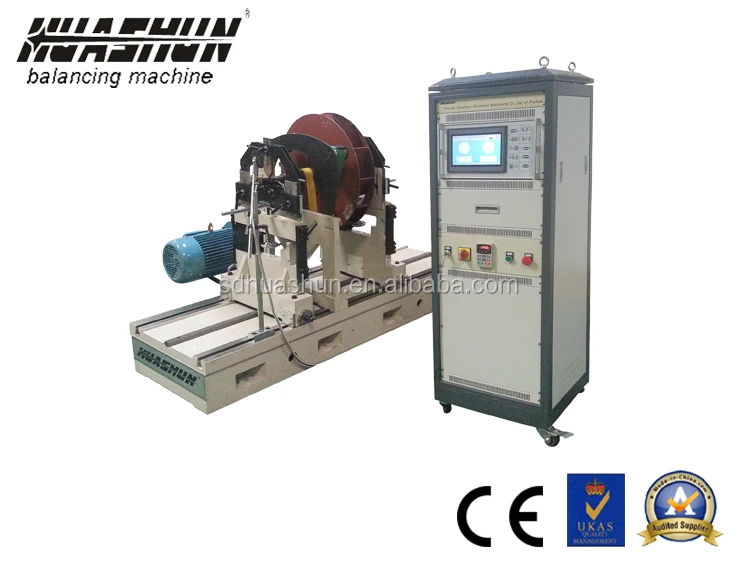

HB300-QI Technical Parameters

Type of balancing machine	Universal hard bearing balancing machine
Specifications/type	HB300-QI
Max. mass of works(kg)	300
Max. dia. of works (mm)	1250
Min. Dis between supports(mm)	200-2400
Journal dia. of supports (mm)	10-80
Balancing speed (r/min)	350-2500
Jurnal dia. of belt drive (mm)	40-300
Min. achievable residual unbalance amount emar(g.mm/kg)	≤0.5
Motor power	3
Unbalance reduction ratio (%)	≥90





Structure:

1.Belt drive

2.With piezoelectric taansducers, good stabiity

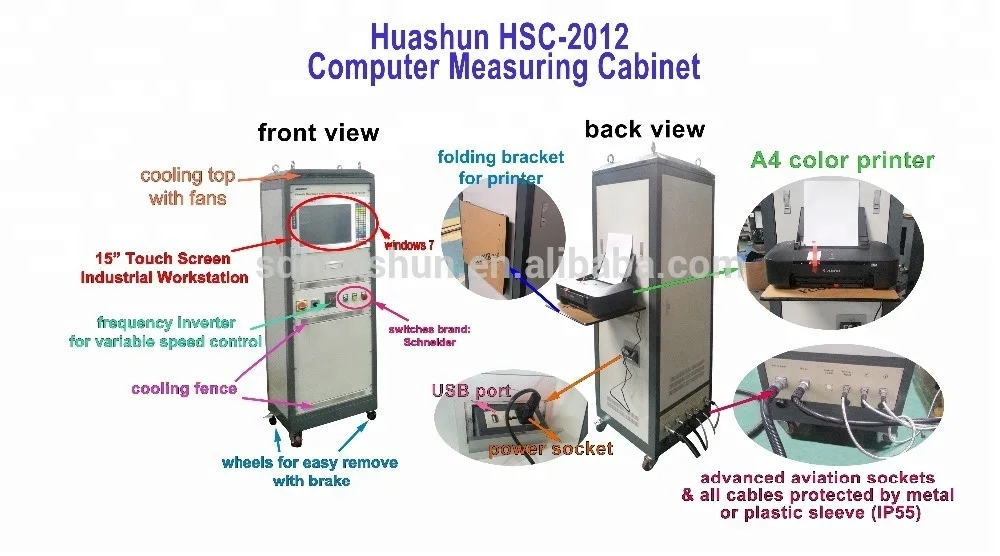

3.Computer measuring system with mega data storage capacity



Advantages

1.Great output volume, high sensitivity, excellent stability

2.6 kinds of  standard rotors to select, direct display

3.With memory & print functions



Application Areas

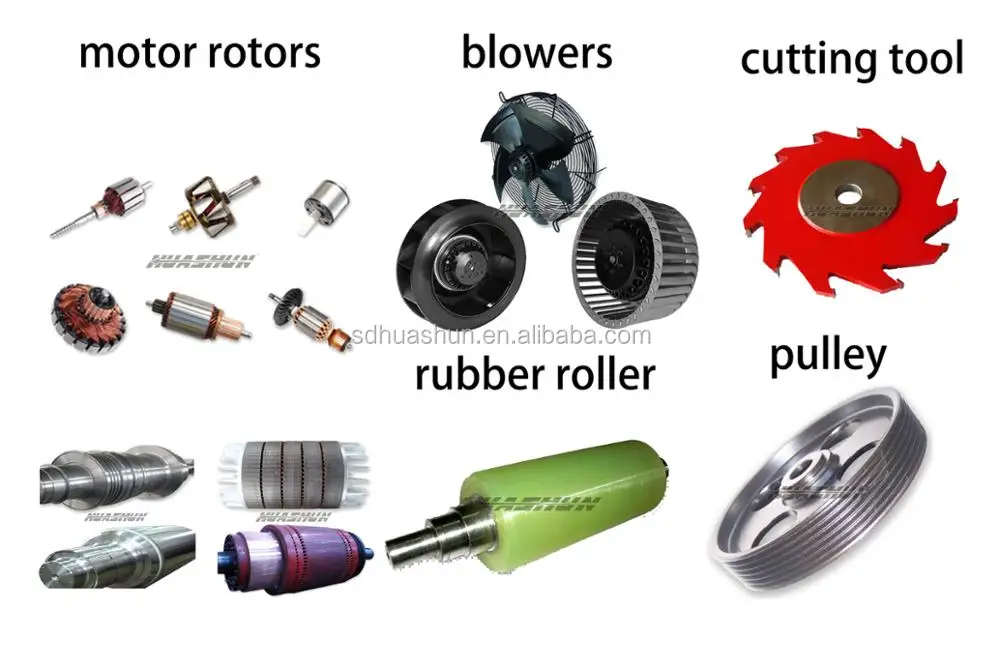

For ventilation device, ceramic machines, rubber rollers, mechanical main shafts, motor rotors, pulleys, blowers, cutting tools, etc.





Factory Outlook
