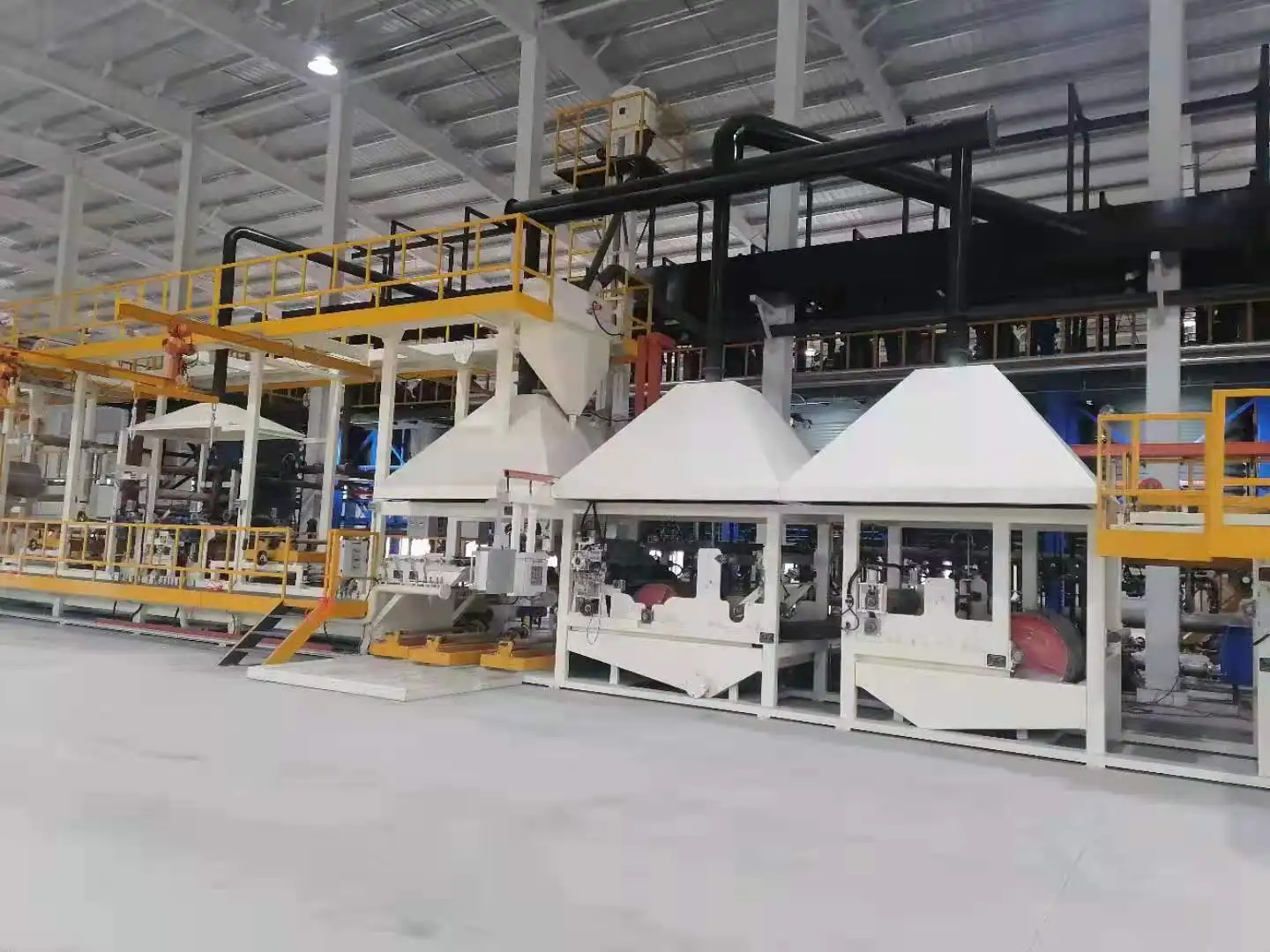

SBS/APP Modified Bitumen Waterproof Membrane Production Line

Product Overview

Description



SBS/APP Modified Bitumen Waterproof Membrane Machine, Membrane Rolling Machine









Components



1.Coiled material production line

Via batching system,measured out the formulation of the material need for production line,and formula material adhered in the molding firm or tire base fabric

A system device after forming ,roll extrusion,film and sand to produce the required coil type of membrane.

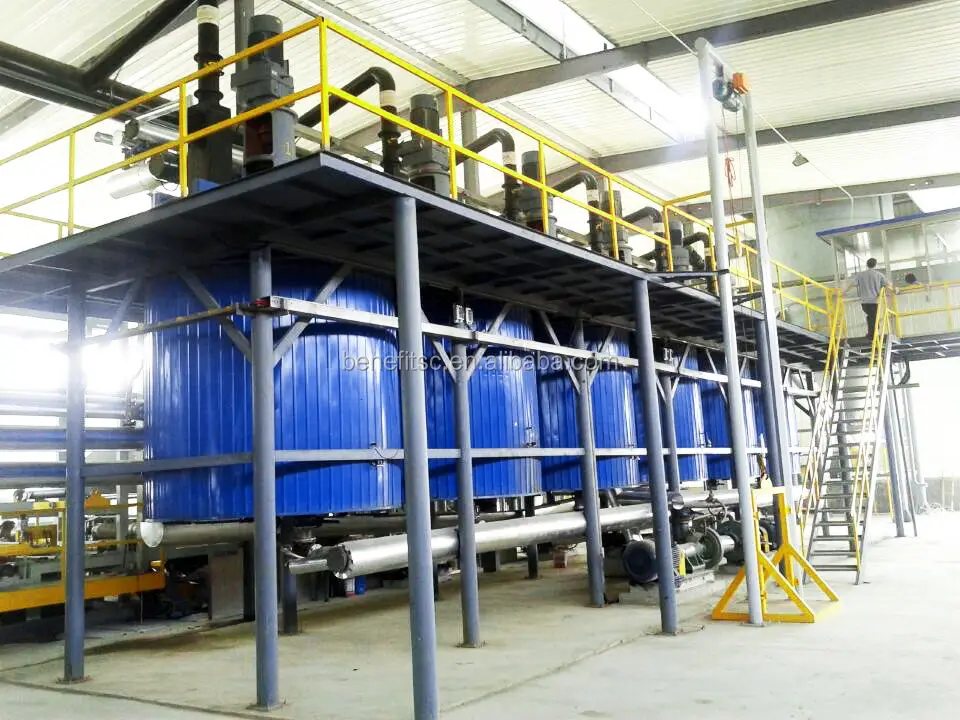

2.Material mixture preparation

The raw material,stone powder,powder,heavy oil,ration by a certain proportion,through the high temperature mixing to form of required waterproof amterial type.



3.Smoke purification device

Collecting the substantial smoke in the production process from forming system and distribution system.A system device that through the electric oil trap-----activated carbon tank (adsorbed CO,SO2and other toxic and harmful gases)---Spray  tower (filter out  particles)--chimney discharge of non-toxic gas.

4.Thermal process system

 By means of the boiler combustion(oil,nature gas,coal) or electric heating system,heating the circulation conducting oi,control the temperature of the heat conduction oil

A system device provide the required temperature to material distribution system,conveying system and production system.

5.Cooling water recycling  system

By cooling water tray and cooling roller in the production molding system,to lower the temperature of the finished products.To lower the temperature of the material which need to cool down in the material distribution system.For a  better separation of the dust in the environmental protection system.





Working process

1.The production process of waterproof roll is to heat the asphalt by heat conduction oil furnace and melt it.

2.After mixed modification of asphalt, rubber powder, waste oil, resin and talc powder, it will be imported into the production line, and then the tire base will be formed.

3.Asphalt modified waterproof material made from front and back composite pefilm or rock particles.

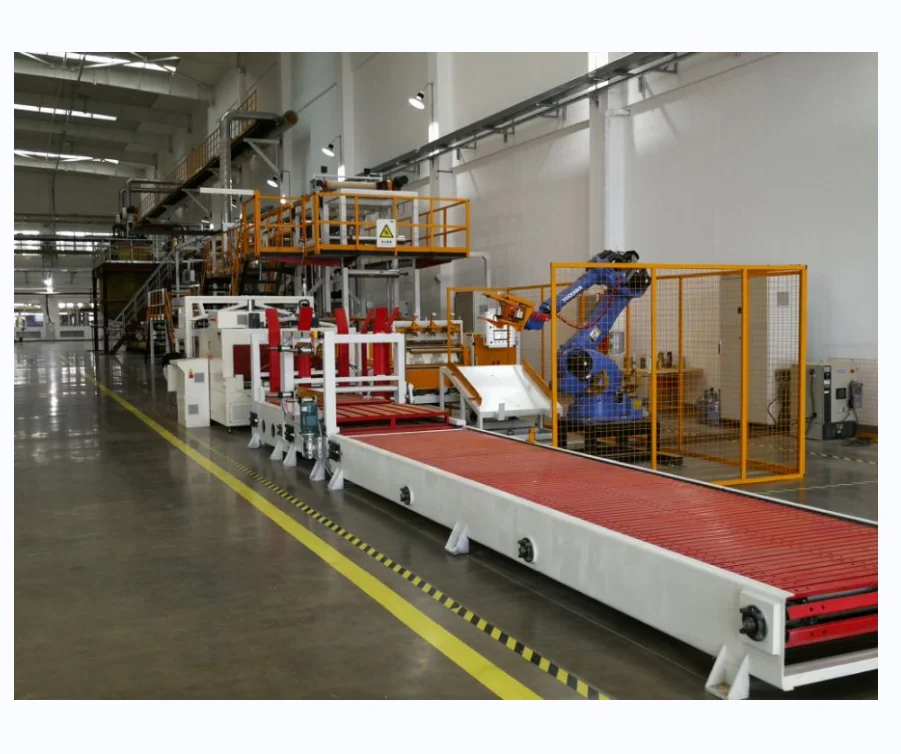

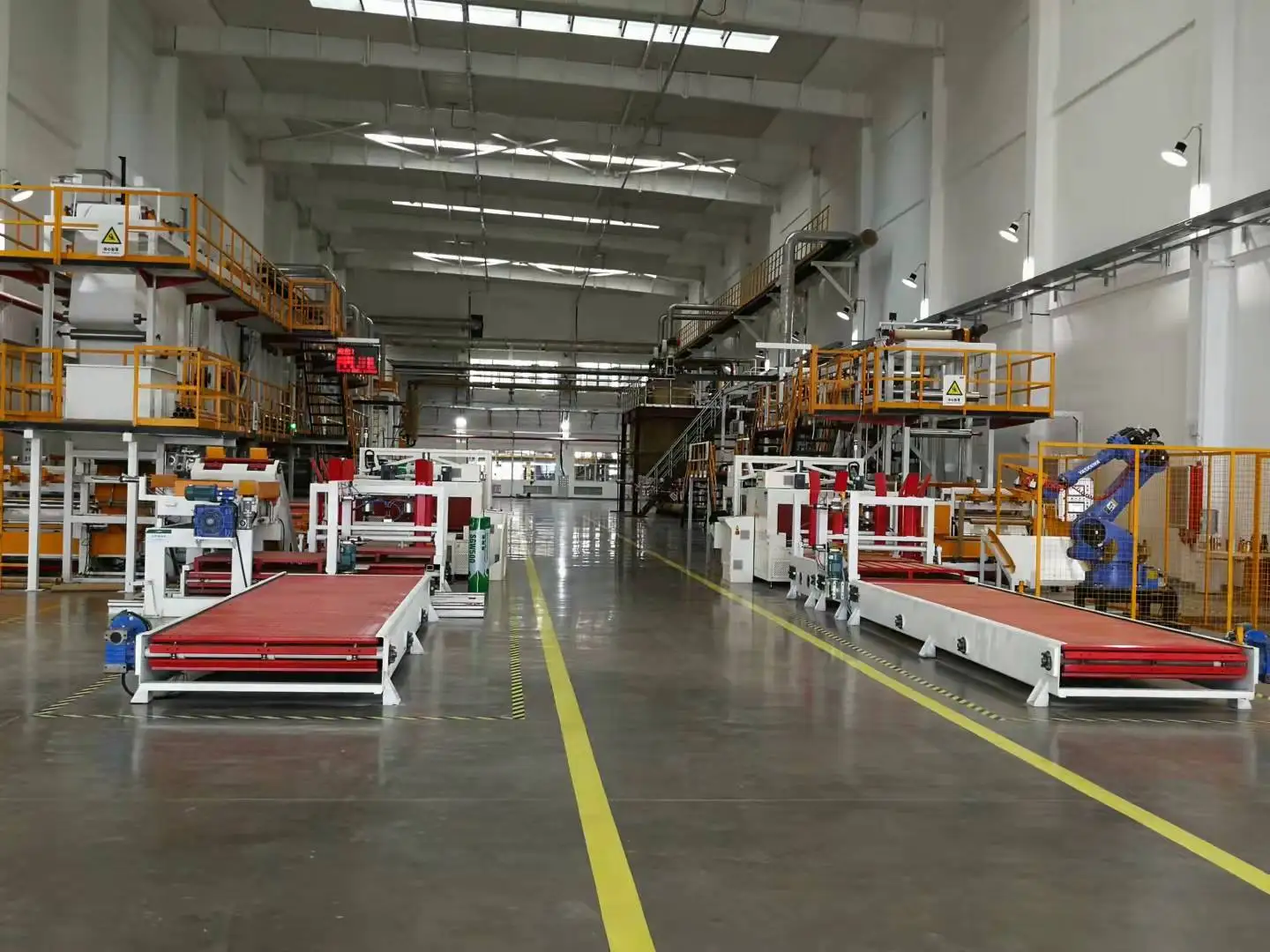

4.The material is formed from the tread base to the cooling, and automatically adjusted by tension, towed to the roll-felt machine, rolled into finished material.



Technical characteristics



Scale	2-15 million m2 various modified waterproof membrane annually,base on 8hr/shift,2shift/day,250days/year
Base material	Polyester, fiberglass,compound
modifiers	SBS/APP
Surfacing	Sand ,schist,PE film,aluminum foil
thickness	2-5mm
Linear speed	5-40m/min
Fuel consumption	1,250,000kcal/h,thermal efficiency≥73%
Membrane length	10m/roll
Membrane wide	1000mm
Unwinder Diameter	1500mm(Max)
Winder Diameter	380mm(max)
Line length	length about 62m,height about 6m
Water Consumption	0.8-1.0m3/D
Total Installed Capacity	550kw
Diesel consumption	150kg/h





Feature



1.Flexibility of designmeet different products demand.

2.Versatility: can produce different carcass, different cladding, different base material, the thickness of a variety of different modified bitumen membrane.

3.Second inunction technology: adjustable carcass in the membrane of the position, so as to ensure the construction of membrane.

4.Cooling directly and indirectly with the use of cooling: Suspension sink cooling, and comprehensively improve the efficiency of cooling.

5.Photoelectric automatic corrective institutions to guarantee in the matrix.

6.Carcass mill use of advanced super shear force of the mill and modified significantly reduce the time.

7.electronic weighing measures is used to batch system to control the product quality and enhance stability.

8.Efficient unique structure of the agitation mixed system, which embodies a highly shear force and scraping of  the wall so that to avoid dirt.

9.Efficient dust, the flue gas treatment system: condensation, filtration, adsorption processing, is a full compliance with environmental requirements.

10.All synchronous Frequency Control, PLC control system: less maintenance, operation of low-cost, simple operation, a high degree of automation, equipment running high reliability rate, the rate of qualified products are> 90%.



Final products

Facing material: PE film, Aluminum foil

 One side PE film, the other side aluminum foil

 Both sides be with PE film

 Embossing or smooth





Application

Bitumen membrane is widely used in industrial and civil buildings,such as roof,basement,toilet,bridge,Park,swimming pool,tunnel for waterproof and moisture-proof.Bitumen is a kind of hydrocarbon and is created naturally from crude oil.It is a useful carbon store.
