Product Overview

Description







We produce MODULE ! CUSTOM-MADE module is OK! Our company produce your own board!



waterproof step down converter AC 14-28V 15V 19V 21V 27V to DC 12V 8A 96W voltage regulator for car audio

-----------------------------------------------------------------------------------------------------------------

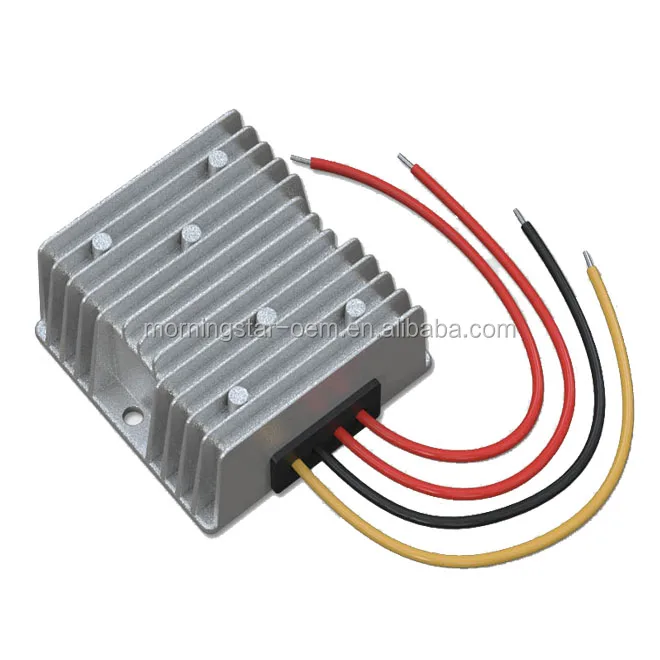

PRODUCT PICTURE



------------------------------------------------------------------------------------------------------------------
PRODUCT FEATURES





Parameters:

Input voltage: AC 14-28V

Output voltage: DC 12V

Output current: 8A

Output power: 96W

Volume: 74*74*32 mm



Waterproof Class: IP67 / IP68

Weight: 260 grams



Installation line length: 15 cm



Advantages:



1.Synchronous rectification technology: new imported components, synchronous voltage regulator technology, very low heat, full power , state stability

Synchronous rectifier circuit is using the MOSFET to instead of the rectifier diode to greatly reduce the loss of the rectifier and improve the efficiency of DC / DC converter:



SMT process: FR-4 multilayer lines, resistors, capacitors and switch MOS tube are SMD components with high integration, high reliability, high stability:



Filter inductance capacitor: a number of ultra-low impedance ripple electrolytic capacitors, iron silicon aluminum magnetic ring multi-wire inductors, low heat:



Organic silicone potting: use the United States imports of high thermal conductivity silicone and waterproof potting technology, IP68 protection class, waterproof and dustproof, seismic resistance:



Aluminum alloy shell: better heat dissipation, thermal effect.


2.Protections:



 * Overcurrent Protection: Yes.

    When the output current is greater than the set value, the output voltage is gradually reduced until the converter is turned off without output



 * Overheating Protection: Yes.

   When the chip internal temperature greater than 150 degrees Celsius, intelligent start overheating protection, and converter to stop working



 * Short circuit Protection: Yes.

    Normal use, the converter output to the ground instantaneous short circuit, does not cause damage to the power converter



 * Undervoltage Protection: Yes.

    When the input voltage is lower than the set value, no output voltage, the converter enters the power saving sleep mode



3.The whole glue pouring process, waterproof, moisture-proof, seismic, to adapt to a variety of harsh environment;





Applications:



It is suitable for car LED display, audio, Router, ADSL cat, switch, digital photo frame, electronic refrigerator, security system, portable tools, network equipment, control equipment, print into, LED lights, mobile phone, motors, solar panel, Industrial power supply, GPS navigation,  a variety of voltage applications, and so  on, use is very extensive.



In addition to the other as long as the voltage compliant devices, thin, small volume, convenient installation.

-----------------------------------------------------------------------------------------------------------------
SHIPPING TERMS





1.Ship to whole world : DHL , UPS, FEDEX, EMS, HKPOST, SGPOST,SWPOST



2.Lead time:2days. If we don't have stock at that time, it takes 2-4days to produce it.



 ------------------------------------------------------------------------------------------------------------------
PAYMENT TERMS




1.We accept PAYPAL, TT, WESTERN UNION, ESCROW



2.Commission:
   *Paypal: total sum *0.041
   *Escrow: total sum *0.05
   *TT: $28-$45(according to amount)
   *Western union: $0



---------------------------------------------------------------------------------------------------------------------
GUARANTEE PERIOD





    3 Months, if the quality have any problems, We have a good after sale



service team will slove the quality problems for you.



1.If you test the products and it doesn't work, pls keep it and send it to us in



   1 month, we will send the good one to you with the following order.



2.If the product is already used by you, then no warranty.



3.If the product is broken by man-made, then no warranty.



----------------------------------------------------------------------------------------------------------------------
