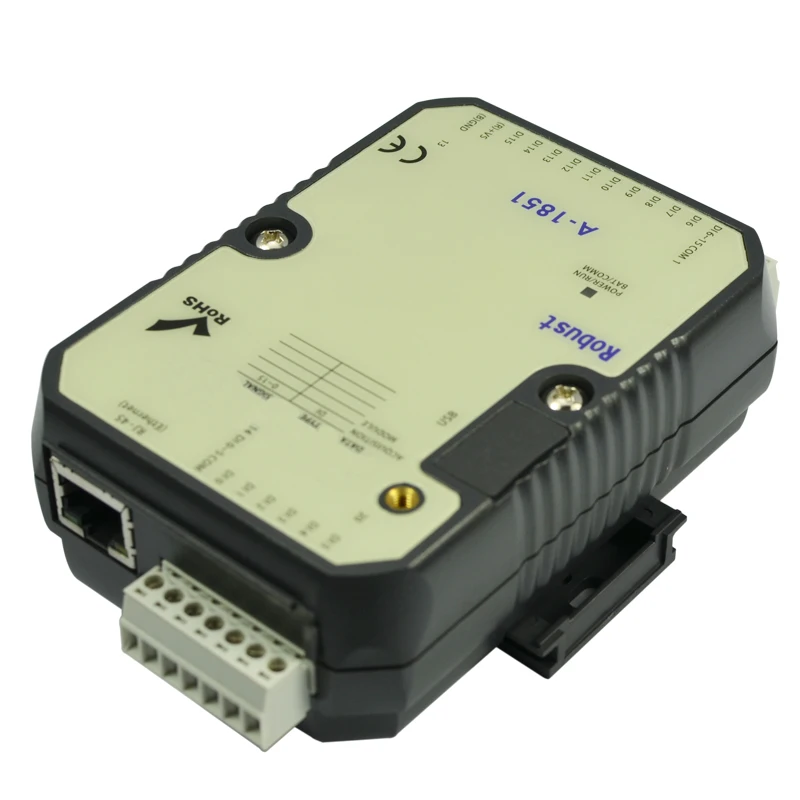

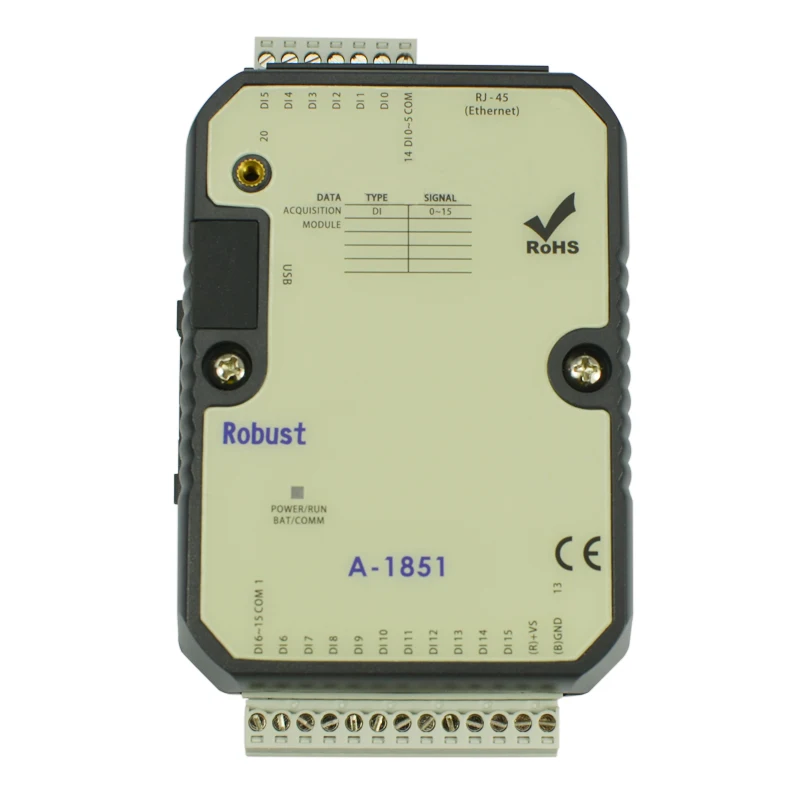

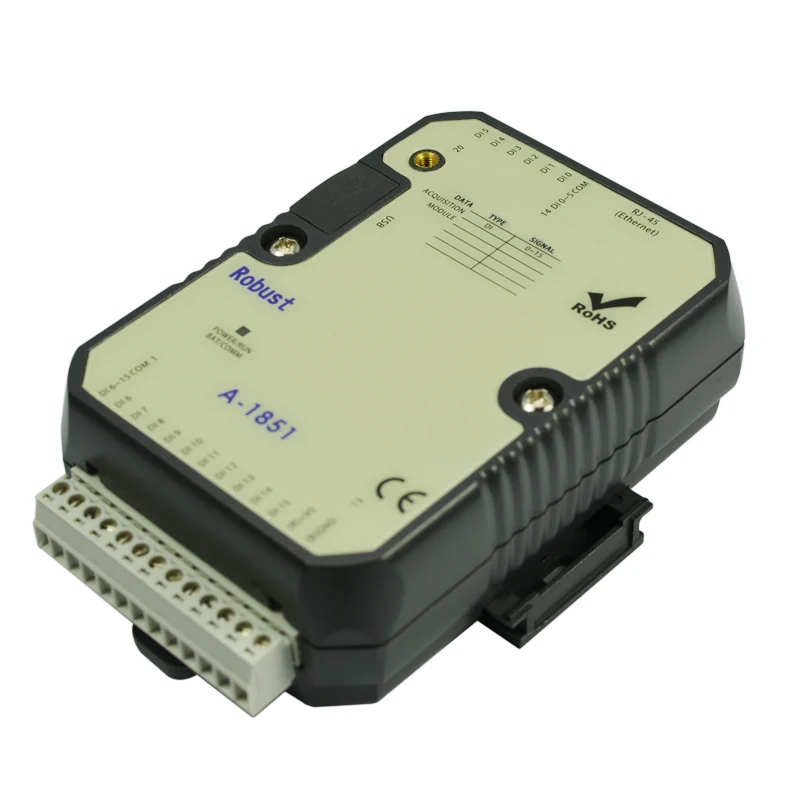

16DI Ethernet Remote I/O analog Module(A 1851)
- Category: >>>
- Supplier: Shenzhen ATC Technology Co. Ltd
Share on (60680587823):
Product Overview
Description
Product Description
ATC remote Ethernet I/O Modbus module, support TCP/IP protocol, through the Ethernet interface with other Modbus TCP/IP protocol or PC communication equipment or remote control. Ethernet also supports 8 independent TCP communication connection, can use mobile phone, computer network remote monitoring page, also can be connected to the A-3290 Wi-Fi bidirectional remote controller directly control the output, no the need for any controller.
Specifications
Operation Voltage | 10 ~ 30VDC/24VAC | ||||
Inputs | 16 | Status Low：<1VDC | |||
Status High：>5~30VDC | |||||
Communication Baud Rate | 10/100Mbps | ||||
Protocol | MODBUS TCP/IP, MODBUS RTU | ||||
Isolation | YES（5000VDC） | ||||
Input Operating Frequency | 10Hz | ||||
Output Operating Frequency | Transistor：10Hz | ||||
Communication Interface | Ethernet + USB | ||||
Channel Independent Configuration | Yes | ||||
Sampling Rate | 10 sample/second（Total） | ||||
CMR @ 50/60 Hz | 120 dB | ||||
Span Drift | ±50 ppm/℃ | ||||
Zero Drift | ±18 μV/℃ | ||||
Temperature Ranges | (PT-100:-200~+600℃) (PT-1000:-200~+600℃) (J:-210~760℃) (K:-270~1,370℃) (T:-270~400℃) (E:-270~1,000℃) (R:0~1,750℃) (S:0~1,750℃) (B:0~1,800℃) (Thermistor-10K-T2:0~100℃) (Thermistor-10K-T3:0~100℃) (Thermistor-6.8K:-10~100℃) (Thermistor-4.7K:-10~100℃) (Thermistor-3.3K:-20~100℃) (Thermistor-3K:-20~100℃) (Thermistor-2.7K:-20~100℃) (Thermistor-2.252K:-20~100℃) (Thermistor-2.1K:-30~100℃) (Thermistor-2K:-30~100℃) (Thermistor-1.5K:-40~100℃) (Thermistor-1K:-40~100℃) | ||||
Operation Temperature | -20 to +75℃ | ||||
Degree Of Protection | IP20 | ||||

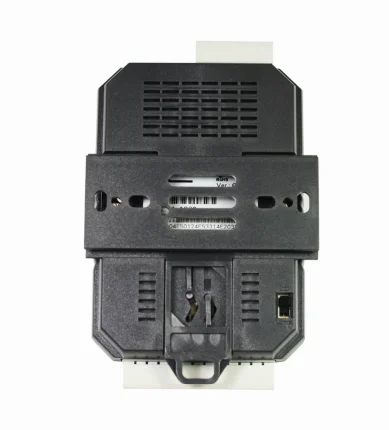

Installation | 35 mm DIN rail / Flush mounting | ||||
Dimension（W×H×D） | 76.4*118.2*38.5 mm | ||||
Dimension

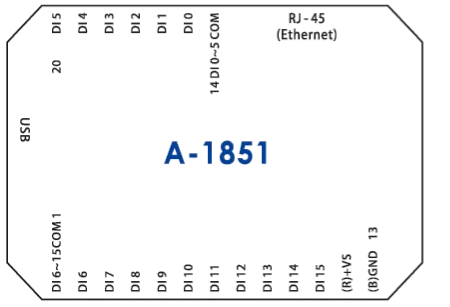

Pin Table
Products Application
FAQ
1.What about the delivery time?
For RTS product, we will shipping this goods to customer within 1-3 work days receive the payment.For customized products, you need to decide according to the customization requirements.
2.What is your delivery terms and payment terms?
We accept EXW, FOB,DAP, etc. You can choose the one which is the most convenient or cost effective for you.
3.After service and warranty?
We provide 2 year warranty, if you have any problems in the use of products, please contact to us.
