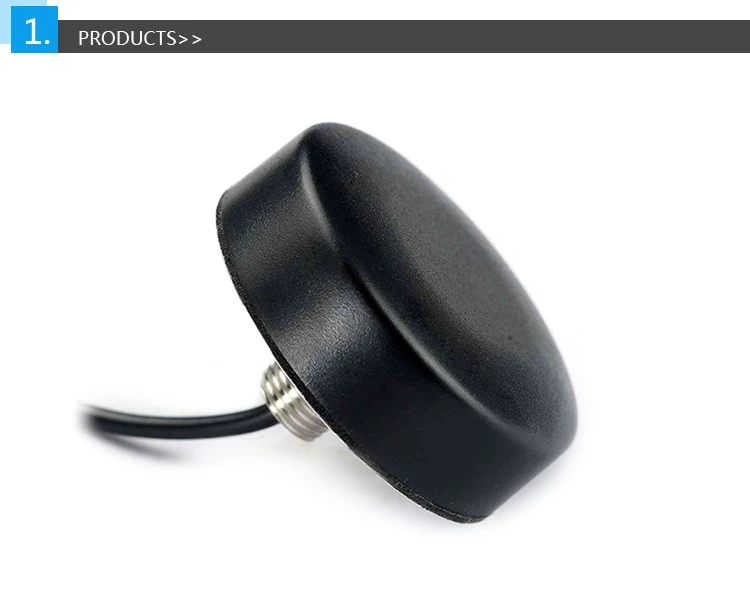

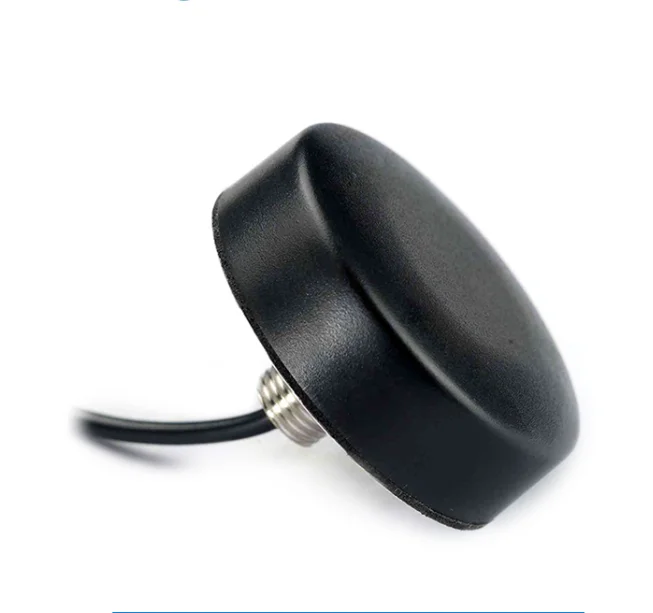

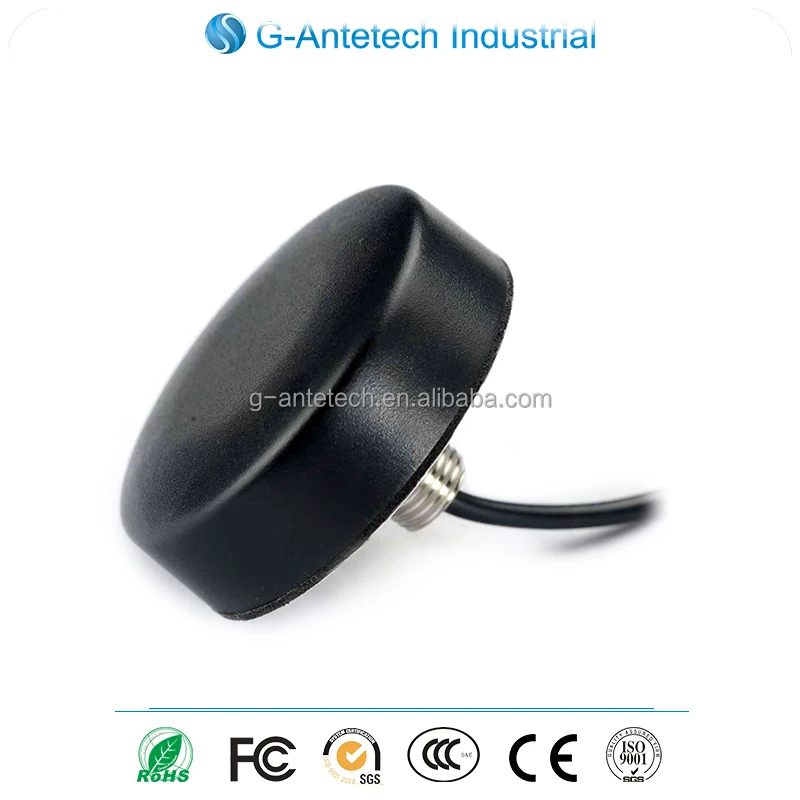

China made radome material ABS housing micro garmin gps tracking antenna with Screw mounting

Item

Specifications

Antenna

Center Frequency

1575.42±1MHz

Band Width

±5MHz

Polarization

RHCP

Gain

5dBi

V.S.W.R

 <1.5

Impedance

50Ω

Axial Ratio

3dB(max)

LNA

Gain

28±2dB

Noise Figure

<1.5

Filter Insertion Loss

<3dB

Ex-band Attenuation

12dB@CF+50MHz/16dB@CF-50MHz

Supply Voltage

2.2~5V DC

DC Current

5~15mA

V.S.W.R

<2.0

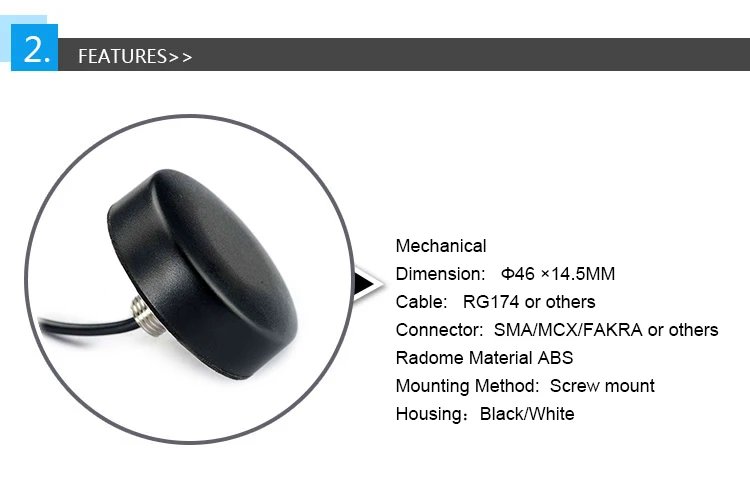

Mechanical

Cable

RG174 or others

Connector

SMA/MCX/FAKRA or others

Radome Material

ABS

Mounting Method

Screw mount

Housing

Black/White

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Ingress Protection

IP67

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
