Gas thermocouple for pilot burner adapter Nut size M9, M8, M10 for option RBOMG B
Gas thermocouple for pilot burner adapter Nut size M9, M8, M10 for option RBOMG-B
Gas thermocouple for pilot burner adapter Nut size M9, M8, M10 for option RBOMG-B
Gas thermocouple for pilot burner adapter Nut size M9, M8, M10 for option RBOMG-B
Gas thermocouple for pilot burner adapter Nut size M9, M8, M10 for option RBOMG-B
Gas thermocouple for pilot burner adapter Nut size M9, M8, M10 for option RBOMG-B
Gas thermocouple for pilot burner adapter Nut size M9, M8, M10 for option RBOMG-B

Gas thermocouple for pilot burner adapter Nut size M9, M8, M10 for option RBOMG B

Share on (60680659796):


Price:$2.50 - $4.50

Quantity:


Product Overview

Description


Product Description

A thermocouple consists of 2 wires which are made of different metal and welded together at one end. When the welding point(measuring junction) is heated, a thermal electromotive force is produced which is proportional to the temperature difference between the welded point and the other end(reference junction). Therefore, by measuring this thermal electromotive force, either with the reference junction temperature kept constant or by using an automatic compensation circuit, the measuring junction temperature can be measured. Thermal electromotive force of thermocouple is independent of the diameter of length of the wire used but depends only on the type of wire used. The thermocouple is usually fitted in insulators and enclosed in a protecting tube with terminal box and a mounting fitting.

Detailed parameters
\t
Product
\t
CONDUCTOR MATERIAL
\t
TYPE
\t
GRADUATION
\t
USE TEMPERATURE (SHORT TIME)
\t
USE TEMPERATURE
\t
THERMOCOUPLE
\t
PtRh30-Ptrh6
\t
WRR
\t
B
\t
0-1800°C
\t
0-1600°C
\t
PtRh10-Pt
\t
WRP
\t
S
\t
0-1600°C
\t
0-1300°C
\t
PtRh13-pT
\t
WRB
\t
R
\t
0-1600°C
\t
0-1300°C
\t
NiCrSi-NiSi
\t
WRM
\t
N
\t
0-1000°C
\t
0-1000°C
\t
NiCr-NiAl(Si)
\t
WRN
\t
K
\t
0-1200°C
\t
0-900°C
\t
NrCr-constantan
\t
WRE
\t
E
\t
0-700°C
\t
0-600°C
\t
Iron- Constantan
\t
WRF
\t
J
\t
0-600°C
\t
0-500°C
\t
Copper-Constantan
\t
WRC
\t
T
\t
0-400°C
\t
0-350°C
\t
THERMAL RESISTANCE
\t
Copper heat
\t
\t
CU50
\t
\t
-50-150°C
\t
\t
\t
CU100
\t
\t
-50-150°C
\t
\t
\t
PT100
\t
\t
-200-600°C
More photos
Certications
Our company

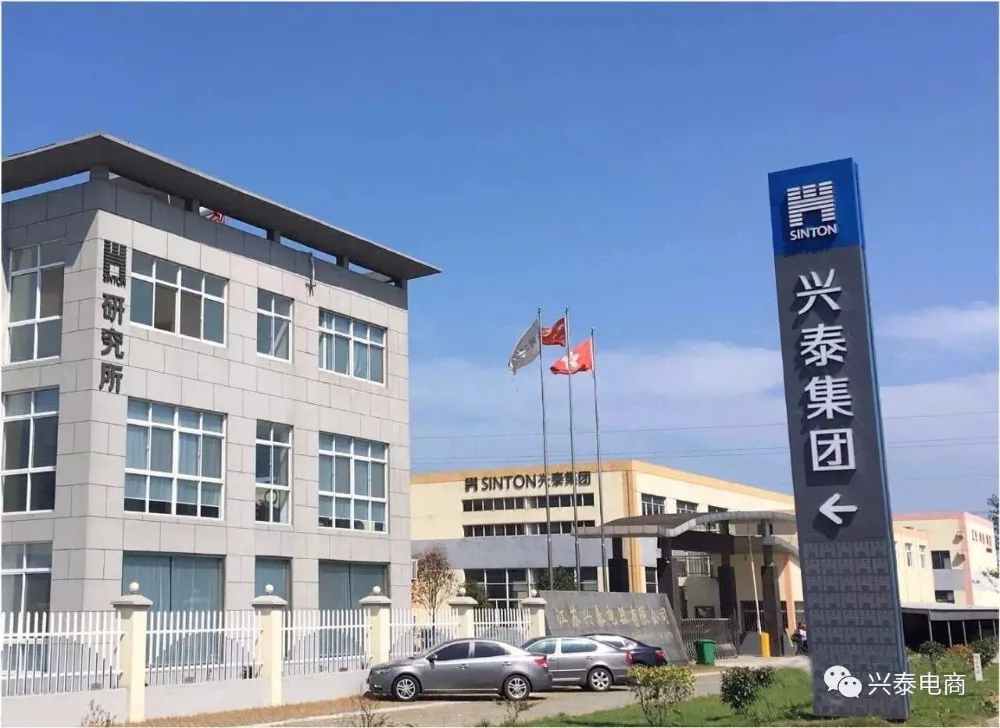

Yancheng Baojun stainless steel industry Co., Ltd is subdidiary company of Sinton Group. it is a intergrates company which has been operating with a moderm enterprise system and integerating domestic, foreign trade and production and sales. The company chief products and sells various efficient heater, tubular heater, resistance wire, plate heater, coil heater, band heater and thermocpoule sensor. At the same time, if you have any specific requirement, our professional technical team will provide special one-step service that from design to production installation and debugging for you.
