No.1 Non woven fabric machine Non woven fabric making machine

Product Overview

Description

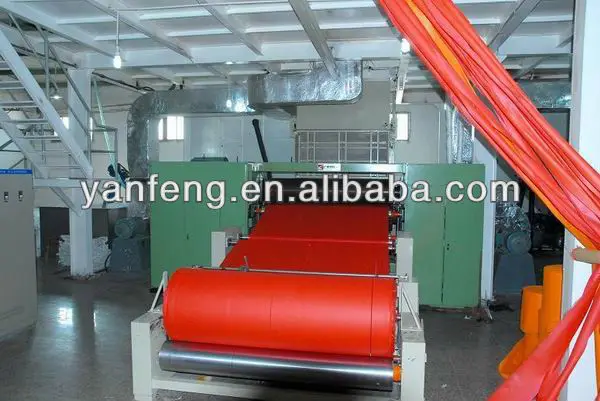

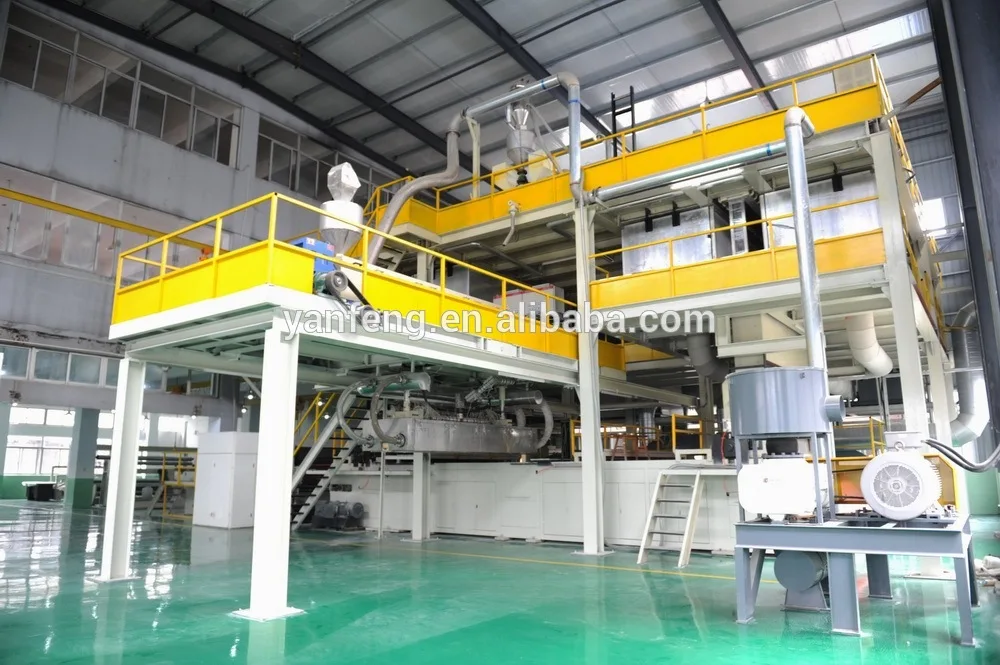

This production line is filament polypropylene fiber spunbonded non-woven fabric equipment. Its raw material is polypropylene(PP), take the principle of spinning man-made fibres, during polymer filature, continuous filament is extended into fiber, during which is finished by mechanical hot pressing.
The machine assembly we adopt is new advanced veneer integer slot air flow draw technology, the whole process from material feeding to cloth output is automatic control short production flow, high working efficiency. The non-woven fabric we produce has high strength, good softness, innocuity, acterium-proof, corrosion resistance, high-level draw strength and elongation rate.
They are widely used for dress, decoration materials, medical sanitation materials, daily life products and in the industrial, agricultural fields. In addition, this production line can produce non-woven fabrics of different color, differen grams, different lines according to users'demand.





Model No.	YF-S1600
Width of Finished Fabric	1600 mm
Daily Output Based on 40gsm (24Hrs)	4.5 Tons
Max. Diameter of Product in Roll	Φ1200 mm
Monofilament Fineness	S: 2.0-2.5 denier
GSM of Product	10-180g per square meters
Mechanical Design Speed	150m/min
Actual Production Speed	100-120m/min
