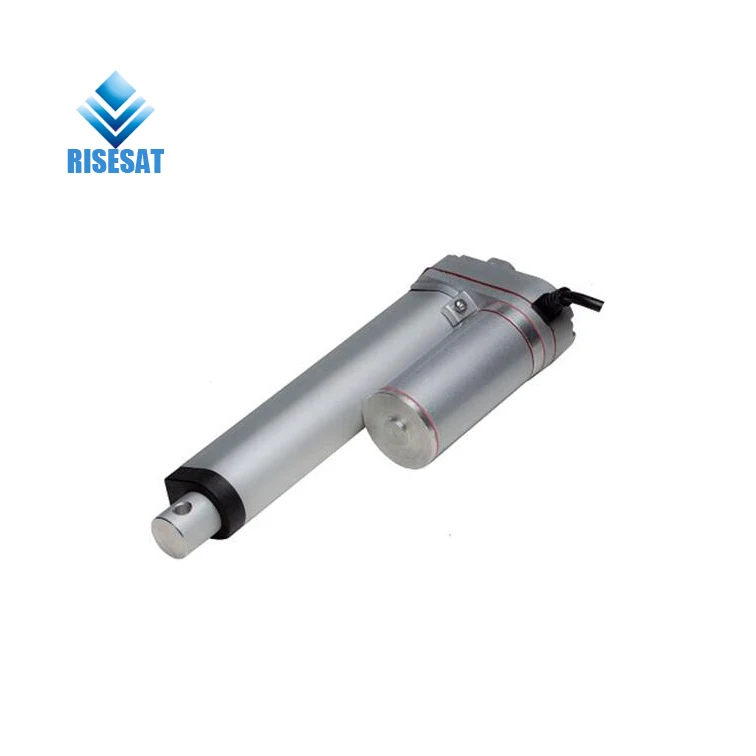

Wireless Remote Control 2pc Linear Actuator System working separately OEM made customized 1500N
- Category: >>>
- Supplier: Anhui Risesat Electronics Co. Ltd.
Share on (60680785824):
Product Overview
Description
Products Description
We are a professional factory making Linear actuators.
SPECIFICATIONS
* Input Voltage Customized 12/24V DC
* Current: 5A at full load
* Load Capacity: 1500N Max.
* Customized Forces and No Load speeds
* Mounting Holes: 6mm Diameter standard – Customizable on request
* Static Load 2 x Force
* Stroke Length: 20mm to 1000mm – Stroke can be customized to your requirements

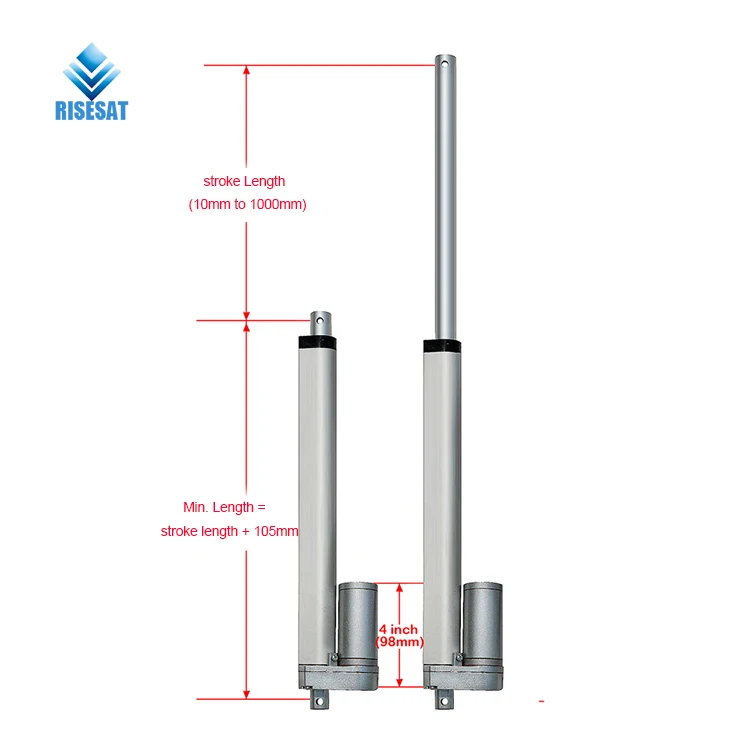

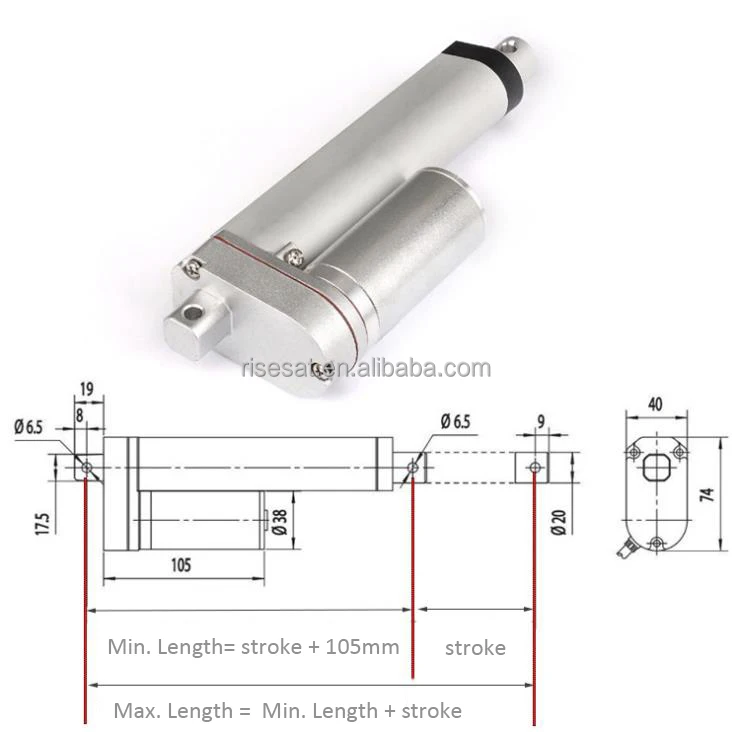

* Minimum Install Dimensions: (Stroke + 105mm)
* Screw: Acme Screw
* Duty Cycle: 25%
* Operational Temperature: -25C ~ +65C
* Limit Switches: Built In, non adjustable
* IP Grade: IP65
* Low Noise
* Certification: CE
* Housing: Aluminium Alloy
* Metal/plastic Gears
* 220V Control Unit and Hand/Remote Controls available separately
* Input Voltage Customized 12/24V DC
* Current: 5A at full load
* Load Capacity: 1500N Max.
* Customized Forces and No Load speeds
* Mounting Holes: 6mm Diameter standard – Customizable on request
* Static Load 2 x Force
* Stroke Length: 20mm to 1000mm – Stroke can be customized to your requirements
* Minimum Install Dimensions: (Stroke + 105mm)
* Screw: Acme Screw
* Duty Cycle: 25%
* Operational Temperature: -25C ~ +65C
* Limit Switches: Built In, non adjustable
* IP Grade: IP65
* Low Noise
* Certification: CE
* Housing: Aluminium Alloy
* Metal/plastic Gears
* 220V Control Unit and Hand/Remote Controls available separately
Details Images
Product Name | Mini Linear Actuator RS-D3 | ||||||
Size | As the pictures show, stroke can be made customized. | ||||||
Color | Silver | ||||||

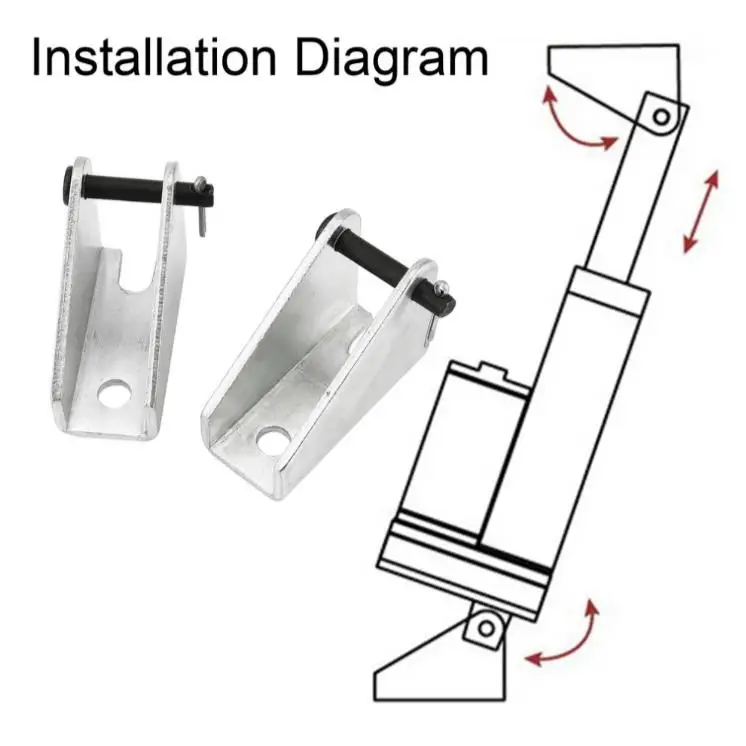

Accessories | Brackets ( please let us know when you need the brackets) | ||||||
Delivery time | usually we have stock. lead time is about 5~7 days | ||||||
Shipping method | DHL,UPS,EMS,TNT,FEDEX etc | ||||||
Payment method | Paypal,T/T,Western Union,Secure Payment etc | ||||||
Package | 1pc/inner box, 10pcs/carton. | ||||||
Custom service | OEM/ODM accepted | ||||||

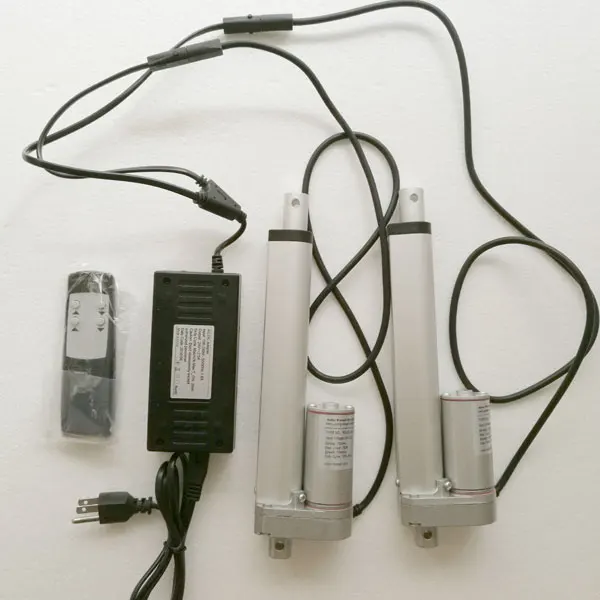

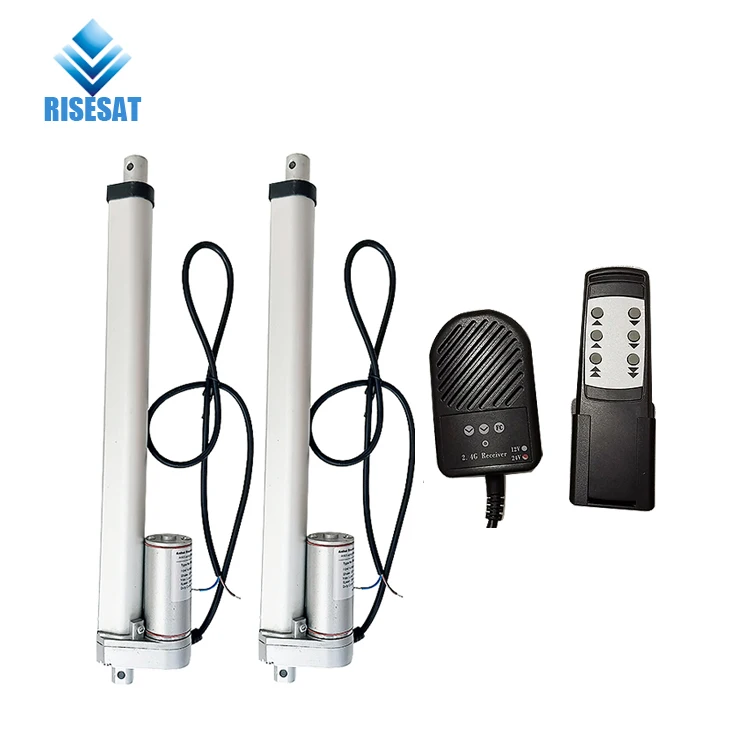

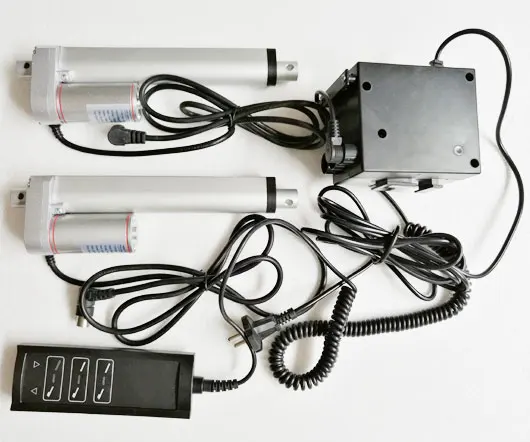

Following are the controllers you can choose,
If you have your special request, don't hesitate to contact us.
If you have your special request, don't hesitate to contact us.
