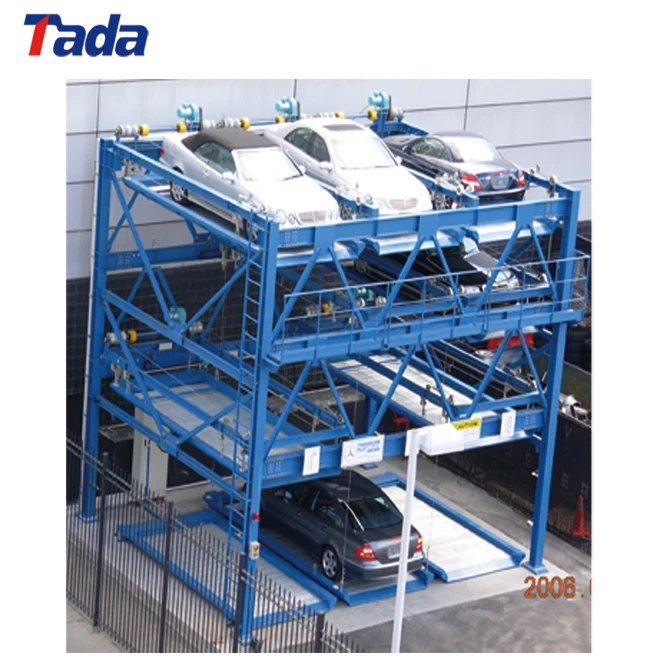

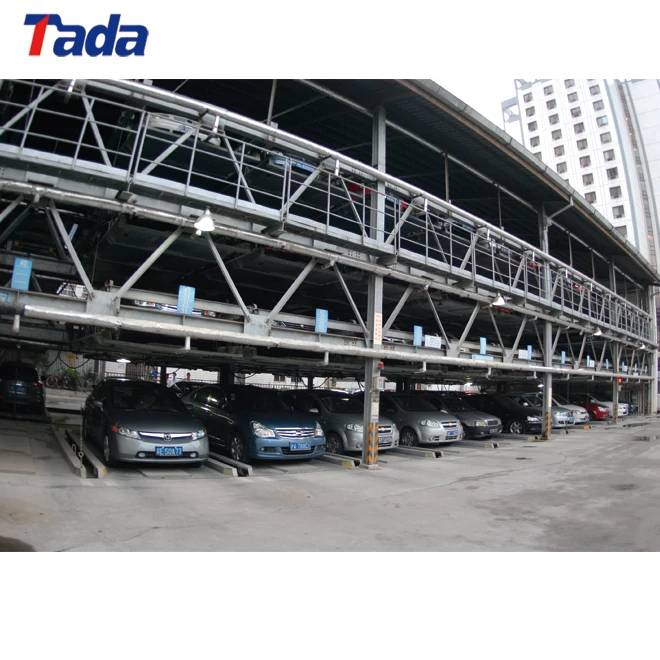

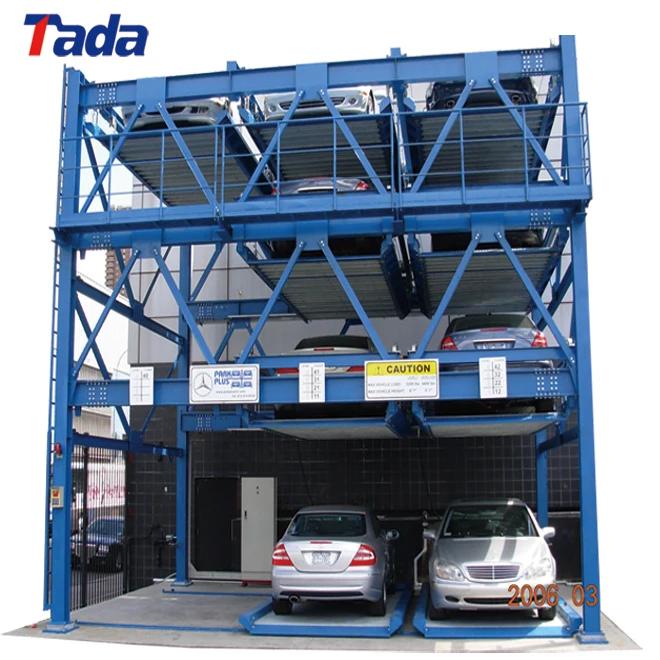

psh 4 layer used compact puzzle parking and smart automatic parking system psh 4 layer new design compact puzzle parking system and automatic parking system
psh 4 layer used compact puzzle parking and smart automatic parking system psh 4 layer new design compact puzzle parking system and automatic parking system
psh 4 layer new design compact puzzle parking system and automatic parking system
psh 4 layer used compact puzzle smart automatic parking system
Type
Parking system
Brand Name
TADA
Available car size

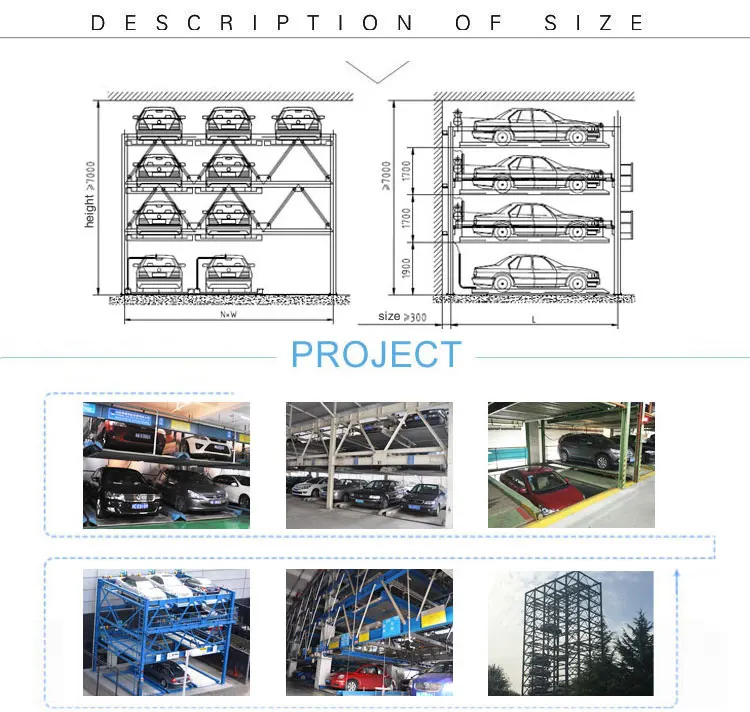

5200x1850x1500mm
Load Capacity
2000kg
Lift power
2.2kw
Lift speed
4m/min
Sliding power
0.2kw
Slide speed
8m/min
Color
Customized
Certification
TUV, ISO
Driven mode
Motor
Warranty
5 years
Product Description
Operating Principle

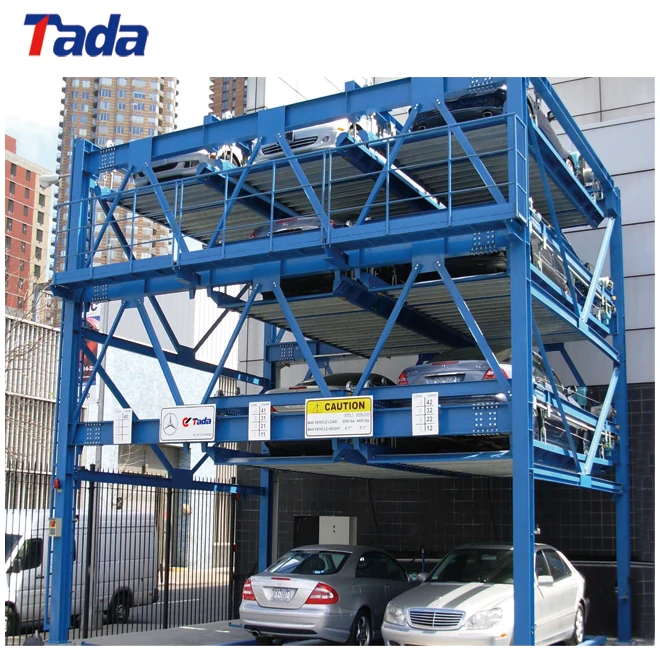

The entrance of this type is on the ground floor, the car boards on the top layer can only be lifted, the car boards on the bottom layer can only be slid. The ground layers had empty spaces, so that the car boards could be slid, and let the vehicle above down to the ground floor to be picked. The vehicles on the bottom layer can be driven out directly.
Application Range
(1) This equipment can provide many different parking options according to specific terrain conditions. (2) It can increase twice car parking spaces on the same area. (3) This equipment is simple and reliable, transmission system runs smoothly and quietly, saving much energy and good for environmental protection. (4) It is suitable for hotels, private houses, enterprises, public institutions, basements, and etc.
Equipment Structure
(1) It is convenient to take apart and install. It can be reconstructed easily in another place without requirement for civil work. (2) Utilizing reliable mechanism, the user can operate manually. If it suddenly out of power during operation, you can use manual operation to keep it working and ensure the vehicle will not stop unsafety and the safety will be guaranteed.
Type & Classification
The equipment each parking space has a car board, through car boards going up, down and sliding to the ground, then the driver goes into the garage, parks or picks a car, finishes the whole procedure.
Component introduction
Electric control cabinet Internal design of scientific compact, the use of domestic first-class brand components, More secure, more reliable.
Safety anti falling device Parking equipment design safety fall arrest safety hook, when the equipment in use, the safety hook will automatically move, and lock the car board to prevent the decline.
Emergency stop switch A large red seizure switch is provided on the control panel of the unit to ensure that any mechanical action can be stopped immediately upon the occurrence of an emergency and in the event of an emergency, and that the equipment can not be operated until the condition is removed.
Safety anti falling device Parking equipment design safety fall arrest safety hook, when the equipment in use, the safety hook will automatically move, and lock the car board to prevent the decline.
Recommend for you
puzzle two layer parking system
puzzle three layer parking system
puzzle four layerparking system
Company Information
Shandong Tada Auto Parking Co., Ltd Tada was established in 2001, and is a professional parking solution company that includes design, manufacture, installation, after-sales service of automatic parking system for a series, with the resource advantage of H steel from Laigang Corporation, the advanced production technology of auto-parking systems and rich management experience from the USA and European countries.
The Europe R & D Center The Europe R&D Center of Tada located beside of beautiful Lake Lugano in Switzerland and many top parking experts of the world had joined in IT. The technology strength is abundant and had invented the third generation silomat intelligence carrying system and monitor system. Which had more than 30 intellectual properties. This system had widely used in Athens' Olympics Games (more than 1000 carports).
Warranty
Five years for the main structure, one year for parts. During this period, if there are damaged parts because of our quality , after you send us real pictures, we will send you new products for free.
Supplier Assessment
Tada has been assessed by TÜV Rheinland, giving buyers in-depth details and authoritative information about suppliers for free, to help buyers source smarter and safer. Below is the certificate shows.
Main Material
Shan Steel Group is one of our shareholders, ranking the 88th on the list of the China's top 500 enterprises, and the 33rd on the list of China’s top 500 manufacturing enterprises. The material of Tada used Hot rolled H-shaped steel was made by Shan Steel Group. Hot rolled H-shaped steel was awarded the "China famous brand" title, this is also the first steel of famous brand in China metallurgical industry.
Our Services
Our service
1. OEM Manufacturing welcome: Product, Package... 2. Sample order 3. We will reply you for your inquiry in 24 hours. 4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback. If you have any questions about the problem, contact with us, we will offer the solve way for you.
Packaging & Shipping
FAQ
Q1. What is your terms of packing? A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery? A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time? A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples? A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy? A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship? A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q9: What are the main types of the parking system?
A: the parking system includes the car parking lift, puzzle car parking system solution and Intelligent garage.
