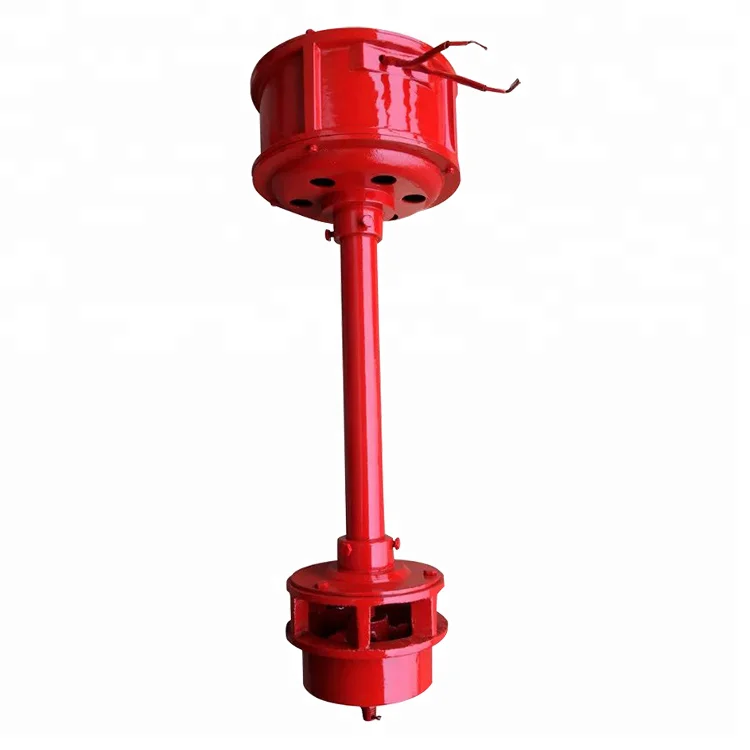

water electric micro 1kw hydro generator
- Category: >>>
- Supplier: Forward Hydro Power Equipment Co. Ltd.
Share on (60680837727):
Product Overview
Description
Main Products
Product Introduction
Micro-hydro systems are typically defined as 1 MW and less. The limit is set to 1MW because this is about the maximum size for most stand alone hydro systems not connected to the grid,
and suitable for "run-of-the-river" installations.
Our company has 60 years of experiences in designing hydro turbine, our products cover turgo tubine, pelton turbine, francis turbine, kaplan turbine, tubular turbine and cross flow turbine,
and the unit capacity of our hydro turbine ranging from 0.3W to 10MW.
We are able to provide hydro power project turn key solution. And at the same time provide trainning course, old hydro power station update service and CFO service.

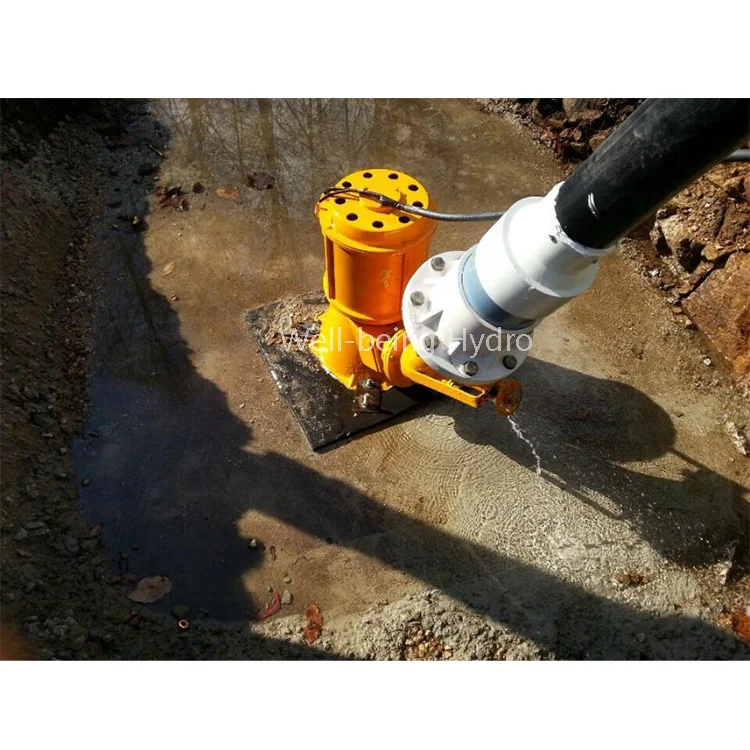

0.3KW-500KW Turgo Turbine(Brush-less motor, stainless runner)

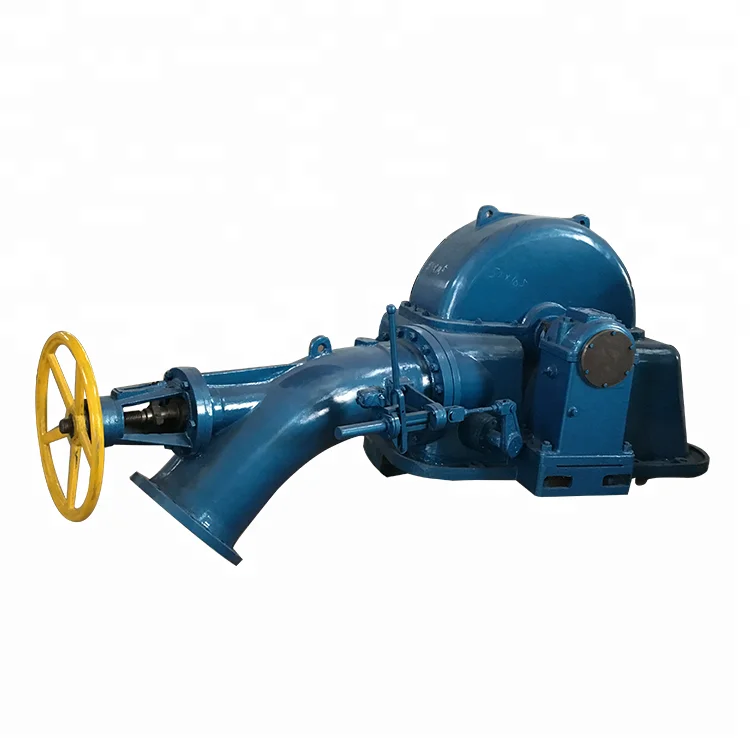

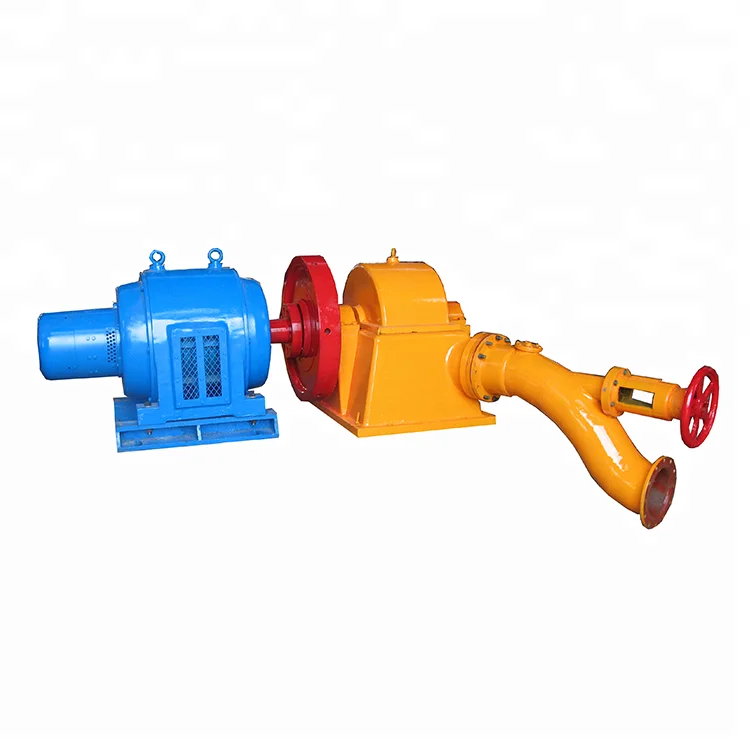

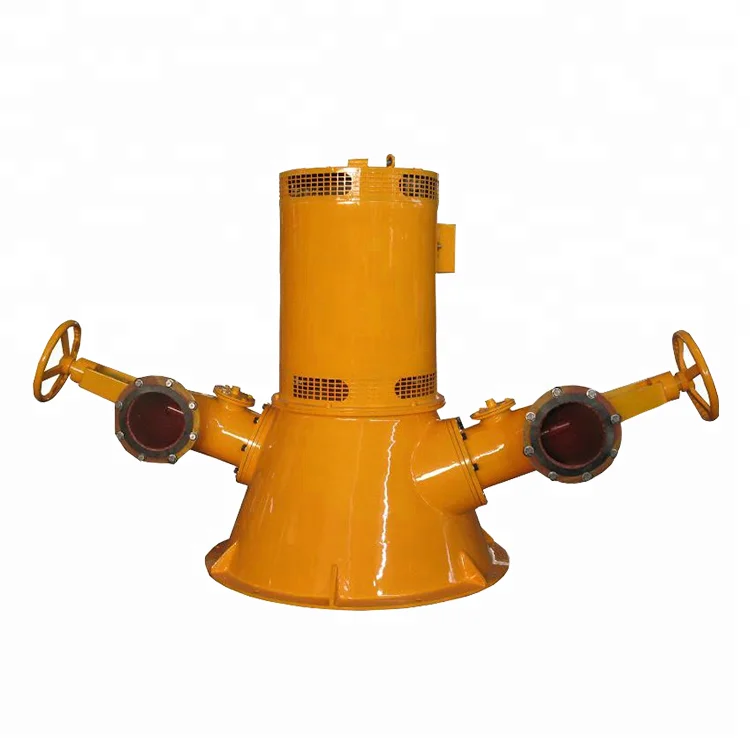

0.3KW-500KW Pelton Turbine (Brush-less excitation motor, stainless runner)
0.3KW-500 KW Kaplan Turbine(Brush-less motor, stainless runner)

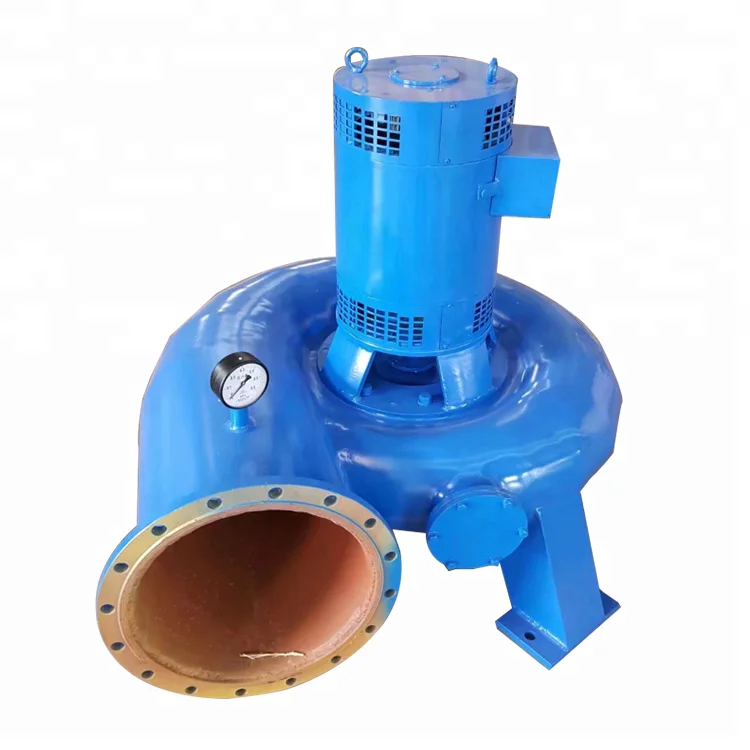

0.3KW-500KW Francis Turbine (Brush-less motor, stainless runner)
0.3KW-500KW tubular Turbine (Brush-less excitation motor, stainless runner)
Full-Automaitc Control System(On-grid and off-grid running):
Parameters (below parameter only reference, hydro turbine is tailor-made product, please contact us for precise technic parameter)
Turgo Turbine |
Water head(m) |
Flow Rate (m3/s) |
Power (kW) |
Speed (r/min) |
Diameter (mm) |
XJ13-L-10/1x2 | 9-18 | 0.0079-0.012 | 0.6 | 500-1500 | 80 |
XJ13-L-12/1x2.8 | 10-25 | 0.009-0.015 | 1 | 500-1500 | 90 |
XJ13-L-12/1x2.8 | 12-28 | 0.01-0.018 | 1.5 | 500-1500 | 90 |
XJ13-L-13/1x2.8 | 15-30 | 0.0114-0.023 | 2 | 500-1500 | 100 |
XJ13-L-13/1x3 | 18-40 | 0.0124-0.0135 | 3 | 500-1500 | 100 |
XJ13-L-18/1x5 | 20-40 | 0.012-0.0156 | 5 | 500-1500 | 150 |
Kalan Turbine |
Water meter(m) |
Flow rate (m3/s) |
Power (kW) |
Speed (r/min) |
Runner Diameter cm |
ZD760-LM-12 | 1.2-2.5 | 0.018-0.05 | 0.6 | 500-1500 | 13 |
ZD760-LM-15 | 1.5-3 | .0.02-0.07 | 1 | 500-1500 | 15 |
ZD760-LM-15 | 1.5-3 | 0.03-0.08 | 1.5 | 500-1500 | 15 |
ZD760-LM-(18-20) | 2-4 | 0.08-0.1 | 2 | 500-1500 | 18 |
ZD760-LM-(18-20) | 2-4 | 0.08-0.15 | 3 | 500-1500 | 18 |
Product Advantage

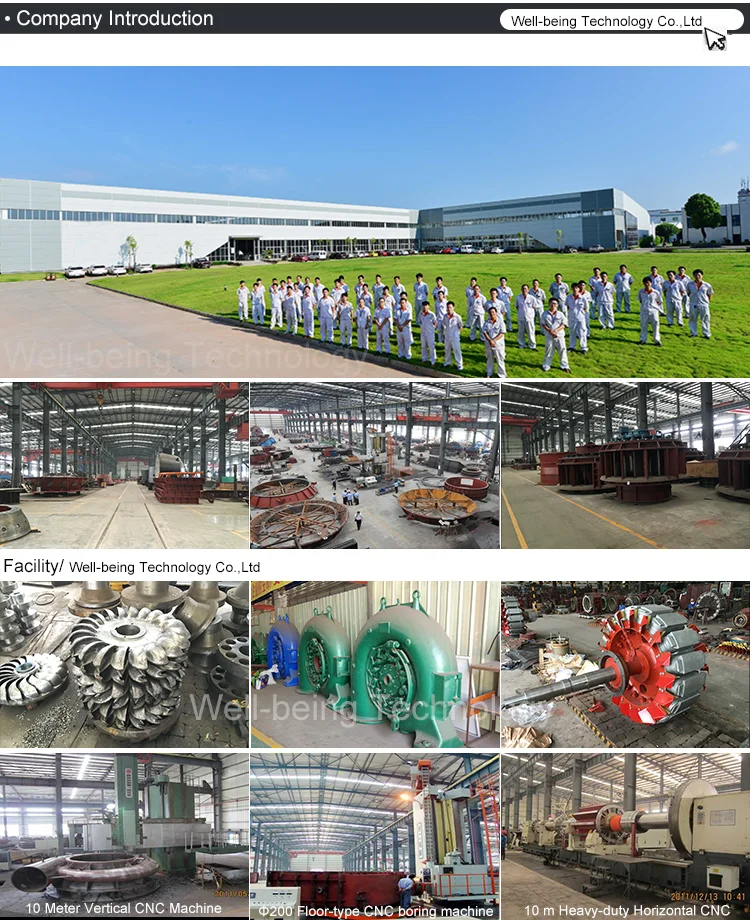

Company Information
Certifications

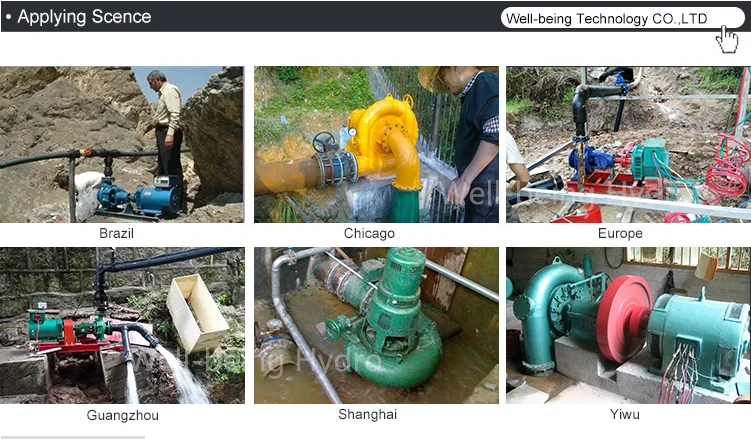

Customer Story
FAQ
1. You are a trading company or a manufacture?
We are a hydro turbine manufacture with over 60 years of experiences, we have facilities in Ganzhou City and Pingnan City, pay a visit to our you will know more about us
2. How to choose a right turbine? There are so many models offering on your website. And how to calculate the turbine capacity
Just tell me the water head, flow rate, our senior engineer will work out the solution for you. The turbine capacity: P=Flow rate(cubic meter/second) * Water head(m) * 9.8(G) * 0.8(efficiency).
3. What information shoul I provide for getting the quotation?
We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution.
4. When my turbine shut down, who can help me solve the problem?
You are free to call me day or night at my cellphone number. I am sure our engineer able to fix the problem either by changing spare parts or remove something.
5. How can I trust you?
Pay us via trade assurance is not a problem. And we also accept L/C. To build mutul-trust we think pay a visit to our facility is the best way.
Packaging&shipping
Accepted Delivery Terms | FOB/CIF/EXW/CPT/CFR ect. |
Accepted Payment Currency | USD,RMB, Or other currency |
Accepted Payment Terms | T/T,L/C/Paypal/Money Gram etc. |
Nearest Port | Guangzhou Port |
Lead Time | Accroding to project scale, usually from 7-60 days |
Packing Details | Fumigation wooden boxes/ cartons with foam inside |
