FTA 16 transponders 16 dvb s2 to 512 IP spts multicast iptv streamer OL5816B

Product Overview

Description

        16 dvb-s2 with 2ASI input  to ip 512 spts iptv streamer













Outline



COL5816B Tuner to IP Gateway is a head-end device which convert satellite signal to IP out. It is integrated

with tuner demodulation (or ASI input) and gateway function, which can demodulate the signal from 16 tuners

into IP package (MPTS/SPTS output switchable), or directly convert the TS from ASI input and tuner into IP

package.BISS and DiSEqC function is also embedded for tuner input to let you enjoy the user experience.







Key Features

ü Support 16 FTA DVB-S/S2 input, 2 ASI input

ü Support BISS descrambling

ü Support DiSEqC function

ü 16 MPTS or 512 SPTS output (MPTS and SPTS output switchable)

ü 2 GE mirrored output, up to 850Mbps---SPTS

ü 2 independent GE output port, GE1 + GE2---MPTS

ü Support accurate PCR adjusting (Only for SPTS output)

ü Support PID filtering, re-mapping (Only SPTS output)

ü Support PSI/SI rebuilding and editing (Only SPTS output)

ü Support “Null PKT Filter” function (For MPTS output)

ü Support Web operation



Specifications





Input	16 DVB-S/S2 tuner input +2 ASI input
Tuner Section (DVB-S/S2)	Input Frequency	950-2150MHz
	Symbol rate	QPSK 2~45Mbauds; QPSK 1~45Mbauds, 8PSK 2~30Mbauds
	Code rate	1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
	Constellation	QPSK, 8PSK
Output	Option 1: 512 SPTS IP mirrored output over UDP and RTP/RTSP through GE1 and GE2 port, Unicast and Multicast
	Option 2: 16 MPTS IP output (for Tuner/ASI passthrough) over UDP and RTP/RTSP through GE1 and GE2 port, Unicast and Multicast
BISS descrambling	Mode 1, Mode E (Up to 850Mbps) (descramble individual program)
Miscellaneous	Dimension(W×L×H)		482mm×410mm×44mm
	Approx weight		3.6kg
	Environment		0~45℃(work);-20~80℃(Storage)
	Power requirements		100~240VAC,50/60Hz
	Power consumption		20W

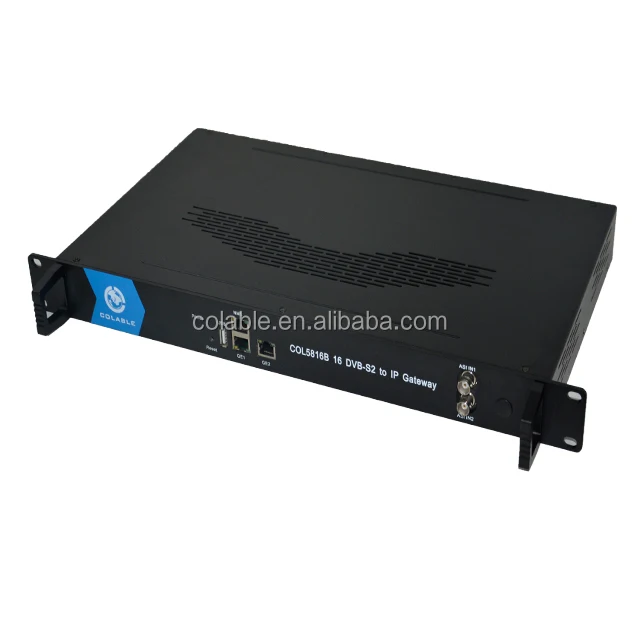

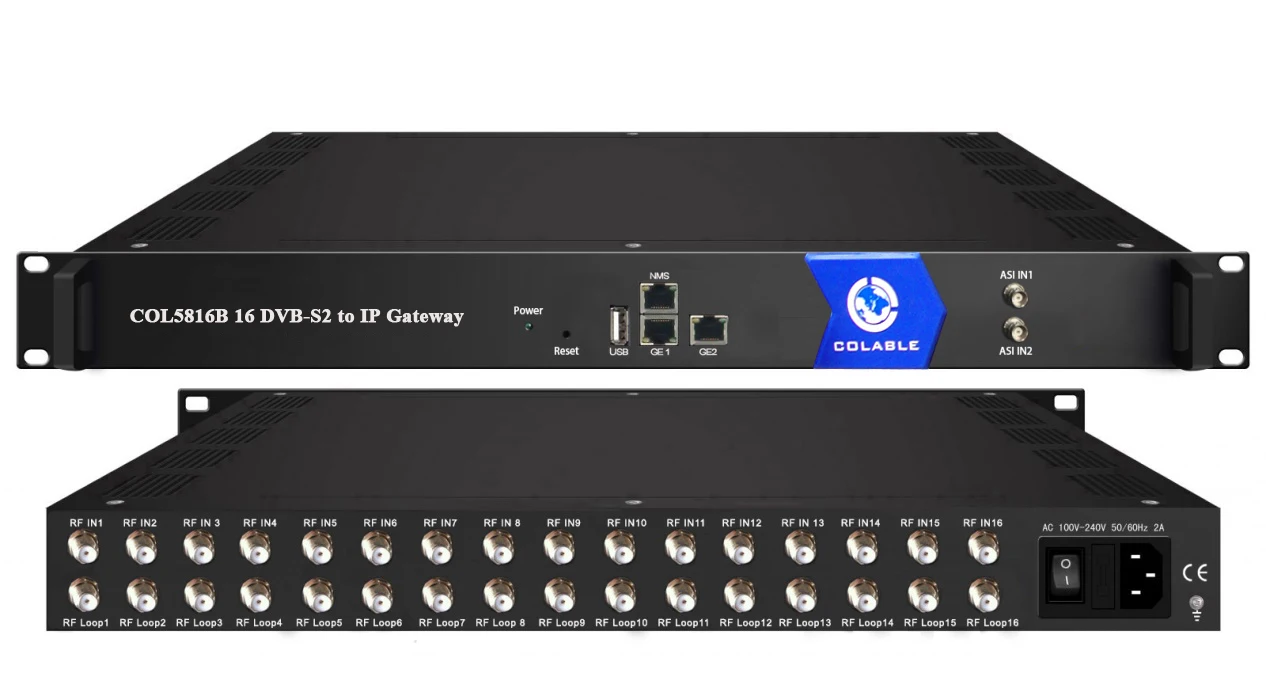

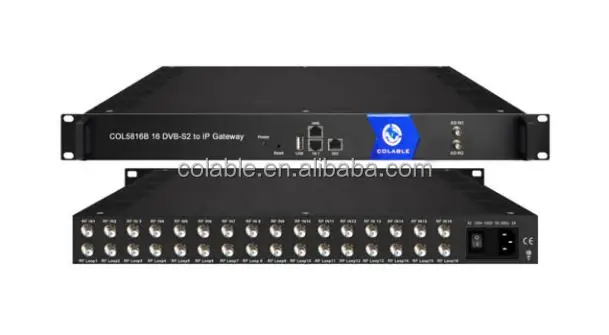

16dvb-s2 to ip gateway Front Panel

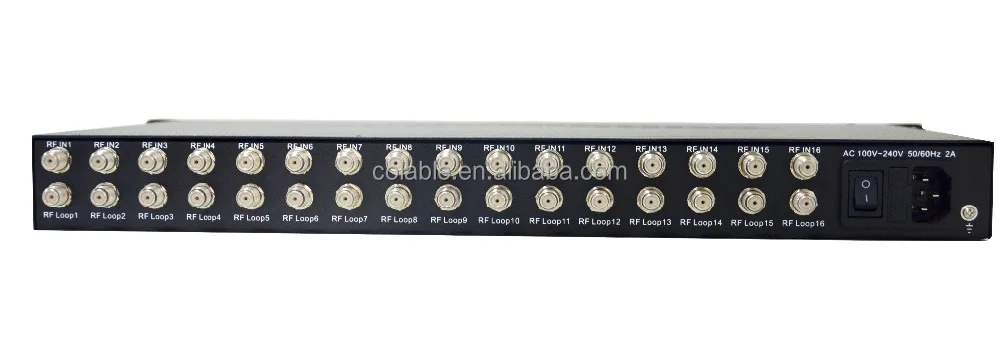

 16dvb-s2 to ip streamer Rear Panel

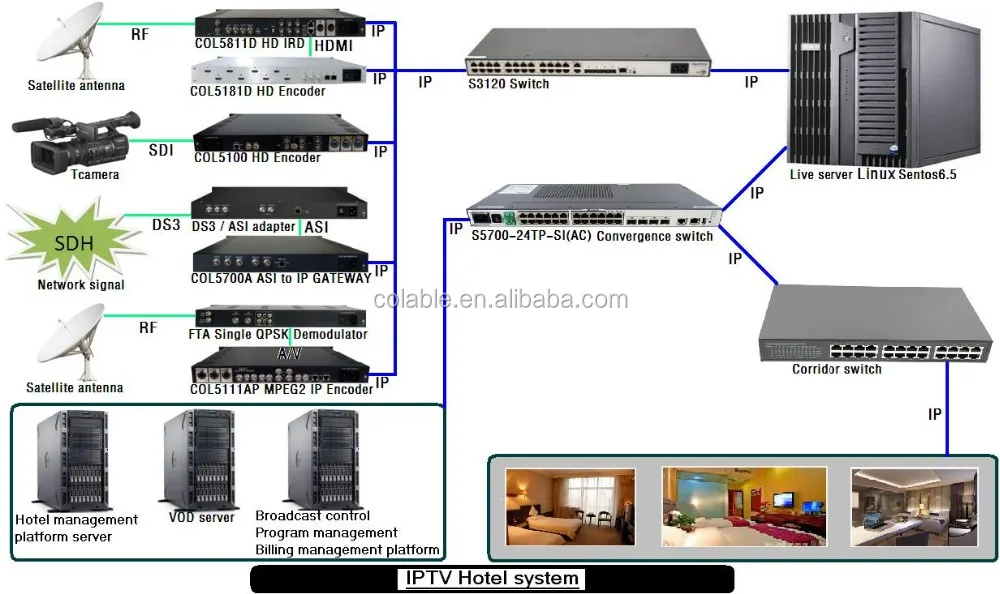

satellite receiver to ip Gateway iptv streamer in  dtv iptv system
