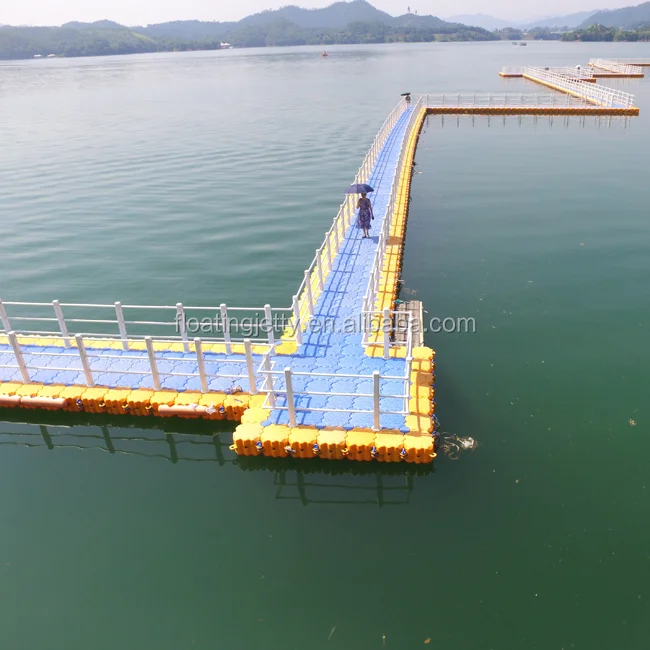

plastic pontoon water floating bridge

Feature

Floating Capacity: 350Kgs/ m2

Raw Material: HDPE with UV

Preference Temperature: -60°C/+80°C Color available: orange, blue, gray, black

Load Capacity:

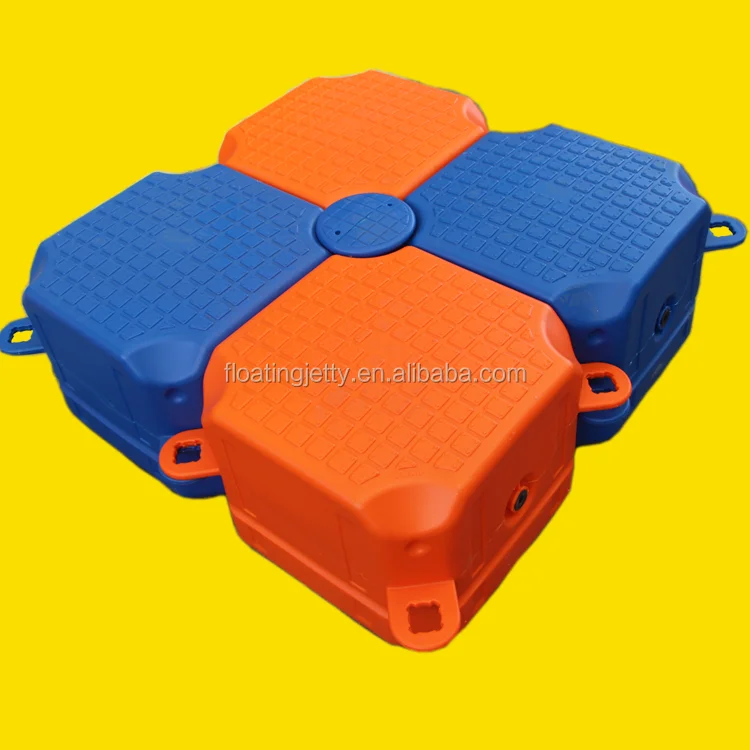

each one square meter is made up of four pontoons, top load is 350kgs.

Draft without load: 2.5-3cm;

Draft with load of 150kgs: 15-20cm(safe);

Draft with load of 300kgs:35-40cm(load limit)

Anti Wind Wave:

1.The wave on water surface between 2-class and 3-class belongs to safe applicable range.

2.The wave on water surface between 3-class and 6-class can be applicable; however,the safety protection must be reinforced.

3.The wave on water surface between 6-class and 9-class is the restricted applicable range (it is suggested that the shipping shall not be parked and the visitors shall not be in or out).

Attention: to avoid shaking of the dock, the area of internal lake’s dock is not less than 30 square meter; the area of stage is not less than 100 square meter.
