T12 TDF flange forming machine , tdf machine T12, hand type flange forming machine
Product Description
Features
1. TDF flange forming machine is a main equipment for hvac duct tdf flange forming , especially for large-scale, standardized and automatic production.
2. Both flanges and L-shaped clamp can be produced synchronously.
3. Material feeding automatically while sheets processed.
4. All rollers and bearings adopt excellent steel processed by advanced heat treatment technology(quenching),which enhances wear-resistance for the machine.
5. 14 Groups of rollers form a stable and beautiful shape Pressure bearings are being used to avoid the side wear.
TDF flange forming machine technical data
Model | Sheet Thickness(mm) | A-size(mm) | Weight(kg) | Dimension L*W*H(mm) | Power(KW) |
T-12 | 0.5-1.2 | 32±5 | 1000 | 2900*700*1100 | 2.2 |
T-15 | 0.8-1.5 | 32±5 | 1200 | 2900*700*1100 | 4 |

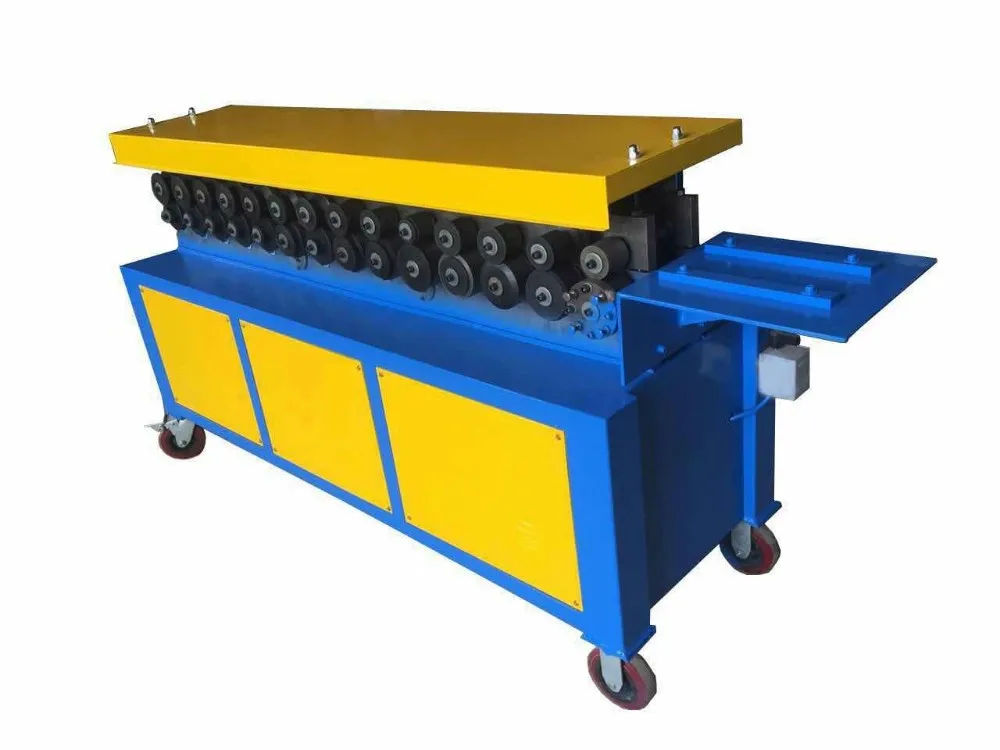

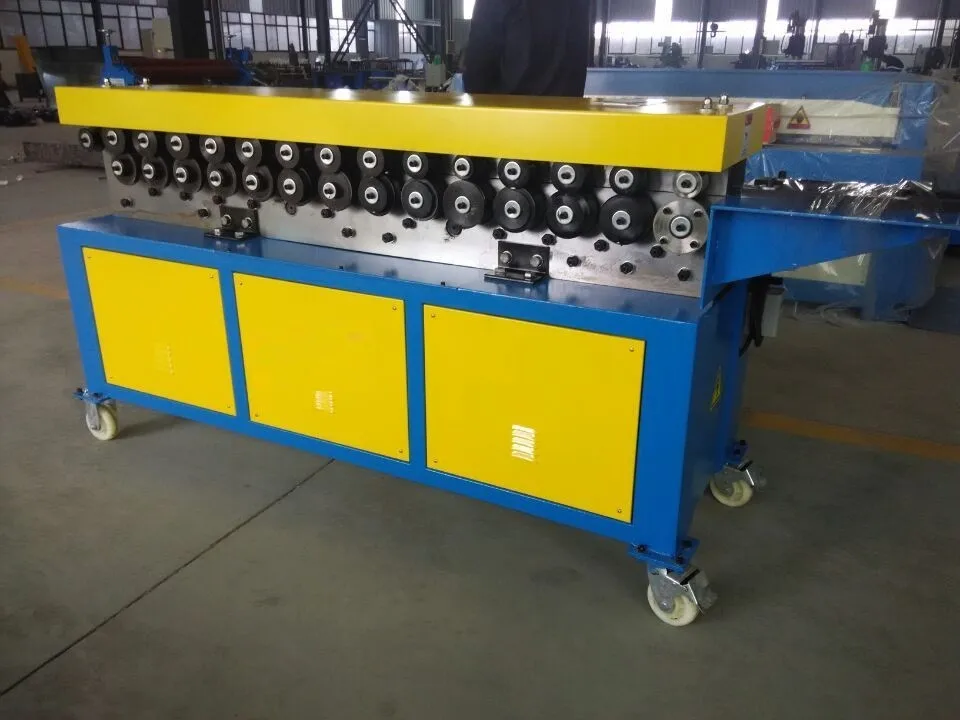

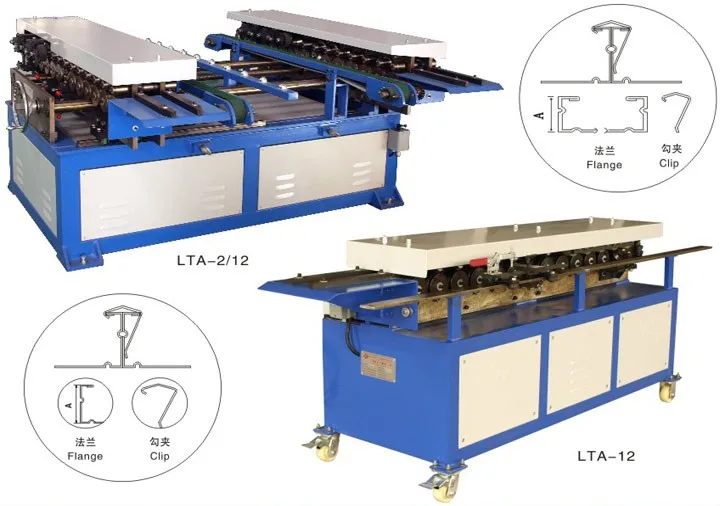

Photos of TDF flange forming machine:

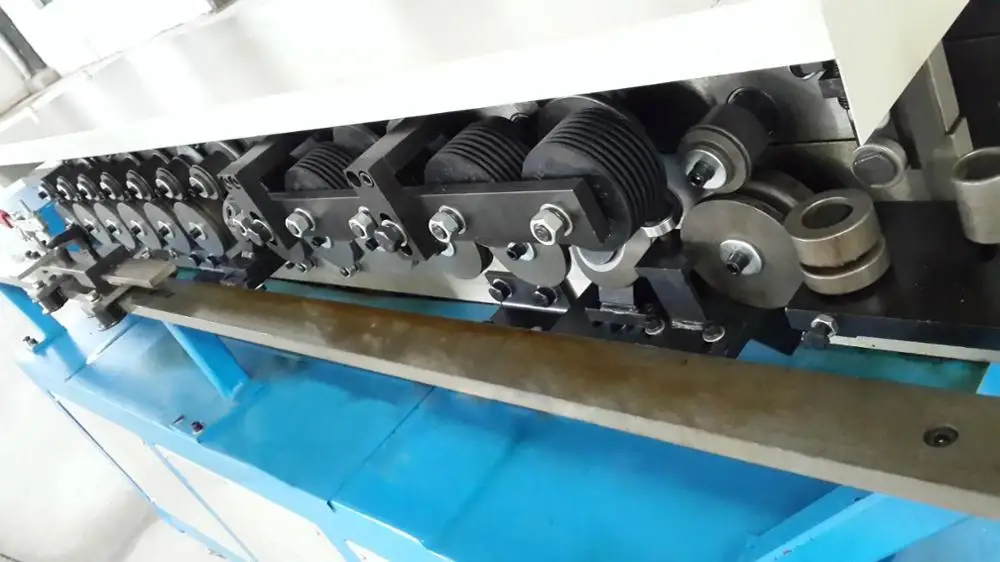

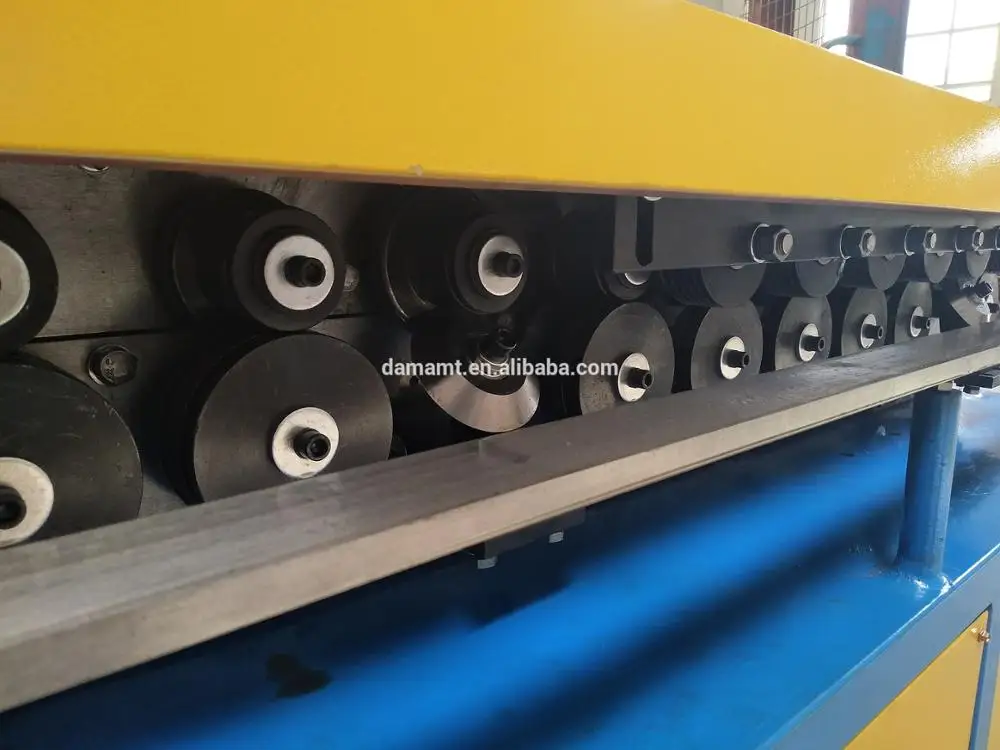

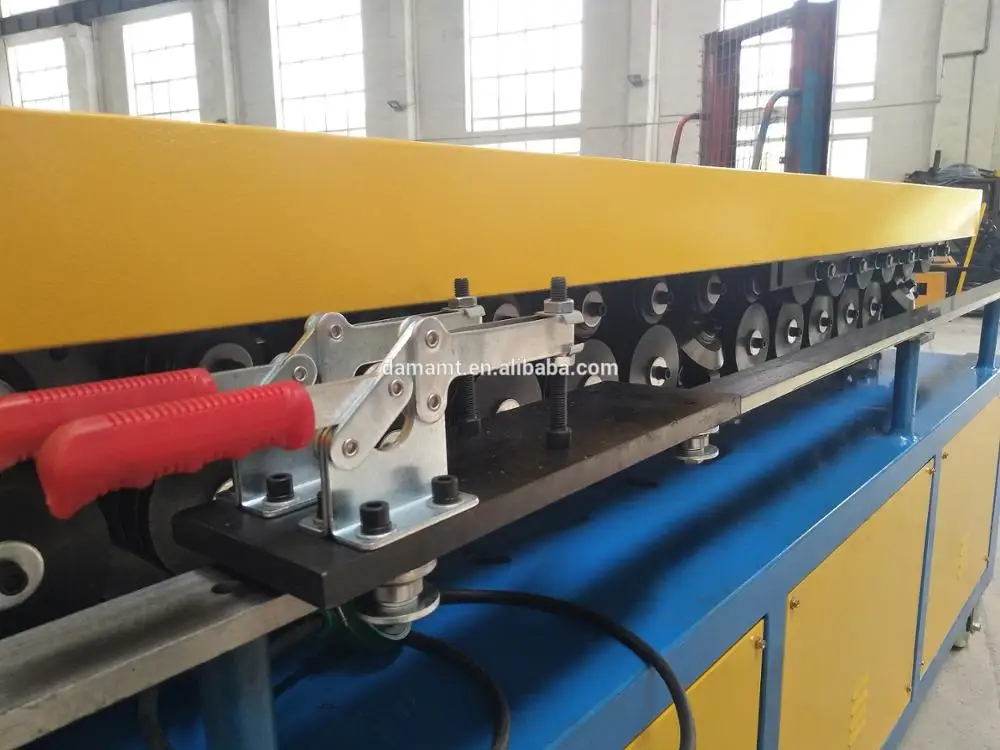

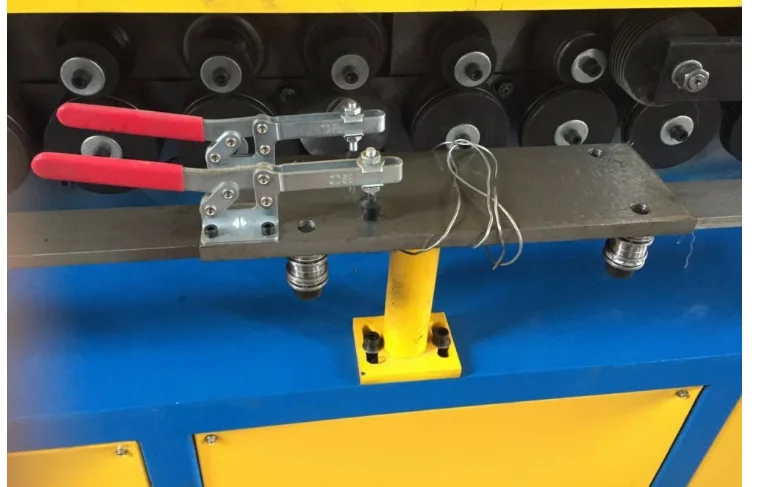

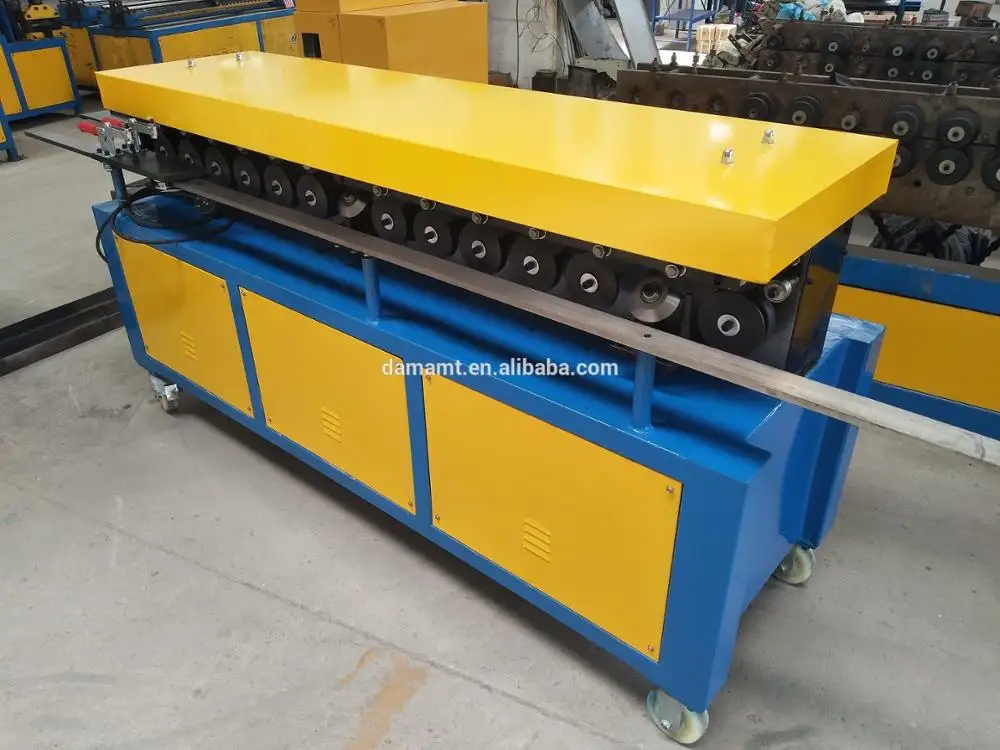

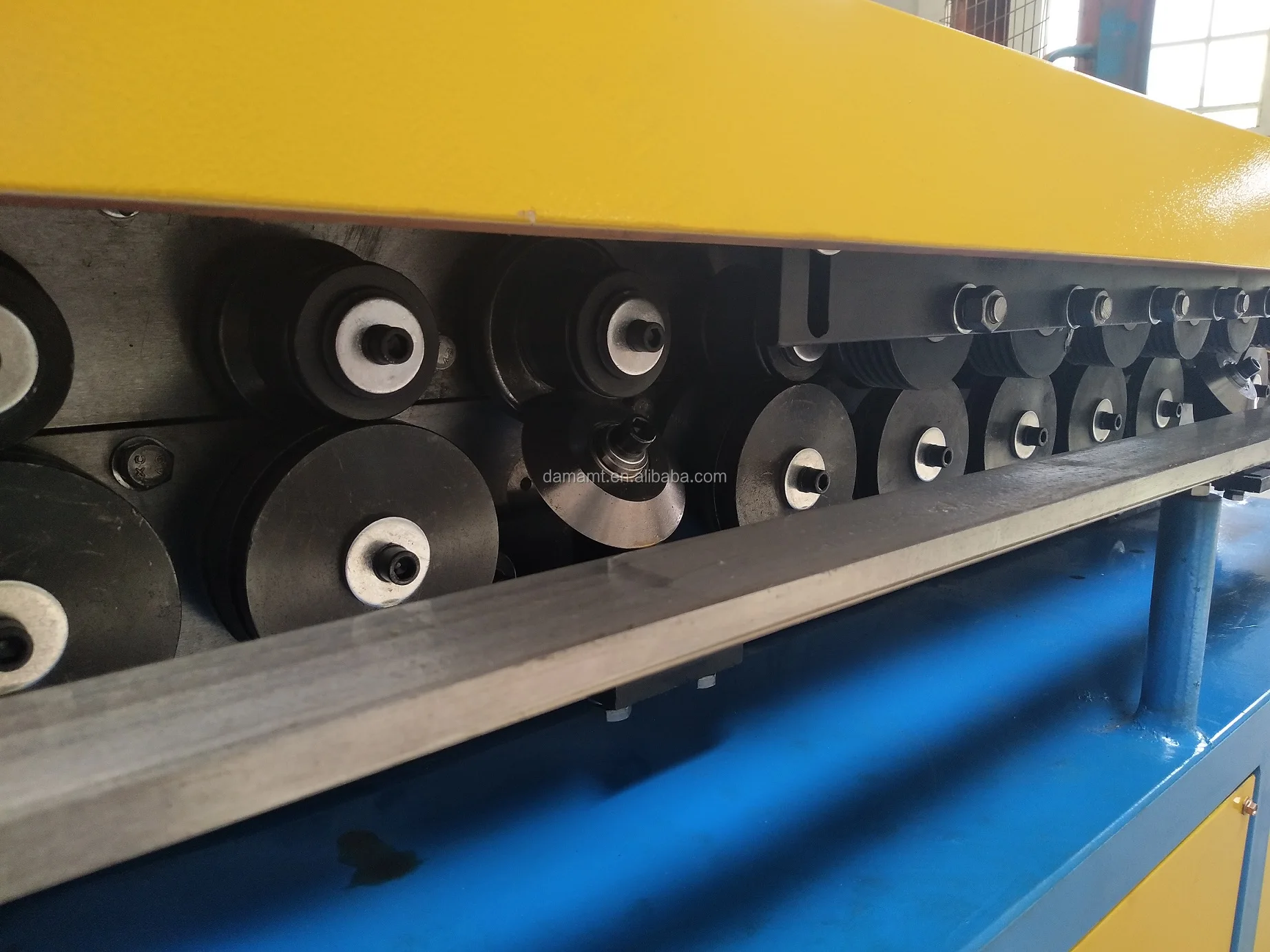

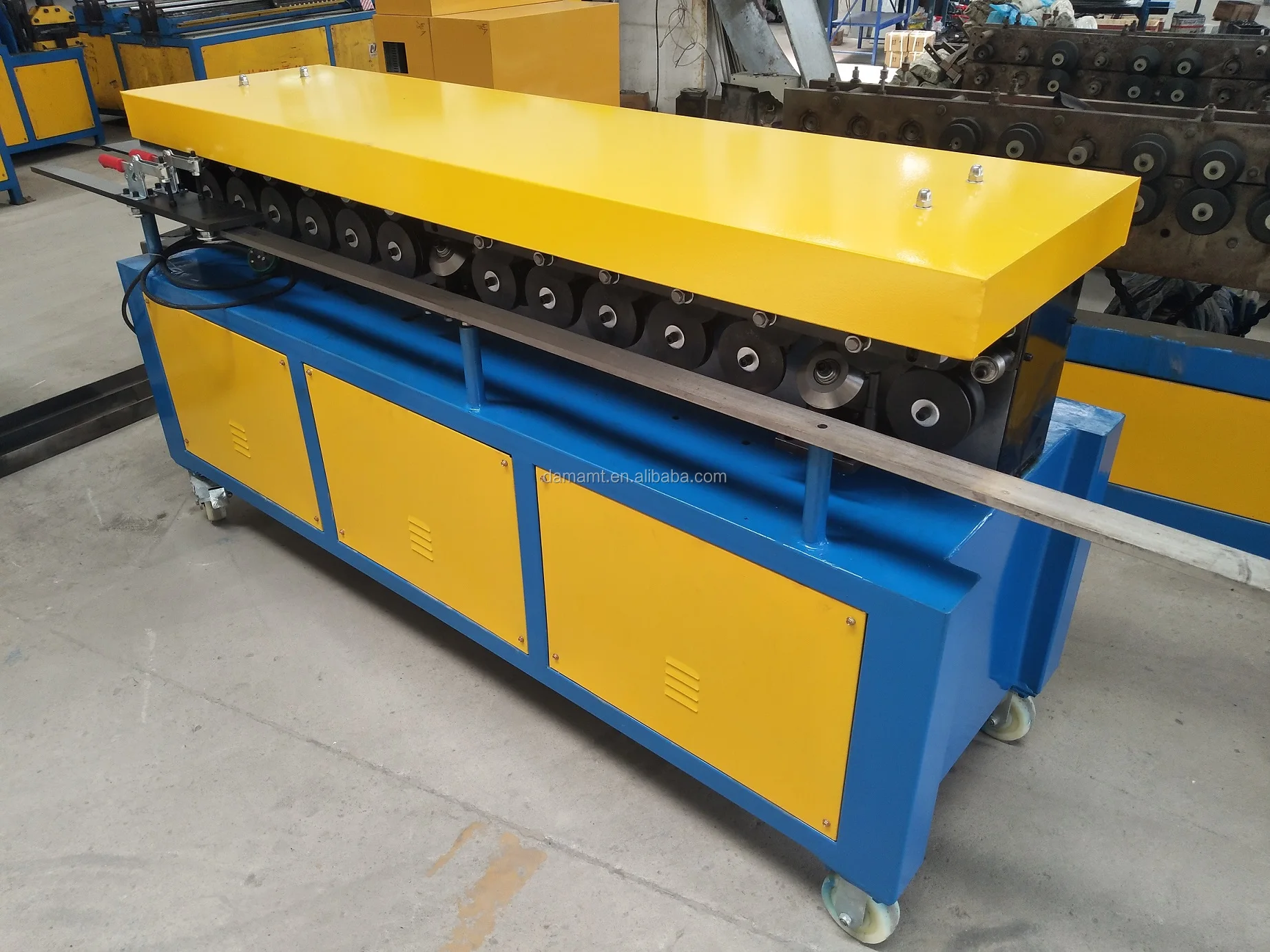

Details of TDF flange forming machine:
tdf flange forming machine
tdf flange forming machine
tdf flange forming machine
tdf flange forming machine
Factory Veiw
Thanks for visiting our TDF flange forming machine!
