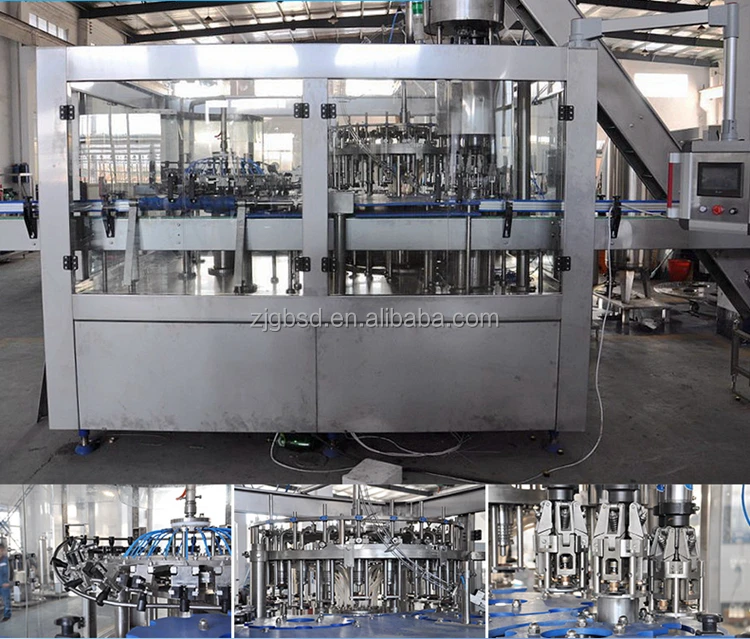

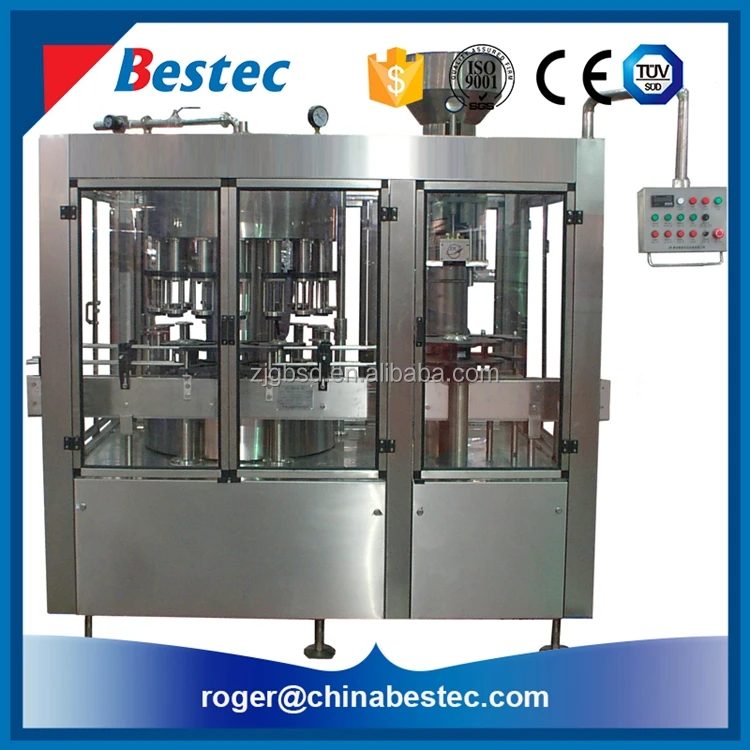

Vodka,Whiskey,Wine bottling packaging machine line

Product Overview

Description

Vodka,Whiskey,Wine bottling packaging machine line

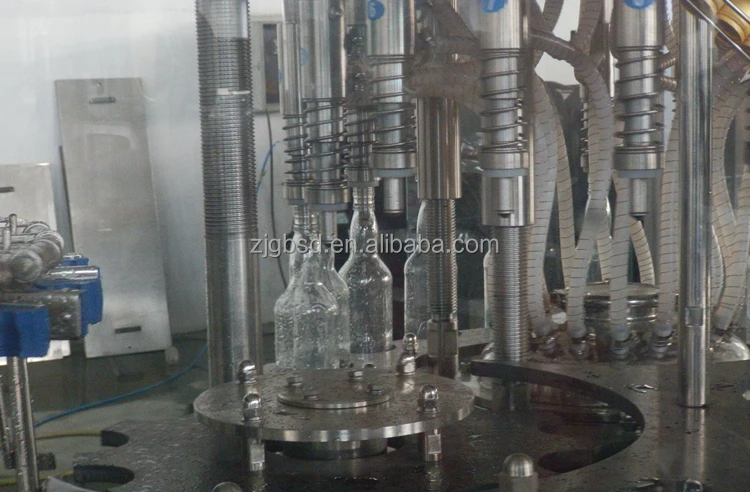

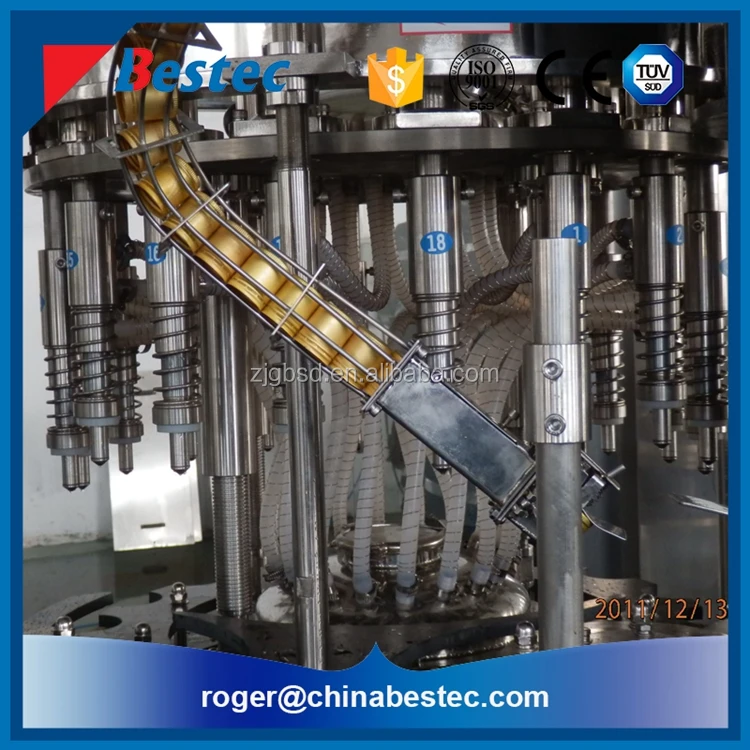

1.Filling valve adopts high precision mechanical filling valve, with the character of no bottle no vacuum pumping.
2.Open gear combined gear box transmission, with on-off device. Frequency conversion velocity modulation device extends the speed modulation scope.
3.This machine has self oil lubrication device so that the lubrication points could be lubricated regularly in time. The machine is of high efficiency, low noise and long life.

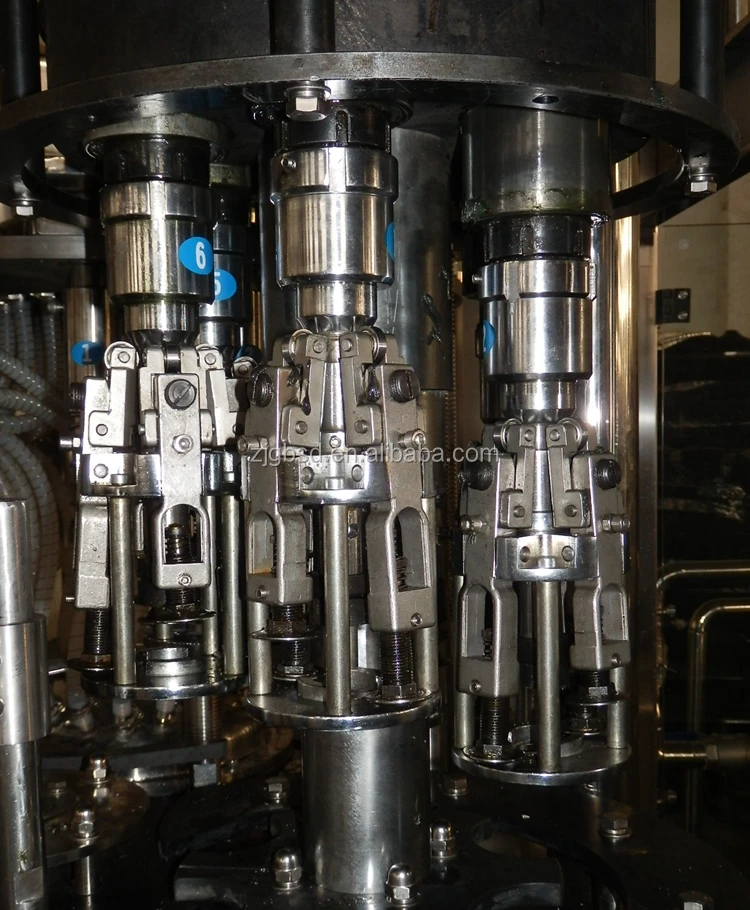

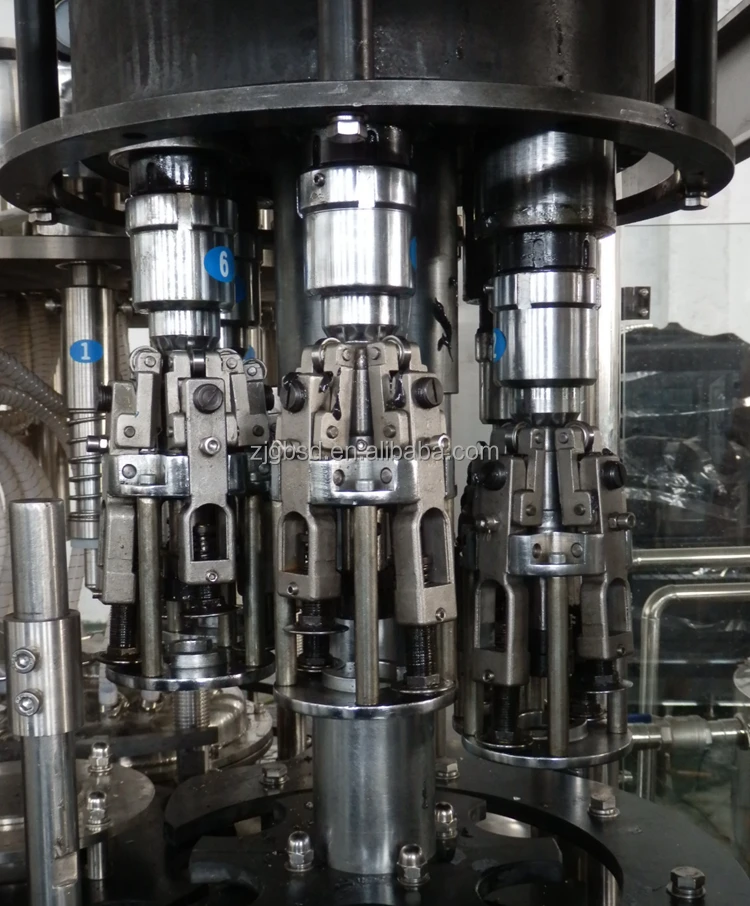

Centering guide is of double guide bar type, with the function of pre-covering.
4.Some of the machine parts can be adjusted to fit different sizes of bottles.
5.The material height in the bottle is controlled by electric probe to assure the precise liquid level.



Model	FCGF16-16-5	FCGF18-18-6	FCGF24-24-8	FCGF32-32-10
Washing Heads	16	18	24	32
Filling Heads	16	18	24	32
Capping Heads	5	6	8	10
Production Capacity(b/h)	3000-4000	4000-6000	6000-8000	8000-10000
Power of Main Motor(kw)	3	3.8	5.5	7.5
