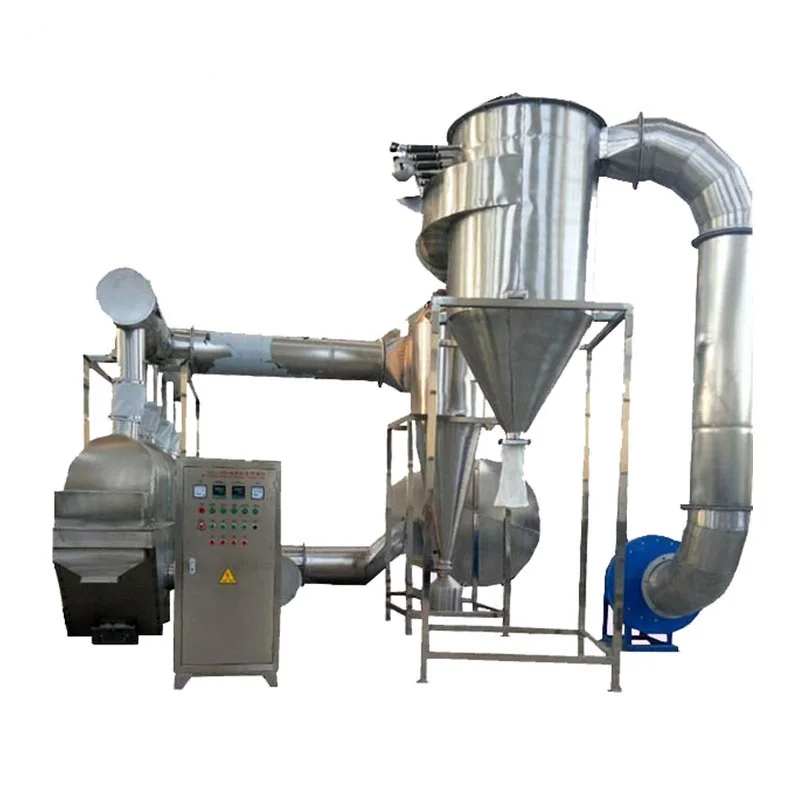

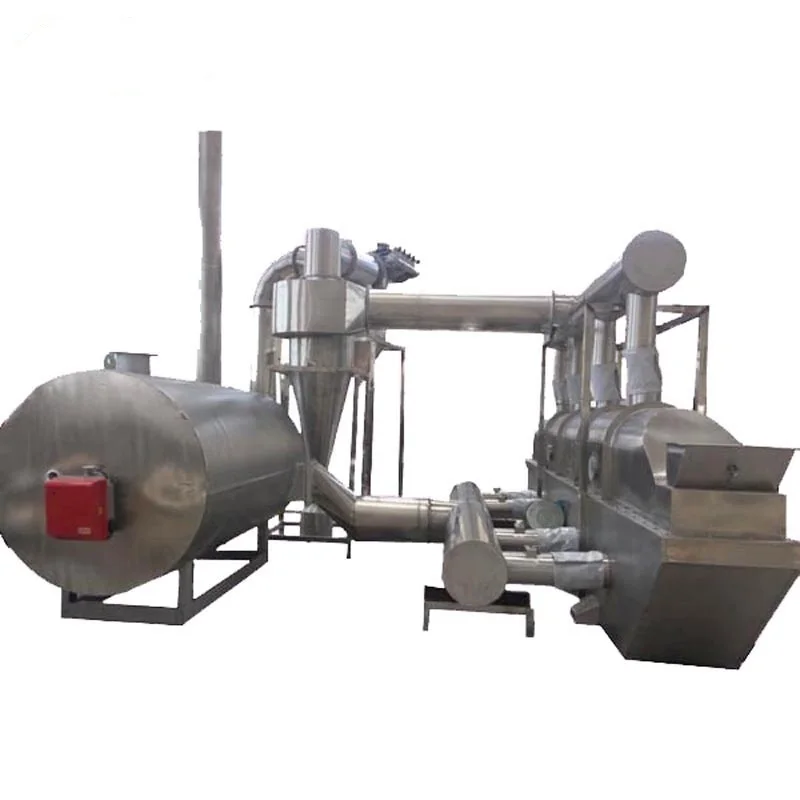

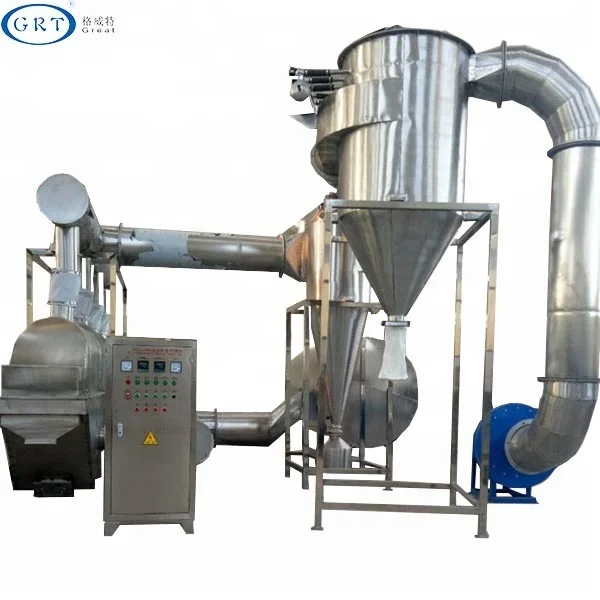

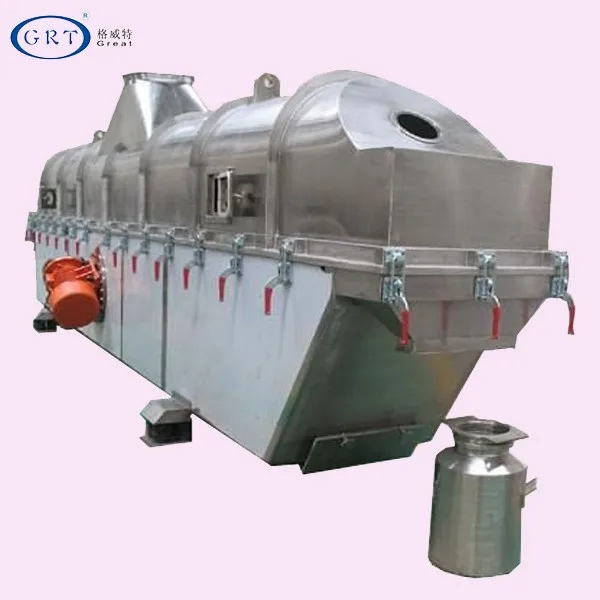

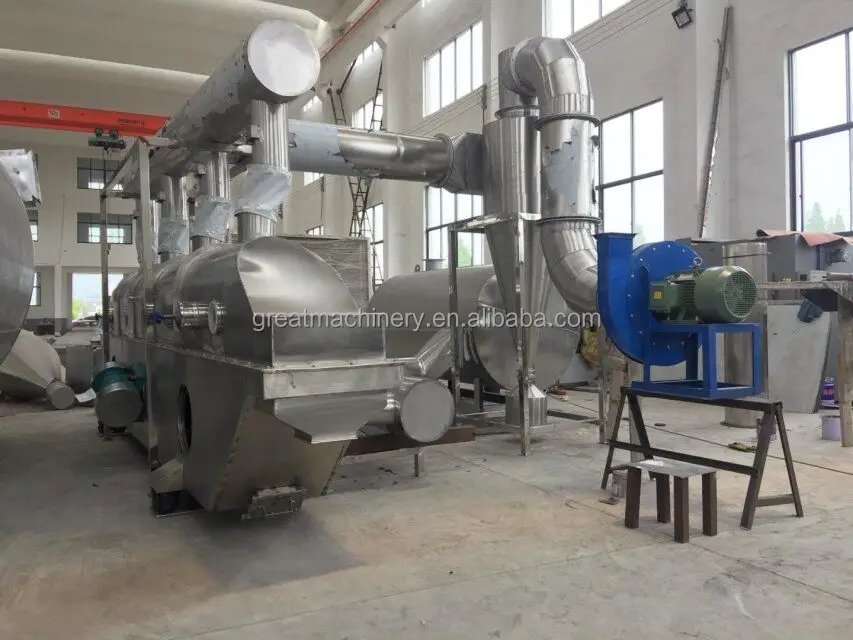

GRT Industrial Continuous Fluid Bed Dryer Machine Vibrating Fluidized Bed Dryer

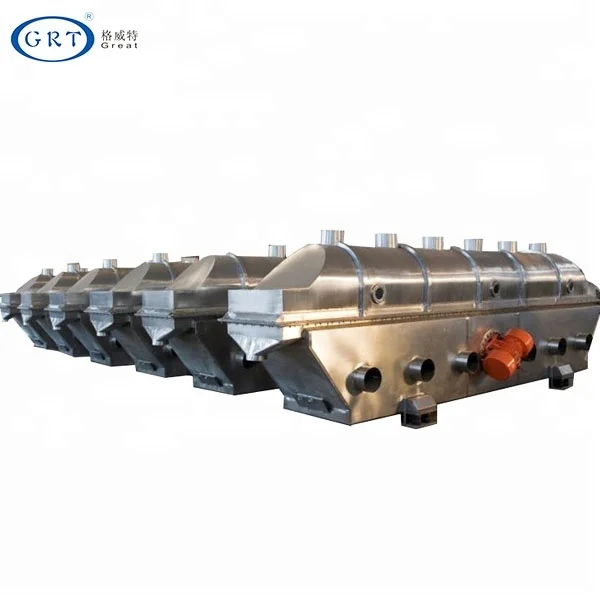

             GRT industrial Vibrating fluid bed dryer

Working process of vibrating fluid bed dryer

Vibrating fluidized bed dryer is one of the best-selling drying machine.Material goes evenly into the bed through feeding conveyor and feeder,under the action of the vibration force,the material moves up forward continuously along the horizontal direction,while undergoes heat exchange with the hot air coming up from bottom,the moisture of material is evaporated rapidly,and the wet air is discharged from the exhaust fan,and the material is fully dried and discharged from the discharge port.

 Features of vibrating fluid bed dryer

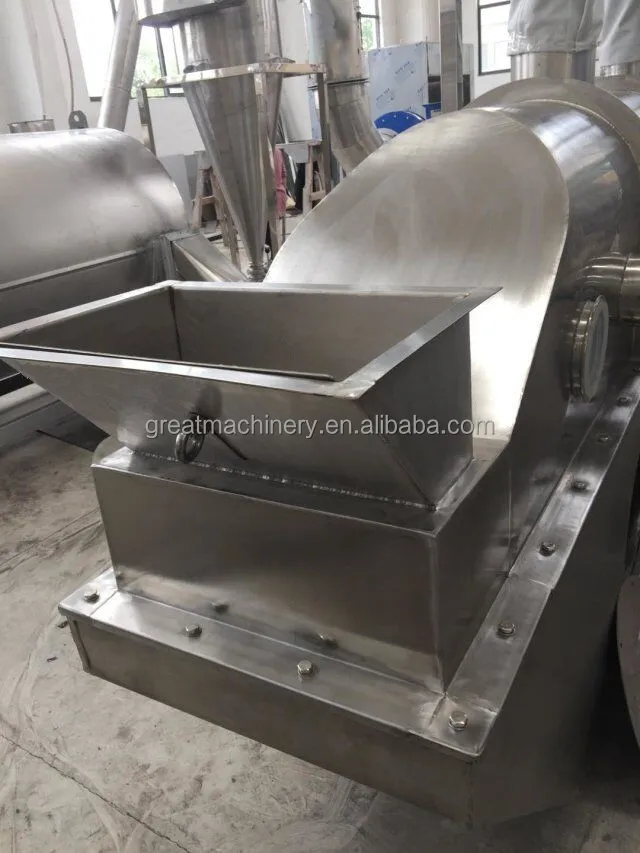

1.Adjustable weir plate is set at the discharge port,by adjusting the height of the weir plate to control stayed drying time.
2.perforated plate adopts back pressure process to ensure flatness of perforated plate.
3.the whole electric heating treatment is applied to the lower bed after its completion of production,eliminating the welding gravity,improving the strength of the bed.
4.the center tube which is equipped with vibration motor is welded with reinforcement plate according to the angle of vibration radiation, so that the material is uniformly fluidized.
5.the upper bed is designed to be fixed,there is a soft connection with the lower bed,reducing the load of vibration motor,while reducing the strength of the upper bed.

Application of vibrating fluid bed dryer

 Parameter of vibrating fluid bed dryer

2007 sees the company growth and its business scope enlarge from drying machine to a complete production line, such as washing machine, cutting machine, and packaging machine. sales and service with total investment of 5 hundred million . We mainly supply a whole production chain of closely related machines, including, cleaning machine, stripping machine, drying machine and packing machine.
