CCTV Security Full Metal HD IP 960P 1.3 MP 4" Mini Speed PTZ Camera 20X Zoom ONVIF Auto Focus P2P XMeye

Model

NDR-507-X920H

Camera

Image Sensor

1/3" CMOS

Minimum Illumination

Color: 0.05Lux, B/W: 0.005Lux,0 Lux with IR

3D NDR

Support

WDR

Support

Electronic Shutter

1/1s—1/30000s, AUTO

Day Night Mode

AUTO ICR Color to B/W

Focal Length:

4.7-94mm,20X Optical Zoom, (F1.6 to F2.7)

Zoom Speed

Approx.4s(Optical Wide~Tele)

Angle of View:

55.4-2.9 degree(Wide-Tele)

Resolution

1920(H)x1080(V)

Main Stream

25fps:(1280×960),(1280×720),(800×600),(704×576)

Sub Stream

25fps:(704×576),(640×480),(648×360)

Video Compression

H.264,H.264_BASELINE H.264_Main profile

Network protocol

HTTP ,FTP,SMTP,UPnP,SNMP, DDNS,NTP,RTSP,RTP,TCP,DHCP, PPPoE

Interface protocol

ONVIF 2.2

PTZ Control

IR Distance

100m

Horizontal Range

0°~360° continuously

Vertical Range

0°~90°

Horizontal Speed

0.05°~40°/s

Vertical Speed

0.05°~40°/s

Max Speed

40°/S

Preset

256

Patrol scan

4pcs(10 preset for each)

L/R Scan

1pc

Horizontal Scan

1pc

Power-off memory

Support

PARK Action

Watch position/ Area Scan /Horizontal 360°scan/ Cruise

Watch position

Support

Wide angle speed limit

Focus / speed automatic matching function

POE function(Optional)

POE supply voltage

DC48V

POE supply PIN

1,2(+),3,6(-)

General

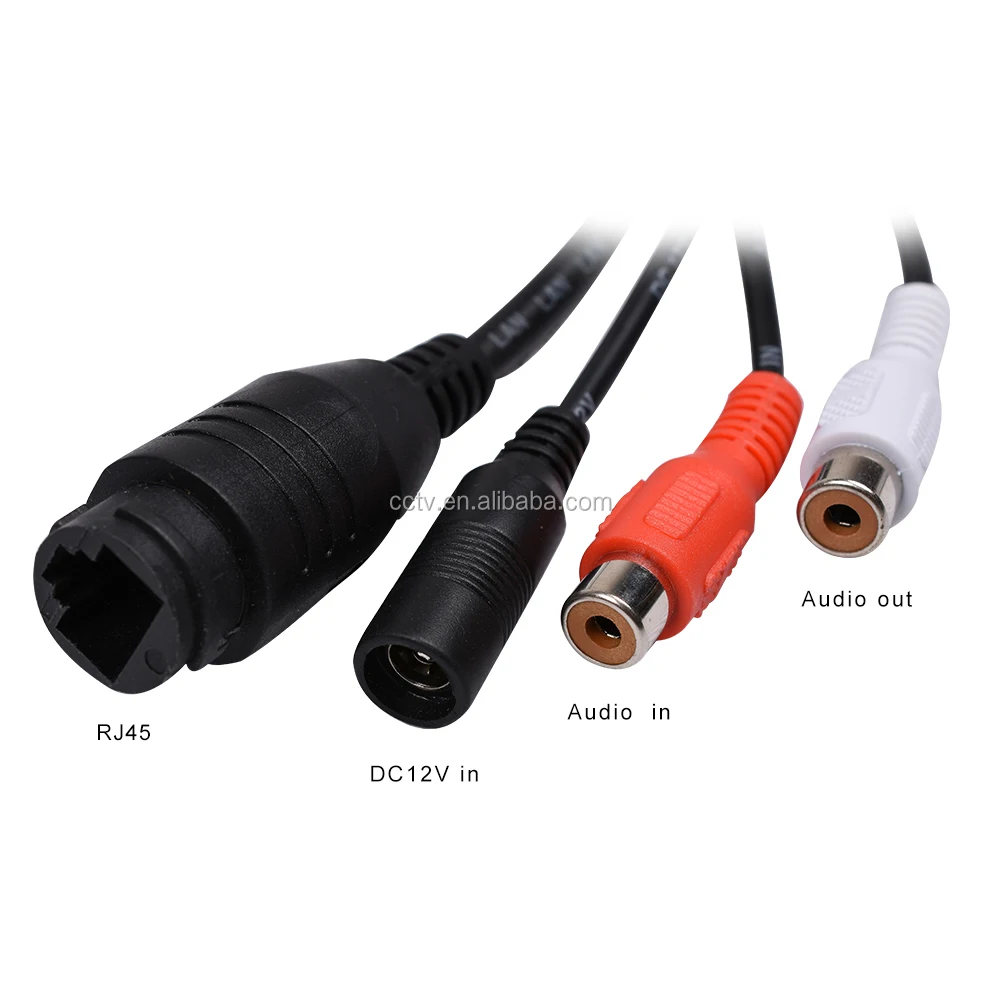

Power

DC12V/2A

Consumption

<22W

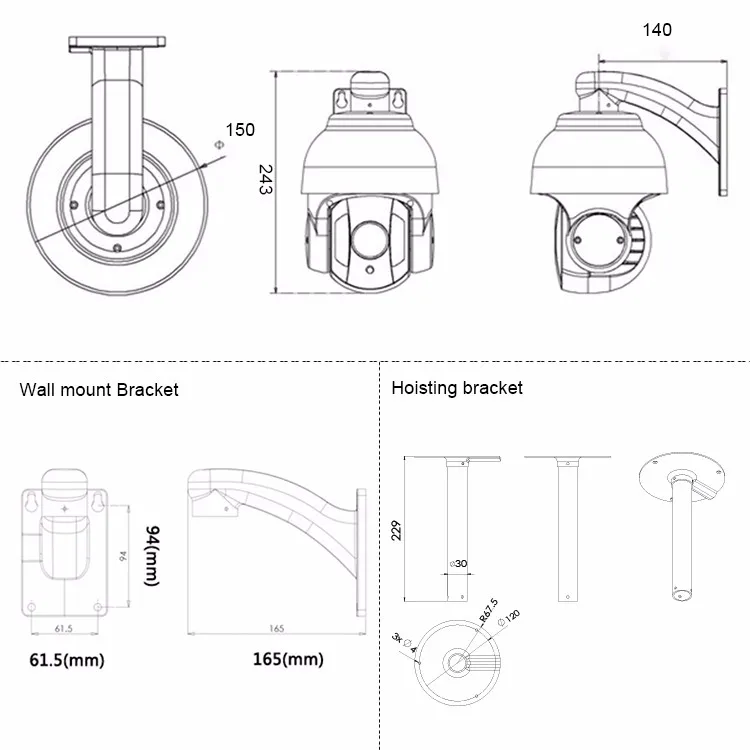

Mounting

Wall mounting or lifting

work environment

temperature :-20~60℃;humidity<90%

Protection level

IP66 waterproof,4000V lightning protection

GW

3.15KG
