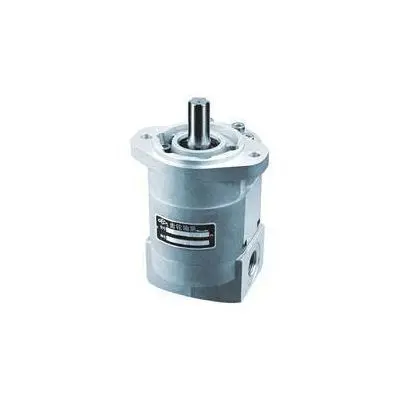

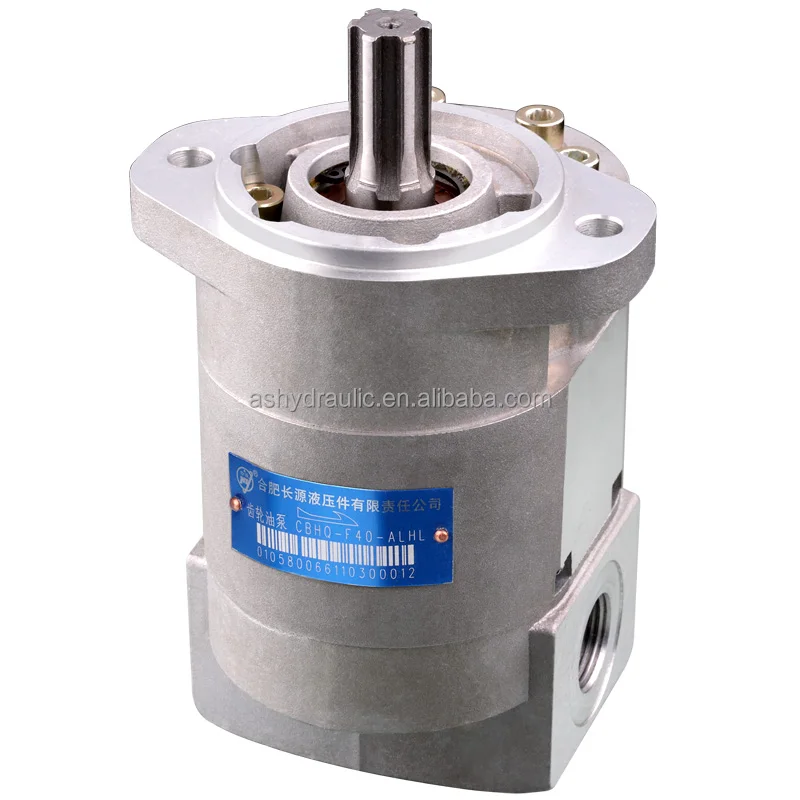

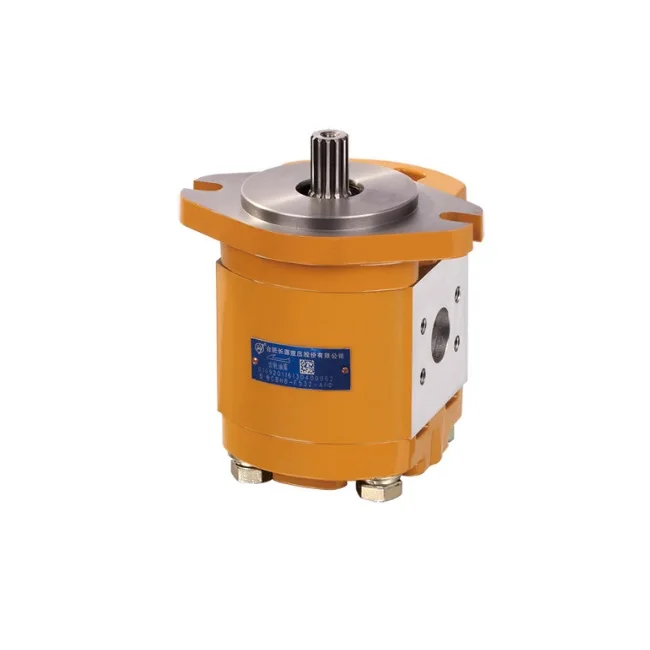

CBHQ series of CBHQ G22,CBHQ G26,CBHQ G27.2,CBHQ G30.6,CBHQ G32,CBHQ F36,CBHQ F40 single compound gear pump,forklift gear pump

Product Overview

Description

CBHQ series of CBHQ-G22,CBHQ-G26,CBHQ-G27.2,CBHQ-G30.6,CBHQ-G32,CBHQ-F36,CBHQ-F40 single compound gear pump,forklift truck gear pump

1. Won the first prize of technical progress of China's liquid gas seal industry in 2010
2. Many patent application under acceptance

3. The shell adopts the liquid extrusion molding process, and the bearing capacity is strong

4. Continous working pressure up to 25Mpa

5. Input shaft types: key, rectangular spline, SAE involute spline and metric involute spline

6. Oil inlet and outlet types:rear/rear,rear/side,side/side

7. Axial interval self compensation makes the pump work under high volumetric efficiency long time

8. CBHQ/F-G is designed for the hydraulic system of forklift truck

9.  It is compound of hydraulic gear pump and flow influence control valve

10. The products are widely used used in forklift trucks,cranes,bulldozers,loaders,excavators,

road roller, hydraulic platforms,special trucks and other industries such as mine,harbor,

metallurgical, light industry and agricultural industry

11. Very competitive price

12. 1 year of warranty



Some models for your reference:

CBHQ-G26-ALH	CBHQ-G27.2-ALH	CBHQ-G30.6-ALH	CBHQ-G32-ALH
CBHQ-F36-ALH	CBHQ-F40-ALH	CBHQ-G22-ALHL	CBHQ-G26-ALHL
CBHQ-G27.2-ALHL	CBHQ-G22-ALΦR	CBHQ-G26-ALΦR	CBHQ-G27.2-ALΦR
CBHQ-G3.6-ALΦR	CBHQ-G32-ALΦR	CBHQ-G22-ALHR	CBHQ-G26-ARHR

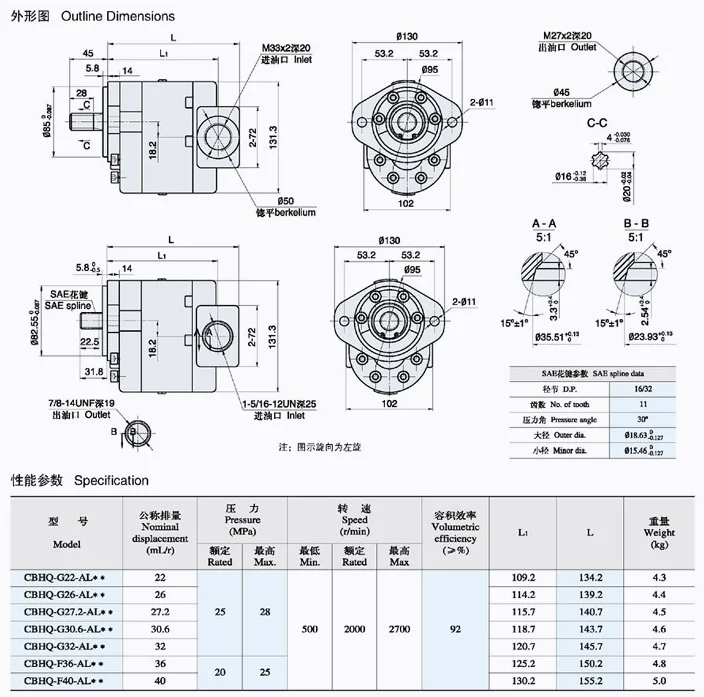

Technical Specifications:
