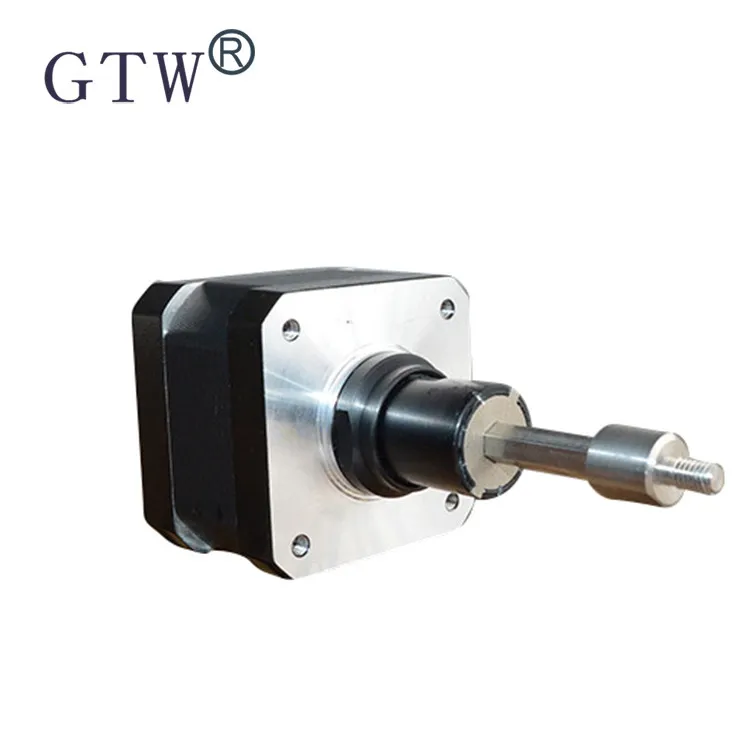

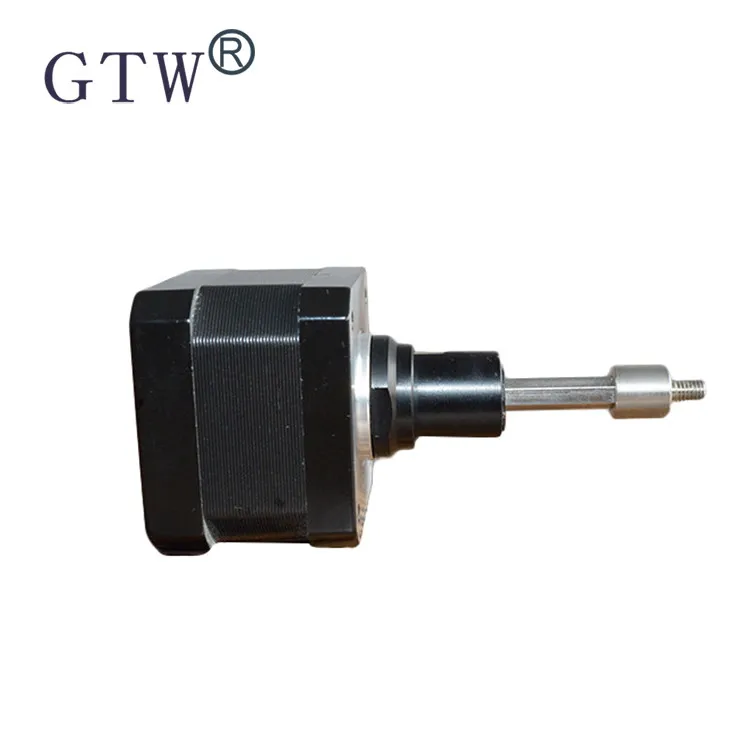

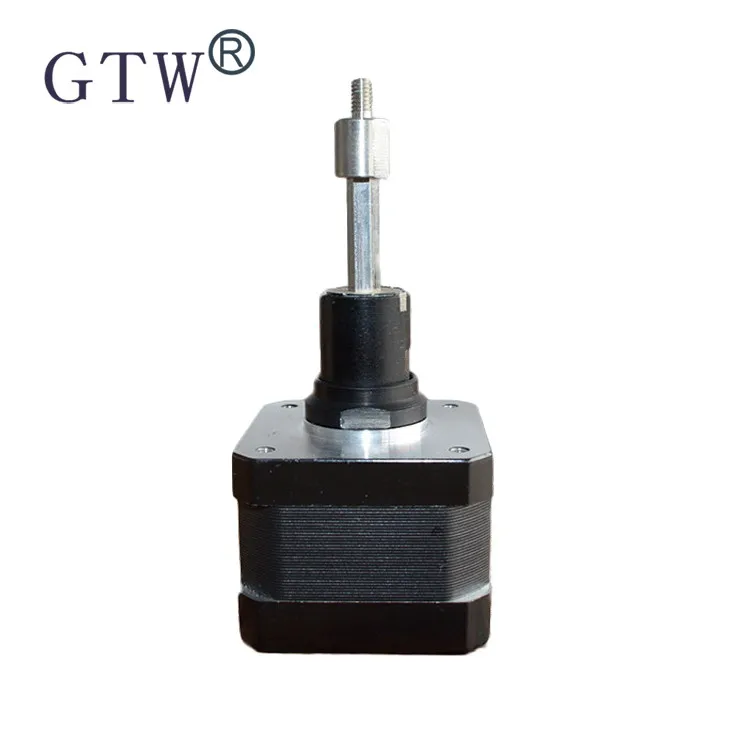

High quality nema 17 captive linear actuator stepper motor

Product Overview

Description

Item	Specification
Step Angle	1.8°
Step Angle Accuracy	±5% (full step,no load)
Resistance Accuracy	±10%
Inductance Accuracy	±20%
Temperature Rise	80°CMax.(rated current,2 phase on)
Ambient Temperature	-10°C~+50°C
Insulation Resistance	100MΩMin.  500VDC
Dielectric Strength	500VAC for one minute
Shaft Radial Play	0.06Max.(450 g-load)
Shaft Axial Play	0.08Max.(450 g-load)



Phase	Voltage	Current	Inductance	Resistance	Holding	Rotor	Weight	Length	Wire
No.					Torque	Inertia			No.
	V	A	mh ±20%	Ω ±10%	mN.m	g.cm ²	kg	mm
2	3.9	0.6	1.7	6.5	18	2	0.06	34	4
